Description:

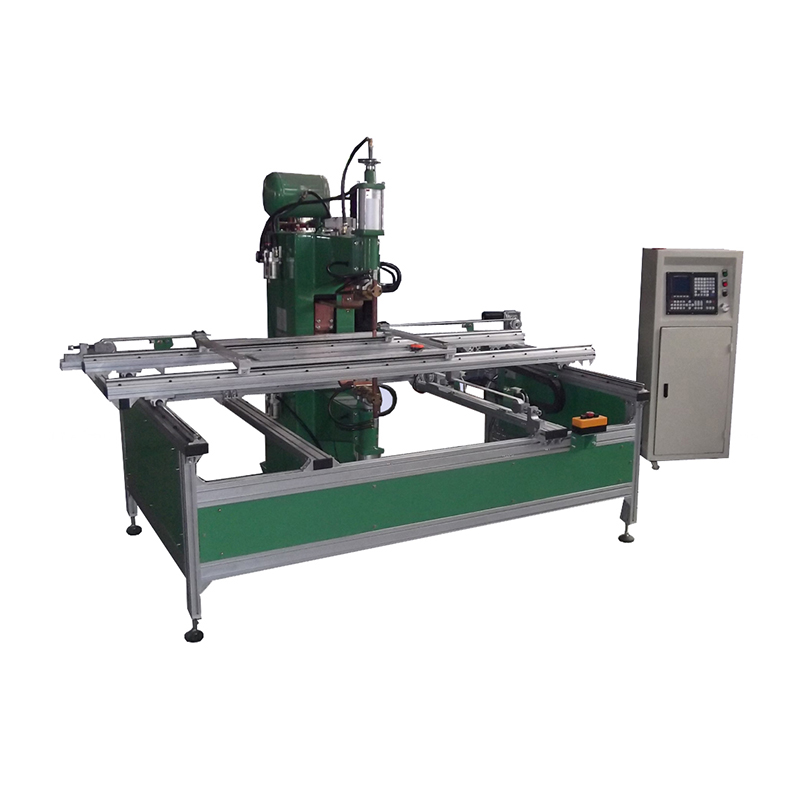

*Can come true two directions auto-weld & move of X and Y axes, without manual operation, controlled by PLC and touch screen, automaticity high, high efficiency.
*LCD controller, accurate, convenient and easy
* Adopt high quality parts and accessories, so equipments quality stable, lower fault rate and longer equipments life.
*Equipped with fast imported solenoid valve to make cylinders act faster, thereby weld speed is faster.
*Water cooling and fully copper core transformer so as to not easily burnout
*Machine body with thick steel sheet, not easy to deformation
It is easy to operate machine. Performance of machine is more steady, can be used 24 hours, lifetime 15 years.
Key parameters:
|
|
DNW-150-800 |
|
Rated capacity (KVA) |
150 |
|
Current type |
AC |
|
Control transformer |
AC |
|
Rated voltage (V) |
380±15% |
|
Rated frequency(HZ) |
50 |
|
Max. short circuit Current (KA) |
24 |
|
Duty cycle(%) |
20 |
|
Max. pressure(N) |
5315 |
|
Upper electrode Stroke (mm) |
60 |
|
Lower electrode Stroke (mm) |
40 |
|
Cooling water flow (L/min) |
4 |
|
Max. welding width (mm) |
450×800，600×800，or customized as requirements. |
|
Machine weight (Ton) |
1 |
|
Air pressure |
≥0.6mpa |
|
Insulation class |
F |
