Ⅰ-Application:
It's used for the stainless steel strip of Glass cover, Basket, Flour sieve,Enamel pot,Trash can,Steamer etc.The steel strip specification is 10-200mm width, 0.1-1mm thickness and material SS430/410/304/202/201,GI,Tinplate etc.
Ⅱ-Advantages:
1.Beautiful design appearance, small floor space
2.Built-in fiber continuous laser, No external space occupied.
3.Welding capacity 10-20 pcs/min., efficiency is higher
4.More suitable for seamless steel rings, the welding quality is better.
5.Succinct design of circuit, more stable and power saving,
6.No complicated operation, the operation in HMI is very simple, only need to set the percentage of laser.
Ⅲ-Model and specifications:
|
Item |
Machine Models |
||||
|
Machine model |
ZJ-GL1000-50A |
ZJ-GL1000-95A |
ZJ-GL1000-125A |
ZJ-GL1000-/185A |
ZJ-GL1000-200A |
|
Max welding width |
10-45mm |
30-90mm |
50-120mm |
70-180mm |
70-200mm |
|
Ring diameter |
φ90-2000mm |
φ90-2000mm |
φ90-2000mm |
φ90-2000mm |
φ90-2000mm |
|
Workpiece material |
SS430/410/304/202/201,GI,Tinplate etc |
||||
|
Welding thickness |
0.1-1.0mm |
0.10-0.5mm |
0.10-0.5mm |
0.10-0.5mm |
0.10-0.5mm |
|
Machine total power |
8KW |
8KW |
8KW |
8KW |
8KW |
|
Laser power |
1KW |
1KW |
1KW |
1KW |
1KW |
|
Input voltage |
AC380V/3P |
AC380V/3P |
AC380V/3P |
AC380V/3P |
AC380V/3P |
|
HZ |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
|
Duty cycle |
100% |
100% |
100% |
100% |
100% |
|
Working temperature |
0-45° |
0-45° |
0-45° |
0-45° |
0-45° |
|
Humidity |
≤85% |
≤85% |
≤85% |
≤85% |
≤85% |
|
Air pressure |
≤0.8MPa |
≤0.8MPa |
≤0.8MPa |
≤0.8MPa |
≤0.8MPa |
|
Cooling water pressure |
0.2-0.4MPa |
0.2-0.4MPa |
0.2-0.4MPa |
0.2-0.4MPa |
0.2-0.4MPa |
|
Production capacity |
10-30 pcs/min |
10-20pcs/min |
10-20pcs/min |
10-20pcs/min |
10-20pcs/min |
|
Machine weight |
1.3Ton |
1.35Ton |
1.35Ton |
1.4Ton |
1.5Ton |
|
Machine frame material |
high-quality steel plate |
high-quality steel plate & Alu. profile |
high-quality steel plate & Alu. profile |
high-quality steel plate & Alu. profile |
high-quality steel plate & Alu. profile |
|
Overall size |
L1580,W1170, H1900mm |
L1680,W1200,H1900mm |
L1680,W1200, H1900mm |
L1680,W1200, H1900mm |
L1680,W1200, H1900mm |
|
Chiller size |
720x490x855mm |
720x490x855mm |
720x490x855mm |
720x490x855mm |
720x490x855mm |
|
Chiller weight |
38kg |
38kg |
38kg |
38kg |
38kg |
|
Chiller power |
1500W |
1500W |
1500W |
1500W |
1500W |
|
Cooling water flow |
15L/min |
15L/min |
15L/min |
15L/min |
15L/min |
Ⅳ-Main configuration
1.Automatic forming servo tooling: self-made
2.Control system: Raynen
3.Laser generator: BWT/Max photonics
4.Cooling water chiller: Hangli

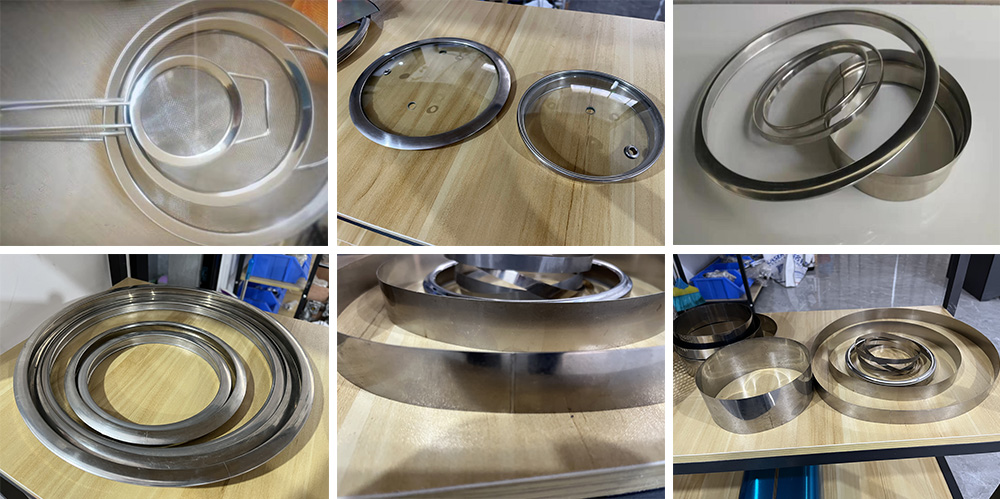

Ⅴ-Welding samples photos:
