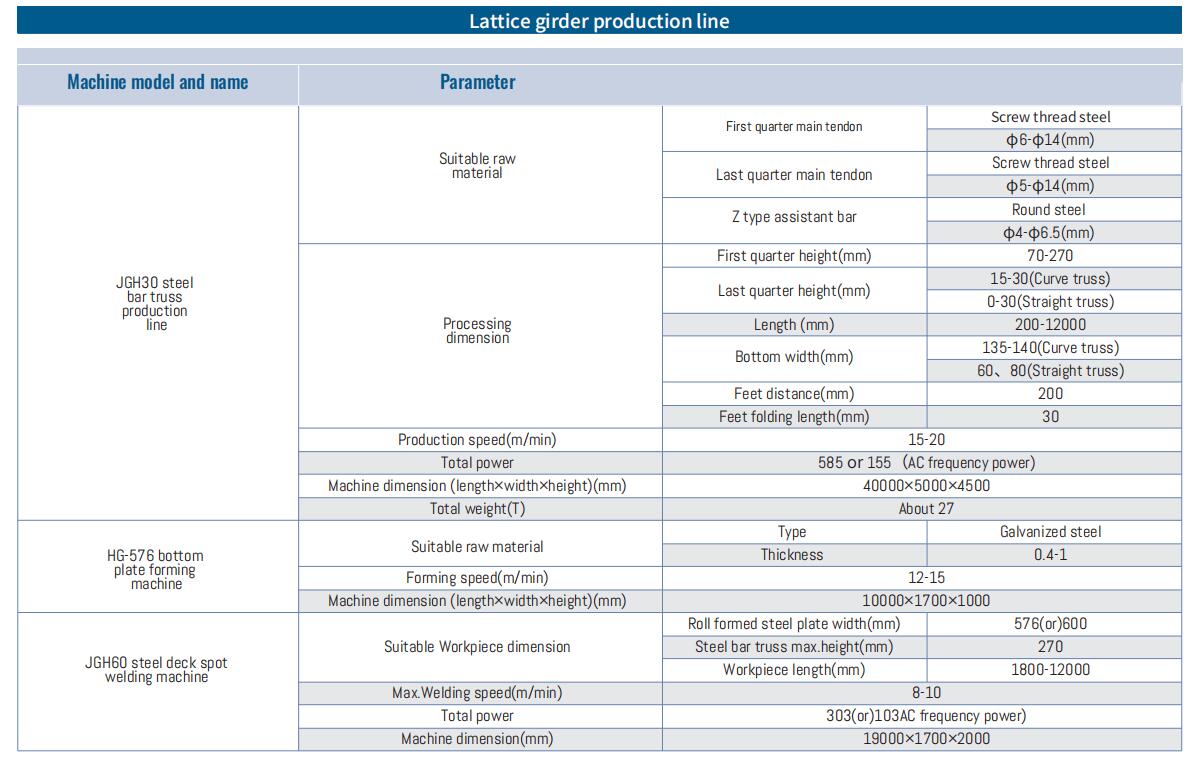

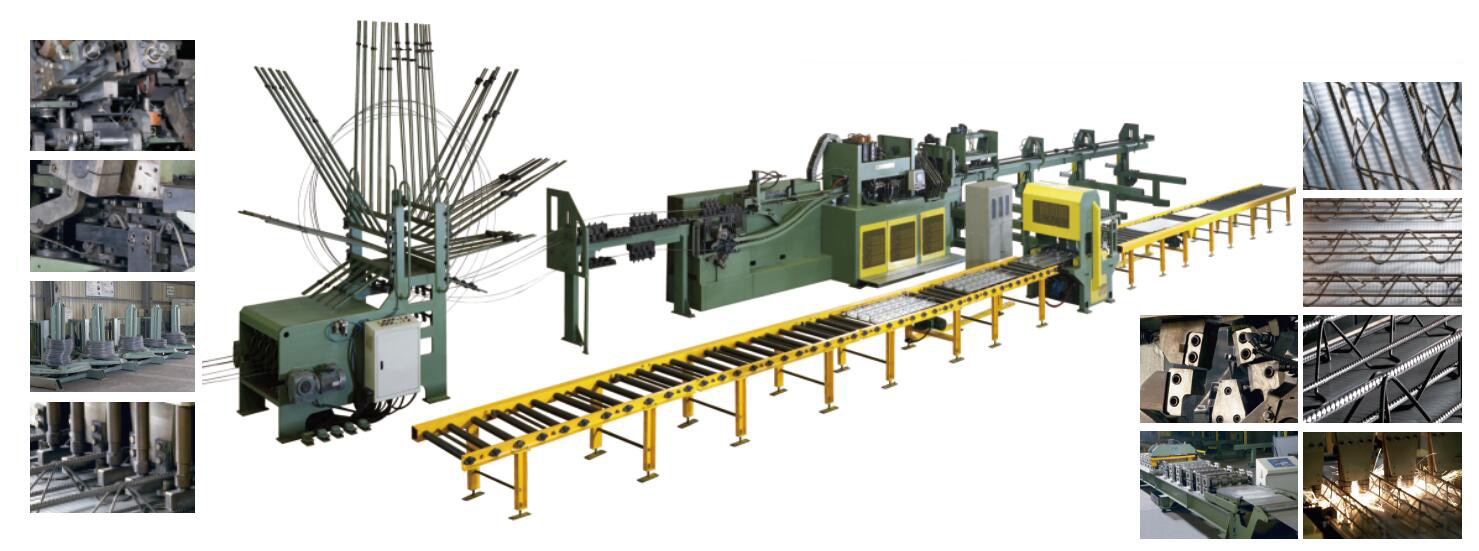

JGH self-supported steel deck whole set production line consists of truss welding line, bottom panel forming machine and steel

deck spot welding machine, combining mechanism, electricity, hydraulic and pneumatic with microcomputer control, it performs

whole set production process of steel moulding board's truss, galvanized steel forming and assembling & welding.The line's annual

single-round production capacity reaches 300,000 square meters.

JSelf -supported steel deck panel is a new type steel structural building material developed for steel construction industry in

recent years.It's now widely applied in steel structural floor deck, bridge, railway and many other places.It's featured by light struc

ture, high strength and factory production.This construction method of pourling concrete onto steel deck can reduce site workload

greatly and also shortens construction period.

Steel bar feeding→straightening→assistant bar bending→spot welding→feet bending→truss length-set cutting

Galvanized sheet decoiling→forming→panel length-set cutting

Galvanized sheet and truss assemble&feeding→spot welding→lattice girder products output
