Ⅰ. Description

1. It’s used for 100-500mm Aluminum pan

2. use Soyer brand model BMK-12W arc stud welding machine imported from Germany

3. it’s suitable for single ear and double ears welding, easy to change it and also can change the manual welding and automatic welding.

4. work process: loading by manual, cross positioning LOGO by laser, Can be used with laser to clean paint or stains, vibrating disk loading, automatic arc welding, Manual torque test, manual unloading

5. should use special slotted arc welding studs and use 99.999% pure argon during welding

6. The structure of the equipment is mainly divided into two parts, the left is the vibration disk that automatically feeds the material to the torch head (it can be lifted up and down according to the welding height of the pan), and the right is the fixture and control part which can swung left and right to adjust the welding angle, so that make up the angle insufficient

Ⅱ. welding process

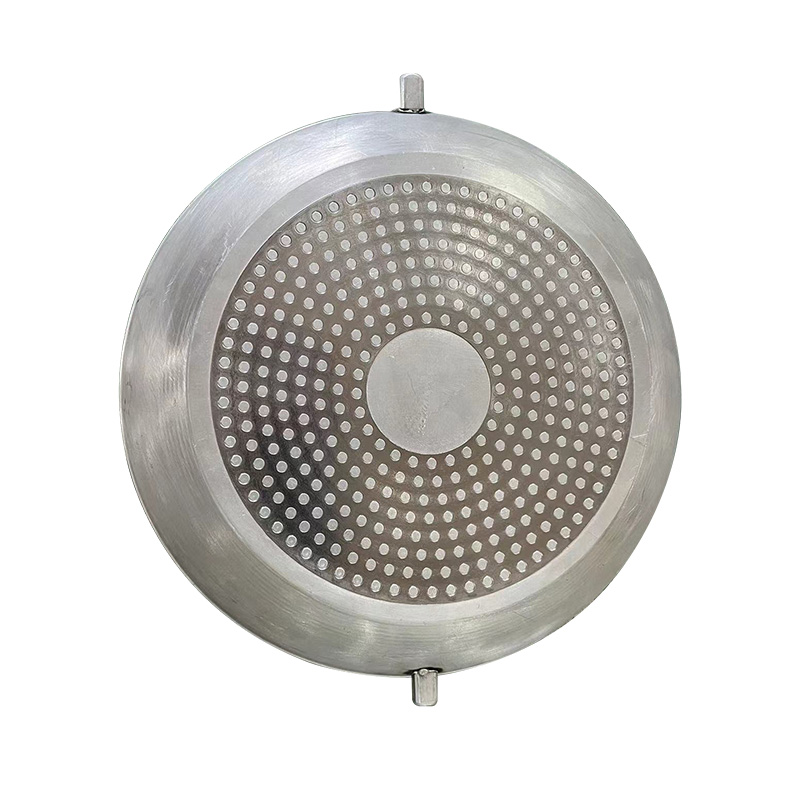

Welding pattern：(Both the ear buckle and the pan body are made of aluminum alloy. The pan body contains a variety of specifications from 100-500mm.)

Welding requirement: torsion after welding≥15N/M

Ⅲ.Power supply parameters

Ⅳ.welding torch parameters

Ⅴ.workbench

Ⅵ. Key parts introduction

Power supply : Soyer from Germany  Model :BMK-12W

Welding torch: Soyer brand PH-3N from Germany

Control system,Touch screen and PLC all are Touchwin

Electric components: Schneider

Pneumatic parts: AriTac
