Features:

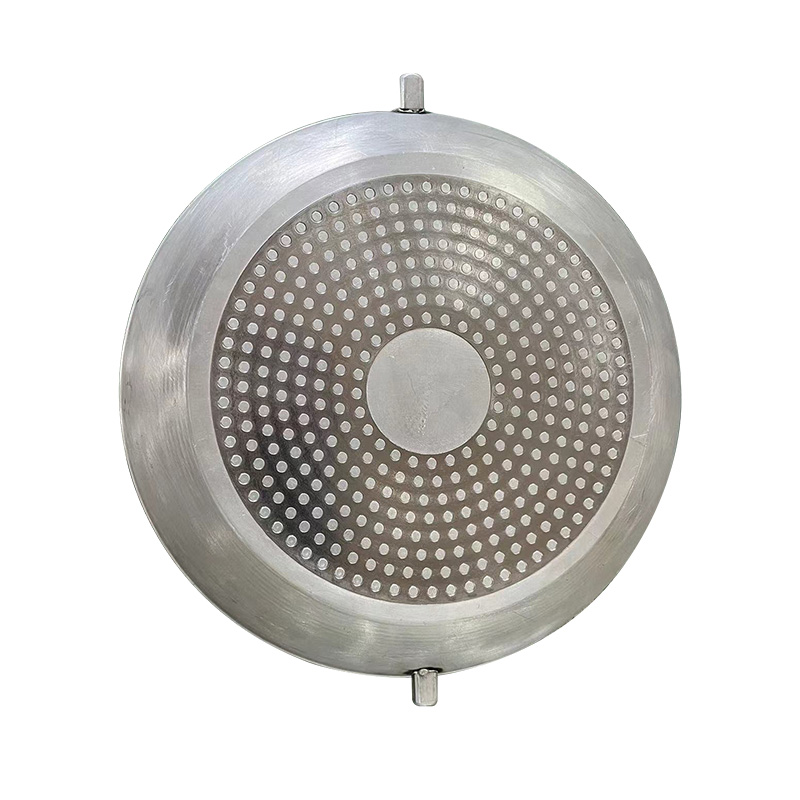

It is specially used for the stud welding of non-stick pan, main parts are imported, high quality and durable. The operation is easy, production capacity is higher. Its biggest advantage is no traces on the inner wall after welding 2mm around non-stick pan! Thereby protect coating on the inner wall, this point is very important to the pan. And the welding capacity is 2s/pc, torsion is up to about 17N/m, these features can not be reached by Drawn arc welding machine.

Key data:

Overall size: 1200X600X1400mm

Input voltage: 220V,50HZ

Working voltage: 40-160V adjustable

The max. Diameter of the pan: 480mm, can be customized

Weight: 300kg
