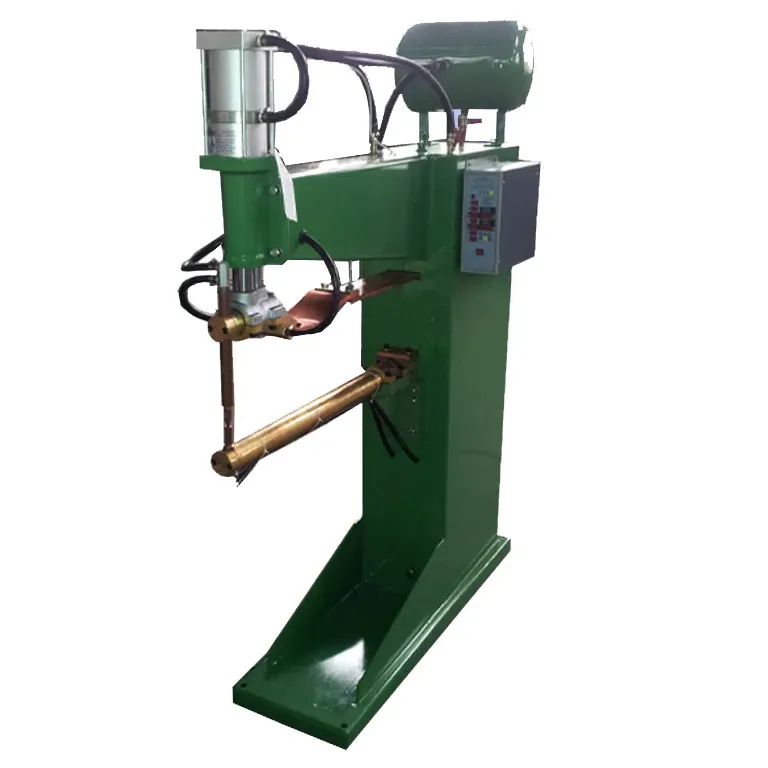

5 Reasons Your Resistance Welding Machine Isn’t Cutting It (And How We Fix It)

I hear the same complaint from shop owners and line operators again and again: the resistance welder starts to miss welds, the nuggets look uneven, the marks on the part get worse, and the whole process feels harder than it should be.

When that happens, I do not blame the machine right away. I look at the full setup.

A resistance welder usually gives clear warning signs before it fails a job. The weld may look good on one part and weak on the next. The electrode tips may stick. The metal may show burn marks. The cycle may sound normal, yet the joint still fails a pull test. I have seen this happen in battery tabs, wire mesh, brackets, appliance parts, and sheet metal work.

Most of the time, the problem comes from a small group of causes.

I start with the electrode tips.

A worn or dirty tip can ruin weld consistency fast. If the tip face is uneven, current flow changes. Pressure becomes uneven too. The weld then shifts from part to part.

I check for these signs:

• mushroom-shaped tips
• dark buildup on the contact face
• pitting or cracking
• uneven tip alignment
• loose holders

A shop I worked with had weak welds on thin steel clips. The team kept adjusting current settings, but the real issue was simple. One electrode tip had worn down more than the other. After tip dressing and alignment, the welds became stable again.

Heat is the next thing I look at.

A resistance welder needs stable cooling. If water flow drops, the tips overheat, the shunts lose efficiency, and the machine starts to drift. Some users notice the problem only after a long run. Early parts look fine. Later parts do not.

I ask the operator to check:

• water flow rate
• hose blockage
• loose fittings
• water leaks
• clogged filters
• temperature rise during long runs

I once visited a battery assembly line where weld quality changed every afternoon. The machine worked well in the morning, then got worse after several hours. The issue was weak cooling from a partly blocked line. Once the water path was cleaned, the output became much more stable.

Pressure matters just as much as current.

If electrode force is too low, the contact area becomes unstable. If it is too high, the material can deform or the nugget can grow in the wrong way. Many people chase power settings when the real issue is force.

I check:

• air pressure
• cylinder response
• spring wear
• pneumatic leaks
• arm movement
• part seating

I also watch the way the operator loads the part. If the workpiece sits crooked or shifts before the squeeze cycle ends, the weld will not repeat well. A good machine still needs a steady part position.

Material condition changes the result too.

Rust, oil, paint, oxide, and dust all interfere with current flow. A clean-looking part may still have a thin film that hurts weld strength. I have seen weld failures caused by oily fingerprints on stamped parts. The machine looked fine. The setup looked fine. The surface was not fine.

Before welding, I check whether the parts have:

• scale
• oil residue
• rust
• coating at the weld point
• burrs or sharp edges
• inconsistent thickness

A small change in sheet thickness can also affect the weld. If one batch runs slightly different from the last batch, old settings may no longer fit. I do not treat every coil, sheet, or tab as identical. That habit saves time and scrap.

Electrical contact is another point many teams miss.

Loose cables, damaged connectors, and poor grounding can all reduce performance. A welder may still run, but the energy delivery becomes unstable. The machine then needs more force or more time to reach the same result.

I inspect:

• cable joints
• transformer connections
• signs of heat on terminals
• grounding path
• switch contact wear
• control signal stability

If I see discoloration on a terminal, I treat it as a warning sign, not a small cosmetic issue.

Timing also affects weld quality.

If squeeze time, weld time, and hold time drift, the machine may still complete the cycle, but the weld result changes. A small timing error can cause spatter, weak fusion, or surface marking. I like to compare the actual cycle against the target cycle, not just the screen reading.

When I troubleshoot a resistance welder, I use a simple path:

• check the tip condition
• confirm cooling flow
• measure pressure
• inspect part surfaces
• review cable and terminal health
• verify timing settings
• test with a fresh sample

That sequence keeps me from guessing.

I also pay attention to the operator’s routine.

A machine can be solid, yet a rushed setup creates problems every shift. If one operator cleans the tips and another skips that step, weld quality will vary. If one person loads parts carefully and another forces the fixture shut, the results will change again. Process habits matter.

My advice is simple: keep the welder, the part, and the setup under the same level of care.

A resistance welder rarely “lets you down” without giving clues. Weak welds, poor repeatability, and surface damage usually point to tip wear, cooling trouble, pressure drift, dirty material, loose electrical contact, or timing issues. I solve the problem faster when I treat it as a system check, not a single-machine fault.

If I had to give one habit that helps most shops, it would be this: inspect the small things before they become expensive things. That approach keeps the welds steadier, the scrap lower, and the line easier to manage.

When my welds come out weak, I do not blame the machine first.

I look at the basics.

Most bad welds come from the same small problems: dirty metal, poor fit-up, wrong heat, weak shielding gas, or a rushed hand. I have seen a simple bracket crack because someone welded over paint and rust. I have also seen a clean joint hold under load because the prep was careful and the pass stayed steady. The difference is not magic. It is habit.

Here is the way I fix weak welds in a simple, repeatable way.

I clean the joint before I strike the arc.

Oil, rust, mill scale, and paint all fight the weld. They trap gas, leave pores, and make the bead look fine while the joint stays weak inside. I use a wire brush, grinder, or flap disc until the metal looks bright and even around the weld area.

A quick example: I once helped repair a steel gate hinge that kept cracking. The old weld had gone over surface rust. After I ground both sides clean and rewelded the joint, the hinge stopped failing. The tool did not change. The prep did.

I check the fit-up.

A gap that is too wide can drain heat and filler. A joint that is too tight can leave no room for good fusion. I want the parts to sit where they should, with steady contact and a clear weld path.

When I work on light brackets, I tack them in place, step back, and look at the alignment before I continue. A small shift at this stage can save a bad weld later.

I match the heat to the metal.

Too little heat gives poor fusion. Too much heat burns through the edge and leaves a rough, weak joint. I set the machine, test on scrap, and watch the puddle. The puddle tells me a lot. If it sits on top, I need more heat or slower travel. If it drops too fast or gets hard to control, I back off.

I keep my travel speed steady.

A fast hand leaves a thin bead with shallow fusion. A slow hand can pile up metal without tying both sides together. I aim for a smooth pace that lets the puddle wet into both edges.

I notice this most on thin tubing. If I move too fast, the weld looks neat but does not hold well. If I slow down and keep the torch angle steady, the bead sinks in better and the joint feels stronger after cooling.

I watch the angle of the torch or electrode.

A poor angle can push the weld pool away from one side. I keep my hand comfortable and my work angle consistent. I do not twist at the wrist too much. I let the joint guide me.

Small angle changes matter a lot on corners and lap joints. A slight tilt can change how the heat spreads.

I keep the shielding gas steady.

If I use MIG or TIG, I check gas flow, leaks, nozzle buildup, and drafts around the work area. A weak gas shield can cause porosity and ugly beads that hide a weak core. I also clean spatter from the nozzle so gas can flow the way it should.

I once saw a nice-looking weld on a shop cart fail a bend test. The cause was simple: a loose gas line near the torch. The outside looked fine. The inside told a different story.

I use the right filler.

A filler that does not match the job can make the weld behave in the wrong way. I choose the wire or rod based on the base metal and the joint needs. I do not treat every job the same.

I also check storage. Damp rods and dirty wire can ruin good work. Dry, clean filler gives me fewer surprises.

I tack more than I think I need.

Tacks hold the joint in place and help control movement from heat. Without them, parts can shift and open gaps while I weld. I place tacks where they help the final pass, not where they block it.

On a long frame repair, I tack at several points, check the shape, then weld in short sections. That keeps the part from pulling out of line.

I clean between passes.

A strong weld often needs more than one pass. I chip slag, remove spatter, and brush the surface before I add more metal. If I leave trash between layers, I trap weak spots inside the joint.

This matters a lot on thicker steel. A clean second pass ties into the first pass much better than a pass laid over debris.

I inspect the bead while I work.

I do not wait until the end to notice a problem. I look for undercut, porosity, rough edges, and poor tie-in as I go. If the weld starts to look off, I stop and adjust. A small correction now saves a larger repair later.

I trust test pieces.

Before I work on the real part, I run a test on scrap with the same thickness and same settings. This gives me a fast read on heat, speed, and bead shape. It also lowers the chance of wasting material on the actual job.

That habit has saved me on repair work many times. A test bead on scrap tells me more than guessing ever will.

I keep my body position stable.

Bad posture makes bad welds. If I lean too far, my hand shakes more and the arc wanders. I set the part at a height that feels natural when I can. If I cannot move the part, I move myself so I can stay steady.

A steady body helps a steady bead. A steady bead helps a stronger joint.

I do not rush the cool-down.

Some joints need time before handling or loading. I let the metal settle, then check the weld after it cools. Heat can hide shape problems while the metal is still hot. Once it cools, flaws show more clearly.

If I need a joint for a fence, a cart, or a frame repair, I want it to hold after the work is done, not only while it is still warm on the bench.

My short rule is simple: clean metal, good fit, right heat, steady motion, and careful checks.

That is how I get stronger welds more often.

Not perfect every time. No one does. But better. More consistent. Easier to trust.

If I had to choose one habit that helps the most, I would choose prep. Clean the joint, set it up well, and the rest becomes easier. The weld has a fair chance to do its job.

Weak welds usually do not come from one single mistake. I have seen jobs fail because the metal was dirty, the settings were off, the torch angle drifted, or the joint fit-up was poor. A weld can look fine on the surface and still break under load. That is the part many people miss.

When I look at a weak weld, I do not start by blaming the machine. I start by checking the full process. A bad weld is often a chain of small issues, and each one leaves a mark on strength.

I have seen this on a trailer repair job. The bead looked smooth, yet the joint cracked near the edge after a short period of use. The problem was not the bead shape alone. The root area had rust, the gap was uneven, and the heat input was too low for full fusion. The weld sat on top of the metal instead of tying into it.

What usually goes wrong:

1. Dirty base metal

Oil, rust, paint, mill scale, and moisture can block proper fusion. I always clean the joint before I strike an arc. A wire brush is not enough for every job. Sometimes I need a grinder, solvent, or both. If the surface still looks dull, I clean it again.

1. Poor fit-up

If the parts do not meet well, the weld has to work too hard. Large gaps, mismatched edges, and uneven clamping can weaken the joint. I check alignment before welding starts. A small fit-up problem can grow into a real failure point after the part goes into service.

1. Wrong heat settings

Too little heat can leave a cold weld that sits on the surface. Too much heat can burn through or weaken the metal around the joint. I watch the weld pool closely and match the heat to the metal thickness, process, and joint type. The right setting changes from one job to the next.

1. Travel speed that is too fast or too slow

If I move too fast, the weld may not fuse well. If I move too slow, the bead can pile up and create poor shape or excess heat. I keep my movement steady and watch how the puddle behaves. The puddle tells me more than the bead after the fact.

1. Wrong angle or arc length

A poor torch angle can push heat away from the joint. A long arc can cause spatter, weak shielding, and rough fusion. I keep the angle controlled and stay consistent. Small changes here can affect the final result more than people expect.

1. Shielding gas or filler problems

Gas flow that is too low can let air into the weld. Gas flow that is too high can also cause trouble by pulling air into the stream. The wrong filler metal can bring its own issues. I check the wire, rod, gas, and delivery setup before I weld. If any part of the setup feels off, I stop and inspect it.

1. No joint prep plan

Some joints need a bevel, some need backing, and some need more than one pass. I do not treat every weld the same. A thick section needs a different approach than a thin sheet. If I skip the prep step, I usually pay for it later.

Here is the method I use when I want stronger welds:

• Clean the metal until the joint is free of rust, paint, oil, and loose scale
• Check the joint fit and clamp the parts so they stay aligned
• Match the process, wire, rod, and gas to the material
• Set heat and wire feed for the thickness I am working on
• Watch the puddle, not just the bead shape
• Keep my travel speed steady
• Inspect the weld after it cools
• Test the part under the load it will actually face

I also pay attention to the signs that show up during welding. A popping sound, heavy spatter, a narrow bead, undercut, lack of fusion, or a dull surface can point to trouble. I do not ignore those signs. I stop, check the setup, and correct the problem before I keep going.

A small fix can make a big difference. I once reworked a frame patch where the original weld had poor fusion along one side. The bead looked neat, yet the joint had almost no tie-in at the root. After I cleaned the metal, changed the bevel, and adjusted the heat, the repair held much better. The lesson stayed with me. Strong welds start long before the arc.

If I want to stop weak welds, I do not chase the bead alone. I check the metal, the fit, the settings, the angle, and the flow of the whole job. That is where the real answer usually sits.

I know how frustrating it feels when a welder starts acting up in the middle of a job.

The arc flickers.
The wire feed skips.
The weld looks rough, and the whole job slows down.

When I see this problem, I do not rush to replace the machine. I start with the simple checks that often bring a welder back into good working shape. In many cases, the issue is smaller than it looks.

I begin with the power source. A loose plug, a weak outlet, or a damaged cable can make the machine seem worse than it is. I also check the ground clamp. A poor ground can cause weak arc starts, extra spatter, and uneven welds.

Then I look at the wire feed system. If the wire jams, the liner may be dirty, the drive rolls may be worn, or the tension may be set too tight. I have seen shops lose a full afternoon because a small feed issue was ignored. In one case, a local fabrication worker thought the power board had failed. The real problem was a worn contact tip and a dusty liner. After a basic clean and part swap, the weld ran smoothly again.

Heat is another common problem. If the welder shuts down or feels weak after a short run, I check airflow, fan movement, and dust inside the unit. A machine that cannot breathe well will struggle. I clean the vents, clear debris, and make sure the fan is doing its job.

I also look at the consumables. A worn nozzle, a damaged contact tip, or the wrong wire size can change the weld quality very quickly. These parts cost less than most people expect, yet they affect the result every day.

My repair process usually follows a simple path:

• Check the power cable, plug, and outlet
• Inspect the ground clamp and work lead
• Test wire feed, liner, and drive rolls
• Replace worn tips, nozzles, or liners
• Clean dust from vents and internal parts
• Run a test bead and watch the arc behavior

I like this process because it keeps the work practical. I do not guess. I look at the symptom, trace the cause, and fix the part that is really causing the trouble.

If you run a repair shop, a small metal shop, or a job site crew, you already know that a welder problem can slow everything else down. A clean check list saves time, saves parts, and helps the machine work the way it should.

That is the way I handle it: simple checks, clear steps, and a test weld before I call the job done.

For any inquiries regarding the content of this article, please contact Bob Zhang: bob@xinchang-machinery.com/WhatsApp +8615888002607.

1. J R Davis, 1994, Welding: Principles and Applications

2. S Kou, 2003, Welding Metallurgy

3. ASM International, 2011, ASM Handbook Volume 6 Welding Brazing and Soldering

4. O Grong, 1997, Metallurgical Modelling of Welding

5. AWS Committee on Resistance Welding, 2019, Resistance Welding Manual

6. M A Laird, 2021, Troubleshooting Weld Quality Problems in Industrial Production
