Hate Downtime? Friction Welding Cuts It by 40%.

When production stops, the cost is not limited to a repair bill. A stalled line can delay orders, leave operators waiting, interrupt material flow, and push maintenance work into the next shift.

Friction welding can help reduce these interruptions when the joint design, machine setup, and maintenance plan are suitable. A 40% reduction in downtime may be possible in some production settings, but it should be treated as a project target rather than a guaranteed result. The actual outcome depends on the existing process, part design, equipment condition, and data quality.

I look at downtime from three points:

• How often the line stops
• How long each stop lasts
• Why the stop happens

This approach gives me a better view than focusing only on the welding cycle.

Why friction welding can reduce downtime

Friction welding joins materials through controlled pressure and movement. The parts generate heat at the contact surface, then form a bond when the machine applies forging pressure.

The process does not rely on filler metal, shielding gas, or an open welding arc. That can remove several sources of delay found in some conventional welding operations.

A production team may see fewer interruptions linked to:

• Gas supply changes
• Filler wire replacement
• Electrode wear
• Spatter cleanup
• Long heat-up periods
• Repeated weld repairs
• Manual adjustment between parts

Rotary friction welding is often used for shafts, rods, tubes, valves, and other round components. Linear friction welding may suit parts with flat or shaped contact surfaces. The right method depends on the part geometry and the required joint strength.

Start with a downtime review

I would not recommend changing the welding process based on one difficult shift. The first step is to collect production records for several weeks.

Track:

1. Machine stoppage time
2. Weld cycle time
3. Setup time
4. Tool changes
5. Rework and rejected parts
6. Inspection delays
7. Maintenance calls
8. Material changes

A simple log can reveal patterns. For example, a line may appear to have a welding problem when the larger delay comes from fixture alignment or part loading.

A useful calculation is:

Downtime percentage = Total stoppage time ÷ Planned production time × 100

After this baseline is recorded, the team can compare the current process with a friction welding trial.

Check whether the parts are suitable

Friction welding is not a universal replacement for every welding method. I review several factors before planning a trial:

• Material type
• Material combination
• Part diameter or contact area
• Required joint strength
• Alignment tolerance
• Flash removal needs
• Available machine force and speed
• Inspection requirements

Steel, aluminum, copper, titanium, and some mixed-material combinations can be friction welded under suitable conditions. The process window must be confirmed through testing. Material behavior can change with surface condition, part size, and machine settings.

The part design also matters. A component may need a small change in geometry to support stable clamping and consistent contact. That change can have a greater effect on uptime than a faster welding cycle.

Run a controlled production trial

A controlled trial should use production material, normal operators, standard fixtures, and the same inspection rules used for regular output.

Record:

• Cycle time per part
• Number of operator interventions
• Fixture changes
• Weld defects
• Rework hours
• Tool life
• Machine alarms
• Planned and unplanned stops

I prefer comparing similar batches instead of comparing one test shift with one older shift. This gives the team a more balanced view of the process.

A vehicle component supplier, for example, may compare 1,000 shaft assemblies made with its existing method against 1,000 assemblies made with rotary friction welding. The review should include more than welding speed. Loading time, inspection, flash removal, maintenance, and rejected parts all affect the final downtime result.

Build maintenance into the process

Friction welding can reduce some consumable-related delays, but the machine still needs regular care.

Maintenance teams should monitor:

• Spindle or actuator condition
• Hydraulic pressure
• Fixture wear
• Clamping force
• Alignment
• Tooling surfaces
• Temperature and vibration
• Machine control alarms

A worn fixture can create inconsistent joints and longer setup times. A misaligned part can increase scrap and force repeated checks. Preventive maintenance should be based on machine data and production history rather than a fixed calendar alone.

Use inspection data to protect uptime

A faster process does not help if it creates more rework. Weld quality checks should match the risk of the part.

Possible methods include:

• Visual inspection
• Dimensional checks
• Torque testing
• Tensile testing
• Ultrasonic testing
• Metallographic review for process validation

The inspection plan should identify problems early. If several parts show the same change in flash shape, torque, or alignment, the team can investigate before a larger batch is affected.

How to measure a 40% improvement

A clear target needs a clear calculation.

If a line previously lost 50 hours each month and later lost 30 hours, the reduction would be:

(50 − 30) ÷ 50 × 100 = 40%

The team should define what counts as downtime before the trial begins. Some plants count only unplanned stops. Others include setup, inspection waits, changeovers, and minor stops.

I recommend reporting these categories separately. This prevents a process from appearing better simply because certain delays were removed from the report.

Friction welding can support lower downtime when it is matched to the right parts and managed with reliable production data. The strongest results usually come from a complete review of welding, tooling, inspection, and maintenance rather than from changing one machine setting.

A practical path is simple: measure the current loss, confirm part suitability, run a controlled trial, track the full production cycle, and adjust the target to match the evidence. A 40% reduction may be achievable for some lines. The data should decide whether it is realistic for yours.

Every hour of downtime puts pressure on the whole operation. Orders wait, teams lose time, and customers may receive updates instead of products. Many companies respond by pushing people to work faster, yet the deeper issue often sits in unclear maintenance routines, slow fault reporting, or repeated equipment problems.

I look at downtime as a process problem, not only a machine problem.

When a line stops, the first question should not be, “Who caused this?” It should be, “What made the stop last so long, and why did the same issue return?”

A practical downtime plan starts with clear data.

I record each stop with four details:

• The machine or process affected
• The start and end time
• The reason for the stop
• The action taken

This simple record helps separate short interruptions from major failures. A five-minute sensor issue needs a different response from a three-hour motor replacement. Without this detail, teams often rely on memory, and memory rarely shows the full pattern.

The next step is to focus on the losses that happen most often.

A useful review may show that one machine causes many small stops while another creates fewer but longer delays. Both affect output, but they need different solutions. Short stops may point to poor material flow, loose connections, or repeated adjustments. Long stops may require spare parts, specialist support, or a change in preventive maintenance.

I prefer to solve the repeat problem before adding more people or longer shifts.

A maintenance schedule can help when it matches the way equipment is used. A machine running around the clock may need checks at different intervals from a machine used for one shift each day. The schedule should cover areas such as:

• Cleaning and inspection
• Lubrication
• Wear parts
• Electrical connections
• Software or control settings
• Safety checks

Each task should have a clear owner and a simple record. A long checklist that no one completes does not reduce downtime. A shorter routine that the team follows can reveal problems before they stop production.

Fast communication also matters.

When an operator sees an unusual sound, temperature change, leak, or repeated error, the report should reach the right person without delay. Toyota’s Andon practice is a well-known example of giving operators a direct way to signal a problem on the line. The value is not the signal itself. The value comes from the response that follows.

A notification system only helps when someone reviews it, decides what to do, and records the result.

Spare parts deserve the same level of attention. A missing belt, sensor, fuse, or bearing can extend a small repair into a long delay. I check which parts are used often, which parts have long supplier lead times, and which items can be replaced with approved alternatives. Stocking every possible part is not practical. Keeping the parts linked to common failure points is more useful.

Staff training can reduce delays as well. Operators do not need to become maintenance engineers, but they should know what a normal machine looks, sounds, and feels like. They can learn how to stop equipment safely, capture useful information, and avoid actions that may cause further damage.

A packaging team, for example, may notice that a conveyor stops several times during each shift. A quick fix may involve restarting the system. A closer review could show that cartons are entering at an uneven angle, causing a sensor to trigger. Adjusting the guide rail and checking the sensor position may reduce the repeated stops more effectively than asking the operator to restart the conveyor faster.

I also measure the effect of each change. Useful measures include:

• Total downtime hours
• Average repair time
• Number of repeated failures
• Planned maintenance completed
• Output lost during each stop

These figures help the team see whether a repair solved the cause or only restored the machine for a short period.

Less downtime does not come from one large action. It grows from better records, faster reporting, suitable maintenance, available parts, and a team that knows how to respond. When each stop becomes a source of useful information, the operation can produce more without placing constant pressure on people.

The goal is not to promise that every interruption will disappear. The goal is to make failures easier to detect, easier to repair, and less likely to return. That is how a business can protect output while building a more stable daily operation.

When production slows, the problem is not always a machine breakdown. A weak joint, long cooling time, repeated rework, or difficult material handling can also hold a line back. I have seen manufacturers focus on cutting speed while the real delay came from the joining process.

Friction welding gives production teams another way to connect metal parts. It uses heat created by motion and pressure rather than an open flame or added filler metal. The process can support stable output when the joint design, material pairing, and machine settings match the job.

How friction welding supports steady production

Friction welding joins parts through controlled contact. One component rotates, moves, or oscillates against another under pressure. Friction creates heat at the joint area. When the material reaches a suitable plastic state, the machine stops the motion and applies forging pressure.

The joint forms through solid-state bonding. The base metals do not need to melt across the full interface, which can help reduce some problems linked with traditional fusion welding.

For a production team, the practical value often appears in four areas:

• Repeatable cycle control
• Low use of consumable materials
• Short heating zones
• Easy connection with automated handling

A factory producing shafts, tubes, valves, or tool components may use friction welding when the same joint must be made many times with stable process control.

The process starts with the joint design

I do not recommend selecting a friction welding machine before checking the part design. The joint controls much of the production result.

A suitable design should answer these questions:

• What materials will be joined?
• What are the part diameters and wall thicknesses?
• Can one part rotate or move during welding?
• How much flash can the finished part accept?
• Will the joint face a bending, torsion, pressure, or impact load?
• Does the part need post-weld machining?
• Can the finished assembly fit the existing production line?

Round parts are often a natural fit for rotary friction welding. Linear friction welding may suit components that cannot rotate. Friction stir welding can be used for selected plate, sheet, and extrusion applications where a rotating tool travels along the joint.

The best process choice comes from the part and the production target, not from a general preference for one welding method.

Material pairing needs close review

Friction welding can join many metal combinations, yet every pairing needs testing. Differences in hardness, melting behavior, thermal expansion, and surface condition can affect the joint.

Steel-to-steel connections are common in industrial production. Aluminum alloys, copper alloys, titanium, and selected dissimilar metal combinations may also be processed with the right equipment and parameters.

A supplier or process engineer may review:

1. Material grades and heat treatment
2. Part dimensions and tolerance
3. Required joint strength
4. Surface preparation
5. Axial force and rotational speed
6. Burn-off allowance
7. Flash removal needs
8. Inspection method

The interface must remain clean enough for the process to work. Oil, heavy oxidation, loose scale, or poor alignment can reduce joint consistency.

Cycle control keeps the line predictable

Production managers usually need more than a strong weld. They need a process that behaves in the same way from one cycle to the next.

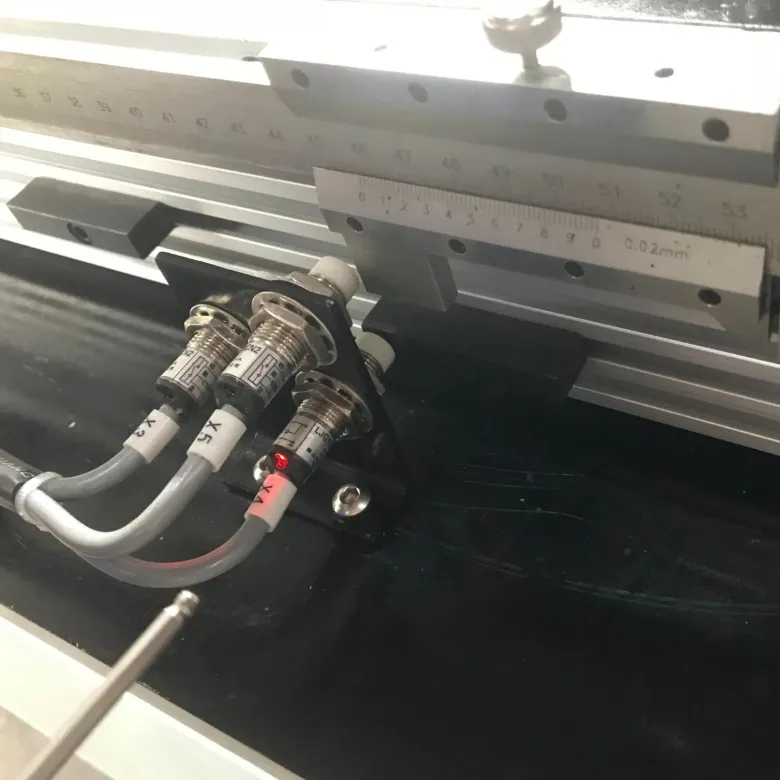

Friction welding machines can monitor values such as:

• Spindle speed
• Friction force
• Forge force
• Displacement
• Torque
• Welding time
• Upset or burn-off length

These readings help the team compare accepted parts with rejected parts. A sudden change in displacement may point to a material issue, incorrect part length, poor clamping, or a tooling problem.

I prefer a process plan that connects machine data with a clear inspection response. If a cycle falls outside the approved range, the operator should know whether to hold the part, check the tooling, or call for engineering support. Data has more value when it leads to a practical action.

Less filler material can simplify the work

Traditional welding may require wire, shielding gas, flux, or other consumables. Friction welding often forms the joint without adding filler metal. This can reduce the number of materials that need to be stored and monitored.

The process can also produce a narrow heat-affected area compared with some fusion methods. That may help when the surrounding material must keep its original properties. The actual result depends on the alloy, joint size, machine settings, and heat treatment after welding.

Friction welding still creates flash at the joint in many applications. The flash may need trimming, turning, grinding, or another finishing step. I always include that operation when calculating the full cycle time. Ignoring post-weld work can make a fast welding cycle look more productive than it is.

A practical production example

Consider a plant making steel drive shafts for industrial equipment. The shaft body and end fitting must stay aligned while handling torque during service.

A production team may face several issues with a conventional joining method:

• Long heating time
• Distortion near the joint
• Added filler material
• More manual inspection
• Rework caused by alignment changes

The team tests rotary friction welding with controlled clamping and automatic flash removal. The new setup does not remove every production concern. The parts still need correct machining, material verification, and joint inspection. The plant gains a more defined cycle, fewer consumable handling tasks, and a clearer link between machine data and weld acceptance.

This example shows why process selection should include the whole line. A welding method may perform well at the joint but create a bottleneck at trimming, inspection, or material loading.

Automation can help protect output

Friction welding works well with automated part loading when the component shape is consistent. Robots or dedicated loaders can place parts into fixtures, transfer welded assemblies, remove flash, and send parts to inspection.

Automation planning should cover:

• Part orientation
• Fixture access
• Clamp timing
• Safe loading and unloading
• Flash collection
• Error detection
• Operator access for maintenance

A manual station may suit low-volume work or frequent product changes. A dedicated automated cell may fit stable, repeat production. I advise manufacturers to compare the expected part mix before choosing the equipment layout.

A machine that runs quickly but waits for an operator between cycles will not deliver the same output as a balanced cell.

Inspection should match the risk

A friction-welded part may need visual checks, dimensional measurement, torque testing, tensile testing, ultrasonic inspection, or section analysis. The right method depends on the part function and customer requirements.

Common checks include:

• Joint diameter and flash condition
• Part length after upset
• Concentricity
• Alignment
• Surface defects
• Hardness near the joint
• Internal bonding quality

For safety-related or load-bearing components, the inspection plan should be agreed before production starts. A sample weld that looks clean may still require additional testing before the process is approved.

Process qualification also helps establish the working range. The team can record acceptable force, speed, displacement, and material conditions instead of relying on operator judgment alone.

Maintenance protects the production rhythm

A friction welding line depends on more than the welding head. Clamps, bearings, hydraulic systems, servo drives, sensors, fixtures, and flash removal tools all affect output.

I suggest a maintenance plan that includes:

• Checking clamp wear
• Inspecting fixture alignment
• Monitoring hydraulic pressure
• Cleaning sensors
• Reviewing spindle vibration
• Measuring tool and jaw wear
• Confirming safety interlocks
• Recording unplanned stops

Small alignment changes can create larger quality problems. A worn fixture may allow movement during the cycle, while a dirty sensor may produce incorrect process data. Regular checks give the team a chance to correct these issues before they become repeated rejects.

What to review before choosing the process

A useful evaluation does not stop at the machine quotation. I ask production teams to review the full operating picture:

1. Define the joint load and service conditions.
2. Confirm material grades and supply consistency.
3. Select a joint shape that supports clamping and inspection.
4. Run sample welds with production-grade material.
5. Measure strength, dimensions, distortion, and cycle time.
6. Include trimming, machining, and inspection in the cost review.
7. Check operator training and maintenance access.
8. Approve the process range before regular production.

This approach helps reveal whether friction welding can support the complete workflow. It also prevents the common mistake of judging the method by welding time alone.

Production keeps moving when the joining process is planned as part of the full system. Friction welding may help manufacturers build repeatable joints, reduce some consumable needs, and connect welding data with quality checks. Its value depends on the material match, joint design, machine control, inspection plan, and daily maintenance.

I see the strongest results when companies treat friction welding as a production process rather than a single machine purchase. The joint receives attention, yet the fixture, operator, finishing step, and inspection route receive the same level of planning.

Weld repairs can take more time than the original job. A failed inspection may stop a production line, delay shipment, and pull skilled welders away from scheduled work. When the same defect appears again, the cost grows through extra labor, material waste, testing, and lost production time.

I have found that repair delays often begin before the welding torch is turned on. The defect may not be clearly identified. The repair method may not match the material. Fit-up, preheat, cleaning, or inspection records may be incomplete.

A steady weld repair process starts with a clear diagnosis.

1. Identify the defect before removing material

I check the location, size, and type of defect before grinding or cutting. Common problems include:

• Porosity
• Cracks
• Lack of fusion
• Incomplete penetration
• Undercut
• Slag inclusion
• Distortion
• Excess weld metal

Visual inspection may show the surface condition, but it does not always show the full defect. Dye penetrant testing can help locate surface cracks on suitable materials. Magnetic particle testing can find certain surface and near-surface flaws in ferromagnetic metals. Ultrasonic or radiographic testing may be needed when the defect could extend below the surface.

A repair plan based on guesswork can create a second repair.

2. Remove the full defect

The damaged area needs to be opened until sound metal is reached. Grinding, gouging, or controlled cutting may be used, depending on the part and material.

I prefer to mark the repair area and inspect the cavity before welding. The groove should have enough access for proper cleaning and electrode or torch movement. Sharp edges, trapped slag, oil, paint, rust, and moisture can affect the new weld.

Removing only the visible part of a crack is a common cause of repeat failure. The remaining crack may grow under load or heat.

3. Confirm the material and welding method

The repair method should match the base material, joint design, thickness, service conditions, and required inspection level.

The work may require:

• A qualified welding procedure
• Approved filler metal
• Controlled preheat
• Interpass temperature checks
• Proper shielding gas
• Low-hydrogen handling
• A qualified welder
• Post-weld heat treatment, when specified

For carbon steel, stainless steel, aluminum, and dissimilar metals, the preparation and heat control can vary. Using the same repair settings for every material may increase the risk of distortion, cracking, or poor fusion.

The welding procedure should be available at the work area. Guessing from memory can lead to inconsistent results, especially when several welders handle the same repair.

4. Control the repair environment

Moisture and contamination can create defects before the weld is finished. I check the condition of the joint, filler metal, gas lines, clamps, and nearby surfaces.

The repair area may need protection from wind, rain, dust, or sudden temperature changes. Small details matter. A clean joint with unstable shielding can still produce porosity. A correct amperage setting cannot compensate for poor fit-up.

Good preparation reduces the amount of correction work later.

5. Use a simple inspection hold point

The repair should not move straight from welding to final coating or assembly. I use hold points that allow the team to check the work at practical stages:

• After defect removal
• After joint preparation
• During welding, where temperature control is required
• After welding and cleaning
• After non-destructive testing

This gives the team a chance to correct a problem while the repair is still accessible. It also creates a record that can help explain what happened if a defect returns.

Photos, welder identification, material details, repair location, test results, and approval records can help maintenance and production teams make better decisions.

6. Review why the weld failed

Repairing the weld solves the immediate problem. Reviewing the cause can help prevent the same issue on the next part.

I look at questions such as:

• Was the joint design suitable for the load?
• Did the parts move during welding?
• Was the surface properly cleaned?
• Was the correct filler metal used?
• Did the welder have enough access?
• Was preheat maintained?
• Did the defect come from welding, design, handling, or service conditions?
• Was the original inspection method suitable?

A production shop may see repeated porosity on a fixture weld. The team might keep grinding and rewelding, while the real cause is a leaking gas hose, wind near the joint, or moisture in the consumables. Replacing the hose and improving the work area may reduce repeat repairs more effectively than adding another welding shift.

Another common case involves a cracked bracket repaired several times. If the bracket continues to carry a load beyond its design, a new weld alone may not solve the problem. The joint shape, reinforcement, material thickness, or support arrangement may need review.

7. Know when outside support can help

Some repairs need equipment, qualifications, or inspection methods that are not available in the regular workshop. Outside welding support may be useful for:

• Large structural components
• Pressure-related equipment
• Repairs on difficult alloys
• Work requiring non-destructive testing
• Shutdown maintenance
• Repairs with strict documentation needs
• Components where access is limited

Before work begins, I ask for clear information about the defect, material, dimensions, service conditions, inspection needs, and expected documentation. This helps the repair team prepare the right tools and method instead of returning to the site with missing equipment.

A clear scope also helps separate a weld repair from a larger mechanical problem. Welding should not be used to hide worn pins, poor alignment, damaged threads, or a part that needs replacement.

The best way to reduce weld repair time is not to rush the welding stage. It is to reduce repeated decisions, missing information, and preventable defects around the welding stage.

I focus on four practical habits: identify the full defect, prepare clean and accessible metal, follow a suitable welding procedure, and inspect the repair before the part returns to service. These steps may add a small amount of planning, but they can reduce repeated grinding, extra testing, and avoidable production delays.

When a weld repair is handled as a controlled process rather than a quick patch, the team has a better chance of completing the work with fewer interruptions and clearer records.

Many manufacturers face the same production challenge: parts must be joined quickly, but the joint still needs to handle heat, pressure, vibration, and repeated use. Traditional welding may add filler metal, shielding gas, extra preparation, and post-weld work. These steps can extend production time and raise process costs.

Friction welding offers another route.

I use friction welding when two components can be joined through controlled pressure and movement. The process creates heat at the contact surfaces through friction. Once the material reaches the required joining temperature, the machine applies forging pressure and forms a solid-state joint.

The parts do not need to melt completely. This can help reduce several issues linked with fusion welding, such as porosity, spatter, and some types of distortion.

How friction welding supports faster production

A friction welding cycle can be completed in a short, repeatable sequence:

• Load the two components.
• Align the parts in the machine.
• Rotate or move one part against the other.
• Apply friction pressure.
• Stop the movement at the set point.
• Apply forging pressure.
• Remove the finished joint.

The exact cycle depends on material, diameter, joint design, and machine settings. A stable process makes it easier to plan production and maintain consistent output.

I also look at preparation work before comparing cycle times. A process that appears fast on the machine may still require extra machining, cleaning, inspection, or correction. Friction welding can reduce some of these added steps because it often uses no filler wire and creates a compact weld zone.

Suitable applications

Friction welding is used for parts such as:

• Shafts and rods
• Hydraulic components
• Automotive drive parts
• Drill tools
• Valves and fittings
• Tubes and solid bars
• Mixed-material assemblies

A common example is joining a steel shaft to another steel component with a different diameter. The design may require a strong connection while keeping the part light and easy to machine. A friction welding machine can join the sections before final machining, allowing the manufacturer to produce the required shape with less material waste.

For mixed materials, I check the material pair carefully. Some combinations may work well, while others need special control or may not be suitable for the process.

What I check before choosing the process

I normally review five points:

1. Material compatibility
   The material pair must respond well to heat, pressure, and movement.

2. Part geometry
   Rotary friction welding usually works best with round or symmetrical parts. Linear friction welding may suit other shapes.

3. Joint strength
   The required load, torque, pressure, and fatigue performance guide the joint design.

4. Production volume
   A repeatable automated process may offer more value when the same joint is produced many times.

5. Inspection needs
   The finished part may require visual checks, dimensional inspection, hardness testing, or other quality controls.

Machine settings also need attention. Friction time, pressure, speed, upset length, and alignment all affect the final joint. Small changes can influence flash formation, joint size, and part length.

Where friction welding may not fit

Friction welding is not a match for every product. Parts with complex access requirements, very small contact areas, or unsuitable material combinations may need another joining method. The machine also needs enough force, speed control, and part-holding capacity for the application.

I prefer to test the joint before changing a full production line. A sample run can reveal material behavior, cycle time, flash size, machining allowance, and inspection results. This gives the engineering team useful data before equipment and tooling decisions are made.

A practical production path

A clear project plan can help control risk:

• Define the joint function and required load.
• Select compatible materials.
• Review part dimensions and tolerances.
• Choose rotary, linear, or another friction welding method.
• Run sample tests.
• Check joint quality and production time.
• Adjust tooling and machine parameters.
• Set inspection procedures.
• Confirm the process with a repeat batch.

My view is simple: faster welding is useful only when it supports stable quality and a workable production cost. Friction welding can shorten the joining cycle, reduce filler material use, and support repeatable manufacturing, but the process still depends on correct design, machine settings, and material selection.

When these points are checked early, manufacturers can build parts faster without treating speed as the only target.

We welcome your inquiries: bob@xinchang-machinery.com/WhatsApp +8615888002607.

References

American Welding Society 2011 Welding Handbook Volume 1 Welding Science and Technology

Nicholas E D 1997 Friction Welding

Maalekian M 2007 Friction Welding Critical Assessment of Literature

Mobley R K 2002 An Introduction to Predictive Maintenance

Moubray J 1997 Reliability-Centered Maintenance

International Organization for Standardization 2017 Specification and Qualification of Welding Procedures for Metallic Materials Welding Procedure Test Part 1 Arc and Gas Welding of Steels and Arc Welding of Nickel and Nickel Alloys
