Is Your Production Lagging? Boost Efficiency 3x with Advanced Friction Welders

When production targets rise, a standard welding setup may start to show its limits. Operators spend more time on part alignment, rework, tool changes, and quality checks. Small delays can spread across the whole line.

Advanced friction welders offer a practical way to improve output while keeping process control in view. The right system may help a shop work toward higher throughput, stable joint quality, and lower material waste. A threefold production increase is not guaranteed. It depends on part design, cycle time, staffing, automation, and the condition of the current equipment.

I look at the process as a complete production flow, not just a single machine.

Where production time is often lost

Many shops lose capacity before welding even begins.

Parts may need extra cleaning, close fit-up, or repeated positioning. An operator may wait for the spindle, remove a finished part by hand, or stop the line to check joint quality. Each pause seems small, yet a full shift can contain hundreds of them.

Friction welding can reduce some of these delays by joining parts through controlled heat and pressure. The process does not rely on an open flame or added filler metal for many applications. That can support a cleaner work area and reduce certain consumable needs.

The result still depends on correct setup. A poor joint design or unstable fixture can limit the benefit of a capable welder.

How an advanced friction welder can support higher output

1. Shorter joining cycles

Friction welders create heat through controlled contact between the parts. Once the programmed speed, pressure, and upset movement are set, the machine can repeat the cycle with less manual adjustment.

A shorter cycle can raise hourly output, but the full cycle should include loading, unloading, inspection, and part handling. I recommend measuring the current cycle from finished part to finished part before making a purchase decision.

2. Better process consistency

Manual welding often depends on operator technique. Friction welding shifts more of the process into defined machine settings, such as:

• Spindle speed
• Axial force
• Friction time
• Upset distance
• Braking response
• Part clamping pressure

These settings help operators follow the same process across multiple shifts. They also give production teams useful records when a joint needs review.

A repeatable process does not remove the need for inspection. It gives the team better control over the variables that affect the weld.

3. Less rework from joint variation

Rework can consume more capacity than the welding cycle itself. A part may need to be cut apart, cleaned, repositioned, and processed again. Scrap creates another cost because the material, labor, and machine time have already been used.

A friction welder with stable fixtures and clear parameter controls can help reduce variation caused by manual handling. I would review sample parts, joint strength requirements, and inspection results before setting a production target.

4. Easier integration with automated handling

Many production lines connect the welder with:

• Robotic loading
• Part feeders
• Automatic clamping
• Deburring stations
• Gauging equipment
• In-line inspection systems

Automation can reduce idle time between cycles. It can also help one operator oversee more than one stage of production, depending on the layout and safety requirements.

A simple example is a shaft-and-collar assembly. An operator may load each part by hand and wait for the weld cycle to finish. With a feeder, automatic clamp, and unloading arm, the operator can focus on material supply and quality checks. The output gain comes from the full cell design, not from the welder alone.

A practical way to estimate production gains

I use a clear review process before comparing machines.

1. Record current production data

Track:

• Parts produced per hour
• Average cycle time
• Loading and unloading time
• Rework rate
• Scrap rate
• Planned and unplanned stops
• Number of operators per shift

A short production study can reveal whether the main problem is welding speed, part handling, fixture design, or inspection delay.

2. Define the joint requirements

The machine must match the part. Review:

• Material type
• Part diameter and length
• Joint area
• Required tensile strength
• Permitted runout
• Surface condition
• Heat-affected area
• Part tolerance

Some materials and shapes may need a special friction welding method or a different joining process.

3. Test representative parts

Use production material rather than a simple sample when possible. Test several batches and inspect the welded joints with the methods required by your quality plan.

A useful test should cover more than one good part. It should show how the machine performs across normal material variation and different operators.

4. Check the complete cycle

Ask the supplier to explain the full workflow:

• How parts are loaded
• How fixtures are changed
• How parameters are stored
• How alarms are handled
• How finished parts are removed
• How inspection data is recorded
• How maintenance access is managed

This helps prevent a fast welding cycle from being limited by slow handling or frequent setup work.

5. Compare output with operating cost

A higher production rate is only useful when the parts meet the required quality level. Compare energy use, tooling, maintenance, labor, inspection, and rework.

A basic calculation can help:

Net hourly output = accepted parts per hour − reworked parts − scrapped parts

This figure gives a more useful view than cycle time alone.

What I would ask before selecting a machine

I would ask the supplier to provide clear answers about:

• Maximum part size and weight
• Available spindle speed and force range
• Fixture design and changeover time
• Control system functions
• Data storage and traceability
• Safety features
• Training and service support
• Spare parts availability
• Acceptance testing
• Expected maintenance intervals

I would also request sample weld results for a part close to the intended application. General machine capacity does not prove that a specific joint will meet production needs.

A note about the “3x” production target

A threefold increase may be possible in some production cells, especially when the existing process has long manual handling times, frequent rework, or low equipment availability. It should be treated as a target for testing rather than a promised result.

A shop with a 20-second weld cycle may not reach three times the output if loading takes 40 seconds. Another shop may see a large gain after combining a faster welder with automated part handling and better fixtures.

The best result comes from matching the machine to the full process.

When I review a friction welding project, I focus on accepted parts, stable cycles, operator workload, and long-term service needs. A well-planned system can help manufacturers raise capacity without relying on unclear claims. The machine matters, but the fixture, material preparation, automation, inspection plan, and daily operating method shape the final result.

Production delays often begin long before a part misses its shipping date. A welding cell may wait for material, an operator may adjust the machine between batches, or a quality check may find a joint that needs rework. Each small pause adds pressure to the schedule.

Friction welding can help reduce these delays when the process is planned around stable inputs, clear machine settings, and fast feedback. I see the strongest results when teams treat welding as part of the full production flow rather than as a single machine task.

Find the source of the delay

I start by mapping the complete route of the part:

• Material preparation
• Part loading
• Friction welding
• Cooling or post-weld treatment
• Inspection
• Machining
• Packing and shipment

This view often shows that the welding cycle is not the only issue. A short weld time may still lead to long waiting periods if fixtures are difficult to change or inspection equipment is placed far from the cell.

A basic production review can track:

• Cycle time per part
• Setup time between product types
• Waiting time before welding
• Rework quantity
• Machine downtime
• Inspection time
• Material movement

The data does not need to be complex. A simple daily record can reveal where the schedule is losing hours.

Use the right friction welding method

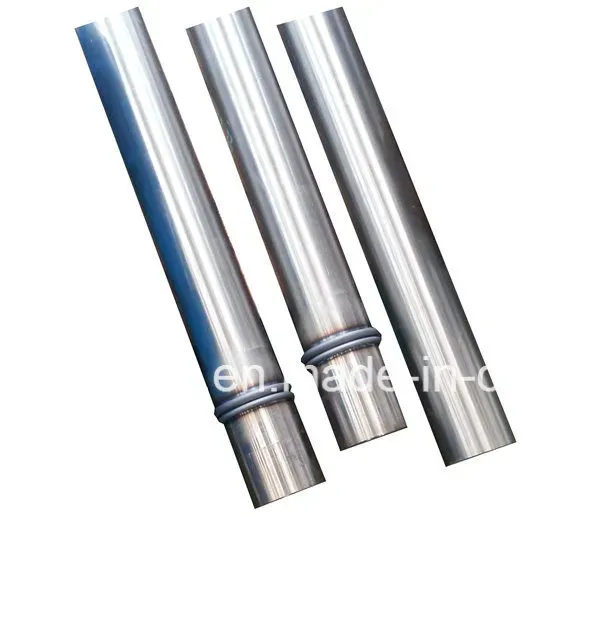

Different part designs suit different friction welding processes. Rotary friction welding works well for many round or shaft-shaped parts. Linear friction welding may fit parts with controlled movement along a straight path. Friction stir welding can suit certain sheet, plate, and structural applications.

The process choice should reflect:

• Part shape
• Material type
• Joint design
• Required strength
• Production volume
• Available machine capacity
• Inspection needs

A design that looks suitable on paper may still create delays if it needs special clamping or repeated manual alignment. I prefer to review the joint, fixture, and inspection plan together before a production line is approved.

Reduce setup work

Setup changes can quietly consume a large part of the shift. A fixture that takes 40 minutes to replace can limit output even when the welding cycle lasts only a few minutes.

Practical changes may include:

• Keeping fixtures close to the machine
• Marking fixture positions clearly
• Using quick-access clamps where suitable
• Preparing the next job before the current batch ends
• Saving approved machine programs
• Recording tool and fixture checks in one place

A clear setup sheet also helps different operators follow the same method. It can show clamping points, part orientation, key settings, inspection points, and common faults.

Create stable process settings

Friction welding depends on controlled factors such as speed, pressure, friction time, upset amount, and part alignment. Small changes in material condition or tooling can affect the result.

I recommend setting a controlled operating range for each part instead of relying on informal adjustments. The production team can then compare actual results with the approved range and respond before defects spread across a batch.

Material preparation also matters. Surface condition, diameter, length, hardness, and cleanliness should match the process plan. If incoming material varies, the welding team may spend time correcting a problem that began in purchasing or machining.

Connect welding with quality checks

A slow inspection process can create the same schedule pressure as a slow welding process. The inspection plan should match the risk of the part and the needs of the customer.

Possible checks include:

• Visual inspection
• Dimensional checks
• Torque or tensile testing
• Hardness testing
• Flash or upset measurement
• Destructive testing at a defined sampling rate

Process records can include the machine ID, operator, material batch, program number, and inspection result. This gives the team a clearer path when a part needs review.

For example, a supplier producing steel shafts may find that most rework comes from poor alignment rather than from the welding cycle itself. A fixture check, a simple runout measurement, and a defined replacement point for worn tooling may reduce repeat defects without changing the whole machine.

Plan maintenance around production

Unexpected downtime creates more disruption than scheduled maintenance. A practical maintenance plan can cover spindle condition, hydraulic pressure, clamps, sensors, tooling, cooling systems, and control software.

Operators can handle basic checks at the start of a shift. Maintenance staff can review wear items on a planned schedule. The exact interval should follow machine guidance, operating conditions, and recorded performance.

A spare-part list also helps the team respond faster when a common wear item needs replacement. The list should show part numbers, storage location, and the person responsible for reordering.

Measure the result

After changes are made, I track a small set of useful measures:

• Average cycle time
• Average setup time
• Unplanned downtime
• First-pass acceptance rate
• Rework hours
• Output per shift
• On-time shipment performance

One measure rarely tells the full story. A faster cycle may create more rework if the process becomes unstable. A good production improvement should support speed, repeatability, and part quality at the same time.

Friction welding can support a more reliable production schedule when the team removes waiting, controls setup, protects process settings, and links inspection with the welding cell. The machine matters, but the surrounding workflow often decides whether the schedule stays on track.

Cutting and welding often take more time than expected. A job may appear simple on the drawing, yet delays can grow through repeated measuring, manual marking, part movement, setup changes, and rework. I have seen production teams lose hours on tasks that were not difficult, only poorly connected.

Modern cutting and welding technology helps reduce these gaps. The goal is not to replace skilled workers. The goal is to give them better control over preparation, accuracy, and workflow.

A practical improvement starts with the cutting process.

When operators measure and mark every part by hand, small errors can appear across a batch. A digital cutting system can read the design file, guide the cutting path, and keep part dimensions consistent. The operator spends less time checking lines and more time preparing the next task.

This also helps with material use. A nesting function can arrange several parts on one sheet or plate, which may reduce unused areas. The actual result depends on the material shape, part design, cut width, and production plan, so I always recommend checking the system data against normal shop records.

Part identification can save more time than many teams expect.

After cutting, workers often sort parts by shape or compare them with paper drawings. Marking part numbers, bend lines, weld points, or assembly references during the cutting stage can reduce confusion on the shop floor. A clear mark supports faster assembly and limits the need to stop and ask where each part belongs.

Welding preparation also affects the total job time.

Clean edges, stable fixtures, and accurate fit-up help welders work with fewer interruptions. Beveling equipment, positioners, clamps, and simple digital work instructions can support a smoother process. When parts arrive with the correct gap and alignment, the welder can focus on the joint instead of correcting the preparation.

A fabrication shop I worked with had repeated delays on support frames. The cutting time was not the main problem. Workers were spending extra time finding matching parts and adjusting frames before welding. The shop added part labels, changed the nesting layout, and used a fixture for the frame corners. The team then tracked setup time, fitting time, welding time, and rework separately. This gave the manager a clearer view of where time was being lost.

That type of tracking matters. A machine may cut quickly, yet the full process can remain slow if operators wait for drawings, move heavy parts several times, or search for missing components.

I suggest reviewing the workflow through these steps:

1. Record the current process

Measure the time spent on design review, material preparation, cutting, part sorting, fit-up, welding, inspection, and rework. Use several jobs instead of one order. A single project may not show the usual pattern.

1. Find the repeated delays

Look for tasks that happen on nearly every job. Common examples include manual marking, tool changes, part searches, fixture adjustments, and repeated quality checks.

1. Match technology to the delay

A CNC cutting system may help with repeatable dimensions. A nesting tool may support material planning. A welding positioner may reduce awkward movement. Digital work instructions may help operators follow the same sequence across shifts.

1. Test one production area

A small trial can show whether the change fits the shop. Track output, setup time, material use, rework, and operator feedback. The best choice is not always the machine with the largest feature list. It is the one that addresses a clear production issue.

1. Train people around the full workflow

Operators need to understand how design files, cutting data, part labels, fixtures, and welding instructions connect. Training should include daily checks, basic fault handling, and safe operating procedures.

1. Review the results with consistent measures

Compare similar jobs before and after the change. Useful measures include parts completed per shift, average setup time, rework hours, material waste, and inspection issues. Keep the records simple enough for the team to maintain.

Technology can reduce manual effort, yet process design still shapes the outcome. A fast cutting machine will not solve delays caused by poor drawings or missing material. A welding system will not remove the need for good joint preparation. Equipment works best when the people, data, materials, and work sequence support one another.

When I assess a cutting and welding operation, I look beyond machine speed. I ask where operators wait, where parts are handled more than once, and where errors appear. Those answers often point to a practical improvement that can reduce wasted time and support steady production.

When production starts falling behind, the cause may not be a lack of workers or raw material. The friction welder can also become a hidden limit.

A machine that once matched your production plan may now create longer cycle times, more rework, and more unplanned stops. Tool wear, outdated controls, unstable pressure, and slow part handling can affect output without causing a clear breakdown.

I look at a friction welder as part of the full production process. The right upgrade should solve a measured problem, not add features that the line does not need.

Signs your friction welder may be holding production back

I usually start with the daily production record. Several signs can point to a capacity issue:

• Weld cycles take longer than the original setting
• Operators make frequent manual adjustments
• Weld quality changes between shifts
• The machine needs repeated setup checks
• Parts wait before or after the welding stage
• Scrap increases when production speed rises
• Replacement parts are difficult to source
• The control system does not provide useful process data
• Maintenance teams spend too much time finding the cause of a fault

A slow cycle is only one part of the problem. If the machine stops for small faults, the lost output can be greater than the time added to each weld.

Find the real production limit

Before choosing a new friction welder or planning an upgrade, I review five areas.

1. Cycle time

Record the full cycle, not only the welding stage. Include loading, clamping, rotation, braking, unloading, and inspection.

For example, a factory may report a 35-second welding cycle. After measurement, the full part cycle may reach 52 seconds because the operator waits for the chuck to release. That difference affects the production plan.

2. Part range

Check the material, diameter, length, weight, and joint design of the parts you make.

A friction welder designed for small steel shafts may not suit larger aluminum components or parts with different inertia requirements. The machine must match the actual work range, not only the most common part.

3. Weld quality

Review failed welds and identify their pattern. Common causes can include:

• Incorrect friction pressure
• Unstable upset pressure
• Poor alignment
• Excessive flash
• Insufficient heating
• Tool or fixture wear
• Inconsistent part preparation

A higher machine speed does not help if the quality control process cannot keep up.

4. Maintenance history

Look at service records from the past six to twelve months. Frequent issues with bearings, hydraulic seals, clamps, sensors, or control panels may show that the current system needs more than a small repair.

A maintenance team can also identify parts that are no longer easy to obtain. This matters when an old controller or drive causes a long production interruption.

5. Operator feedback

Operators work with the machine every day. Their feedback often shows problems that reports miss.

Ask where they lose time. They may point to slow loading, difficult parameter changes, poor access to the fixture, or alarms that do not explain the real fault.

Select an upgrade that matches the line

An upgrade can take several forms.

A control system update may improve parameter management, alarm records, and repeatability. Servo control can help when the process requires more stable speed or position control. A new hydraulic system may suit a machine with pressure variation. Automatic loading can reduce manual handling when the welding stage is already fast enough.

A complete friction welder replacement may make sense when the frame, spindle, power system, or safety structure no longer matches the production plan.

I prefer to compare options through measurable points:

• Target cycle time
• Required weld force
• Spindle speed range
• Part size and material
• Fixture change time
• Operator workload
• Energy use
• Maintenance access
• Spare part availability
• Data and quality records
• Safety functions
• Integration with existing equipment

The machine should support the process around it. A faster welder may create a new bottleneck if the inspection station, material handling system, or downstream equipment cannot accept the added output.

A practical example

A shaft manufacturer found that its friction welding line produced fewer parts than planned during the afternoon shift. The machine did not show a major fault, so the team first suspected operator performance.

A review of the process showed three issues. The chuck release was slow, the parameter settings were adjusted by hand, and a worn fixture caused occasional alignment checks.

The factory chose to upgrade the control panel, improve the clamping system, and replace the worn fixture. The company did not need to replace the entire machine. After testing, the team recorded a shorter handling time and fewer setup corrections. Weld quality also became easier to review because the main process values were stored with each batch.

This type of result depends on the condition of the machine and the production process. An upgrade should be based on inspection and testing, not a general promise of higher output.

Plan the upgrade with less disruption

I recommend using a clear project sequence:

1. Record current production data.
2. List the main causes of delay and rework.
3. Confirm the part and material range.
4. Check machine condition and service history.
5. Compare repair, control upgrade, partial rebuild, and replacement.
6. Define acceptance criteria before installation.
7. Test sample parts under normal production settings.
8. Train operators and maintenance staff.
9. Review output and weld quality after the machine returns to service.

The acceptance criteria should include more than machine operation. They can cover cycle time, weld strength test results, part alignment, repeatability, alarm response, and changeover work.

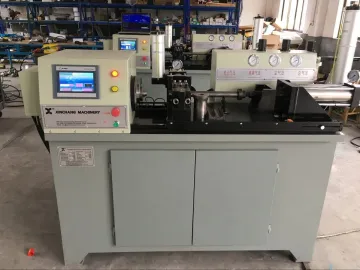

When I review a friction welder upgrade, I focus on the gap between the current process and the required process. That gap shows whether the plant needs better control, stronger fixtures, improved handling, or a new machine platform.

A production line does not need the most complex equipment. It needs a friction welder that fits its parts, process, people, and maintenance plan. Clear measurements can help a factory choose the right level of change and avoid spending money on features that do not address the real delay.

For any inquiries regarding the content of this article, please contact Bob Zhang: bob@xinchang-machinery.com/WhatsApp +8615888002607.

American Welding Society 2011 Welding Handbook Volume 1 Welding Science and Technology

A Nicholas 1997 Friction Welding and Associated Technologies

International Organization for Standardization 2019 ISO 15620:2019 Welding Friction Welding of Metallic Materials

ASM International 1993 ASM Handbook Volume 6 Welding Brazing and Soldering

J R Davis 1993 Aluminum and Aluminum Alloys

American Welding Society 2020 Welding Quality Control and Inspection Practices
