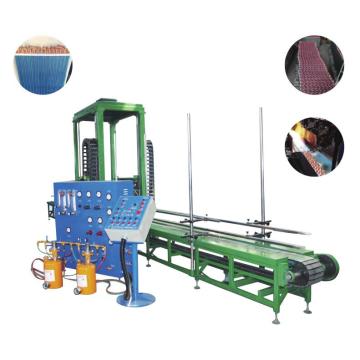

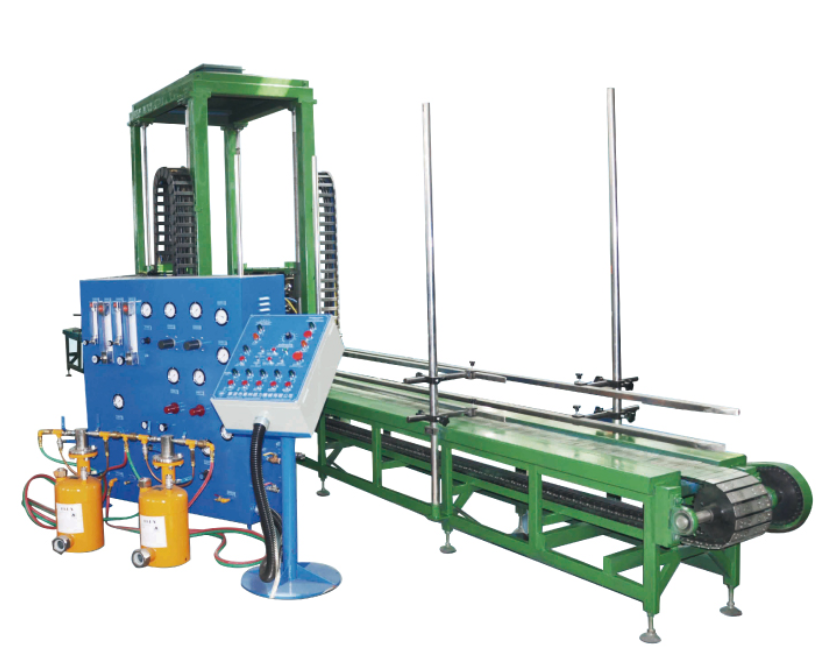

Min. Order:1AC Coil Tube Expander with Automatic Welding: An integrated tool for air conditioning coil processingIn the precise chain of air conditioning equipment manufacturing, each process affects the performance and reliability of the product. The Friction...
An Automatic Welding Machine is an advanced automated device designed to join metal components (e.g., steel, aluminum, copper) via controlled heat input—melting and fusing materials without heavy manual intervention. It replaces traditional manual welding, solving issues like inconsistent weld quality and high labor costs, and is a cornerstone in automotive, aerospace, construction, and manufacturing industries.
Core Working Principle & Key Types
The machine operates on a 3-step automated cycle, with variations based on welding technology:
Setup: Users program parameters (weld speed, temperature, wire feed rate) via a digital control panel and secure workpieces in a fixture (with laser/vision sensors for alignment, ±0.02mm accuracy).
Welding Execution: A robotic arm, welding torch, or fixed electrode delivers heat and filler material (if needed) along the weld seam. Common types include:
MIG/MAG Welders: Use a metal wire electrode and shielding gas (argon, CO₂) for high-speed welding of thin-to-thick metals (ideal for automotive body parts).
TIG Welders: Utilize a non-consumable tungsten electrode for precise, clean welds (e.g., aerospace components, stainless steel pipes).
Spot Welders: Apply pressure and electrical current to create localized welds (common in electronics, e.g., battery terminals).
Post-Weld Cooling: Built-in fans or coolant systems accelerate cooling, preventing material warping; some models add a quality check (e.g., ultrasonic sensors to detect cracks).
Key Advantages
Consistent Quality: Automated parameter control ensures uniform weld strength (tensile strength up to 90% of base metal) and appearance, reducing defect rates to <1% (vs. 5–10% for manual welding).
High Efficiency: Processes 2–5x faster than manual welding—e.g., MIG models weld 1–3 meters/minute, suitable for mass production (e.g., automotive chassis assembly).
Labor Savings: One operator can monitor 2–4 machines; no need for highly skilled welders, cutting labor costs by 30–50%.
Safety: Enclosed welding chambers or fume extractors reduce exposure to toxic fumes; safety curtains block UV radiation, lowering injury risks.
Versatility: Interchangeable torches and fixtures adapt to workpiece sizes (from small electronic parts to 10-meter steel beams) and materials (ferrous/non-ferrous metals).
Typical Applications
Automotive: Spot welding steel/aluminum body panels, or MIG welding exhaust systems—ensuring structural integrity and corrosion resistance.
Aerospace: TIG welding titanium or aluminum aircraft components (e.g., wing spars) to meet strict weight and strength standards.
Construction: Welding steel beams for skyscrapers or pipeline joints (oil/gas) with high pressure resistance (up to 15,000 psi).
Electronics: Micro-spot welding copper wires in circuit boards or battery packs, avoiding damage to delicate components.
Operational & Maintenance Tips
Pre-Operation Check: Verify gas pressure (for MIG/TIG), electrode sharpness, and sensor alignment—misalignment causes uneven welds.
Parameter Tuning: Adjust heat and speed based on material thickness (e.g., lower heat for 1mm aluminum, higher for 10mm steel).
Maintenance: Clean torch nozzles after 8 hours of use to remove spatter; replace wire feed rollers monthly; calibrate sensors quarterly for accuracy.
In summary, the automatic welding machine merges precision, speed, and safety, making it indispensable for industries seeking to elevate weld quality, scale production, and reduce operational costs in metal joining tasks.
Automatic Welding Machine
The fully automatic welding machine is an intelligent device integrating advanced control technology and high-precision execution system, specially designed for high-quality welding requirements in mass production. This equipment adopts PLC or robot control systems and supports multiple welding processes such as TIG, MIG, and laser. It can precisely achieve automated welding of complex weld seams, ensuring welding strength and sealing performance. Equipped with visual positioning, real-time monitoring and parameter adaptive functions, it significantly enhances welding consistency and production efficiency.
