Fin Press
(Total 2 Products)
-

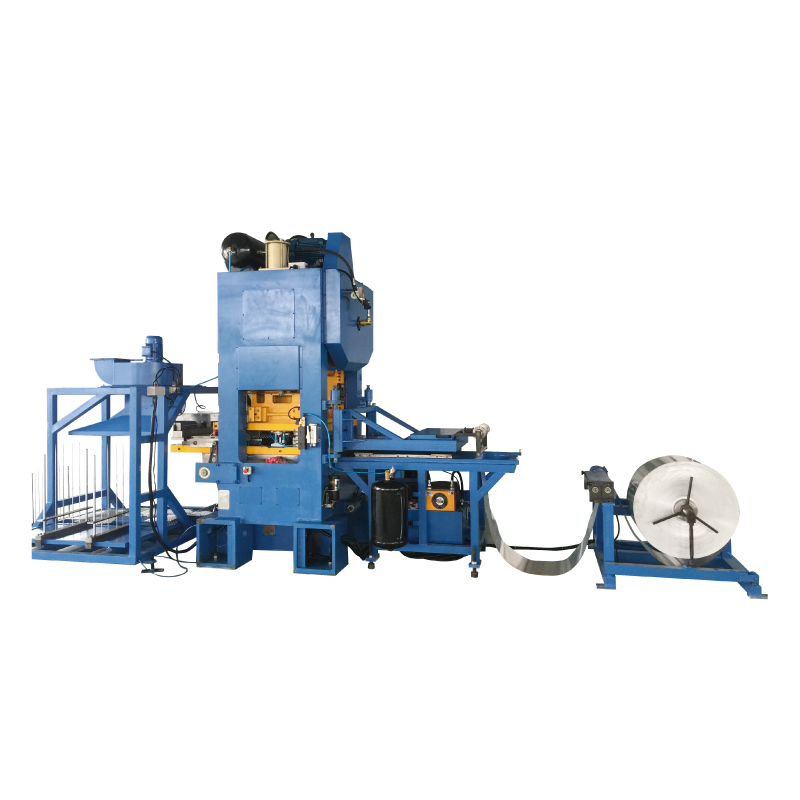

Min. Order:1Open-Type Fin Press Machine for Air Conditioners: the exclusive manufacturer of open-type fin for Air ConditionersIn the precise chain of air conditioner manufacturing, each piece of equipment shoulders a unique mission. The Friction Welding Machine... -

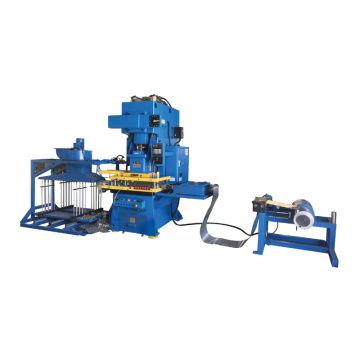

Min. Order:1H-Type Fin Press Line Machine: An efficient assembly line for H-type fin productionIn the complex network of industrial manufacturing, different devices perform their respective duties and jointly promote the smooth progress of production. The...
A Fin Press is a specialized industrial machine designed to mass-produce fins—vital heat-transfer components in radiators, HVAC systems, and automotive cooling units. It works by pressing metal sheets (primarily aluminum, copper, or steel) through precision fin dies, forming intricate, uniform fin structures (e.g., louvered, wavy, or straight) that maximize surface area for thermal efficiency.
Key features include high-speed stamping capabilities (up to 500 strokes per minute in advanced models), ensuring rapid production for large-scale needs. Equipped with servo-driven systems or hydraulic/pneumatic power units, fin presses deliver consistent pressure, guaranteeing uniform fin thickness (0.05–0.3mm) and spacing (1–5mm)—critical for heat exchanger performance.
Structural components include a rigid frame (to resist vibration), a feeding mechanism (for automated metal sheet delivery), and a die holder (securing custom fin dies). Modern models integrate CNC controls and touchscreen interfaces, enabling easy adjustment of parameters (stroke length, pressure) and program storage for quick switching between fin designs.
Safety systems like emergency stops, protective guards, and overload sensors prevent accidents during high-speed operation. Maintenance-friendly designs (e.g., easy die access) minimize downtime.
Widely used in automotive, HVAC, and aerospace industries, fin presses bridge precision tooling (fin dies) and mass production, enabling cost-effective manufacturing of high-performance fins—essential for energy-efficient thermal management systems.
Fin Press
The fin stamping machine is a core equipment specially designed for the manufacturing of heat exchangers. It uses high-precision molds to perform high-speed stamping on materials such as aluminum foil and copper foil to produce heat dissipation fins for condensers and evaporators. This equipment adopts servo drive or mechanical connecting rod transmission to achieve high-speed stamping at 60 to 200 times per minute, ensuring uniform fin spacing and no surface damage, significantly enhancing heat exchange efficiency.
