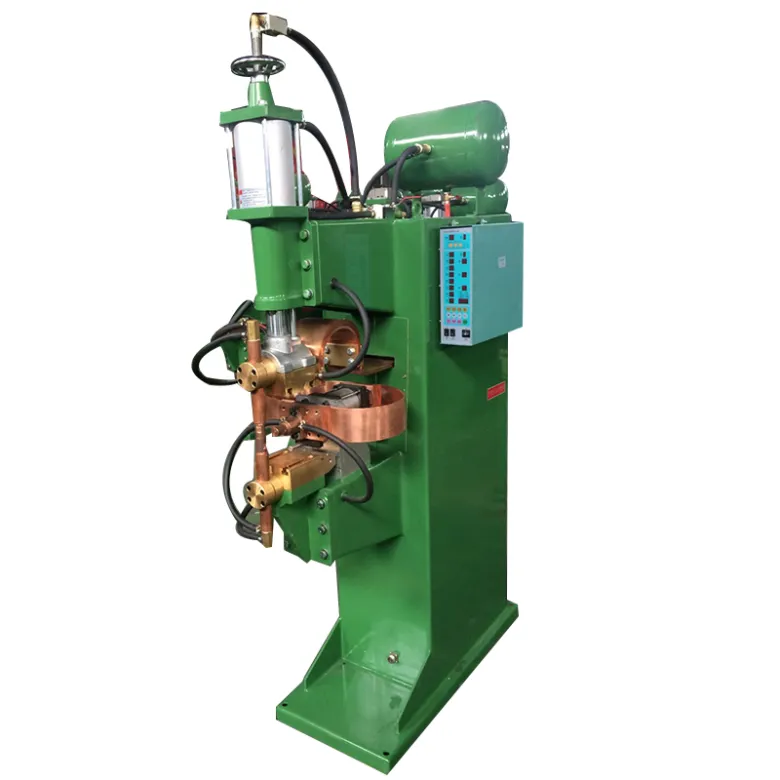

3 Reasons Your Spot Welding Machine is Failing Now

A spot welder can start failing in several ways: weak welds, inconsistent nuggets, excessive sparks, or no current flow at all. When this happens, many operators adjust the welding time or raise the power setting. That may hide the issue for a short period, but it can also damage the electrodes or distort the metal.

When I troubleshoot a spot welder, I check the physical parts before changing the settings. Three causes appear often: poor electrode condition, unstable electrical flow, and incorrect clamping pressure.

1. The Electrodes Are Worn or Contaminated

Spot welding depends on clean contact between the electrodes and the workpieces. After repeated cycles, electrode tips can become flat, uneven, dirty, or covered with material from previous welds.

A damaged tip changes the contact area. A larger contact area can spread the current and reduce heat at the joint. A dirty tip may create extra resistance and produce sparks.

Common signs include:

• Welds that look different from one another
• A wide, shallow weld mark
• More sparks than usual
• A weld that breaks with light hand pressure
• Uneven marks on the top and bottom surfaces

I usually inspect both electrode tips before checking the control panel. The tips should align correctly and touch the workpiece at the same time. If the tips have a mushroom shape, deep marks, or a rough surface, they may need dressing or replacement.

A simple check can help:

1. Turn off the machine and follow the equipment safety procedure.
2. Clean the electrode tips with the approved tool.
3. Check that both tips are centered.
4. Test the welder on clean scrap material.
5. Compare the new weld with a known good sample.

For example, a small metal fabrication shop was seeing weak welds on thin steel brackets. The operator increased weld time, but the parts became discolored and the welds stayed inconsistent. An inspection showed that one electrode tip was wider than the other. After the tip was dressed and aligned, the weld marks became more even without changing the original settings.

The correct electrode shape depends on the metal type, thickness, and machine design. A tip that works well on thin galvanized steel may not suit thicker stainless steel.

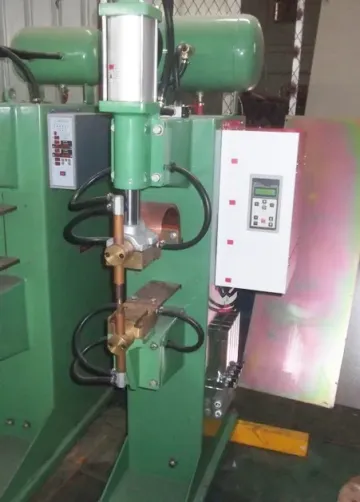

2. The Electrical Path Has High Resistance

A spot welder needs a stable path for current. Loose cables, worn connections, damaged shunts, poor grounding, or corroded contact points can reduce welding performance.

The control display may show the selected current, but the workpiece may receive less energy. This can make the machine appear weak even when the settings have not changed.

Look for these signs:

• The machine works well during one cycle and poorly during another
• Cables or connectors feel unusually warm
• The weld result changes when the gun or arms move
• The machine makes a buzzing sound near a connection
• The breaker trips during heavy use
• The display shows normal settings, but the weld is weak

I start with a visual inspection. I check the cables for cracks, crushed sections, exposed wiring, and loose terminals. I also inspect the connection between the welding arms and the main cable. Some machines use flexible shunts or bus bars that can wear after long service.

Do not open energized equipment or test live electrical parts without the correct training and tools. A qualified technician should handle internal electrical checks.

The workpiece also needs a clean contact surface. Oil, paint, rust, scale, and heavy oxidation can block stable current flow. Two sheets may appear tightly clamped while the current passes through an uneven surface.

A practical test is to prepare two small pieces from the same material:

• Clean one set with the approved method.
• Leave the second set in its normal condition.
• Use the same pressure, current, and weld time.
• Compare the weld marks and pull strength.

If the clean pieces produce a better result, surface preparation may be part of the problem. If both sets perform poorly, inspect the cables, connections, and power supply.

3. Pressure or Welding Settings Do Not Match the Material

Electrode pressure affects how current and heat move through the joint. Too little pressure can create sparks, sticking, and weak welds. Too much pressure can reduce resistance at the joint and limit heat generation.

The welding schedule must also match the material. Sheet thickness, steel type, coating, electrode shape, and machine capacity all affect the result.

Typical signs of a pressure or setting problem include:

• The electrodes leave deep dents
• The sheets move during welding
• The weld nugget is too small
• The material burns through
• One side of the joint sticks to the electrode
• Weld quality changes after switching material thickness

I prefer to change one setting at a time. If I adjust current, weld time, and pressure together, I cannot tell which change helped.

A basic adjustment process looks like this:

1. Confirm the material type and thickness.
2. Check the manufacturer’s recommended starting range.
3. Set the electrode pressure correctly.
4. Use clean, flat test pieces.
5. Make several test welds.
6. Inspect the weld marks and test the joint.
7. Change one setting in a small step.
8. Record the result before making another change.

For a thin sheet, excessive current or weld time may burn through the material. For a thicker joint, a short cycle may create a weld that looks acceptable but has little internal strength. A visual mark alone does not prove that the weld is sound.

A destructive test on sample pieces can provide more useful information. Depending on the material, this may involve a peel test, chisel test, or pull test. The method should fit the part design and the quality requirements of the job.

A Simple Spot Welder Troubleshooting Order

When my spot welder produces weak or uneven welds, I use this order:

1. Stop and check for unsafe heat, smoke, exposed wiring, or damaged parts.
2. Inspect and clean the electrode tips.
3. Confirm that the tips align and close evenly.
4. Clean the metal surfaces.
5. Check cables, arms, terminals, and visible connections.
6. Confirm the air or mechanical pressure system works correctly.
7. Review the current, weld time, and pressure settings.
8. Test on matching scrap material.
9. Compare the weld with a sample that passed inspection.
10. Contact a qualified service technician if the fault continues.

This order keeps the inspection focused. It also prevents a common mistake: increasing power to compensate for a damaged electrode or a poor electrical connection.

When the Machine Needs Service

Some symptoms point to a deeper fault:

• The machine stops during a cycle
• The current varies without a setting change
• Internal components smell burnt
• The transformer or cables become unusually hot
• The welder trips protection devices
• The controls do not respond correctly
• The machine produces sparks inside the cabinet

At that stage, repeated testing may create more damage. Record the material, settings, weld symptoms, and recent maintenance work. Give that information to a qualified technician. It can reduce the time needed to locate the fault.

A failing spot welder is not always caused by a major component. Worn electrodes, dirty metal, loose connections, and incorrect pressure can produce similar symptoms. I check those areas before changing the welding program or replacing expensive parts. A steady inspection routine helps separate a simple maintenance issue from an electrical or mechanical problem.

A spot welding machine rarely breaks down for just one reason. In many workshops, the fault starts with a small issue: a loose cable, dirty electrode, weak cooling flow, or an incorrect welding setting. The machine may continue working for days before the problem becomes serious.

When my spot welder stops during production, I do not replace parts at random. I check the machine in a fixed order. This saves time, reduces repair costs, and helps me find the cause instead of treating only the symptom.

Common signs of a failing spot welding machine

A spot welding machine may show several warning signs:

• The weld does not hold two metal sheets together.
• The machine makes a clicking sound but produces little heat.
• The electrode tips become too hot.
• The welding current changes from one cycle to another.
• The control panel restarts or shows an error.
• A fuse or circuit breaker trips during operation.
• The machine leaks water or has weak cooling flow.
• The weld marks become dark, deep, or uneven.

Each sign points to a different part of the system. A weak weld may come from low pressure, dirty electrodes, poor contact, or low current. An overheating problem may come from blocked cooling lines or long welding cycles.

1. Check the power supply

The power supply is the first place I inspect when the machine suddenly stops.

A spot welding machine needs stable voltage and enough electrical capacity. If the input voltage drops when other equipment starts, the welding current may also fall. The machine can appear to operate normally while producing weak welds.

I check:

• The main power cable
• The terminal connections
• The fuse and circuit breaker
• Signs of heat or discoloration near the terminals
• The voltage shown by the machine or measured by a qualified technician

A loose terminal can create heat. That heat may damage the terminal, cable insulation, or internal parts over time.

One small fabrication shop had a machine that stopped during the afternoon but worked in the morning. The cause was not the welding transformer. Several machines were running at the same time, and the supply voltage dropped under load. After the electrical capacity was checked and the connection was corrected, the welding cycle became more stable.

Electrical testing should be performed by a trained person. Disconnecting the machine before opening any panel is also necessary.

2. Clean and inspect the electrodes

Electrodes touch the workpiece directly, so their condition affects every weld.

Copper electrodes can collect metal dust, oxides, oil, and small pieces of sheet metal. The contact area then becomes uneven. The machine may use the same settings, but the current will not pass through the joint in the same way.

I look for:

• A flat or damaged electrode tip
• Uneven wear between the upper and lower tips
• Cracks or heavy discoloration
• Metal buildup on the tip
• Poor alignment between the two electrodes

The tips may need cleaning, dressing, or replacement. The correct method depends on the electrode material and the machine design. Removing too much material can shorten electrode life and change the weld area.

I once saw a set of electrode tips that looked usable from a distance. The contact faces were worn at an angle, so only part of each tip touched the sheet. The result was a weak weld with a visible mark on one side. After the tips were dressed and aligned, the weld quality improved without changing the current.

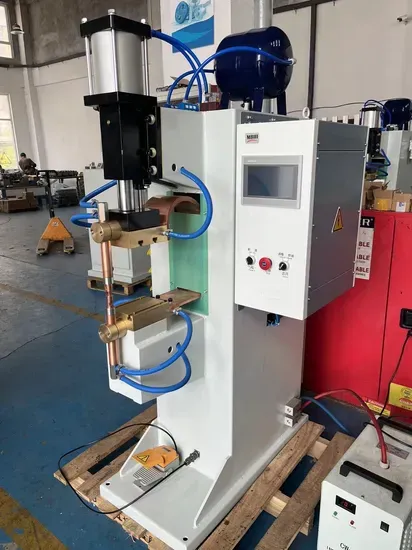

3. Confirm the welding pressure

Pressure affects the electrical contact and the size of the weld nugget. Too little pressure can cause sparks, unstable current, and surface damage. Too much pressure may spread the current over a larger area and reduce local heating.

The pressure system may use:

• A pneumatic cylinder
• A hydraulic system
• A spring mechanism
• A servo-driven actuator

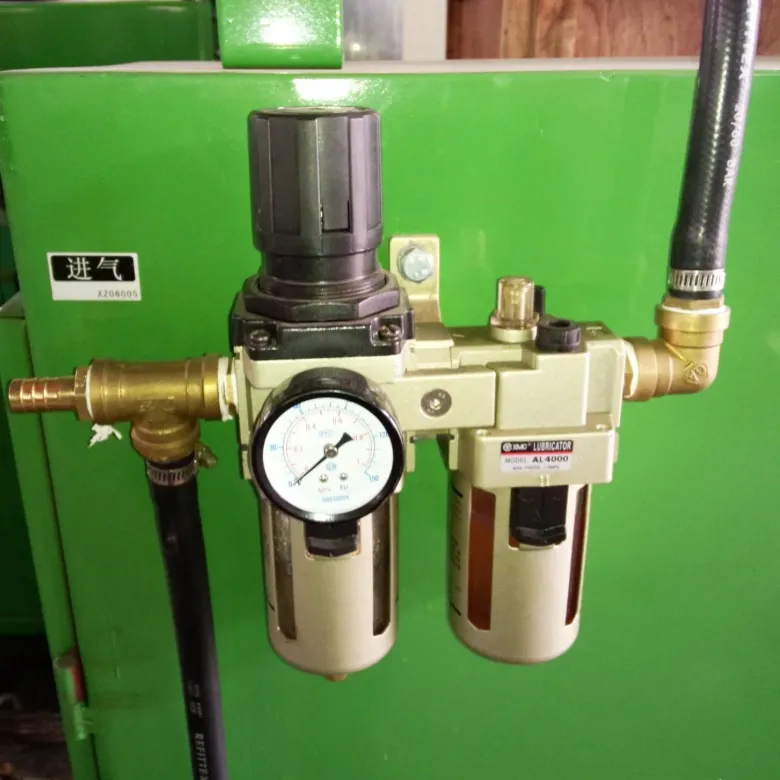

I check for air leaks, damaged hoses, low air pressure, and slow cylinder movement. If the electrode closes unevenly, the machine may create different welds on the same part.

A simple test can help. Place two matching pieces of clean sheet metal between the electrodes and observe the closing movement without starting the welding cycle. The electrodes should meet smoothly and remain aligned. Any shaking, delay, or uneven contact needs attention.

The pressure setting should match the metal thickness, material, and electrode size. Copying a setting from another job can lead to poor results because two materials with the same thickness may still need different welding conditions.

4. Inspect the cooling system

Many spot welding machines use water cooling to protect the electrodes, transformer, cables, and other heat-sensitive parts. A machine may run well at the start of a shift and then develop faults after repeated cycles when cooling is weak.

I check:

• Water level
• Water flow
• Pump operation
• Filter condition
• Hose kinks
• Leaks around fittings
• Water temperature
• Blocked passages inside the electrodes

Low flow may come from a blocked filter or a worn pump. A small leak can also allow air into the line, reducing cooling performance.

In one workshop, the operator thought the controller was failing because the machine stopped after several minutes. The actual cause was a blocked water filter. The machine worked again after the filter was cleaned and the flow was confirmed.

Coolant quality also matters. Water with too many minerals can create deposits inside narrow channels. The machine supplier’s coolant guidance should be followed instead of adding chemicals without checking compatibility.

5. Review the welding settings

Incorrect settings can look like mechanical failure.

The main settings are usually:

• Welding current
• Weld time
• Hold time
• Squeeze time
• Electrode pressure
• Pulse count
• Cooling time

Low current or short weld time may produce a weak joint. Excessive current or long weld time can cause expulsion, burn marks, electrode wear, and transformer stress.

I compare the current program with the approved setting for the material and thickness. I also check whether someone changed the program for another job and left it active.

A useful method is to change one setting at a time. If current, pressure, and weld time are changed together, it becomes difficult to identify which adjustment solved the problem.

Test welds should be checked with a suitable inspection method. A visual mark alone does not prove that the joint has the required strength.

6. Look for cable and connection damage

Welding cables carry high current and can suffer from heat, movement, and mechanical stress. A damaged cable may work intermittently. The machine can pass a basic start-up check and still fail during production.

I inspect the cables for:

• Cracks in the insulation
• Burn marks
• Loose ends
• Flattened sections
• Excessive bending
• Corrosion near terminals
• Heat around flexible shunts

The connection between the cable and electrode holder also needs attention. A small increase in resistance can create local heat and reduce welding power.

Cables should not be repaired with unsuitable tape or temporary connectors. The replacement part should match the machine’s current rating and connection design.

7. Check the control system and sensors

Modern spot welders often use sensors to monitor pressure, current, temperature, position, and cooling flow. A faulty sensor can stop the machine even when the mechanical parts seem normal.

The display may show:

• Over-temperature
• Low water flow
• Low air pressure
• Door or guard open
• Current outside the set range
• Electrode position error
• Communication failure

I record the error code before resetting the machine. Repeatedly clearing the message can hide a problem and make diagnosis harder.

A sensor may also be dirty, loose, or out of position. The wiring should be checked for damage, and calibration should be handled according to the machine manual.

8. Review the work material

The machine may be healthy while the material causes unstable welding.

Oil, paint, rust, scale, plating, and moisture can change the contact between the electrode and the sheet. Different material thicknesses also change the amount of heat needed.

I confirm:

• Material type
• Sheet thickness
• Surface condition
• Joint overlap
• Electrode access
• Fit between the sheets

Poor fit can create a gap. The electrodes may apply pressure to the top sheet without creating enough contact between both sheets. The machine then appears weak even though the current and pressure are within range.

A practical inspection order

When a spot welding machine breaks down, I use this sequence:

1. Stop the machine and follow the site safety procedure.
2. Record the error message or operating condition.
3. Check the power supply and visible cable damage.
4. Inspect electrode tips and alignment.
5. Confirm air pressure and electrode movement.
6. Check cooling flow, filters, hoses, and leaks.
7. Review the welding program.
8. Inspect sensors and connections.
9. Run controlled test welds.
10. Record the fault and repair action.

This order moves from common external causes to deeper machine faults. It also reduces unnecessary part replacement.

How to reduce repeat breakdowns

A short maintenance record can reveal patterns. I record the machine cycle count, electrode changes, cooling checks, error codes, and repair dates. The information helps show whether the problem occurs after a certain number of welds, with a certain material, or during a specific shift.

Operators should also receive simple inspection guidance. They do not need to repair electrical parts, but they can report dirty electrodes, unusual sounds, weak water flow, loose hoses, and changes in weld appearance.

The most useful habit is to treat small changes as information. A slight color change on the weld, slower electrode movement, or warmer cable may appear minor. These signs can point to a fault before the machine stops.

A spot welding machine usually becomes reliable when its basic conditions stay stable: clean electrodes, correct pressure, steady power, proper cooling, suitable settings, and sound connections. When I check those areas in order, breakdowns become easier to understand and production problems are less likely to return.

A spot welder can appear to work while producing weak or uneven joints. That makes failure harder to notice. A poor weld may pass a quick visual check and fail later under vibration, heat, or load.

I watch three areas when I check a spot welder: weld quality, heat and sound, and machine control. These signs help me find problems before they affect a full batch of parts.

1. Welds become weak, uneven, or inconsistent

A healthy spot welder should create joints with a similar shape and strength when the material, pressure, current, and weld time remain the same.

I start to suspect a problem when:

• Some weld spots look small while others spread too far
• The joint separates with light hand pressure
• Burn marks appear around only a few weld points
• The weld nugget changes from one part to the next
• The machine needs several attempts to join the same material
• Surface marks become deeper than usual

Several parts can cause this pattern. The electrodes may be worn, dirty, misaligned, or set at the wrong pressure. Loose cables can also reduce the current reaching the weld area. A damaged transformer or control board may create unstable output.

I check the electrodes before changing machine settings. The tips should contact the workpiece evenly. If one tip is shorter, damaged, or covered with residue, the current may not flow through the intended area.

I also inspect the material. Oil, paint, rust, scale, and loose coatings can change the contact between the electrode and the workpiece. Cleaning the contact area may solve the issue without changing the welding program.

A small metal fabrication shop may notice this when a batch of brackets begins to show mixed weld marks. The operator may assume the sheet thickness has changed, yet the actual cause can be electrode wear after many repeated cycles.

2. The machine overheats, sparks, or produces an unusual smell

Heat is part of resistance welding, but excessive heat around the electrodes, cables, transformer, or control cabinet needs attention.

Warning signs include:

• The electrode arms feel hotter than they normally do
• Cables become warm during a short production run
• Sparks appear outside the normal weld area
• A sharp electrical smell comes from the cabinet
• Plastic parts near the welding head soften or discolor
• The machine stops after several cycles and works again after cooling

Sparks may appear when the electrode pressure is too low, the workpiece does not sit flat, or the contact surfaces are dirty. They can also point to loose connections or damaged insulation.

I stop the machine and disconnect its power before inspecting cables, terminals, and visible components. I do not touch electrical parts while the machine is energized. A trained technician should check internal electrical faults.

Cooling problems can create a similar pattern. Air vents may be blocked, a fan may have stopped, or a water-cooling line may have reduced flow. If the equipment uses water cooling, I check the flow indicator, hoses, filter, and temperature readings listed by the manufacturer.

One operator I worked with described a welder that ran well during short tests but shut down during longer runs. The weld settings had not changed. The cause was restricted cooling flow, which allowed heat to build inside the system.

3. Weld time, current, or machine response starts to change

A spot welder may show failure through its controls before the weld surface looks different.

I pay attention when:

• The cycle takes longer than the programmed time
• The machine pauses between welds
• The current display changes without a setting adjustment
• The foot pedal or trigger responds slowly
• The control panel resets during operation
• Error messages appear more often
• The machine produces a different sound at the same setting

These symptoms can point to problems with the timer, current controller, trigger circuit, sensor, or power supply. A loose connection may create an intermittent fault, which makes the machine seem normal during one cycle and unreliable during the next.

I record the weld settings and compare them with the actual machine behavior. A simple log can include:

• Material type and thickness
• Electrode condition
• Current setting
• Weld time
• Pressure setting
• Number of cycles
• Error messages
• Temperature or cooling observations

This record helps separate a machine fault from a setup issue. It also gives a technician useful information for testing.

I avoid raising the current or extending weld time as a quick fix. That may hide a weak electrical connection while adding more heat to the workpiece and electrodes. The safer path is to inspect the contact surfaces, cables, cooling system, and controls before changing the program.

A practical inspection routine

When I see any of these warning signs, I use a simple sequence:

1. Stop the machine if there is smoke, heavy sparking, burning odor, or unusual heat.
2. Follow the manufacturer’s shutdown and isolation procedure.
3. Inspect electrode tips for wear, dirt, cracks, and poor alignment.
4. Check that the workpiece surfaces are clean and properly positioned.
5. Look for loose cables, damaged insulation, blocked vents, and cooling problems.
6. Review the weld log for changes in current, time, pressure, or cycle behavior.
7. Test the machine with approved sample material before returning to normal work.
8. Ask a qualified service technician to inspect internal faults.

A visual check can reveal a lot, but it cannot confirm weld strength by itself. Depending on the application, a shop may use a peel test, chisel test, pull test, or another method recommended for the material and joint design.

Weak welds, excess heat, and changing machine response are useful signals. I treat them as maintenance clues rather than minor production variation. Early checks can protect the workpiece, reduce scrap, and help keep the operator away from avoidable electrical and heat hazards.

A spot welder that is losing power can create weak welds, inconsistent marks, and repeated rework. I usually see the problem in one of four areas: the power supply, welding cables, electrodes, or settings.

The good news is that many power issues can be traced with a simple check. I do not start by changing every setting. I inspect the machine step by step, record what I find, and test one possible cause at a time.

Start with the weld symptoms

I look at the weld before opening the machine.

Weak welds may show:

• A small or uneven weld nugget
• Metal that separates with light force
• Dark marks around the weld
• Excessive sparking
• A weld that works on one part but fails on another
• Longer weld times than usual
• Different results from the left and right electrode

These signs help narrow the search. A weak weld on every workpiece may point to the machine or power source. A weak weld on only one material may come from dirty metal, poor contact, or an incorrect setting.

Check the incoming power

A spot welder needs a stable power supply. If the voltage drops while the machine is operating, the welding current may also fall.

I check:

• The wall outlet
• The circuit breaker
• The plug and power cord
• Extension cords
• Loose terminals
• Signs of heat or discoloration

An undersized extension cord can create voltage loss, especially when the welder draws a high current. The cord may feel warm, and the machine may sound different during the weld cycle.

I prefer to connect the welder directly to a suitable outlet that matches the machine specifications. A qualified electrician should inspect fixed wiring, breakers, and internal electrical connections. I do not remove covers from a powered machine.

Inspect the welding cables

Worn cables can reduce current flow. I move the cables gently and look for:

• Cracks in the insulation
• Flattened sections
• Burn marks
• Loose cable lugs
• Corrosion
• Excessive bending near the connection points

A cable can look acceptable from the outside while its internal strands are damaged. If the weld changes when the cable moves, the cable or its connection needs attention.

The same check applies to the transformer connections and electrode arms. Loose connections create resistance and heat. That heat can lower welding performance and damage nearby parts.

Clean and align the electrodes

Electrode condition has a direct effect on weld quality. Dirty, worn, or poorly aligned tips may make the machine seem weak even when the power supply is working correctly.

I inspect the tips for:

• Flat spots
• Mushroom-shaped ends
• Pitting
• Oxidation
• Uneven wear
• Material buildup

I clean the tips with the method recommended by the equipment maker. I avoid removing too much material because a shorter electrode can change the pressure and contact area.

The two tips should meet evenly. Misalignment reduces the contact area and may send current through an unwanted path. I also check whether the electrode arms move smoothly and apply steady pressure.

Review the welding pressure

Low or uneven pressure can cause arcing and poor current transfer. Excessive pressure can spread the current over a larger area and reduce the heat at the weld point.

I check whether:

• The arms close fully
• The material stays flat between the tips
• The pressure remains stable during the weld
• The workpiece slips during clamping
• The electrode tips touch the material at the same time

Pneumatic machines may need an inspection of air pressure, filters, hoses, and regulators. A drop in air pressure can change electrode force and produce inconsistent welds.

Check the material surface

Paint, oil, rust, scale, and adhesive residue can block current flow. This issue often appears when a welder works well on clean sheet metal but performs poorly on coated or stored material.

I clean the contact areas with a suitable method for the material. I also check the thickness and type of metal. A setting that works on two thin steel sheets may not work on thicker steel, stainless steel, aluminum, or coated stock.

Material thickness matters. So does the distance between weld points. If the welds are too close together, current can take an easier path through a nearby weld. This effect may reduce the current passing through the new weld point.

Review the welding settings

A spot welder may lose performance when the current, weld time, or pulse setting does not match the material.

I record the current settings and compare them with the machine manual or a tested production setting. I avoid raising the power without checking the cables, electrodes, and material condition. More power can create heavy sparking, electrode damage, or a burn-through mark.

A practical test uses clean pieces of the same material and the same thickness as the job. I make several welds with one setting, then inspect the results. I change one setting at a time so the cause remains easy to track.

Watch for overheating

Many welders reduce output when internal parts become hot. Some machines use thermal protection that limits operation until the temperature falls.

I check:

• Cooling fans
• Air vents
• Dust buildup
• Water flow on water-cooled systems
• Cooling hoses
• Duty cycle
• Error lights or codes

A machine that welds well at the start of a shift but weakens after repeated cycles may have a cooling or duty-cycle problem. I allow the machine to cool based on the manufacturer’s guidance instead of forcing more welds.

Use a simple test record

I find it useful to keep a short inspection sheet:

This record prevents repeated guesses. It also gives a technician useful information if the machine needs service.

A practical example

I once worked with a small fabrication shop that reported weaker welds near the end of each batch. The operator had already increased the weld time, but the problem remained.

The inspection showed three issues. The electrode tips had developed flat, uneven faces. The cooling vents contained dust. The extension cord was also longer and lighter than the machine instructions allowed.

After the shop cleaned the vents, replaced the unsuitable cord, and dressed the electrode tips according to the equipment guidance, the welds became more consistent. No major control adjustment was needed.

This type of result is common: the machine may not have lost all of its power. The current may be restricted by contact resistance, unstable supply, heat, or poor setup.

When service is needed

I stop testing and arrange professional service when I find:

• Burning smells
• Smoke
• Repeated breaker trips
• Damaged insulation
• Cracked housings
• Exposed wiring
• Unusual transformer noise
• Persistent error codes
• A large voltage drop during operation

I disconnect the machine from power before cleaning or inspecting accessible parts. Internal electrical repairs should be handled by a trained technician who understands the equipment and local safety requirements.

A spot welder that appears to be losing power needs a measured check, not a random increase in current. I start with the supply, cables, electrodes, pressure, material, cooling, and settings. That process helps separate a setup problem from a component fault and reduces the chance of damaging the machine or the workpiece.

Spot welding can look simple from the outside: two metal sheets, two electrodes, one short burst of current. When the joint fails, the cause is often hidden in a small change in pressure, surface condition, timing, or electrode shape.

I usually start with the weld result instead of changing machine settings at random. A weak nugget, a hole, a mark, or a stuck electrode gives a useful clue. The guide below connects each common spot welding problem with a practical inspection step.

Weak welds or small weld nuggets

A weak weld may separate during a peel test, show a small nugget, or leave only a light surface mark. Several causes can create the same result:

• Welding current is too low.
• Weld time is too short.
• Electrode pressure is too high.
• The sheets do not fit tightly.
• Oil, paint, rust, or scale is present between the sheets.
• Electrode tips are worn or misaligned.
• The power supply cannot maintain the set current.

I check the sheet surface before touching the program. Clean steel should contact clean steel. If the material carries oil from forming or storage, the weld may lose heat at the joint.

I also inspect the electrode tips. A flat or dirty tip spreads current over a larger area, which can reduce heating at the weld point. Tip dressing or replacement may restore the contact shape.

A simple shop-floor example is a two-sheet bracket that passes visual inspection but fails a peel test. The machine settings have not changed, yet the welds become smaller during the shift. Tip wear is a likely cause, especially when the weld count is high. Measuring the tip face and checking the current at the part can confirm the cause.

Excessive spatter or metal expulsion

Spatter appears when molten metal leaves the weld area. It can damage the surface, shorten electrode life, and create an inconsistent nugget.

Common causes include:

• Current is too high.
• Weld time is too long.
• Electrode force is too low.
• The sheets have a gap.
• The electrode tips are too small or damaged.
• The material surface is dirty.
• The current rises before the electrodes have fully clamped the sheets.

I watch the sequence of the weld cycle. The electrodes should close and apply force before the current begins. If current starts during movement, the contact area can change while the metal is heating.

A small sheet gap can also cause expulsion. The current may pass through a narrow contact point, raising the local heat too quickly. Check the fixture, sheet flatness, and clamping force before reducing current alone.

A useful adjustment is to reduce the current in small steps while checking nugget size. Large changes can replace spatter with weak welds. Every adjustment should be checked with a visual inspection and a suitable destructive test.

Burn-through or holes in the sheet

Burn-through means the heat has damaged the sheet instead of forming a controlled weld nugget. Thin materials are more sensitive, though thick parts can also burn through when the contact is poor.

Look for these conditions:

• Excessive current or weld time.
• Low electrode force.
• A sharp or damaged electrode tip.
• A large gap between sheets.
• Repeated welding too close to the same area.
• A thin sheet placed against a heavy part without suitable control.

The electrode tip should have a smooth, suitable face for the material. A sharp tip concentrates heat in a small area. A very wide tip can reduce current density and create a weak weld, so the tip shape needs to match the part and welding schedule.

When I see a hole, I check the part fit before changing the current. A gap can make the arc and heat move in an unstable way. Proper fixturing may solve the problem without a major program change.

Electrodes sticking to the workpiece

Electrode sticking can pull material from the sheet or leave a deep mark. It can also make part removal slow and raise the risk of tip damage.

Possible causes include:

• Current is too high.
• Weld time is too long.
• Electrode force is too low.
• Tip cooling is poor.
• The tip surface is rough or contaminated.
• The electrode material is not suited to the job.
• The hold time is too short after current stops.

The hold stage gives the weld area time to cool under pressure. If the electrodes open too soon, hot metal can cling to the tip.

I inspect the cooling water flow, temperature, and hose condition when sticking appears after a long production run. A blocked line can let the tip become hotter with each cycle. The machine may show the same settings while the actual welding condition changes.

Deep electrode marks

Some electrode marks are expected, yet deep dents can weaken the sheet or create an appearance problem.

Check:

• Electrode force.
• Tip diameter and shape.
• Current level.
• Weld time.
• Sheet thickness.
• Tip alignment.
• Support behind the part.

Misalignment places more force on one side of the tip. That side may leave a deep mark while the opposite side forms a weak nugget. I use a simple alignment check with a test coupon or marking film, based on the equipment used at the station.

If the surface finish matters, a larger suitable tip face may spread the force. This change must be tested because a larger face also changes current density.

Inconsistent weld quality

One weld is strong, the next is weak, and the third looks normal. This pattern often points to a process variation rather than one fixed setting.

Inspect these areas:

• Part position in the fixture.
• Sheet overlap.
• Electrode alignment.
• Tip wear.
• Air pressure or hydraulic pressure.
• Power supply stability.
• Cooling flow.
• Material thickness and coating.
• Weld schedule selection.

I prefer to record the defect location and time. If the problem appears near the end of a shift, heat buildup, tip wear, or cooling may be involved. If it appears only with one operator or one fixture, clamping and part placement deserve attention.

A short check sheet can include:

1. Part number and material.
2. Electrode condition.
3. Tip dressing count.
4. Air or hydraulic pressure.
5. Cooling status.
6. Current and weld time.
7. Visual result.
8. Peel test or other approved test result.

This record helps separate a machine problem from a material or handling problem.

Welds placed in the wrong position

A strong weld in the wrong location can still cause a rejected part. Position errors may come from:

• A loose fixture.
• Incorrect part loading.
• Electrode arm movement.
• A worn locator.
• Poor visibility at the weld point.
• A program that does not match the part.

I check the locator and fixture before adjusting the robot or welding arm. A worn pin can let the part shift while the machine still follows the same path.

For manual stations, clear part orientation marks and simple loading checks can reduce mistakes. The control method should suit the process; a visual mark may help one part, while a hard locator is needed for another.

A practical troubleshooting sequence

When a spot weld problem appears, I use this order:

1. Stop and protect affected parts from being mixed with good parts.
2. Identify the defect: weak weld, spatter, hole, deep mark, sticking, or wrong position.
3. Check the sheet surface and part fit.
4. Inspect electrode shape, cleanliness, alignment, and cooling.
5. Confirm air or hydraulic pressure.
6. Verify the active weld program.
7. Measure current or review machine feedback when available.
8. Change one setting at a time.
9. Test sample parts after each change.
10. Record the result and update the inspection method.

Changing current, time, force, and tip shape at the same moment makes the cause hard to find. A controlled check takes a little more attention, yet it gives the production team information that can be used again.

Spot welding problems rarely come from one number alone. The weld depends on contact, force, heat, timing, material condition, and equipment health. When I inspect those factors in a steady order, weak welds, spatter, burn-through, sticking, and uneven results become easier to trace. The goal is not to hide a defect with a quick setting change. The goal is to return the process to a condition that can be checked and repeated.

Want to learn more? Feel free to contact Bob Zhang: bob@xinchang-machinery.com/WhatsApp +8615888002607.

1. American Welding Society 2020 Resistance Welding Manual

2. International Organization for Standardization 2015 Resistance Welding Welding Equipment Mechanical and Electrical Requirements

3. Resistance Welder Manufacturers Association 2019 Resistance Welding Control Standards

4. Mikell P Groover 2020 Fundamentals of Modern Manufacturing Materials Processes and Systems

5. Serope Kalpakjian and Steven R Schmid 2014 Manufacturing Engineering and Technology

6. American Society for Testing and Materials 2018 Standard Practice for Evaluating the Resistance Spot Weldability of Metals
