Stop Guessing: The Ultimate Spot Welding Machine Guide

Choosing a spot welding machine can feel harder than it should. Product pages often list power, welding current, electrode force, duty cycle, and control modes, yet these figures do not tell me whether a machine will suit my parts.

I start with the workpiece, not the machine name.

The right choice depends on the metal, sheet thickness, joint design, production pace, available power, and quality checks. A compact unit may suit repair work, while a production line may need stronger force control, cooling, and repeatable settings.

1. Define the material and sheet thickness

I record the material used in the job:

• Mild steel
• Stainless steel
• Galvanized steel
• Aluminum
• Nickel-plated parts
• Mixed metal assemblies

The material affects resistance, heat flow, electrode wear, and welding time. Two sheets with the same thickness may need different settings when their materials are not the same.

I also measure the total thickness at the weld point. If two sheets are each 0.8 mm thick, the machine must handle a 1.6 mm stack. If a third layer is added, the heat path changes again.

A useful specification is not only “maximum welding thickness.” I look for a clear range, such as:

• Single-sheet thickness
• Two-sheet welding range
• Recommended material type
• Maximum stack thickness
• Suitable electrode size

A supplier that provides test data for my material gives me more useful information than a large current figure without a working range.

2. Match the machine to the joint design

The electrode must reach the welding point with enough clearance. This is where throat depth and electrode arm shape matter.

For flat panels, a standard arm may be suitable. Deep boxes, narrow channels, and curved parts may need a longer throat or a custom electrode. A machine with high current still creates problems if the arm cannot reach the joint without touching the workpiece.

I check:

• Throat depth
• Arm length
• Electrode travel
• Workpiece access
• Maximum part size
• Space around the weld area

I also consider how the operator will hold the parts. A machine that requires awkward positioning can slow the job and make weld placement less consistent.

3. Check the power supply before comparing output

A spot welder may require single-phase or three-phase power. The workshop supply must match the machine voltage, frequency, and input capacity.

I ask the supplier for:

• Rated input voltage
• Input current
• Required circuit size
• Phase type
• Power factor
• Transformer rating

A machine may show a high peak welding current while drawing a different amount from the electrical system. Peak current alone does not tell me whether the workshop can run the equipment safely.

For a small repair shop, a single-phase machine may be easier to install. A factory with three-phase power may select a larger unit with stronger repeatability and higher output. The decision comes from the site conditions, not only from the catalogue.

4. Look at control over welding time and current

Good control helps me repeat the same weld. I look for adjustable settings such as:

• Squeeze time
• Weld time
• Hold time
• Current level
• Pulse count
• Up-slope or down-slope control
• Stored welding programs

These settings matter when the material changes or the joint has several layers. For example, galvanized steel may need a different setup from clean mild steel because the coating affects contact and electrode wear.

A simple panel can work well for occasional jobs. A production team may prefer program storage, password access, error records, and settings that reduce accidental changes.

5. Evaluate electrode force and cooling

Welding current is only one part of the process. The electrodes need suitable force to maintain contact with the sheets. Too little force may cause spatter or weak contact. Too much force may leave marks or reduce the heat formed at the joint.

I check whether the machine uses:

• Pneumatic force
• Servo-controlled force
• Manual force adjustment
• Force display or feedback

Cooling also affects steady production. Water-cooled electrodes and transformer cooling can help when the machine performs many welds in a short cycle. An air-cooled unit may be easier to maintain for light work.

The correct choice depends on the number of welds per hour. A machine used for ten welds a day does not face the same load as one used for hundreds of welds per shift.

6. Ask how weld quality will be checked

A spot weld should not be judged by appearance alone. A clean surface does not always mean the weld has enough strength.

I prefer a supplier that can explain a basic test process:

1. Clean and align sample sheets.
2. Set the electrode force and welding time.
3. Produce several sample welds.
4. Check for burn-through, excess indentation, and spatter.
5. Perform a peel test or chisel test when suitable.
6. Record the settings for repeat jobs.

A common workshop example is a cabinet maker joining 0.8 mm galvanized steel panels. The operator may begin with the machine’s suggested settings, then test a small batch. If the weld pulls apart without leaving a visible nugget or tearing the sheet, the setup needs adjustment. The answer may involve current, time, force, electrode condition, or surface preparation.

This sample test tells me more than a general claim about welding strength.

7. Include maintenance and operator needs

Electrode tips wear during use. They may need dressing, replacement, alignment checks, or cleaning. I ask how easy these tasks are and whether standard parts are available.

Useful questions include:

• Can the electrode tips be changed without special tools?
• Is the cooling circuit easy to inspect?
• Does the control system show fault codes?
• Are wiring diagrams and service instructions provided?
• Can operators learn the basic settings quickly?
• Is local technical support available?

A machine that is simple to maintain may reduce avoidable downtime, even when its purchase price is not the lowest.

8. Compare suppliers with the same checklist

I place each machine on one comparison sheet:

This keeps the decision focused on the job. A machine with a larger headline number may not be the better fit if it lacks the arm reach, control range, or power supply required by the workshop.

I also ask for a sample weld using my own material whenever possible. The test should include the actual sheet thickness, coating, joint layout, and electrode type. That step can reveal problems before installation.

The right spot welding machine is the one that matches the work clearly: material, thickness, joint access, electrical supply, production pace, control needs, and service plan. I avoid choosing from current output alone.

When the machine specifications connect with a tested welding process, the purchase becomes easier to judge. Instead of guessing from a product label, I can compare practical results and select equipment that fits the work already on my bench or production line.

Choosing a spot welder can feel harder than expected. Product pages often list welding current, pulse width, electrode pressure, duty cycle, and material thickness, but these numbers do not tell the whole story. A machine that works well for battery tabs may be unsuitable for automotive sheet metal. A compact unit may fit a small workshop but lack the control needed for repeatable joints.

I start with the workpiece, not the machine. The right spot welder should match the metal, thickness, joint design, production volume, and available power.

Define the Work Before Comparing Machines

I ask myself four questions:

• What material will I weld?
• What is the thickness of each layer?
• How many welds will I make in one session?
• Do I need manual control or repeatable programmed settings?

A person assembling nickel strips for lithium-ion battery packs has different needs from a repair shop joining steel panels. Battery work often requires short, controlled pulses that limit heat near the cells. Sheet metal work may need stronger clamping force, longer arms, and a higher current capacity.

The joint also matters. Spot welding normally joins overlapping metal sheets. The welding tips press the layers together while an electrical pulse creates heat at the contact point. Clean contact and stable pressure help produce a consistent nugget, which is the fused area inside the joint.

Match the Welder to the Metal

Nickel strips and battery tabs

Battery pack assembly usually involves nickel or nickel-plated steel strips. These materials are thin, so excessive heat can damage the strip or transfer unwanted heat into the cell.

For this type of work, I look for:

• Adjustable pulse duration
• Adjustable pulse energy or current
• A welding pen or compact electrode holder
• Stable tip pressure
• Settings suitable for thin nickel strips
• A clear way to test weld strength

Pure nickel and nickel-plated steel do not behave the same way. A strip may look like nickel but contain a steel core. A simple magnet test can provide a clue, though it is not a complete material test. A sample weld followed by a peel test gives more useful information.

A good sample test does not pull on the battery cell. I weld a strip to a separate test piece with similar thickness, then try to remove the strip. A sound weld often leaves small marks or tears in the strip. If the strip lifts cleanly with little resistance, the setting may be too low. If the strip burns through or shows excessive discoloration, the setting may be too high.

Mild steel and stainless steel

Sheet metal welding needs a different approach. Steel usually requires stronger current and firm electrode pressure. Stainless steel can respond differently because of its electrical resistance and heat behavior.

I check whether the machine specification covers:

• The metal type
• The combined thickness
• The electrode material
• The maximum current range
• The expected cooling method

A stated maximum thickness should not be treated as a normal working thickness. Manufacturers may measure that value under a specific setup with clean material, short weld cycles, and suitable electrodes. A machine rated for a certain thickness may produce more stable results at a lower thickness during regular work.

Galvanized or coated metal

Coatings can affect electrical contact and produce fumes when heated. Surface preparation becomes more important. Removing a coating may expose the operator to dust or fumes, so I follow the material safety information and use suitable ventilation and protective equipment.

A spot welder does not replace proper surface preparation. Oil, paint, rust, and scale can change resistance at the joint and make weld results uneven.

Check the Welding Current and Pulse Control

A high current rating alone does not guarantee a useful weld. The machine must deliver that current through the electrodes and maintain it during the pulse.

I compare these details:

• Current range
• Pulse duration range
• Number of pulses
• Pause time between pulses
• Trigger method
• Control accuracy
• Display or adjustment method

Some jobs respond better to one short pulse. Other materials may benefit from a pre-pulse that improves contact, followed by the main welding pulse. A dual-pulse setting can help reduce sudden heating in thin strip work, but it still needs testing on the actual material.

Manual control can work for occasional repairs. Programmable settings are more useful when I need many similar welds. A timer helps reduce variation caused by hand timing. It does not solve poor electrode pressure or dirty material, so the full setup still matters.

Examine Electrode Design

The electrodes transfer current and apply pressure. Their shape affects the contact area, heat concentration, and access to the joint.

Common points I check include:

• Arm length
• Electrode reach
• Tip shape
• Tip material
• Tip replacement method
• Cooling arrangement
• Throat depth for sheet work

Short arms often provide better mechanical strength because they flex less. Long arms can reach recessed areas but may need more care to keep pressure stable.

For battery tab welding, a handheld pen can reach narrow areas and small pack layouts. For sheet metal, built-in arms may provide better alignment and pressure. A fixed-arm machine can be easier to control when the workpiece is flat and repeatable.

Electrode tips wear over time. A machine with replaceable tips may be easier to maintain than one with a fixed tip assembly. Tip condition should be checked as part of regular work, especially when weld quality begins to change.

Look at Power Requirements

A spot welder may need a strong electrical supply, even when its outer case looks compact. I check the input voltage, rated power, plug type, circuit requirement, and cable length before selecting a machine.

For a workshop using several tools on the same circuit, the welder may share power with compressors, heaters, or grinders. That can cause voltage drops or circuit trips. The machine manual should guide the electrical setup.

Battery-powered spot welders have their own limits. Their output can change as the battery state changes, and the battery pack must support the required pulse load. A portable unit may suit repair work at different locations, while a mains-powered unit may offer steadier output for repeated bench work.

Consider Duty Cycle and Heat Management

Duty cycle describes how much welding a machine can perform during a set period before it needs to cool. The stated value may depend on current level, ambient temperature, and pulse length.

I pay attention to:

• Fan cooling
• Thermal protection
• Cooling channels
• Duty cycle at the current I expect to use
• Recovery time between welds
• Warning indicators

A small project may involve only a few welds. A production task can involve hundreds or thousands. The same machine may perform well in one setting and become inconvenient in another if its cooling system cannot keep pace.

For repeated welding, I keep the work sequence organized. I inspect the tips, clean the material, check pressure, and allow the machine to cool when its protection system indicates a high temperature. Ignoring heat warnings can reduce equipment life and create inconsistent joints.

Review Pressure and Mechanical Stability

Current creates heat, but pressure controls the contact between the electrodes and the metal. Uneven pressure may produce weak or irregular welds.

I look for:

• A firm frame
• Smooth arm movement
• Stable electrode alignment
• Consistent clamping force
• A handle or foot control that does not cause sudden movement

A foot pedal can leave both hands free to position the workpiece. A handheld trigger may offer better control for small parts. The choice depends on the shape of the work and the operator’s preferred method.

When welding thin strips, too much pressure can mark or deform the metal. Too little pressure can create arcing, surface damage, or weak welds. The machine should allow the operator to apply repeatable pressure rather than relying on guesswork.

Use Safety Features as Selection Criteria

Spot welding involves high electrical current, heat, sparks, and metal fumes. I treat safety features as part of the machine specification.

Useful features may include:

• Thermal overload protection
• Insulated handles
• Protected cables
• Foot control shielding
• A clear power switch
• Emergency stop access where suitable
• Stable positioning on the workbench
• A manual with wiring and operating guidance

Eye protection, suitable gloves, clean work surfaces, and ventilation remain necessary. Battery cells require extra care because a short circuit or damaged cell can release heat quickly. I avoid welding cells with swelling, leaks, damaged insulation, or unknown condition.

I also keep flammable materials away from the welding area. A fire-resistant work surface and suitable fire response equipment can reduce risk. The exact precautions should match the material and the local workplace requirements.

Compare the Total Cost

The purchase price is only one part of the cost. I also check:

• Replacement electrodes
• Welding pens
• Cables
• Cooling parts
• Tip dressers
• Spare fuses
• Service access
• Shipping weight
• Warranty terms

A lower-cost machine may suit light hobby work if its controls and output match the task. A more robust unit may make sense for regular shop use because it offers stronger arms, better cooling, or easier maintenance. The right choice depends on workload rather than a simple price ranking.

I avoid choosing a machine based only on a large current number or a low listed price. A clear manual, usable controls, and available replacement parts often affect the ownership experience more than a single headline specification.

Test Before Starting Regular Production

I create a small test plan before welding the final parts.

1. Clean the test pieces.
2. Use the same metal and thickness as the actual work.
3. Set a low starting pulse.
4. Make several welds with the same pressure.
5. Check the surface for burn-through or excessive marks.
6. Perform a peel or pull test on a separate sample.
7. Adjust one setting at a time.
8. Record the setting that produces the desired result.

Changing pulse time, current, pressure, and tip shape at the same time makes the result hard to understand. A simple record sheet can show which settings work for each material.

For example, when joining thin nickel strips to a test coupon, I would record the strip type, thickness, pulse setting, electrode tip shape, and peel result. That information becomes useful when the material batch changes or a new operator uses the machine.

Common Selection Mistakes

One common mistake is buying a battery tab welder for thick steel repairs. The machine may produce a visible spark but still fail to create a reliable joint.

Another mistake is selecting a unit with long arms for every type of work. Long reach can help with access, yet the arms may flex under pressure. That movement can affect alignment and weld consistency.

Some users also focus on current while ignoring control range. A machine with a broad, adjustable pulse range may be easier to tune for thin materials than a stronger machine with limited adjustment.

The most practical choice is the one that matches the actual joint, material, work volume, power supply, and safety setup. I compare these points before looking at brand labels or appearance. A careful test on sample material tells me more than a specification sheet alone.

Choosing a spot welding machine can feel difficult when product pages use different power ratings, welding ranges, control systems, and cooling methods. A machine that works well for thin sheet metal may struggle with thicker parts, repeated welds, or materials with high electrical resistance.

I start with the job itself. The right machine should match the metal, thickness, production rhythm, available power, and required weld quality. A lower purchase price does not help if the machine cannot create stable welds or needs frequent repairs.

Start with the Workpiece

I first write down the materials I plan to weld.

Common options include:

• Mild steel
• Stainless steel
• Galvanized steel
• Nickel strips
• Aluminum alloys
• Copper-based parts

Each material responds differently to heat and electrical resistance. Mild steel is often easier to weld than copper or aluminum. Galvanized steel may need suitable settings and proper ventilation because its surface coating can affect the welding process.

The material thickness also matters. A machine may be described as suitable for “thin metal,” but this phrase does not tell me enough. I need to check the actual thickness range for the material I will use.

For example, two sheets that are each 1 mm thick may be easy for one machine to join. A stack made from several layers can require much more current and electrode pressure. I check the total thickness at the weld point, not only the thickness of one sheet.

Check the Welding Range

A spot welding machine should provide a working range that covers my normal jobs without running at its limit all the time.

I look for details such as:

• Minimum and maximum sheet thickness
• Maximum welding current
• Welding time range
• Electrode force
• Number of layers the machine can join
• Recommended material types

A machine with a wide adjustment range gives me more room to test different combinations of current, time, and pressure. That does not mean I need the largest machine available. Extra capacity can raise the cost, power demand, and maintenance needs.

If I mainly join 0.6 mm steel sheets for small brackets, a compact machine may meet the need. If I weld frames, vehicle panels, or thicker assemblies throughout the day, I may need a larger transformer and stronger electrode system.

Match the Power Supply

Power supply is easy to overlook. A machine may fit the material but fail to fit the workshop.

Before I place an order, I check:

• Input voltage
• Single-phase or three-phase operation
• Rated input power
• Recommended circuit size
• Plug and cable requirements
• Frequency compatibility
• Space around the machine

A machine designed for three-phase power may not work in a small workshop with only a single-phase supply. Using a long or undersized cable can also cause voltage drop and unstable performance.

I ask the supplier for a complete electrical specification sheet. If the information only shows welding current but does not show input requirements, I treat that as a reason to request more details.

Consider the Welding Cycle

A spot welder does not only need to create one good weld. It must also handle the number of welds I plan to make during a normal work period.

This is where duty cycle becomes useful. Duty cycle describes how long the machine can operate within a set time before it needs to cool. The exact test method may differ between suppliers, so I compare the stated conditions rather than looking at one number alone.

A small repair shop may make a few welds, pause to position the next part, and inspect the result. A production line may make repeated welds with short gaps. These two users need different cooling capacity.

For repeated work, I look at:

• Transformer cooling
• Water-cooled or air-cooled parts
• Thermal protection
• Welding cycle limits
• Recovery time between welds

A machine with thermal protection can help reduce damage caused by excess heat. It does not replace proper operating limits.

Select the Right Electrode Design

The electrode transfers current and pressure to the workpiece. Its shape affects the contact area, heat concentration, and access to the weld point.

I consider:

• Electrode material
• Tip shape
• Tip diameter
• Arm length
• Throat depth
• Access to narrow or deep parts
• Ease of replacement

A short arm may be suitable for compact parts. A longer arm can reach farther into an assembly, but excessive reach may reduce mechanical strength or affect pressure control.

Electrode tips also wear. If the tips become flat, dirty, or damaged, the weld may become weak or inconsistent. I prefer a machine with replacement tips that are easy to source and simple to change.

For battery tab work, the electrode shape and pulse control need closer attention. Thin nickel strips can burn through if the current or welding time is too high. I test the settings on spare material before working on finished cells or assemblies.

Review the Control System

A basic machine may use a foot pedal and manual controls. Another model may offer programmable welding schedules, current control, pressure adjustment, and stored settings.

I choose the control system based on the work, not on the number of buttons.

Useful functions may include:

• Adjustable welding time
• Current adjustment
• Pulse control
• Pressure adjustment
• Repeatable settings
• Error or overheating alerts
• Easy-to-read display

Repeatable settings are helpful when several operators work on the same product. They reduce the chance that each person will use a different combination of time and current.

A simple interface can be a good choice for occasional repair work. A more controlled system may suit regular production where weld consistency matters.

Ask About Weld Testing

A supplier’s photos cannot show how a machine will perform on my exact parts. I ask whether I can test samples using the same material thickness, surface condition, and layer arrangement.

I check the sample for:

• Weld nugget formation
• Surface marks
• Burn-through
• Loose sheets
• Cracks
• Excessive indentation
• Separation during a peel test

A peel test is a practical method for many sheet metal jobs. I try to separate the welded sheets and observe how the joint fails. The result can provide useful information, though the correct test method depends on the product and quality requirements.

For example, a small metal cabinet maker may test two coated steel sheets before selecting a machine. If the sheets separate without tearing around the weld, the settings or machine capacity may not be suitable. A sample test can reveal this before the machine enters daily use.

Check Maintenance and Support

A spot welding machine needs routine care. I ask what parts require regular inspection and how often they should be replaced.

I look for clear information about:

• Electrode replacement
• Transformer care
• Cooling system checks
• Cable inspection
• Air pressure or water flow
• Spare parts
• User manuals
• Technical support

Service support matters when the machine is used for business work. A lower-cost machine may become difficult to manage if replacement parts are unavailable or the supplier cannot explain fault codes.

I also ask how the machine is packed and delivered. Heavy equipment can suffer damage during transport if the packaging is weak. Photos of the packed machine, shipping weight, and delivery conditions can help me plan the installation.

Compare the Total Cost

The purchase price is only one part of the budget. I also consider:

• Electrical installation
• Cooling equipment
• Replacement electrodes
• Spare cables
• Maintenance parts
• Operator training
• Shipping
• Possible downtime

A machine with a lower price may use uncommon electrode tips or need a separate cooling unit. Another machine may cost more but include the controls and accessories I already need.

I create a simple cost sheet and compare models using the same list of requirements. This prevents me from comparing a complete package with a basic machine that does not include key parts.

Ask These Questions Before Buying

I use a short checklist when speaking with a supplier:

1. What materials and thicknesses can this model weld?
2. What input power does it require?
3. What duty cycle applies to the stated rating?
4. Which electrode tips are included?
5. Can the machine weld my sample parts?
6. What cooling method does it use?
7. Are spare parts available?
8. What controls can I adjust?
9. What safety features are built into the machine?
10. What training or operating instructions are provided?

Clear answers help me compare machines with less guesswork. If a supplier avoids specific information about welding range, power, or maintenance, I do not treat the machine as a safe choice for my work.

A Practical Way to Make the Choice

I write the required material, thickness, daily weld count, power supply, and workpiece size on one page. Then I remove any machine that fails one of those basic requirements.

I test the remaining options against sample parts. I inspect the welds, review the electrical setup, and check the cost of replacement parts. The machine that fits my process is usually a better choice than the model with the highest current rating or the longest feature list.

A spot welding machine should support stable work, clear operation, and manageable maintenance. When I match the machine to the actual job and confirm its performance with sample welds, I can make the purchase with a much clearer view of what I will receive.

When I speak with buyers who are new to spot welding, I often hear the same concern: choosing a machine can feel difficult. The product pages may list welding current, transformer power, electrode force, duty cycle, and throat depth, yet these figures do not always show how the machine will perform on the buyer’s own parts.

A practical purchase starts with the workpiece, not the machine name. I look at the metal type, sheet thickness, joint design, production volume, and available power supply. These details help narrow the choice and reduce the risk of buying equipment that does not match the job.

What spot welding does

Spot welding joins two or more metal sheets by placing them between electrodes. The electrodes apply pressure while electrical current passes through the contact area. Heat forms at the joint, creating a weld nugget that holds the sheets together.

The process is widely used for:

• Automotive sheet metal
• Metal cabinets
• Electrical enclosures
• Wire products
• Appliance parts
• Hardware components
• Small brackets and frames

The process works well when the materials overlap. It is less suitable for thick solid parts, large gaps, dirty surfaces, or joints that need a continuous sealed seam.

Start with the material and thickness

The material affects the required current, pressure, electrode shape, and welding time.

Mild steel is often easier to weld than stainless steel because stainless steel can need different heat control and electrode settings. Galvanized steel may produce zinc fumes and can affect electrode wear. Aluminum usually needs a different setup because it conducts heat and electricity quickly.

Sheet thickness matters just as much. If I receive a request for two sheets of 0.8 mm mild steel, I would ask whether the sheets have equal thickness, whether they are coated, and whether the joint has any gap. A machine that handles this combination may not provide the same result with two sheets of 2 mm stainless steel.

Buyers should ask suppliers to confirm the welding range based on the exact material combination, rather than relying on a general statement such as “suitable for thin metal.”

Check the machine type

Different machine designs suit different work areas.

A portable spot welder can be useful for repair work and large panels that are hard to move. Its arm length, cable size, gun weight, and cooling method affect daily operation.

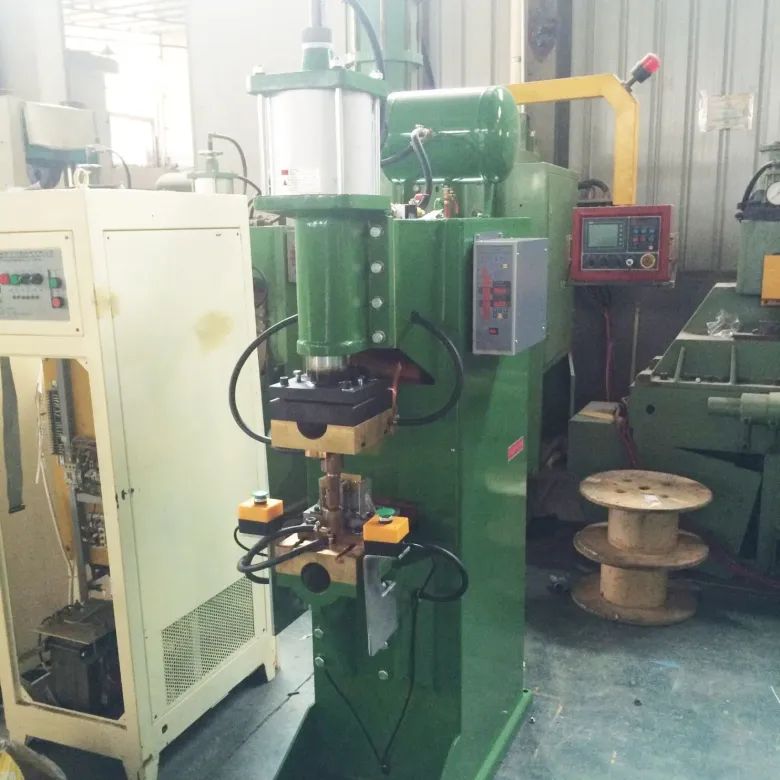

A pedestal spot welder is often used on a production line or in a workshop. It can provide a stable electrode position and may support foot-pedal or automatic control.

A bench spot welder fits smaller parts and repeated work at a fixed station. Buyers should check the maximum throat depth and the space around the electrodes. A compact body does not always mean that every part will fit comfortably.

Robotic or automatic systems can support repeated welding patterns, but they require a suitable layout, control system, and part positioning method. They may not be a sensible choice for low-volume work with many product changes.

Understand the main specifications

The numbers on a quotation need to match the job.

Welding current affects the heat delivered to the joint. A higher rated current does not guarantee a better weld. The setting must match the material, thickness, electrode condition, and welding time.

Electrode force keeps the sheets in contact. Too little force can cause spatter or weak contact. Too much force can reduce resistance heating and leave a small weld nugget.

Welding time controls how long current passes through the joint. A longer time is not always the right solution. It can increase heat damage, marks, or electrode wear.

Transformer capacity helps show the electrical load the machine can support. Buyers should compare the rated input voltage, phase, frequency, and installation requirements with the workshop power supply.

Duty cycle describes how much operating time the machine can handle within a set period. A machine used for occasional repairs may need a different duty cycle from one used for repeated welding throughout a shift.

Throat depth shows how far the electrode area reaches into the machine. If the workpiece is wide, a shallow throat may prevent access to the required weld points.

Cooling system affects stable operation. Air cooling may suit lighter use. Water cooling can be useful for higher workloads, depending on the machine design and maintenance plan.

Check electrode access and joint shape

A welding machine may have enough electrical capacity but still fail to reach the weld location.

I ask buyers to send a drawing, photo, or sample part that shows:

• Sheet dimensions
• Overlap width
• Distance from the edge to each weld point
• Part height
• Possible obstructions
• Required weld spacing
• Electrode approach direction

For example, a cabinet panel may need welds close to a folded edge. A standard arm may not enter the corner without touching the panel. A different electrode arm or machine layout could solve the access problem.

The electrode tip also matters. Flat, pointed, dome-shaped, and custom tips create different contact areas. The supplier should explain which tip shape fits the material and joint.

Ask for a sample weld

A sample test gives more useful information than a specification sheet alone.

I suggest sending the supplier the same material and thickness used in production. The test should include the planned overlap, surface condition, electrode type, and approximate weld spacing. Ask for photos of the weld marks and, when possible, a simple destructive test.

A common test is the peel test. The sheets are pulled apart so the buyer can inspect the weld nugget. The result depends on the material and application, so it should be judged against the buyer’s quality requirements.

A sample test can reveal problems such as:

• Spatter around the weld
• Excessive indentation
• Weak bonding
• Sheet tearing
• Uneven weld size
• Electrode sticking
• Heat marks on the visible surface

The test does not remove the need for production validation, but it gives the buyer a clearer starting point.

Consider controls and daily operation

Basic controls may be enough for occasional work. Repeated production usually benefits from adjustable welding current, welding time, squeeze time, hold time, and pulse settings.

A digital control panel can make settings easier to repeat, but the operator still needs a clear process. I prefer a machine that allows the buyer to save or record settings for each part. This supports training and reduces guesswork when operators change.

Foot pedals, two-hand controls, emergency stops, guards, and part fixtures also affect safe operation. The machine should be installed according to the supplier’s instructions and local workplace requirements. Operators need suitable eye, hand, and body protection, along with proper ventilation for coated materials.

Review maintenance needs

Electrode tips wear during use. Their contact shape can change, which affects current density and weld quality. Buyers should ask how often the tips need dressing or replacement under similar working conditions.

Useful questions include:

• Are replacement electrodes easy to source?
• Does the machine need regular water changes?
• What cooling water quality is required?
• Which components are considered wear parts?
• Is a wiring diagram supplied?
• What support is available after installation?
• Are operating and maintenance instructions provided in a clear language?

A machine with simple maintenance may be easier to manage than one with a higher specification that requires skills or parts unavailable at the buyer’s site.

Calculate the full purchase cost

The machine price is only one part of the budget. I also check the cost of:

• Shipping and installation
• Electrical work
• Cooling equipment
• Electrode tips and arms
• Fixtures and tooling
• Spare parts
• Operator training
• Product testing
• Routine maintenance

A lower purchase price may not reduce the total cost if the machine needs frequent manual adjustment or has limited access to replacement parts. A higher-cost system may also be unsuitable if the production volume is small. The right comparison uses the full work process, not one number on the quotation.

A simple buyer checklist

Before placing an order, I recommend preparing these details:

1. Material type and surface coating
2. Number of sheets and total thickness
3. Part drawings or clear photos
4. Required weld points and spacing
5. Expected daily or monthly output
6. Workshop voltage and phase
7. Available floor space
8. Preferred manual or automatic operation
9. Safety and ventilation conditions
10. Sample testing requirements

A buyer who provides this information usually receives a more useful recommendation than someone who only asks for the highest current rating.

Spot welding becomes easier to manage when the purchase follows the actual job. Match the machine to the material, joint access, production rhythm, power supply, and maintenance plan. Ask for a sample weld, review the operating details, and keep the quality checks clear.

The right machine is not simply the one with the largest specification. It is the one that can reach the joint, repeat the required weld, fit the workshop, and remain practical for the people who will use it.

Buying a spot welding machine can look simple until I compare the details. Two machines may share the same power rating, yet produce different results on sheet thickness, weld size, cycle time, and electrode life. A low purchase price may also bring higher costs through poor repeatability, extra rework, or difficult maintenance.

I use a simple method when I evaluate a spot welding machine: define the material, check the required weld, match the machine to the workload, then review safety and service support.

Start with the material and thickness

The material is the first point I check.

Steel, stainless steel, galvanized steel, nickel strip, and aluminum do not respond to spot welding in the same way. Each material needs a suitable combination of current, welding time, electrode force, and electrode shape.

A machine used for thin nickel strip in battery pack assembly may not suit a workshop joining thicker steel panels. A unit designed for automotive body repair may offer far more power than a small electronics workshop needs.

Write down:

• Material type
• Material thickness
• Number of layers
• Coating or surface treatment
• Required weld diameter
• Expected weld count per day

The number of layers matters because current must pass through every layer. A machine that handles two thin sheets may struggle with three layers or coated surfaces.

Choose the right machine type

Spot welding machines come in several forms. The right choice depends on the work area and production pattern.

Benchtop spot welders

A benchtop model suits small parts, light fabrication, repair work, and basic production tasks. I would consider this style for thin metal parts, small brackets, and battery tab welding when the material range stays within the machine’s rated capacity.

It usually takes less floor space and may be easier for a new operator to control. The trade-off is a smaller working area and lower output on heavier materials.

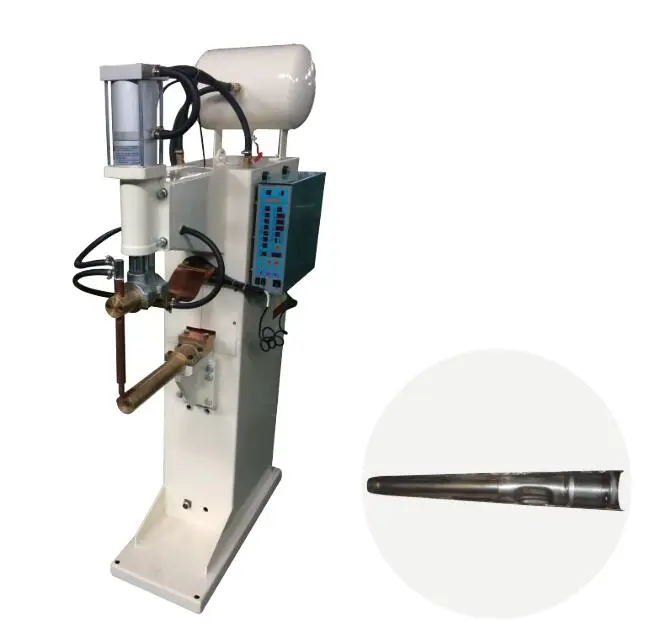

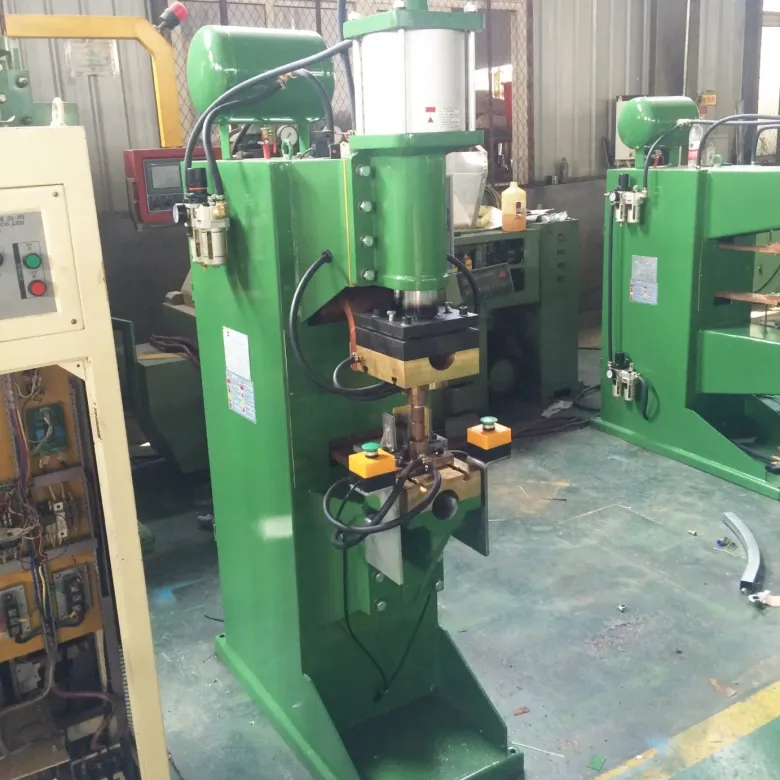

Pedestal spot welders

A pedestal model gives the operator a stable work position and a larger throat depth. This helps when the parts are too large or awkward for a benchtop machine.

These machines often work well in metal workshops that handle repeated sheet metal joints. I would check the arm length carefully. A longer throat can reach deeper parts, but it may affect the force available at the electrode.

Handheld or portable spot welders

A portable machine can help when the workpiece cannot be moved easily. Automotive repair shops often use portable spot welders for body panels and localized repairs.

The cable length, transformer weight, gun balance, and cooling method all affect daily use. A heavy gun may be acceptable for occasional repairs but tiring during repeated welds.

Automatic and multi-point systems

Production lines may need a machine with programmable settings, multiple welding heads, or automatic part positioning. The machine should match the required cycle rate and fixture design.

I would not select an automated system only because it has more functions. The controls must fit the actual process. Extra features can add setup time and service needs when the work is simple.

Check the electrical specifications

The power rating deserves careful attention.

Some suppliers list input power, while others focus on welding current. These figures describe different parts of the machine. I compare the rated welding current, duty cycle, input voltage, phase requirement, and recommended circuit capacity.

A machine may produce a high current for a short period but need rest time between welds. The duty cycle shows how much work the unit can handle within a set period.

For example, a workshop that makes 50 brackets a day has different needs from a production line making several hundred assemblies per hour. The production line may need better cooling, faster controls, and a stronger transformer.

I also check whether the machine matches the electrical supply available at the workshop. A model that requires three-phase power may not be practical for a small facility with only single-phase service.

Look at control over welding settings

A reliable spot welding machine should let me adjust the main welding variables.

Useful controls may include:

• Welding current
• Weld time
• Squeeze time
• Hold time
• Pulse settings
• Electrode force
• Cooling time
• Stored programs for different materials

Digital controls can help with repeatability, but a screen does not guarantee good welds. I still need clear adjustment ranges and a way to test the result.

For thin sheet metal, a small change in weld time may affect appearance and strength. For coated steel, the process may need extra attention to surface condition and electrode maintenance.

A good control system should also show error messages in plain language. If the operator cannot tell whether a problem comes from low pressure, overheating, or a poor connection, troubleshooting becomes slow.

Inspect the electrodes and arms

Electrodes touch the workpiece, so their condition directly affects the weld.

I check:

• Electrode material
• Tip shape
• Tip diameter
• Arm construction
• Replacement method
• Availability of spare parts
• Adjustment range

Copper alloy electrodes are common because they conduct current and transfer force to the joint. The correct electrode shape depends on the part.

A sharp tip can concentrate current on a small area. A flat or rounded tip may suit a different joint. The operator should follow the machine maker’s guidance and test the weld on sample material before regular production.

Electrode arms also need enough clearance for the workpiece. If the arms are too short, the operator may struggle to position the part. If they flex under force, weld consistency may suffer.

Review cooling and duty cycle

Heat affects both the machine and the electrodes.

Water-cooled systems can support repeated work where air cooling may not be enough. A water-cooled transformer, arms, or electrodes may help control temperature during long production runs.

I ask these questions before buying:

• What parts are water-cooled?
• Is a separate chiller required?
• What water quality does the system need?
• How easy is it to drain and maintain?
• What happens when the cooling system stops?

For occasional workshop use, a simpler air-cooled machine may be easier to maintain. For continuous production, cooling should be part of the purchase decision rather than an afterthought.

Test the weld instead of trusting the brochure

A machine’s specifications provide a starting point. A sample weld provides more useful information.

I prepare test pieces using the same material, thickness, coating, and joint design planned for production. I then inspect the weld for:

• Surface marks
• Burn-through
• Weak bonding
• Excessive indentation
• Uneven weld size
• Cracking after a simple pull or peel test

A peel test can show whether the weld nugget stays with one sheet when the joint is separated. The exact test method should suit the product and the quality requirements.

For example, a workshop joining small stainless steel brackets may discover that a machine has enough power but leaves deep electrode marks. A different electrode tip, lower force, or shorter weld time may improve the result.

Testing also reveals whether the operator can position parts consistently. A machine may perform well in a sample fixture but become difficult to use when the part is larger or has a narrow access point.

Consider operator use and safety

The machine should be easy to operate without encouraging unsafe shortcuts.

I look for:

• Clear foot pedal or hand control
• Stable work support
• Guarding around moving parts
• Emergency stop access
• Protection from hot metal and sparks
• Simple loading and unloading
• Suitable ventilation for the material and coating
• Clear maintenance instructions

Spot welding can create heat, sparks, fumes, and pinch points. Operators need suitable training and personal protective equipment based on the material and workplace risk assessment.

Galvanized and coated materials may require extra ventilation because heating the coating can produce harmful fumes. The machine itself does not remove that risk.

A well-designed work area also reduces hand strain. If the operator must hold a heavy part at an awkward angle for every weld, fatigue may affect both safety and weld quality.

Calculate the full cost

The purchase price is only one part of the cost.

I include:

• Electrodes and electrode holders
• Cooling equipment
• Installation
• Electrical work
• Fixtures
• Spare parts
• Maintenance
• Operator training
• Downtime during service
• Energy use
• Rework from failed welds

A cheaper machine may make sense for light, occasional work. A higher-priced model may suit a workshop that depends on stable output and quick service. The right decision depends on the actual workload rather than the price label.

I also ask how spare parts are supplied. A machine that sits unused while waiting for a small electrode holder can affect production more than expected.

Ask the supplier practical questions

Before I place an order, I ask for direct answers:

1. What material and thickness range has been tested?
2. What welding current and duty cycle apply to my planned work?
3. Can the supplier provide sample weld testing?
4. Which parts are consumables?
5. How are electrodes changed and dressed?
6. What electrical connection is required?
7. Is cooling included?
8. What training is available?
9. Who handles repairs and technical questions?
10. Are manuals and wiring diagrams supplied?

A supplier should be able to explain the machine without relying only on broad claims. If the answer is unclear, I treat that as a reason to gather more information before buying.

Common buying mistakes

One common mistake is choosing a machine by maximum thickness alone. The maximum figure may apply to a specific material, electrode setup, and short duty cycle. It may not represent normal production use.

Another mistake is ignoring access. A powerful machine cannot solve a joint that the electrode cannot reach.

Some buyers also overlook fixtures. A spot welder may perform well, yet inconsistent part positioning can lead to uneven welds. A simple fixture may improve repeatability more than a larger power rating.

Buying without sample testing creates another risk. The machine may weld the material, but the joint may show marks, distortion, or weak bonding that does not suit the product.

My practical selection method

I narrow the choice with this process:

• Record the material, thickness, and layer count.
• Estimate the number of welds per shift.
• Select the machine type and throat depth.
• Compare current, duty cycle, cooling, and controls.
• Check electrode access and replacement cost.
• Test sample parts with the intended joint design.
• Review safety, installation, training, and service.
• Calculate the operating cost over the expected working period.

A suitable spot welding machine should match the job, the operator, and the workshop conditions. Power matters, but control, access, cooling, service, and testing matter just as much. When I compare all of these points together, I have a better chance of choosing a machine that produces stable welds without creating avoidable costs.

Buying a spot welder can feel harder than expected. Two machines may look similar, yet their welding current, control system, electrode design, and cooling capacity can produce very different results.

I have seen buyers focus only on the maximum current listed on the product page. That number does not tell the whole story. A welder that works well for thin nickel strips may not suit steel sheet, stainless steel, or repeated workshop use.

The right choice starts with your material, joint design, work rate, and power supply.

1. Define the material before comparing machines

I start by writing down the metals I plan to weld:

• Nickel-plated steel strip for battery packs
• Mild steel sheet for small enclosures
• Stainless steel components
• Galvanized sheet
• Thin wire or tabs

Each material needs a suitable welding range. Battery tab welding often uses short pulses and controlled pressure. Sheet metal work may need stronger current, longer electrode arms, and a different electrode shape.

The material thickness matters as well. A welder designed for two thin strips may struggle with two pieces of thicker steel. When comparing products, check the recommended thickness range rather than relying only on the peak current.

For example, a small battery repair bench may work with 0.1 to 0.2 mm nickel strip. A fabrication shop joining 0.8 mm steel sheet needs a different type of machine, even if both tasks are called spot welding.

2. Check the welding current and control range

Welding current affects the heat created at the joint. A machine with too little current may produce a weak bond. Excess current can burn through thin metal, leave deep electrode marks, or damage battery cells.

I look for these control options:

• Adjustable current
• Adjustable weld time
• One or more pulse settings
• Pressure control
• Repeatable digital settings
• Foot pedal or hand trigger control

A wide adjustment range helps when I switch between materials. A fixed-output machine may be simple to use, but it gives me fewer ways to correct weak welds or surface damage.

The product page should explain how the current and time are adjusted. If the seller lists only a large current number without test conditions, I treat that figure with care and ask for more technical details.

3. Match the machine to your power supply

Some spot welders use standard single-phase power. Others need a higher-capacity circuit. A machine that draws more power than the workshop circuit can provide may cause nuisance trips, unstable performance, or heat at the plug and cable.

Before placing an order, I check:

• Rated input voltage
• Rated input current
• Plug type
• Cable length
• Circuit requirements
• Whether the machine uses single-phase power
• Recommended protection and ventilation

I once helped a small metalwork shop compare two compact welders. The cheaper model looked suitable, but its input demand was too high for the available circuit. The shop selected a lower-input model with a better match to its wiring. It produced a more useful result because the workshop could run it without changing the power setup.

4. Look at the electrode arms and throat depth

Electrode design affects access to the workpiece. Short arms may provide more direct force, while longer arms can reach deeper areas but may reduce practical force at the tips.

Measure the parts you plan to weld. Ask whether the electrodes can reach the joint without bending the sheet or blocking your view.

Useful details include:

• Arm length
• Throat depth
• Electrode tip shape
• Tip material
• Tip replacement method
• Gap between the electrodes
• Fixed or adjustable arm position

For battery tabs, a compact handpiece may be easier to control. For sheet metal boxes, a larger throat can make the joint easier to reach. I prefer a machine with replaceable tips because worn tips can change the contact area and affect weld quality.

5. Check pressure control

A spot weld depends on more than electricity. The electrodes must press the parts together with steady force. Weak or uneven pressure can create inconsistent joints.

Some compact machines use manual hand pressure. Others use a pneumatic system, spring mechanism, or powered electrode arm. Manual pressure may suit occasional work. A powered system can help when I need repeated welds with similar force.

Ask how the pressure is set and whether the pressure can be maintained from one weld to the next. If the machine has no clear pressure guidance, test several sample joints before working on finished parts.

6. Consider duty cycle and cooling

Duty cycle describes how long a machine can operate before it needs a rest period. A small unit may handle occasional welds but require cooling after repeated use.

This matters when I work through a batch of parts. A machine that performs well for five welds may slow down during a larger job.

Check for:

• Cooling fan
• Water cooling
• Thermal protection
• Duty cycle information
• Overheat alerts
• Recommended rest periods

A repair shop making several battery packs may need stronger cooling than a hobby user making a few joints each week. If the seller does not provide duty cycle information, I ask how many welds the machine can perform under a stated material and setting.

7. Review the control panel

A simple control panel can reduce setup mistakes. I prefer controls that show weld time and power in a way I can repeat.

A useful panel may include:

• Clear digital display
• Separate controls for time and current
• Pulse selection
• Foot switch setting
• Manual and automatic modes
• Stored settings, when available

A display does not guarantee good welds. It only helps me repeat a setting after I have tested it. I still inspect the joint and perform a basic pull test on sample pieces.

8. Inspect the included accessories

The listed price may not include everything needed for regular work. I check the package contents before comparing two models.

Look for:

• Electrode tips
• Replacement arms
• Foot pedal
• Handheld welding pen
• Air hose or regulator
• Cooling parts
• Spare fuses
• Setup tools
• User manual

A machine with a lower purchase price may require separate accessories. A slightly higher total cost can be reasonable if the package includes the parts needed for the intended task.

I also check the cost and availability of replacement tips. Small consumable parts can affect long-term use more than expected.

9. Read support and maintenance details

A spot welder needs clean electrode tips, stable cables, and regular inspection. The manual should explain setup, cleaning, tip replacement, and fault codes in plain language.

Before buying, I look for:

• A readable manual
• Product support contact
• Spare part information
• Warranty terms
• Repair process
• Clear maintenance guidance

I am careful with sellers who provide only a short product description and no technical documentation. A machine may still work, but troubleshooting becomes harder when the settings and service process are unclear.

10. Confirm the safety features

Spot welding creates heat, sparks, fumes, and hot metal. Battery work can bring extra risks if cells are damaged, shorted, or overheated.

I look for features such as:

• Overheat protection
• Short-circuit protection
• Insulated handles
• Stable base
• Emergency stop, where suitable
• Protected cables
• Clear warning labels

I use eye protection, suitable gloves, good ventilation, and a clean work surface. I keep flammable materials away from the welding area. For battery packs, I follow the cell manufacturer’s limits and avoid welding damaged or swollen cells.

Safety features support careful work. They do not replace training, inspection, or correct setup.

11. Test the weld instead of trusting appearance

A shiny mark does not prove that the joint is strong. I test sample pieces made from the same material and thickness as the final product.

Useful checks include:

• Pulling the welded tabs by hand
• Peeling the layers apart
• Checking for tearing around the weld
• Looking for burn-through
• Measuring surface marks
• Testing several weld points from one batch

For thin nickel strip, a good weld may tear the strip around the joint rather than separate cleanly at the weld point. The result depends on the metal, surface condition, pressure, current, and pulse time.

I record the settings that work. This makes later batches easier to repeat and reduces trial and error.

12. Compare the total cost

The purchase price is only one part of the decision. I also consider:

• Replacement electrodes
• Cooling parts
• Electrical setup
• Shipping
• Service costs
• Training time
• Expected workload

A compact welder can be a sensible choice for occasional battery tab work. A workshop producing metal parts every day may need a larger machine with stronger cooling and better access to service parts.

I avoid choosing by current rating alone. A balanced match between the machine and the job usually gives better control, fewer failed samples, and a simpler maintenance routine.

A practical buying process looks like this:

1. Identify the material and thickness.
2. Estimate the number of welds per session.
3. Check voltage and input requirements.
4. Compare current, time, pulse, and pressure controls.
5. Measure electrode access and throat depth.
6. Review cooling and duty cycle data.
7. Confirm accessories, support, and spare parts.
8. Test sample welds before using the machine on finished parts.

The best spot welder for me is not the one with the largest number on the label. It is the one that matches my material, electrical setup, work volume, and level of control. A clear specification sheet, suitable accessories, and reliable test results tell me much more than a bold marketing claim.

Contact us on Bob Zhang: bob@xinchang-machinery.com/WhatsApp +8615888002607.

American Welding Society | 2012 | Recommended Practices for Resistance Welding

International Organization for Standardization | 2015 | Resistance Welding Procedure for Spot Welding of Uncoated and Coated Low-Carbon Steels

International Organization for Standardization | 2018 | Resistance Welding Spot Projection and Seam Welding Transformer-Rectifier Equipment with Direct Current

American Welding Society | 2012 | Test Methods for Evaluating the Resistance Spot Welding Behavior of Automotive Sheet Steel Materials

ASM International | 1993 | ASM Handbook Volume 6 Welding Brazing and Soldering

Krister Weman | 2012 | Welding Processes Handbook
