Spot Welding Machine? 95% Efficiency, Zero Defects!

When a spot welding line slows down, the problem rarely comes from one single machine. Uneven electrode pressure, worn tips, poor sheet alignment, unstable current, and long setup times can all affect the result.

I have seen this in metal fabrication plants where operators spend hours checking weld marks, adjusting fixtures, and separating parts for rework. The line may still be running, yet its useful output keeps falling.

A practical upgrade focuses on stable welding conditions, clear process checks, and data that operators can use.

Start with a Process Check

I begin by reviewing the key points of the current welding process:

• Welding current
• Weld time
• Electrode force
• Electrode tip condition
• Sheet thickness and coating
• Part alignment
• Cooling water flow
• Rework and rejection records

This check helps separate equipment issues from material or setup issues. A high rejection rate may come from low electrode force, while inconsistent weld size may point to tip wear or unstable current.

The goal is not to change every setting at once. I prefer to record the current process, test one adjustment, and compare the result with a clear sample group.

Improve Electrode Control

Electrode tips directly affect weld quality. A flat, dirty, or uneven tip can change the contact area and heat distribution. That may lead to weak welds, surface marks, or excessive splashing.

A simple maintenance plan can include:

• Regular tip inspection
• Scheduled tip dressing
• Tip replacement based on wear data
• Cleaning of contact surfaces
• Checks for correct electrode alignment

For example, an automotive parts supplier found that weld variation increased after several hours of production. The welding power source was working within its normal range, but the electrode tips had developed uneven contact surfaces. After adding a tip inspection step to the production schedule, the team reduced repeated weld adjustments and improved line stability.

The exact result will depend on the material, machine, and production volume. The main lesson is simple: electrode condition should be treated as part of the process, not as a minor maintenance detail.

Set Welding Parameters with Test Data

A strong weld does not always require more current or longer weld time. Excessive heat can create burn marks, distortion, electrode wear, and material damage.

I recommend creating a small parameter test:

1. Select a representative batch of parts.
2. Record the current settings.
3. Change one setting at a time.
4. Inspect weld appearance and strength.
5. Track defects, rework, and cycle time.
6. Keep the setting that provides a stable balance.

Destructive testing, peel testing, or other suitable inspection methods can support the decision. The correct test depends on the product design and quality requirements.

A target such as 95% process efficiency can be useful when it is based on measured output, approved quality standards, and actual production data. It should be treated as a performance goal, not a guaranteed result for every line.

Reduce Setup Variation

Two operators may use the same machine and produce different results if the setup instructions are not clear. Small differences in fixture position, part pressure, or parameter selection can affect the weld.

I use visual work instructions that show:

• Correct part placement
• Fixture contact points
• Electrode position
• Approved parameter range
• Inspection points
• Action to take when a weld falls outside the standard

This approach helps new operators understand the process without relying only on verbal training. It also gives experienced workers a shared reference when production changes from one part model to another.

Add Simple Monitoring

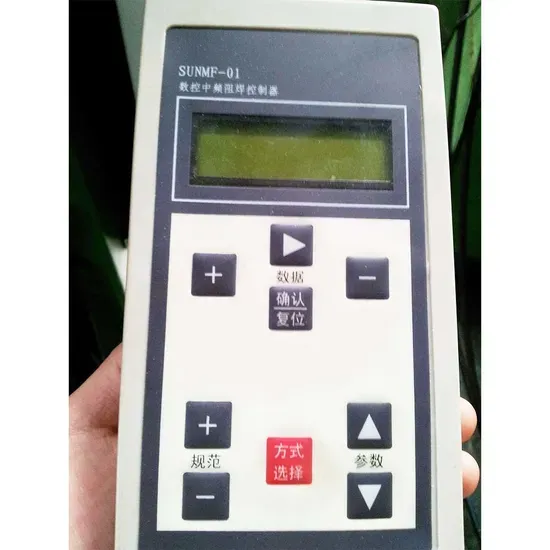

A monitoring system does not need to be complex to be useful. It can record current, voltage, weld time, force, alarms, and part identification.

The data can help answer practical questions:

• Did the machine reach the planned current?
• Did weld time change during the shift?
• Which fixture creates the most rework?
• When do electrode tips begin to lose consistency?
• Which part number needs more setup attention?

I find that this type of information supports faster decisions than visual inspection alone. It can also help maintenance teams plan service based on machine behavior instead of waiting for a visible failure.

Measure the Right Results

An upgrade should be judged by more than production speed. I track several indicators:

• First-pass yield
• Rework rate
• Scrap rate
• Average cycle time
• Changeover time
• Downtime
• Weld inspection results
• Electrode consumption

A line that produces more parts but creates more rework may not be improving. A small cycle-time gain can lose its value if operators must stop often to repair defects.

The most useful plan connects efficiency with quality. It sets a practical target, tests the change, and keeps the process under review.

Spot welding performance improves when the full process is managed together. Stable equipment, maintained electrodes, tested parameters, clear work instructions, and usable production data can reduce variation without relying on exaggerated promises.

If a production line is showing uneven welds or rising rework, I would begin with a process record and a small controlled test. That gives the team a reliable starting point and makes each upgrade easier to measure.

When welding takes longer than planned, the problem is often not the welder’s speed. Delays can come from poor fit-up, unclear settings, repeated grinding, and small defects that appear after the joint has cooled.

I have found that faster welding starts before the arc is turned on. A clean workflow helps reduce errors, protect material, and make the finished joint more consistent.

Start with a clear work plan

Before I prepare the parts, I check the drawing, joint type, material thickness, welding position, and access to the joint. This short review helps prevent avoidable stops during the job.

I also confirm:

• The required weld size
• The suitable welding process
• The filler metal or wire type
• The expected weld sequence
• The areas that need inspection
• The points where distortion may occur

A simple plan can save more time than rushing through the first weld.

For example, a fabrication shop working on steel frames may mark each joint before assembly. The welder can then identify the correct part, position, and weld length without checking the drawing for every small detail.

Prepare the joint before welding

Joint preparation affects both welding speed and weld quality.

I remove oil, paint, rust, moisture, and loose scale from the welding area. Contamination can lead to porosity, spatter, weak fusion, and extra cleaning work. On thicker material, I check the bevel angle, root gap, and land before tacking.

Good fit-up gives the arc a more stable path. It also reduces the amount of filler metal needed.

Useful checks include:

• Are the parts aligned?
• Is the root opening consistent?
• Are the edges clean?
• Is the joint clamped without forcing the parts into place?
• Can the torch or electrode reach the full joint?

If I need excessive force to close a gap, I stop and correct the fit-up. Welding over a poor joint often creates more work later.

Use stable settings

Welding parameters should match the material, joint, position, and process. I avoid changing several settings at once because it becomes difficult to identify the cause of a poor result.

I check:

• Amperage or voltage
• Wire feed speed
• Travel speed
• Gas flow, where applicable
• Electrode size
• Polarity
• Contact tip condition

A setting that works on a flat joint may not suit a vertical or overhead weld. Position changes the way the molten pool behaves, so I adjust the technique with control rather than relying on one setting for every task.

A steady arc and controlled travel speed usually produce a cleaner bead than fast hand movement. When I move too quickly, I may create undercut or incomplete fusion. When I move too slowly, I may add excess heat and increase distortion.

Tack weld with purpose

Tacks hold the assembly in place, but they also affect the final shape. I place tacks at balanced points and make sure they are large enough for the job.

For longer parts, I use a weld sequence that spreads heat across the assembly. This can help reduce pulling and misalignment. I also inspect the tacks before running the main weld. A cracked or poorly fused tack can become part of the finished joint.

One shop reduced rework on rectangular frames by changing the tack sequence. The team checked the diagonal measurements after tacking, corrected the frame before welding, and reduced the need for cutting and realignment.

Keep the torch or electrode under control

A consistent work angle helps maintain a stable arc and even penetration. I keep the arc length within the range recommended for the process and avoid sudden hand movements.

The key points are:

• Keep a steady travel angle
• Watch the leading edge of the weld pool
• Move at a pace that matches the joint
• Pause slightly where more fusion is needed
• Avoid wide movements when a narrow bead is suitable

I do not judge the weld by bead appearance alone. A smooth surface can still hide poor penetration or trapped defects. The joint must match the required standard and inspection method.

Inspect during the job

Inspection should not wait until the whole assembly is complete. I check each section while access is still easy.

I look for:

• Cracks
• Porosity
• Undercut
• Overlap
• Poor fusion
• Uneven bead shape
• Excessive spatter
• Distortion

If I find a defect, I record the location and likely cause. The issue may come from surface contamination, an unstable arc, poor fit-up, wrong settings, or an unsuitable travel speed.

This approach is more useful than simply grinding the area and welding over it without understanding what went wrong.

Maintain the equipment

A clean nozzle, sound liner, suitable contact tip, and stable ground connection can make the welding process easier to control. Gas leaks and worn consumables may not look serious at the start of a shift, yet they can create repeated defects.

I include quick equipment checks in the work routine:

1. Inspect cables and connections.
2. Check the torch, holder, and nozzle.
3. Confirm the shielding gas supply.
4. Remove spatter from the nozzle.
5. Replace worn consumables.
6. Test the arc on suitable scrap material.

These checks take little time and can prevent a long pause after production has started.

Build a repeatable workflow

For repeated jobs, I keep a simple record of settings, joint preparation, weld sequence, and inspection results. The record does not need to be complex. A clear sheet with useful notes can help the next operator prepare the work with fewer questions.

My preferred workflow is:

• Review the drawing and joint requirements.
• Prepare and clean the material.
• Check fit-up and alignment.
• Select suitable settings.
• Place balanced tack welds.
• Confirm dimensions.
• Weld with a controlled sequence.
• Inspect each section.
• Clean and document the result.

Faster welding is not about moving the torch as quickly as possible. It comes from reducing stops, preventing defects, and making each part of the process easier to repeat. When preparation, equipment, settings, and inspection work together, the welder spends more time creating sound joints and less time correcting avoidable mistakes.

When production slows down, the cause is not always a large equipment failure. In many workshops, small problems create the biggest delays: unstable current, poor electrode contact, repeated welds, excess spatter, and frequent manual adjustments.

I see this often in sheet metal production. An operator may spend several minutes checking a weak joint, changing pressure, or replacing worn electrodes. One defective weld takes little time to repair. Hundreds of inconsistent welds can affect the whole production schedule.

Reliable spot welding performance helps reduce these interruptions. It gives operators a steadier process, supports consistent joint quality, and makes daily output easier to manage.

Set the welding conditions around the material

Different metals need different welding settings. Steel, stainless steel, coated sheet, and aluminum do not respond to the same current, pressure, or welding time.

I recommend checking these factors before setting the machine:

• Material type
• Sheet thickness
• Number of layers
• Surface coating
• Electrode shape
• Required joint strength
• Welding sequence

A simple production record can help. Write down the selected current, weld time, electrode force, and inspection result for each part. The record gives operators a clear starting point when the same product returns to the line.

This practice also helps prevent random adjustments. If a weld becomes weak, the operator can check the process record instead of changing several settings at once.

Keep electrode contact stable

Electrode condition has a direct effect on spot welding quality. Dirty, damaged, or misshaped electrodes may create uneven contact. The result can include weak nuggets, surface marks, spatter, or excessive heat.

I suggest adding a short electrode check to the daily production routine:

1. Look for cracks, heavy wear, and surface buildup.
2. Check whether the electrode tips align correctly.
3. Remove residue with a suitable cleaning method.
4. Dress or replace the tips when their shape affects contact.
5. Confirm that the electrode arms move without excessive play.

A car body repair shop may perform many small welds on brackets and panels during one shift. If the electrode tips are not maintained, the operator may see different results from one weld point to the next. Regular checks can make the process easier to control.

Use consistent pressure

Welding current receives much attention, but electrode pressure also matters. Too little pressure may increase resistance and create spatter. Too much pressure can reduce heat at the joint and leave an underdeveloped weld.

The correct pressure depends on the material, thickness, and machine design. I prefer using the equipment supplier’s recommended range as a starting point, then confirming the result through sample welds and inspection.

Pressure should remain stable across the work cycle. Worn cylinders, loose connections, and mechanical movement can affect this stability. When operators notice a change in weld appearance, they should check the mechanical side as well as the electrical settings.

Reduce unnecessary setup time

Productivity improves when the machine is easy to prepare for the next task. Clear parameter labels, repeatable fixtures, and accessible controls help operators spend less time searching for settings.

A practical setup routine may include:

• Confirming the correct program
• Checking fixture alignment
• Cleaning the contact area
• Verifying cooling flow
• Testing several sample welds
• Recording the inspection result

A workshop that produces several cabinet sizes can save setup time by storing approved parameters for each model. The operator can select the matching program, inspect the first pieces, and continue production with fewer manual changes.

The process still needs human judgment. Stored settings are a useful reference, not a substitute for checking the material and joint condition.

Pay attention to cooling

Spot welding produces heat at the contact point. If the cooling system does not work as expected, electrode wear may increase and weld quality may change during the shift.

I recommend checking:

• Cooling water flow
• Hose condition
• Filter condition
• Water temperature within the equipment guidance
• Signs of leakage
• Blocked passages around the electrodes

A cooling problem may not appear at the start of production. The first parts can look acceptable while later welds show more marks or inconsistent strength. Monitoring the system during a longer run gives a more useful picture than checking it only before startup.

Inspect the joint with a clear method

A good inspection routine does not need to slow production. It needs to match the product risk and process requirements.

Operators may use visual checks for surface marks, burn-through, misalignment, or spatter. They can also inspect sample welds through approved destructive or non-destructive methods, based on the company’s quality plan.

I find that sample inspection works best when the result is recorded in plain language. Notes such as “clean surface, correct position, sample passed” are easier to follow than unclear comments.

If a joint fails inspection, isolate the affected parts and review the last known good sample. Check the material, electrode condition, pressure, current, weld time, and fixture position before restarting the batch.

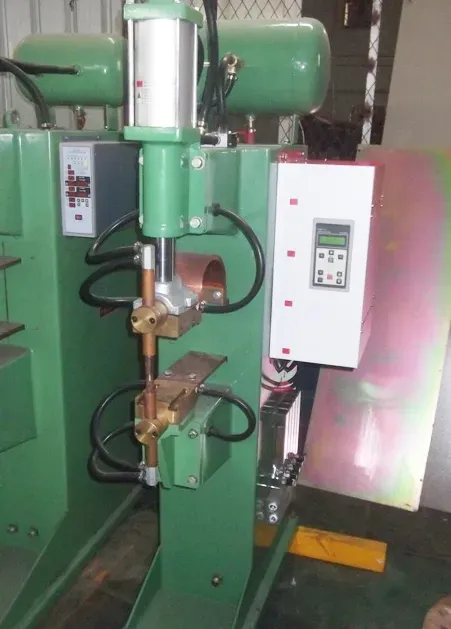

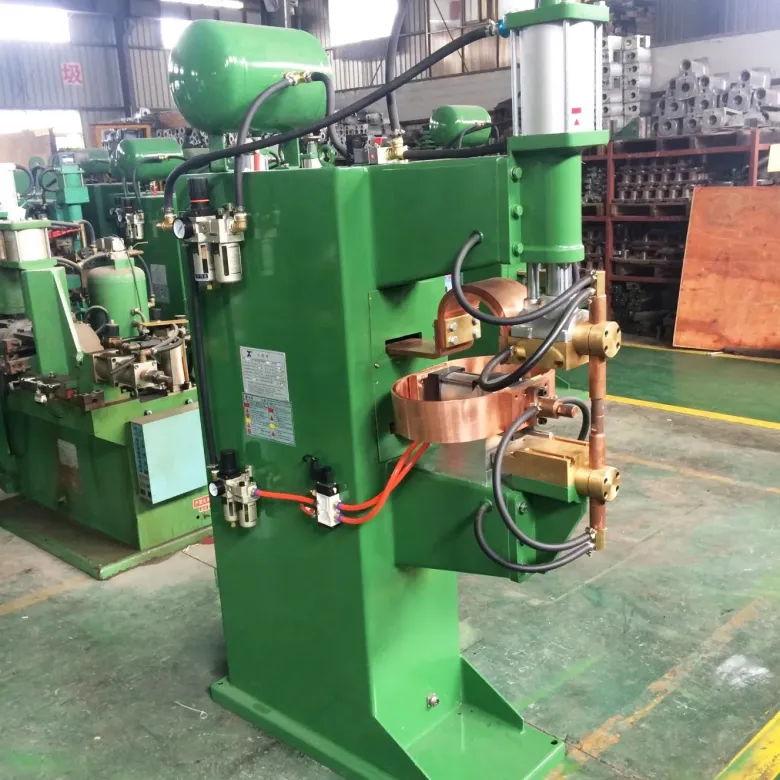

Choose equipment that supports repeatable work

When I assess a spot welding machine, I look beyond the listed power rating. The equipment should match the material range, production volume, workspace, and maintenance resources.

Useful points to check include:

• Control over welding current and time
• Stable electrode force
• Suitable arm and throat dimensions
• Cooling design
• Program storage
• Operator safety features
• Availability of replacement parts
• Ease of routine maintenance
• Support for the planned material and thickness

A machine that fits the job can help operators maintain a steady rhythm. A machine that lacks the required control range may create extra adjustment work, even when the basic welding function is available.

Reliable spot welding is built through several connected actions: suitable settings, clean contact, stable pressure, proper cooling, clear inspection, and regular maintenance. When these parts work together, operators spend less time correcting avoidable defects and more time producing consistent assemblies.

I believe the best productivity gains often come from improving the process around the welder, not simply increasing its speed. A steady weld made at the correct setting is more useful than a fast weld that requires repeated repair.

Want to learn more? Feel free to contact Bob Zhang: bob@xinchang-machinery.com/WhatsApp +8615888002607.

References

American Welding Society — 2020 — Structural Welding Code Steel

International Organization for Standardization — 2019 — Resistance Welding Welding Procedures for Spot Projection and Seam Welding

International Organization for Standardization — 2017 — Quality Requirements for Fusion Welding of Metallic Materials

Robert W Messler Jr — 2019 — Principles of Welding Processes Materials and Design

Sindo Kou — 2020 — Welding Metallurgy

Richard Little — 2018 — Welding and Welding Technology
