Min. Order:1Fin Die with 300 Million Punch Lifespan: The Durability Legend of stamping diesIn the vast landscape of industrial production, each type of equipment is writing an important chapter in its own field. The Friction Welding Machine uses the energy...
A Fin Die is a specialized precision tool used in manufacturing to produce fins—critical components in heat exchangers, radiators, and cooling systems. These dies shape metal sheets (typically aluminum, copper, or steel) into thin, structured fins that maximize surface area for efficient heat transfer.
Fin dies operate within stamping or rolling machines, using a combination of cutting, forming, and embossing actions to create intricate fin patterns. Key designs include louvered, wavy, or straight fins, each engineered to enhance airflow and thermal performance. The die's precision ensures consistent fin thickness (often 0.05–0.3mm) and uniform spacing, directly impacting heat exchanger efficiency.
Constructed from high-grade tool steels (e.g., D2, SKD11) or carbide, fin dies withstand high pressure and repeated use, maintaining accuracy over thousands of cycles. Advanced coatings like TiN (titanium nitride) reduce friction, extending die life and improving metal flow during forming.
Customization is vital—fin dies are tailored to specific applications, with variables including fin height (2–30mm), pitch (1–5mm), and configuration. For example, automotive radiators use fine-pitch fins for compact designs, while industrial heat exchangers require robust, corrosion-resistant fin structures.
Modern fin dies integrate computer-aided design (CAD) and computer numerical control (CNC) machining for intricate geometries. This precision minimizes material waste and ensures compatibility with automated assembly lines. Regular maintenance, including polishing and sharpening, preserves dimensional accuracy and prevents defects like burrs or uneven edges.
Widely used in HVAC, automotive, and aerospace industries, fin dies enable mass production of high-performance fins, making them indispensable in creating energy-efficient thermal management systems. Their role in optimizing heat transfer makes them a cornerstone of modern cooling technology.
Fin Die

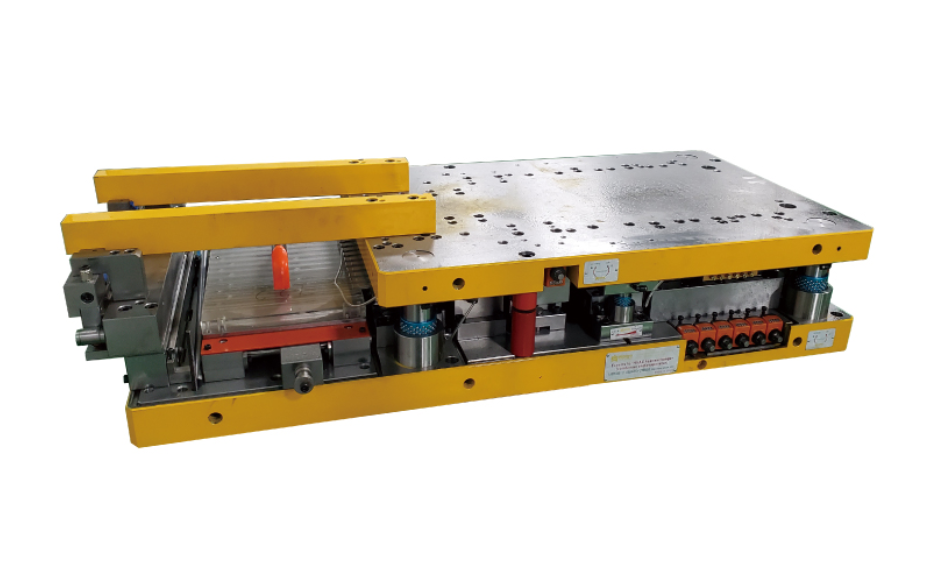

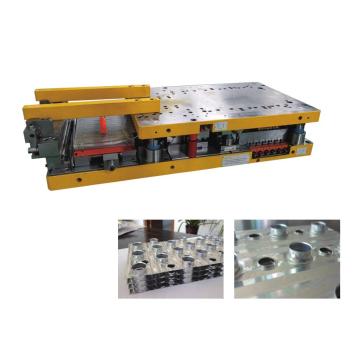

The fin die is the core component of the fin stamping machine and is specially designed for manufacturing heat dissipation fins for heat exchangers. It is made of special tool steel or hard alloy materials and processed through precise wire cutting and heat treatment techniques. It can efficiently stamp out various complex fin shapes (such as flat fins, corrugated fins, louver types, etc.), which directly affect the heat dissipation efficiency and production stability of the heat exchanger.
