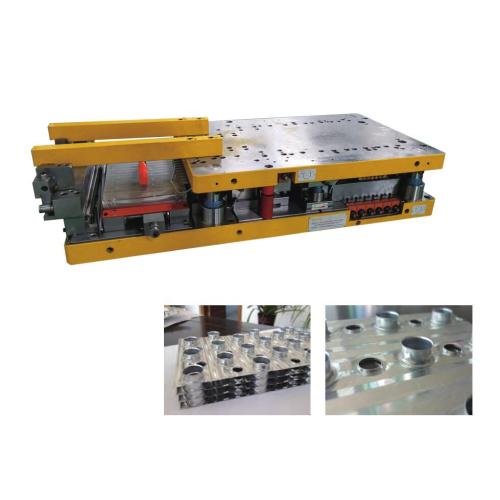

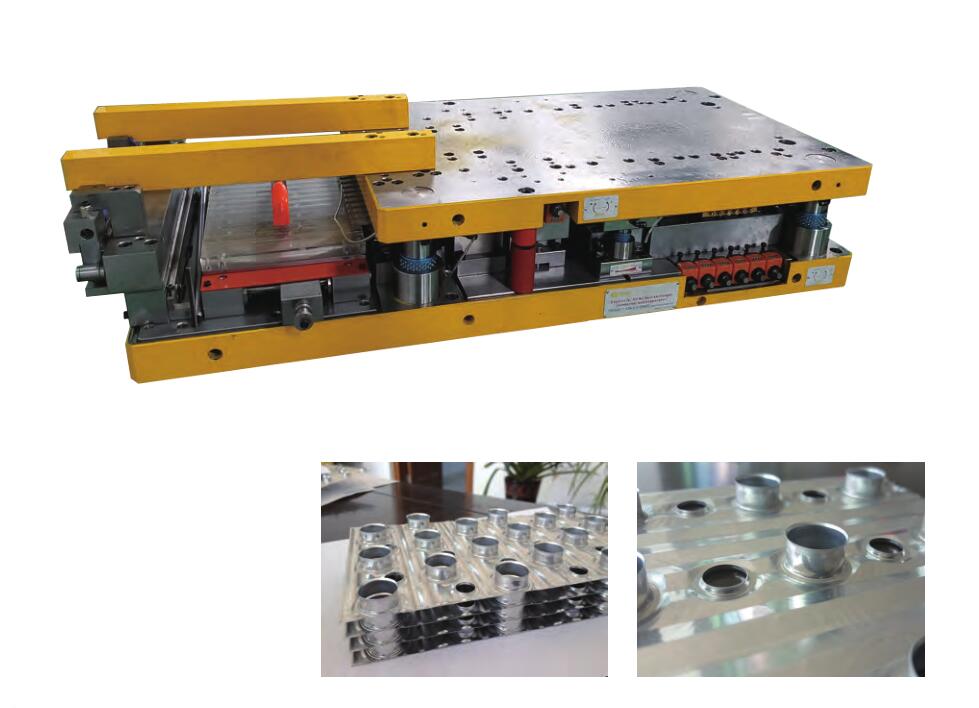

Fin Die Mould with 300 Million Punch Lifespan

	Item	¢9.52×12R×2P	¢12×6R×2P	¢15.88×6R×2P
1	Type die	ribbon	ribbon	ribbon
2	Fin shape	v-wave	v-wave	v-wave
3	Number of rows	12R	6R	6R
4	Distance between holes in row	25mm	30mm	38mm
5	Distance between rows	21.65mm	25.98mm	32.9mm
6	Pattern	staggered pattern	staggered pattern	staggered pattern
7	Feed progression	25mm	30mm	38mm
8	Hole size	9.85mm±0.03mm	12.4mm±0.03mm	16.3mm±0.03mm
9	Material	Temper H22, A1100 Alloy/8011 or O temp	Temper H22, A1100 Alloy/8011 or O temp	Temper H22, A1100 Alloy/8011 or O temp
10	Fin stock thickness range	0.1-0.25mm	0.1-0.25mm	0.1-0.25mm
11	Collar height range	1.5-6.5mm	1.5-7.0mm	1.5-8.0mm
12	Reflare	individual adjustment for full range of collar heights	individual adjustment for full range of collar heights	individual adjustment for full range of collar heights
13	Collar base	provided	provided	provided
14	Slitter blades	blade positions in each row with quick change	blade positions in each row with quick change	blade positions in each row with quick change
15	Feed	internal hitch finger pull type	internal hitch finger pull type	internal hitch finger pull type
16	Cut off	guillotine type cut off with plain grind insert blades.	guillotine type cut off with plain grind insert blades.	guillotine type cut off with plain grind insert blades.
17	Standard production rate	150-180 strokes per minute.	150-180 strokes per minute.	150-180 strokes per minute.
18	Guide post	Every guide post have lubrication	Every guide post have lubrication	Every guide post have lubrication

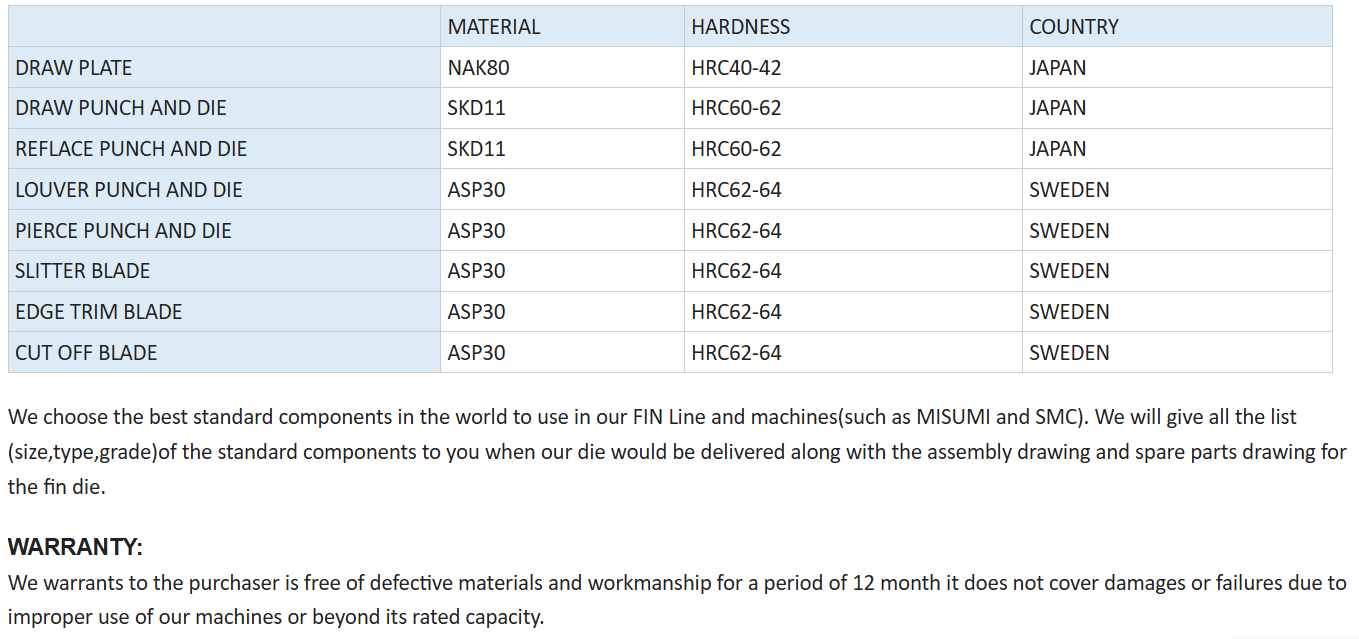

^{_{We made our Automatic Fin Stamping Equipment use the best quality material from JAPAN or SWEDEN. The following form shows some of our material used in this automated fin die press equipment.}}

	Item	MATERIAL	HARDNESS	ORIGIN
1	Punching convex and concave die	HAP40	HRC62-64	JAPAN
2	Slitting blades	HAP40	HRC62-64	JAPAN
3	Edge cutting blades	HAP40	HRC62-64	JAPAN
4	Crosscut blades	HAP40	HRC62-64	JAPAN
5	Drawing unloading plates of die	NAK80	HRC40-42	JAPAN
6	Drawing concave plates of die	NAK80	HRC40-42	JAPAN
7	Sub-plates of die	NAK80	HRC40-42	JAPAN
8	Fixed seat of crosscut knif	NAK80	HRC40-42	JAPAN
9	Drawing convex and concave die	SKD11	HRC 62-64	JAPAN
10	Collar convex and concave die	SKD11	HRC 62-64	JAPAN
11	Sub-die rack	PDS 5	Pre-hardened steel	JAPAN
12	Fixed plates of die	PDS 5	Pre-hardened steel	JAPAN

^{_{We choose the best standard components in the world to use in this Fin Press Machine(such as MISUMI and SMC). We will give all the list (size,type,grade)of the standard components to you when our die would be delivered along with the assembly drawing and spare parts drawing for the fin die.}}

Professional Staggered Pattern Punching Press Machine Line Fin Press Die
