MF DC Spot Welding Machine
(Total 1 Products)-

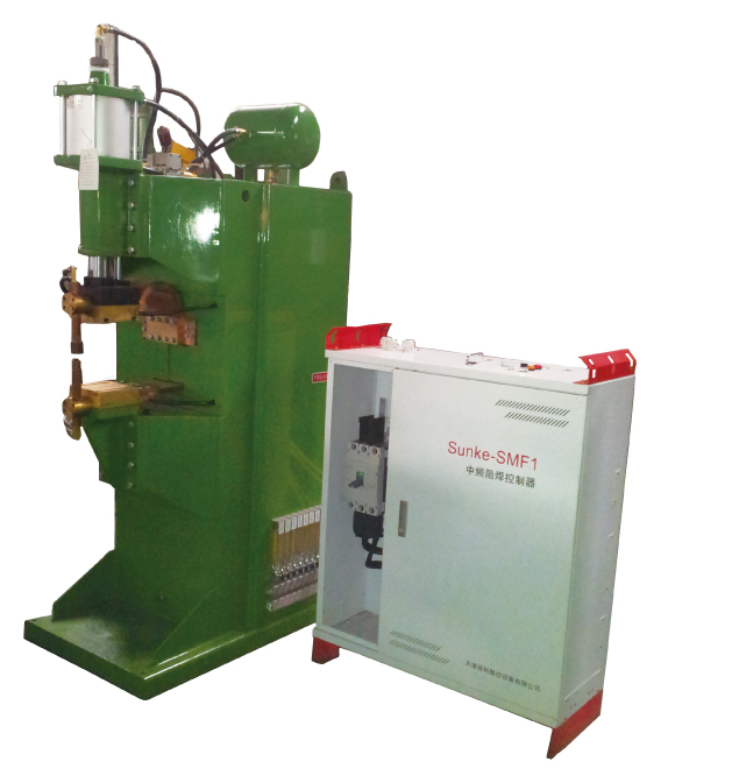

Min. Order:1MFDC spot welding machine: An innovator in spot welding empowered by medium-frequency DC technology On the precise track of modern industrial Welding, the MFDC Spot Welding Machine has become the performance benchmark in the Spot welding Machine...
MF DC Spot Welding Machine, short for Medium Frequency Direct Current Spot Welding Machine, is an advanced resistance welding device widely used in precision manufacturing. It utilizes medium-frequency (1kHz - 4kHz) DC current to create strong, consistent weld spots, making it indispensable in industries like automotive, electronics, aerospace, and battery production.
Working Principle
Unlike traditional AC welders, it converts mains AC to DC through rectification, then inverts to medium-frequency AC before transforming to low-voltage, high-current DC for welding. This process delivers stable current output with minimal ripple, ensuring concentrated heat generation at the weld spot. The direct current maintains consistent heat input during the welding cycle, resulting in uniform fusion and high-quality welds.
Structure and Components
Key components include a medium-frequency inverter, welding transformer, rectifier, electrode holders, pressure cylinder, control system, and cooling unit. The inverter converts DC to medium-frequency AC, while the transformer steps down voltage to welding levels. The rectifier converts it back to DC. Electrode holders position electrodes, and the pressure cylinder applies precise clamping force. The control system adjusts parameters like current, pressure, and welding time, with the cooling system preventing overheating.
Advantages
It offers superior weld quality with minimal spatter and distortion, thanks to stable DC current. Energy efficiency is significantly higher than AC models, reducing power consumption by 30% - 50%. It provides precise parameter control, accommodating various material thicknesses (0.1mm - 10mm) and metals like steel, aluminum, and copper alloys. The compact transformer design saves space, while fast response times enhance production efficiency.
Applications
In automotive manufacturing, it welds body panels, battery tabs, and electrical components. Electronics industry uses it for circuit board and connector welding. It is essential for battery pack production, especially for lithium-ion battery tab welding. Aerospace applications include precision component joining, and it also works for household appliance parts and hardware fabrication.
Development Trend
Modern MF DC spot welders integrate intelligent features like touch-screen controls and IoT connectivity for remote monitoring. Advanced models include adaptive welding systems that automatically adjust parameters based on material conditions. Energy recovery technologies and eco-friendly cooling systems are being adopted, aligning with sustainable manufacturing goals. Enhanced sensor integration enables real-time weld quality inspection, further improving production reliability.

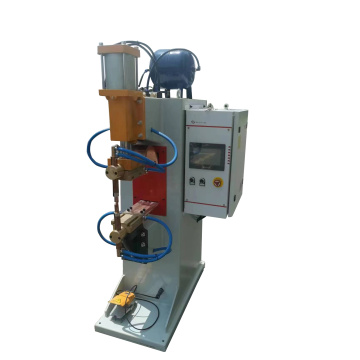

MF DC Spot Welding Machine
The MF DC spot welding machine is a modern welding equipment that adopts medium frequency direct current (MF DC) technology. Through high-frequency inversion (1-4kHz) and DC output, it achieves high-quality spot welding of metals such as low-carbon steel, stainless steel, and aluminum alloy. Compared with traditional AC welding machines, energy consumption is reduced by more than 30%, making it particularly suitable for thin plate welding in industries such as automotive manufacturing, hardware and home appliances.
