Single Head Automatic Nuts Feeding Spot Welding Machine with Vibrating Bowl

Min. Order:1

Packaging & Delivery



single head Spot welding machine with Automatic nut feeder (1)



Features:
Medium frequency inversion constant current welding power source is mainly made up of transformer, controller, inverter, power drive, rectifier parts, capacitor plates, IGBT as well as the central control components. Medium frequency inversion constant current welding power source is a set of advanced welding equipment and is widely used. The size of welding transformer is small but the output of energy is large. The feature is the original input voltage 50/60HZ cn be rectified to 1000HZ and the rectified diode of transformer secondary circuit can transform the power into constant current power source so that the secondary circuit reactance coefficients can be greatly improved (it is an important factor in causing the loss of energy before improvement), and it is almost taken into consideration in constant current welding circuit, almost, and thus production costs are minimized.

Advantages:
a) Save Electricity;
b) Improve the power factor and reduce production costs;
c) In the secondary circuit with large opening area, interference can be reduced and welding current is constant current. When the secondary winding has inductive materials (with magnetic property), it will not affect the welding;
d) make a balance of the loading of power supply device , medium frequency inversion constant current welding power source uses three-phase power and stores energy;
e) the adaptability to the fluctuation in the grid and the pressure drop is strengthened. Some are stored by dc-to-ac inverter to supply loading and replace the way of supplying power and loading form the grid.
f) more accurate, rapid and accurate analysis to parameters;
g) Damage of oblique wave interference caused by SCR systems can be avoided

Specification		DNM-130	DNM-160	DNM-180	DNM-250	DNM-320	DNM-500
Rated capacity	KVA	130	160	180	250	320	500
Max current secondary output	KA	30	35	38	50	60	80
Arm length	mm	350/400
Spacing between arms	mm	250	250	250	300	300	300
Cylinder stroke	mm	80	80	80	80	100	100
Cooling water flow	L/min	20	20	20	24	32	60
Cooling water pressure	MPa	0.15
Duty cycle	%	20
Insulation	Grade	F
Compressed air pressure	MPa	0.6-0.8

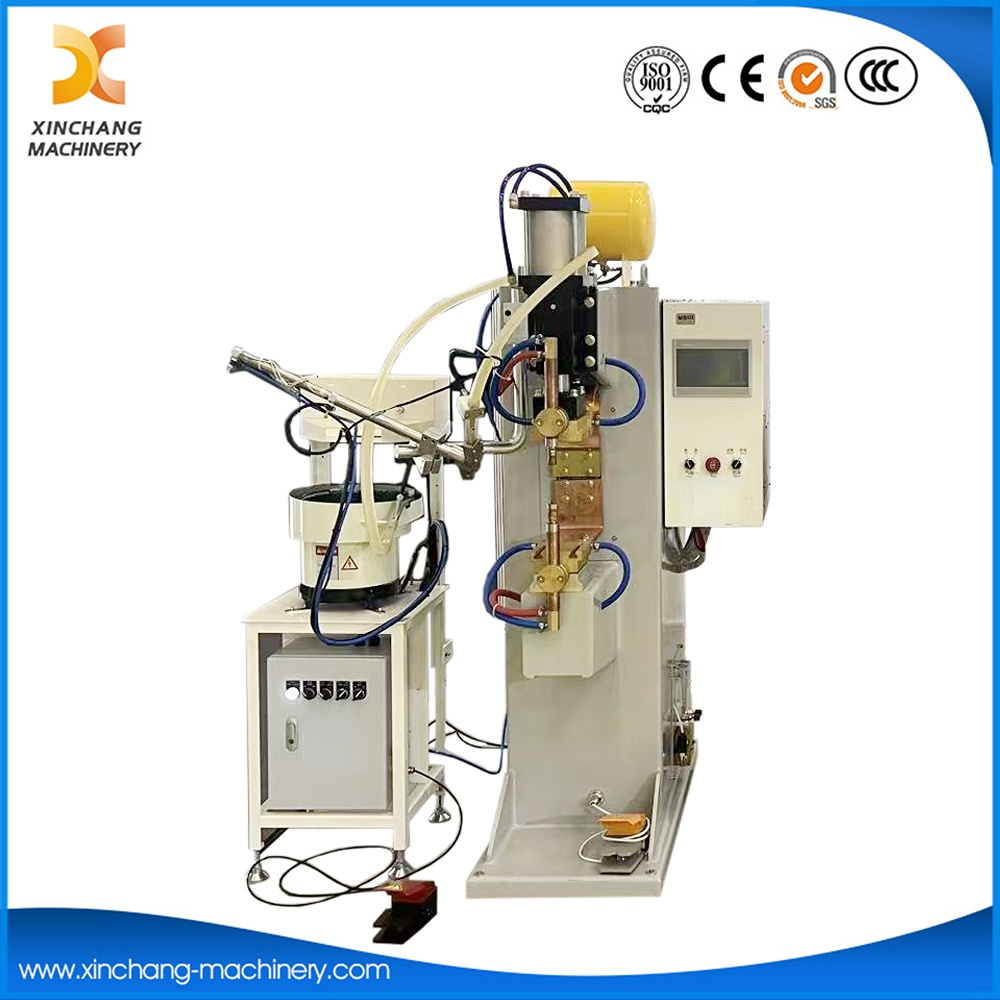

single head Spot welding machine with Automatic nut feeder

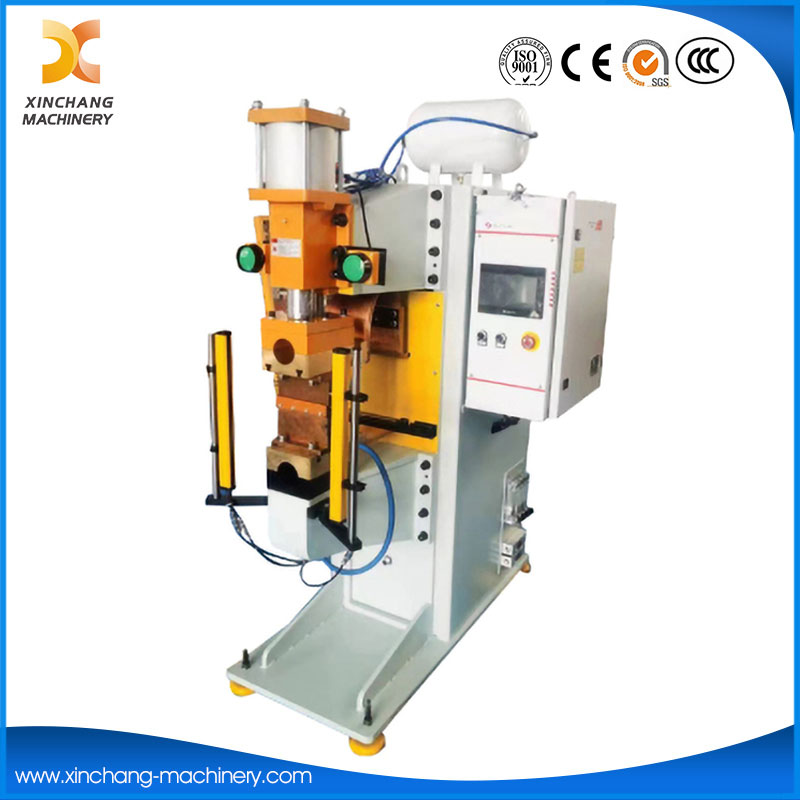

single head Spot welding machine with Automatic nut feeder (6)
