Horizontal T-Type Spot Welding Machine: Unlock efficient new experiences in horizontal welding scenariosIn the application landscape of welding equipment, structural design and working posture directly affect the convenience of operation and welding accuracy. The Horizontal T-Type Spot Welding Machine takes the innovative horizontal T-shaped architecture as the core and demonstrates its advantages in the welding scenario where workpieces are placed horizontally. Its unique value is clearly presented in comparison with various welding equipment.
Compared with the
Friction Welding Machine that generates heat through the friction of the contact surface, this horizontal T-type spot welding machine does not require axial thrust. When handling the horizontal cross-welding of flat plate workpieces, it can achieve uniform force application through the horizontal pressure system, avoiding the misalignment of the weld points caused by the friction offset of the workpieces. Control the positional error of the solder joint within ±0.2mm. As an upgraded version of the professional Spot Welding Machine, it breaks through the operational limitations of traditional vertical spot welding machines. The T-shaped horizontal structure enables operators to look straight ahead at the welding area, easily completing the horizontal T-shaped joint welding of large panel and frame workpieces, significantly reducing operational fatigue.
Facing the demand for Horizontal Butt Welding of long strip-shaped workpieces, the traditional
Butt Welding Machine needs to frequently adjust the position of the workpieces, while the horizontal T-Type Spot Welding Machine, with the combination of a sliding worktable and a horizontal welding head, It can perform multi-point segmented welding on butt workpieces up to 3 meters long. Combined with an automatic feeding system, it can achieve continuous operation, increasing the butt welding efficiency by more than 40%. Unlike the
Seam Welding Machine that pursues sealed weld seams, it focuses on point reinforcement at horizontal intersections, ensuring connection strength while maintaining the flatness of the workpiece surface. It is particularly suitable for welding products with high appearance requirements such as kitchenware panels and electronic device casings.
Although the
Laser Welding Machine for Steel Ring, which focuses on steel ring welding, has outstanding precision, it has the problem of limited movement range in the welding of large-area horizontal workpieces. This horizontal T-type spot welding machine, with its spacious horizontal working space, can be adapted to flat workpieces of different sizes. Its resistance welding technology achieves a stable tensile strength of over 85MPa at the weld points. For the Stud installation requirements on the workpiece surface, although it does not have the dedicated function of the
Stud Welding Machine, the adjustable welding head on its T-shaped crossbeam can complete multi-point fixed welding around the stud base, ensuring that the vertical accuracy error of the stud does not exceed 0.5°.
From Welding the Horizontal brackets of automotive chassis to fixing the intersection points of furniture frames, the horizontal T-Type Spot Welding Machine, with the operational convenience of the horizontal T-shaped structure, stable weld point quality and wide workpiece adaptability, becomes the ideal choice for horizontal welding scenarios. Make every horizontal cross weld point a reliable guarantee for the stability of the structure.
Usage: Be used for T type point welding of wire.
Method named for welders:

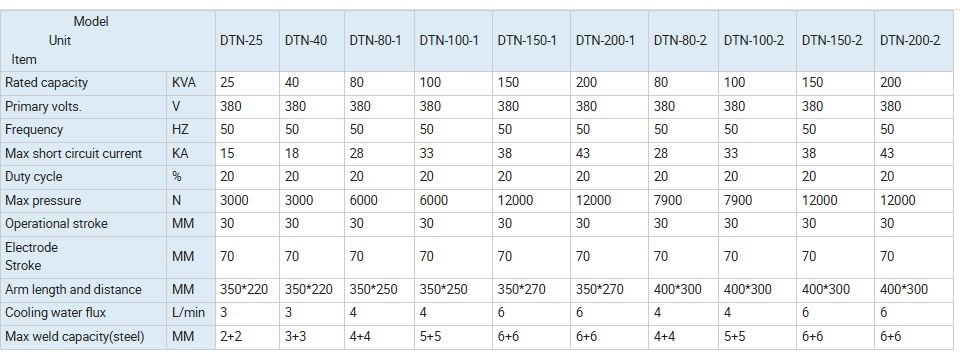

Spot(projection) welders series: DTN-P-1(2)-L
DTN: Pneumatic AC mains frequency spot(projection) welders
P: Rated capacity
1: Lower arm can not be adjustable; 2: Lower arm can be adjustable
L: Throat depth, namely arms length
Advantage & Feature:
1, Machine body of thick steel sheet, not easy to deformation
2, Secondary electric conduction parts is style of upper insulation, to avoid short current accident caused by Scrap iron or workpiece.
3, The electrodes of speed can be adjusted at random, to decrease strike or workpiece and noise.
4, Microcomputer control, accuracy and steady, Can store 15 sets welding schedules, to suit different specification products
5, Controller can automatically compensate current, to make welding steady. Some material can be preheat or temper.
6, Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside, using full copper alloy core, reducing impedance, improving the utilization of power, 20% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, structure is more compact and reasonable.
7, Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
8, Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
9, Quality is stable, failure rate is low, therefore machine life is longer
