Ⅰ.Description

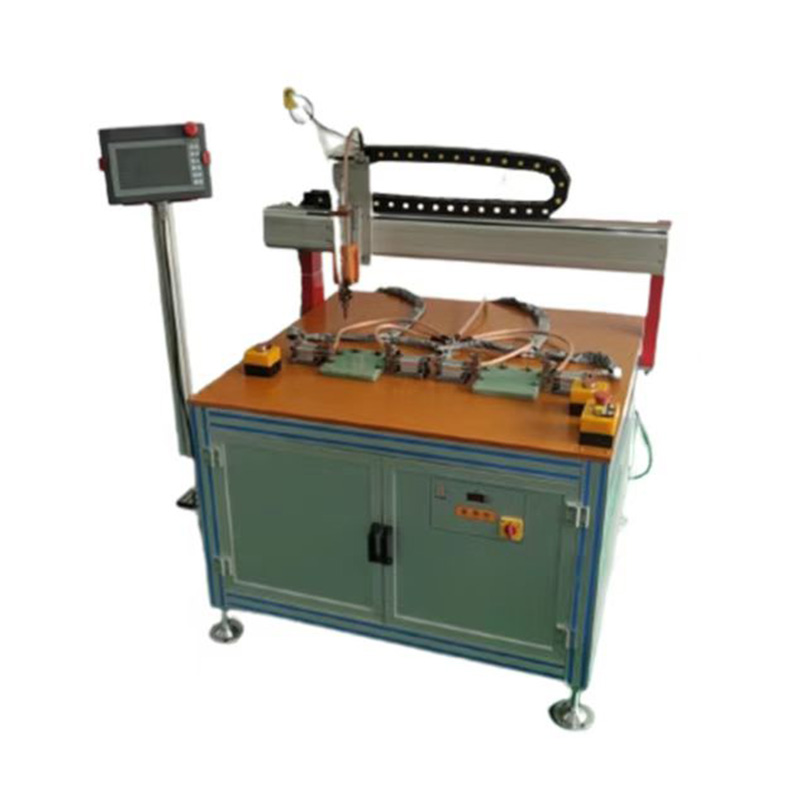

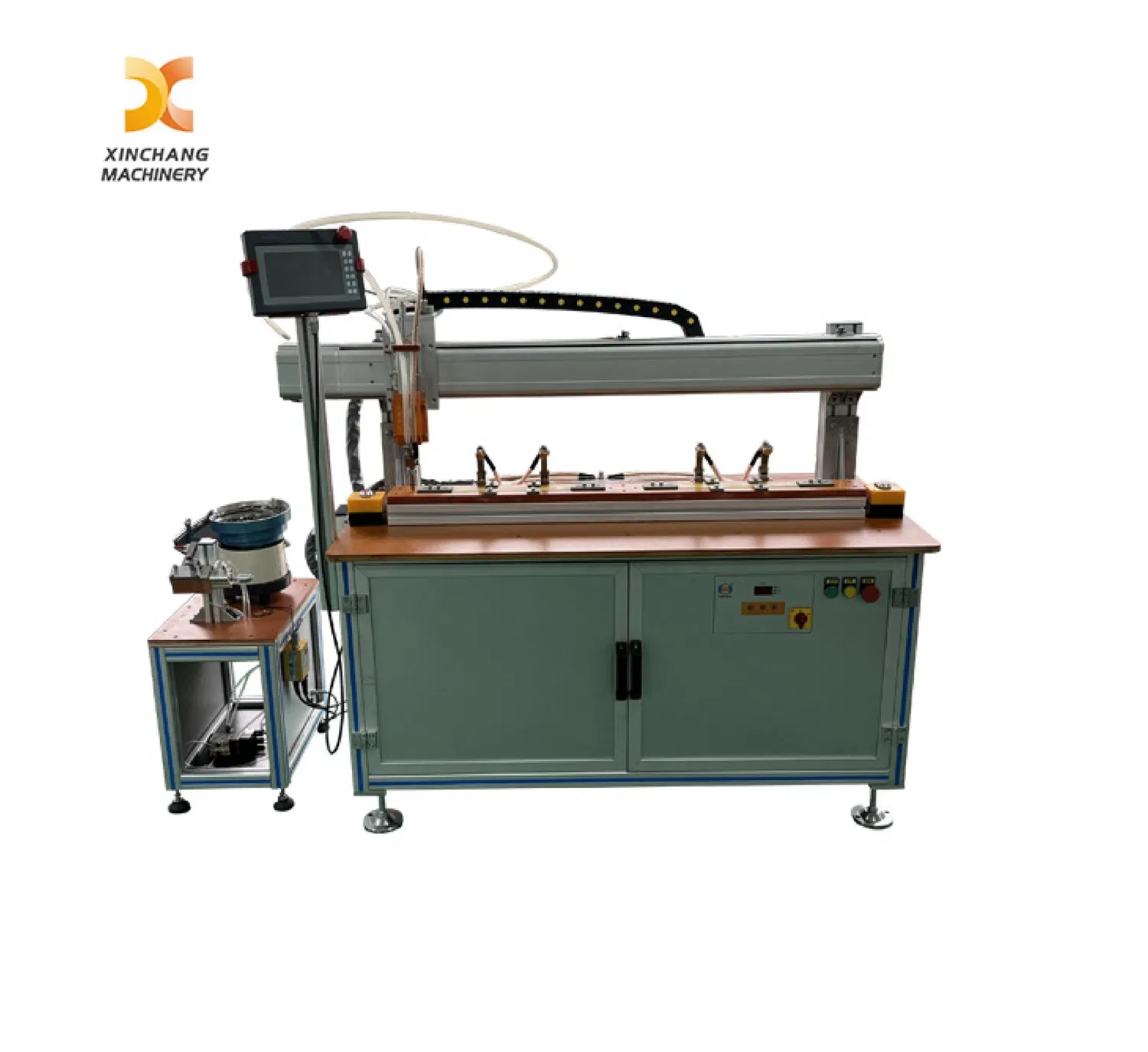

Independently researched and developed by our company, the Two Axes Double Station automatic stud welding machine is professionally tailored for processing various metal products covering lock manufacturing, sheet metal cabinets, kitchenware, household hardware and construction tools. As a high-efficiency welding solution, this Automatic Lock Panel Stud Welder consists of four core components including machine frame, positioning fixture, pneumatic control unit and welding power supply, and is equipped with premium configurations such as British TRIO robot control system, Taiwan Hiwin linear guide rails and Taiwan Airtec pneumatic parts.
Featured with strong working performance, simple operation, stable running status and outstanding machining accuracy, this practical Automatic Stud Welding Machine adopts left-right double-station automatic circulating working mode. Operators can finish material loading and unloading on two sides separately without mutual interference, which effectively boosts overall production efficiency. Supported with handheld touch screen and physical button dual control modes, the operation interface supports multi-language switching including Chinese, English and Japanese, bringing intuitive and user-friendly operating experience for all operators.
Ⅱ.Key data
1、 Stroke: X 800MM, Y 500MM,
2、 Max.speed 900mm/s, accelerated speed 3000mm/s
3、 The machine frame is assembled with domestic high-quality industrial aluminum profiles, and the countertop is made of insulating bakelite.
4、 Overall size：L1300mmxW1100mmxH1300mm
5、 Input volts: 220V/50Hz single phase
6、 Power：2KW
7、 Max program storage quantity: 159 nos&500 point coordinate
8、 Language of HMI: Chinese, English, Japanese and other languages
Ⅲ.Machine Advantages:
The stud(screws) welded by this equipment are automatically conveyed by pneumatics, using traditional classic structure, multi-sensor detection system, with high scalability, high compatibility, easy maintenance, more favorable guarantee of equipment stability, output accuracy as high as 99% above. The welding slag on the welding surface is full and the welding strength is high, which can deform or even break the product surface. After welding, the back of the product achieves a traceless effect.
