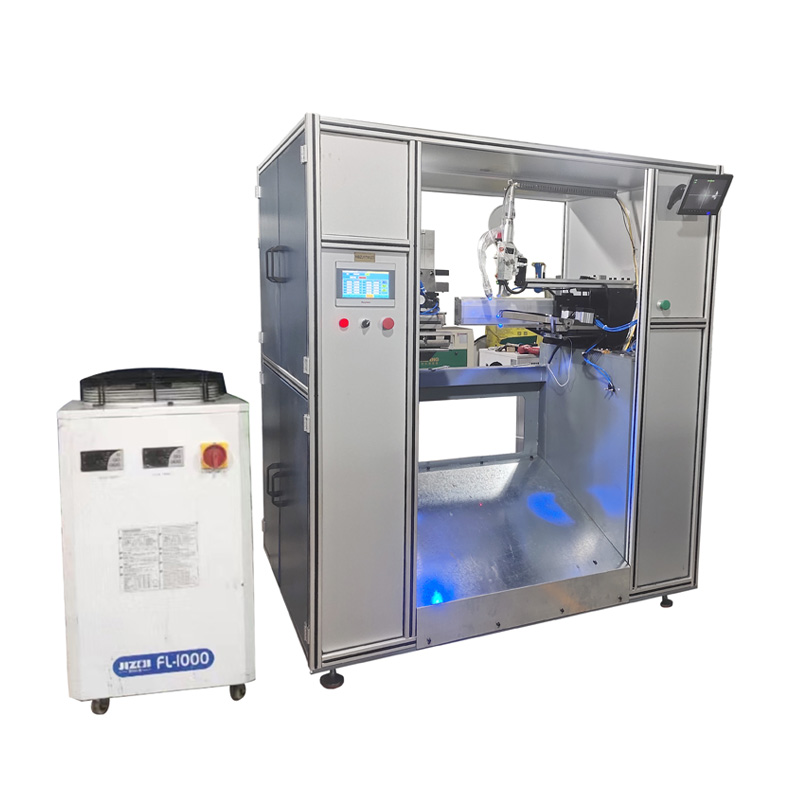

Automatic Continuous Stainless Steel Strip Laser Welder

A. Model and specifications

Model	XC-K53-1000	XC-K92-1000	XC-K160-1000
Laser power	1000W	1000W	1000W
Steel strip width	8-53mm	45-92mm	80-160mm
Welding capacity	14-18 pcs/min	12 pcs/min	10pcs/min
Steel strip thickness	0.13-0.7mm	0.2-0.5mm	0.2-0.4mm
Steel ring diameter	65-700mm	85-700mm	120-700mm
Total machine power	5kw	5kw	5kw
Input voltage	220V	220V	220V
Nitrogen protection	Optional	Optional	Optional
Mark function	Optional	Optional	Optional
Cooling mode	Water	Water	Water
Machine weight	1350kg	1350kg	1350kg
Overall size	148x128x168 cm	148x128x168 cm	148x128x168 cm

B. Application

It's used for the stainless steel strip of Glass cover, Basket, Flour sieve, Enamel pot, Trash can, Steamer etc. The steel strip specification is 10-200mm width, 0.1-1mm thickness and material SS430/410/304/202/201, GI, Tinplate etc., ideal processing scope for Laser Equipment.

C. Advantages

Beautiful design appearance, small floor space.

Built-in fiber continuous laser, No external space occupied.

Welding capacity 10-20 pcs, efficiency is higher.

More suitable for seamless steel rings, the welding quality is better.

Succinct design of circuit, more stable and power saving, perfectly highlighting the performance edge of Laser Welding Machine.

No complicated operation, the operation in HMI is very simple, only need to set the percentage of laser, greatly lowering the operation threshold of this Automatic Welding Machine.

D. Main configuration

Automatic forming servo tooling: self-made

Control system: Raynen

Fiber continuous laser: BWT/MAX

Cooling water chiller: Hanli

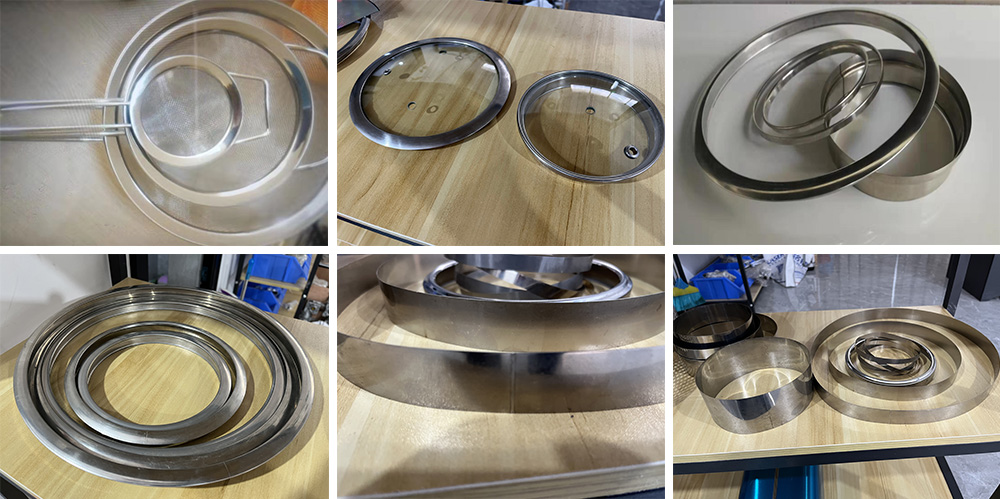

E. Welding samples photos: Mini Portable Handheld Laser Welder Metal Welding Machine for Steel Strip
