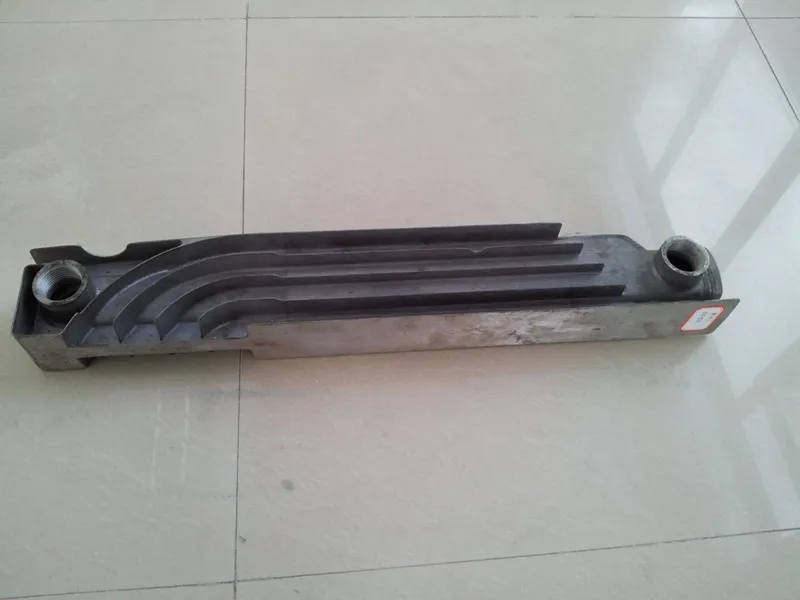

Flash Butt Welders for Radiator (UNS-200)1



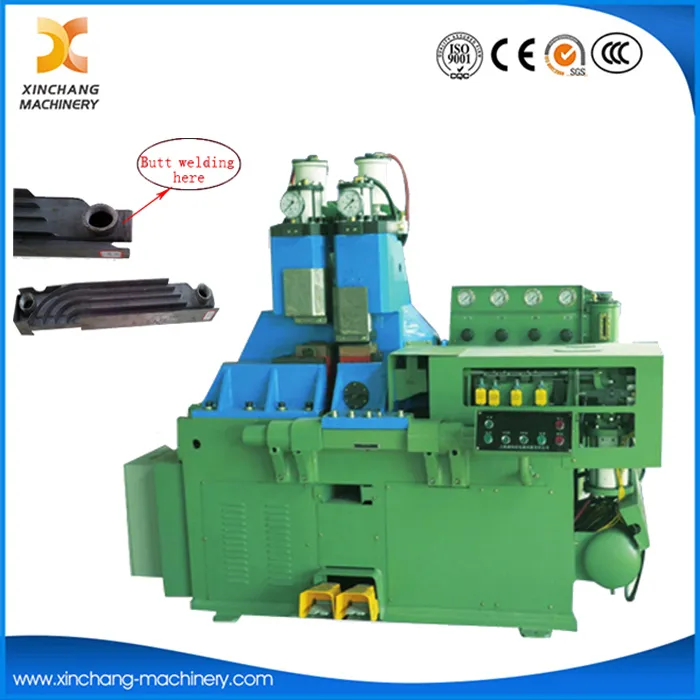

Flash Butt Welders for Radiator (UNS-200)

A.Technical parameter:
It can be set the action of the welding head,welding current,welding time,emergency
stop etc. Through the change-over switch to realize the adjustment between the actions,
and keep the whole welding procedure working continuously.
Max compaction force of oil cylinder     30KN
Max upsetting force of oil cylinder        60KN
Vertical stroke of left electrode     80mm (can satisfy product processing requirement
                                 that the customer provides)
Feeding stroke of right electrode    150 mm (can satisfy product processing requirement
                                 that the customers provide)
Cooling way: transformer,silicon controlled,hydraulic oil return are water cooling

Input voltage	Single phase AC380V±10%
Welding transformer	AC 200KVA
Control system	Touch screen+PLC+microcomputer
Max width of workpiece	120mm
Max Welding ability	350mm2(die-casting aluminum)
Working speed	about 20s/pcs
Products withstand voltage test	18kgs(air pressure)can keep no leak one minute
Operation availability	100%(calculated according to operation rate by the month)

B. Accessories:
200KVA AC transformer According to CCC standard
7 inch touch screen            Delta
PLC                           Delta
24V intermediate relay           OMRON
500A Silicon controlled           China,Jiangsu
AC Contactor                   Hangzhou Hupai
Three phase 11KW motor        Shanghai electric
Vane pump                    RISUNY
Hydraulic value                 RISUNY
pilot operated check valve        RISUNY
Throttle                         RISUNY
Button switch                    SCHNEIDER
Inductive switch                 SCHNEIDER
