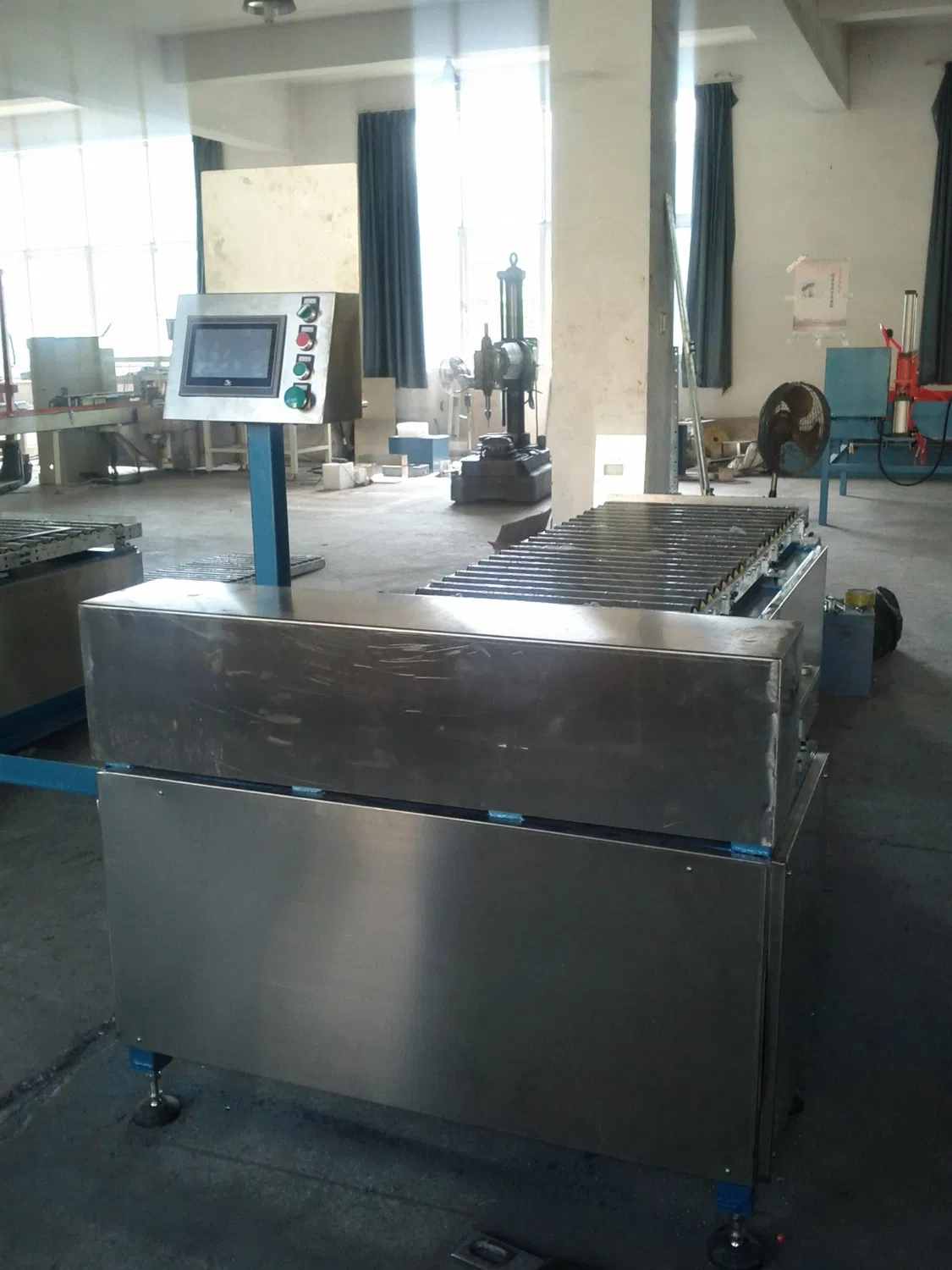

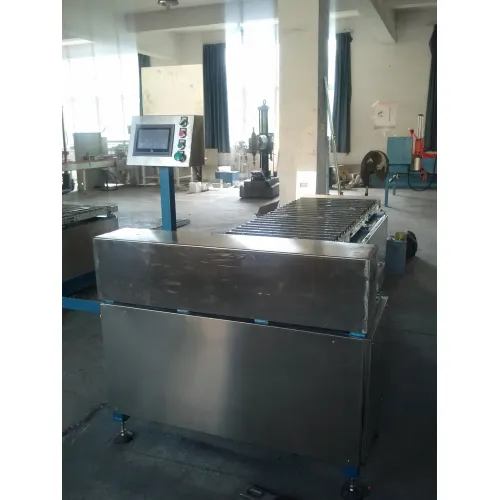

Aluminum Radiator Complete Set Equipment Assembly Machine

Automatic fin assembly machine is the application of digital technology successfully developed machine, electricity, gas integration of new equipment. As a typical Industry Special Machine, this equipment adopts dual PLC and HMI to build an automatic control system, and applies SFC step ladder instructions to elaborate the main program in detail. Featuring practical Automatic Type operation mode, the whole control system ensures efficient, stable and reliable machine running with neat and orderly working logic, thus providing solid quality guarantee for radiator assembly. This technological breakthrough has instantly filled the industry gap and reached the international advanced level. Apart from core assembly functions, it also covers Others auxiliary processing procedures, which can complete the assembly work from single radiator components to finished radiator products.

Parameters:

1. outline dimension :L3300×W2800×H1600 mm.
2. radiation fin's center distance:300--600mm
3. radiation fin's height:        80--100mm
4. Each set of number of films: 2~20 pieces
5. Tightening torsional moment:10--180NM stepless adjustable
6. Mains voltage:             380V 50HZ Three-phase five line
7. power:                    3KW
8. pressed air :               0.6MP
9. Speed working:             10S/piece
10. operator required: 1 person
