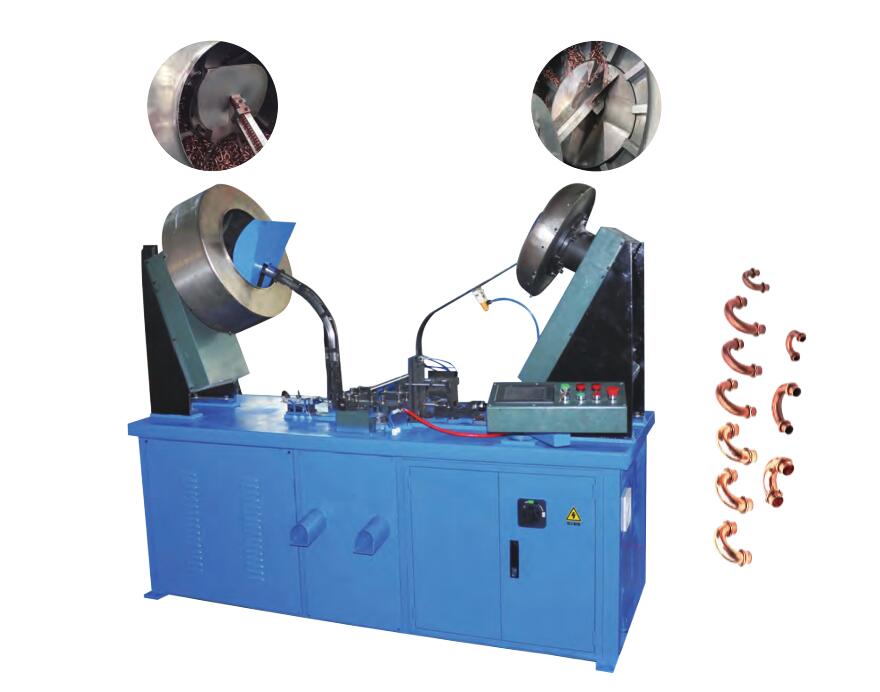

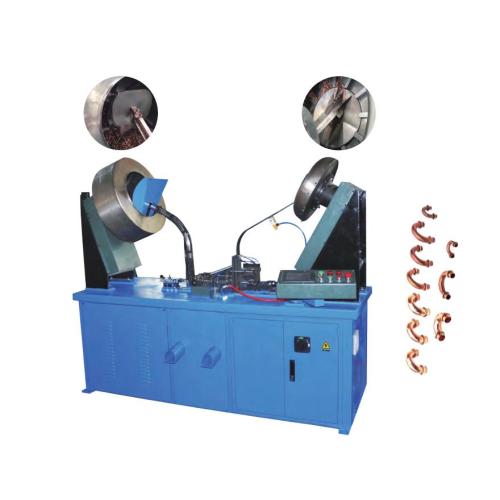

Return Bend Ring Insertion Machine: The precise executor for the assembly of the bend ringIn the manufacturing process of refrigeration equipment and various pipeline systems, the assembly of each component is related to the stability of the overall performance. The
Friction Welding Machine provides a stable connection for heavy-duty joints in pipelines, ensuring reliable operation in high-pressure environments; The

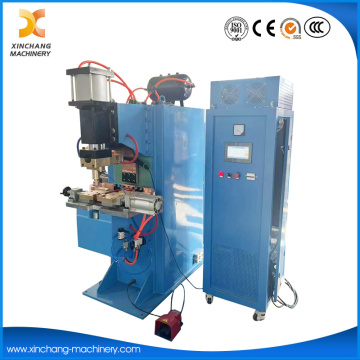

Spot Welding Machine can quickly complete the spot welding fixation of equipment frames and pipeline supports, taking into account both connection strength and production efficiency. The
Butt Welding Machine precisely connects long pipes to ensure the smooth flow of fluids within the system. The
Seam Welding Machine creates continuous sealed welds for the equipment shell, strictly preventing the intrusion of external impurities or the leakage of internal media. The
Laser Welding Machine for Steel Ring enables high-precision welding of steel components for pipelines, ensuring the stability of dissimilar material connections. The
Stud Welding Machine efficiently completes the stud connection of the peripheral supports of the pipeline, laying the foundation for the installation and fixation of the system. The Return Bend Ring Insertion Machine, as a device dedicated to the insertion of return bend rings, with its precise assembly capability, has become a crucial link in the connection of pipeline systems.
The backbend ring is an important component for connecting the backbend of the pipeline. Its assembly accuracy directly affects the sealing performance and flow efficiency of the pipeline. The Return Bend Ring Insertion Machine is equipped with a precise positioning device and a flexible clamping mechanism, which can accurately insert the return bend ring into the preset position without error, ensuring a uniform fit clearance between the return bend ring and the pipeline, and effectively avoiding the problem of medium leakage caused by improper assembly. Compared with manual assembly, it can not only significantly improve assembly efficiency, but also control assembly errors within an extremely small range, creating favorable conditions for subsequent welding or sealing processes.
From the perspective of coordination with various welding equipment, the assembly of the Return Bend Ring Insertion Machine is closely coordinated with them in production. For example, in the manufacturing of the air conditioning pipeline system, the pipeline with the back-bending ring inserted by this equipment will be welded and fixed by the Friction Welding Machine. The precise assembly position of the back-bending ring ensures a good connection during welding, reduces welding defects, and enhances the overall strength of the pipeline. In the production of refrigerator refrigeration pipelines, the pipelines assembled with the return bending rings are combined with the fixed brackets welded by the Spot Welding Machine. The stable return bending structure ensures that the pipelines will not shift due to vibration during the operation of the equipment, guaranteeing the stable operation of the refrigeration system.
In addition, the back-bending ring installed on this equipment provides a reliable guarantee for the subsequent welding process. Its precise positioning enables the Butt Welding Machine to connect pipelines more smoothly and reduce the adjustment time. The tight fit between the back-bending ring and the pipeline also enables the Seam Welding Machine to better ensure the weld quality and improve the sealing performance of the pipeline during sealing welding. Meanwhile, its stable assembly quality echoes the precise Welding quality of the
Laser Welding Machine for Steel Ring, jointly enhancing the reliability and service life of the pipeline system.
Not only that, the efficient assembly mode of the Return Bend Ring Insertion Machine can match the production rhythm of equipment such as the Stud Welding Machine, achieving seamless connection in the production process of the pipeline system, shortening the overall production cycle, and helping enterprises enhance their market competitiveness.
In conclusion, the Return Bend Ring Insertion Machine, with its precise assembly capability of the bend ring, works in coordination with various Welding equipment such as the Friction Welding Machine and the Spot Welding Machine. It provides strong support for the high-quality connection of pipeline systems and is an indispensable important equipment for manufacturing enterprises in fields such as refrigeration equipment and fluid transportation.
