Butt Welder for T Spanner Socket Spanner Cross Spanner Welding Machine1



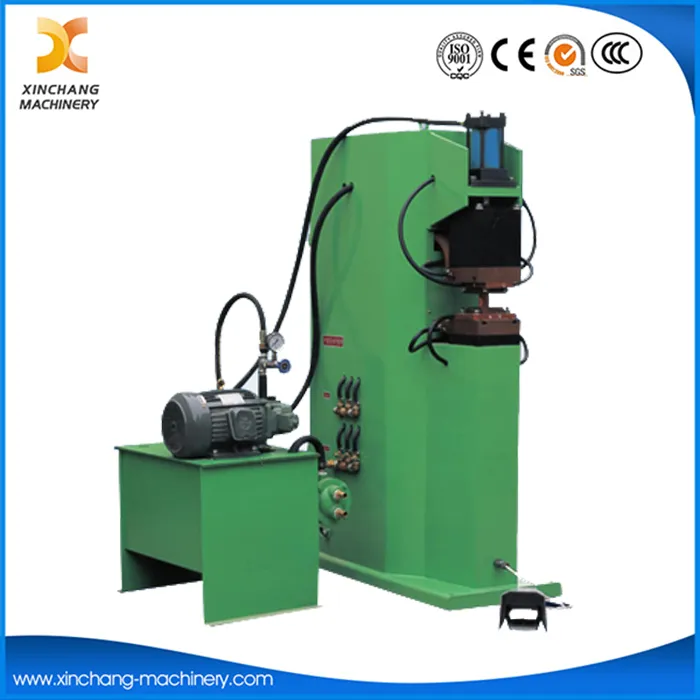

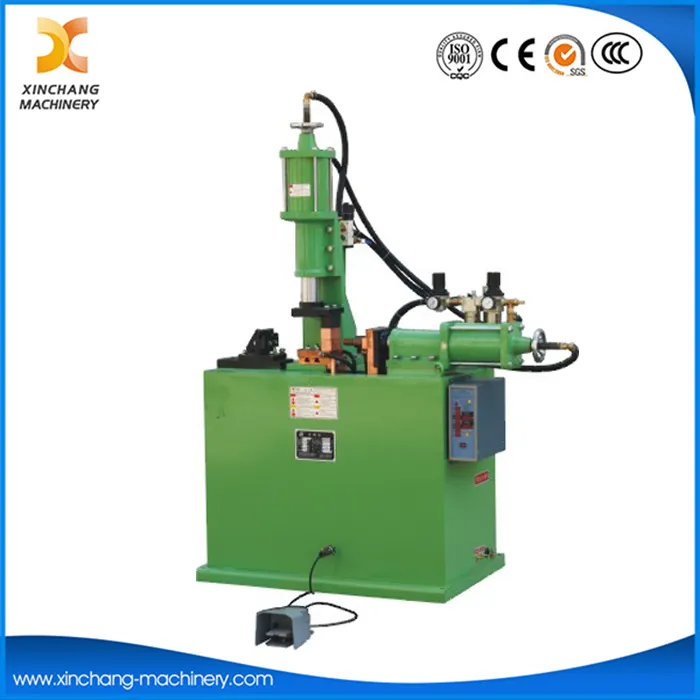

Butt Welder for T Spanner Socket Spanner Cross Spanner Welding Machine

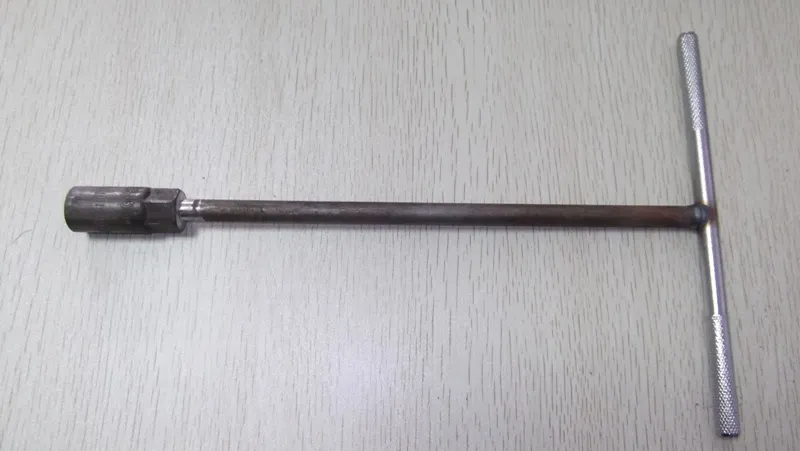

1, This series contain sleeve butt welders, T type butt welders and cross type hydraulic butt welders. It be widely used in "X" "Y" "Cross" type spanner butt welders.

2, fast welding speed, saving electricity.
3, It can replace argon arc welding and CO2 welding, very suitable for batch production.
4, Adopt the air-powered vertical pressure or air-powered lever pressure system, work piece clamp steady which make welding tie-in nice, steady, less dregs.
5, Novel structure, special design, good rigidity. Adopt the high definition guidance institution, high staying quality, high speed welding, pressure steady.
6, Microcomputer constant pressure control system, twice section discharge, multi- group memory programs, precise control of the welding time and welding current, easy to adjust. Can control clamping, welding, upset, off in welding process.
7, High conduction magnetism silicon sheet steel, secondary whole structure, output current is high, energy-saving and protection environmental.
8, Water cooling transformer, water cooling controlled silicon, and water cooling electrode head what can improve the use life of equipment.
9, It is used to high quality welding wide range of wire type, plate type, heteromorphosis type copper\aluminum\iron\stainless steel metal etc.

Model Unit Item		UN-25-1	UN-40-1	UN-40-2	UN-80-2
Rated capacity	KVA	25	40	40	80
Primary voltage	V	380	380	380	380
Rated frequency	HZ	50	50	50	50
Max short circuit current	KA	19	22	22	30
Duty cycle	%	50	50	50	50
Max pressing force	N	3900	3900	3900	3900
Max upset force	N	1500	1500	1500	1500
Forge stroke	MM	10	10	10	10
Upset stroke	MM	25	25	25	25
Cooling water flux	L/Min	4	4	4	5
Weight	Kg	200	230	250	300
