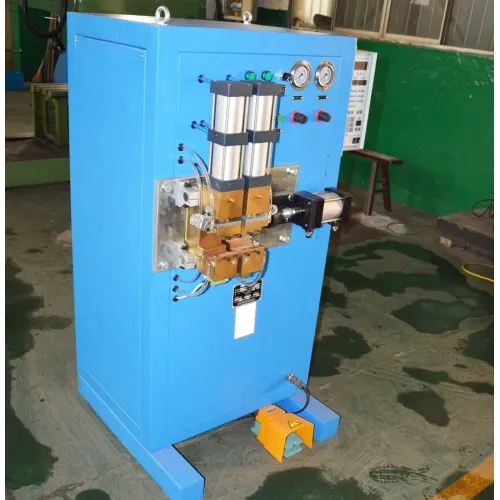

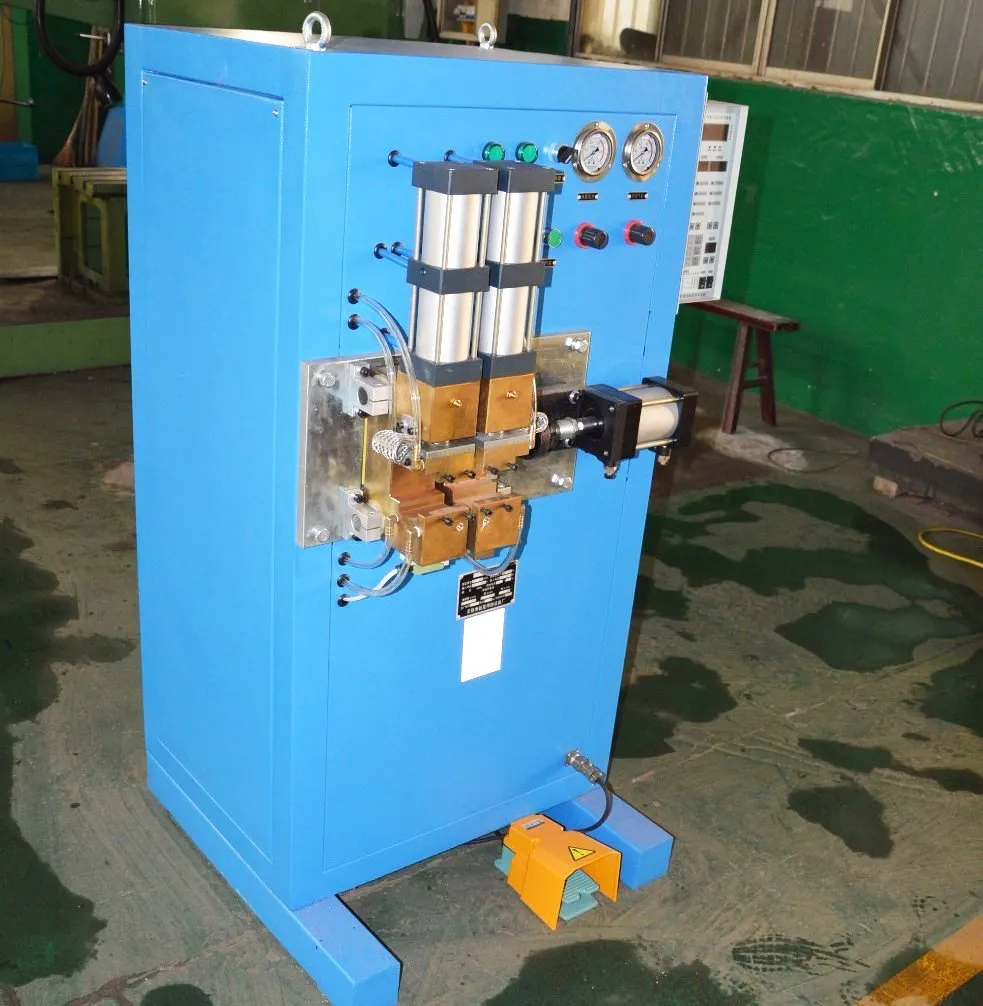

Copper and Aluminum Band Saw Blade Butt Welders Machine

Feature:

1, Adopt the air-powered vertical pressure or air-powered lever pressure system, work piece clamp steady which make welding tie-in nice, steady, less dregs.
2, Novel structure, special design, good rigidity. Adopt the high definition guidance institution, high staying quality, high speed welding, pressure steady.
3, Microcomputer constant pressure control system, twice section discharge, multi- group memory programs, precise control of the welding time and welding current, easy to adjust. Can control clamping, welding, upset, off in welding process.
4, High conduction magnetism silicon sheet steel, secondary whole structure, output current is high, energy-saving and protection environmental.
5, Water cooling transformer, water cooling controlled silicon, and water cooling electrode head what can improve the use life of equipment.
6, It is used to high quality welding wide range of wire type, plate type, heteromorphosis type copper\aluminum\iron\stainless steel metal etc.

Advantage:
1, Machine body of thick steel sheet, not easy to deformation
2, Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
3, Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
4, Quality is stable, failure rate is low, therefore machine life is longer.

Model Unit Item		UN-25-1	UN-40-1	UN-40-2	UN-80-2
Rated capacity	KVA	25	40	40	80
Primary voltage	V	380	380	380	380
Rated frequency	HZ	50	50	50	50
Max short circuit current	KA	19	22	22	30
Duty cycle	%	50	50	50	50
Max pressing force	N	3900	3900	3900	3900
Max upset force	N	1500	1500	1500	1500
Forge stroke	MM	10	10	10	10
Upset stroke	MM	25	25	25	25
Cooling water flux	L/Min	4	4	4	5
Weight	Kg	200	230	250	300
