Flash Butt Fusion Welding Machine



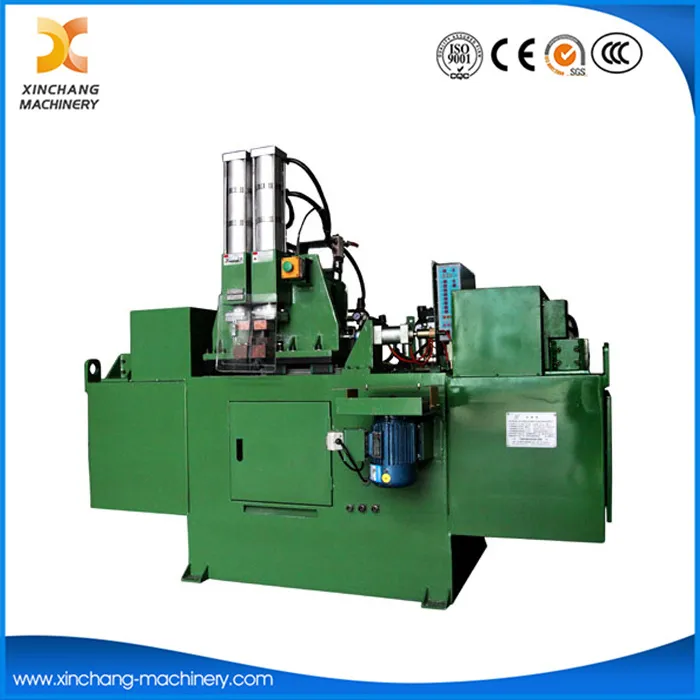

Special Butt Welding Machine for Al with Copper Alloy

This professional model is a dedicated butt welding solution specially designed for welding aluminum and copper alloy materials. Integrated with a built-in grinding and polishing unit, it allows in-place polishing treatment after welding, streamlining the processing flow and eliminating the need for separate post-weld finishing equipment.

As a high-performance Automatic Butt Welding Machine, it adopts a mature gas-liquid transmission mode to achieve stable and steady feeding of workpieces. The equipment precisely removes surface oxide layers and uneven burrs on aluminum and copper alloy workpieces through flash removal, uniformly heats the joint ends, and instantly applies upset force to complete end face fusion welding, ensuring perfect connection of dissimilar aluminum-copper alloy materials.

Equipped with an intelligent micro-control system, this Flash Butt Welder realizes full automatic control over clamping, flashing, upsetting, pressure maintaining and shutdown procedures, with outstanding control accuracy and stable operation rhythm.

Adopting an optimized overall structural design, the matched Flash Butt Welding Machine features a thickened steel plate body that resists deformation, paired with high-speed solenoid valves and high-precision wear-resistant cylinder components. It delivers high welding efficiency, low failure rate and long service life. Welded workpieces come with tight sealing, no pores or cold welding defects, firm in structure and neat in appearance, ideal for mass production of aluminum and copper alloy welded parts.

Model Unit Item		UN-25-1	UN-40-1	UN-40-2	UN-80-2
Rated capacity	KVA	25	40	40	80
Primary voltage	V	380	380	380	380
Rated frequency	HZ	50	50	50	50
Max short circuit current	KA	19	22	22	30
Duty cycle	%	50	50	50	50
Max pressing force	N	3900	3900	3900	3900
Max upset force	N	1500	1500	1500	1500
Forge stroke	MM	10	10	10	10
Upset stroke	MM	25	25	25	25
Cooling water flux	L/Min	4	4	4	5
Weight	Kg	200	230	250	300
