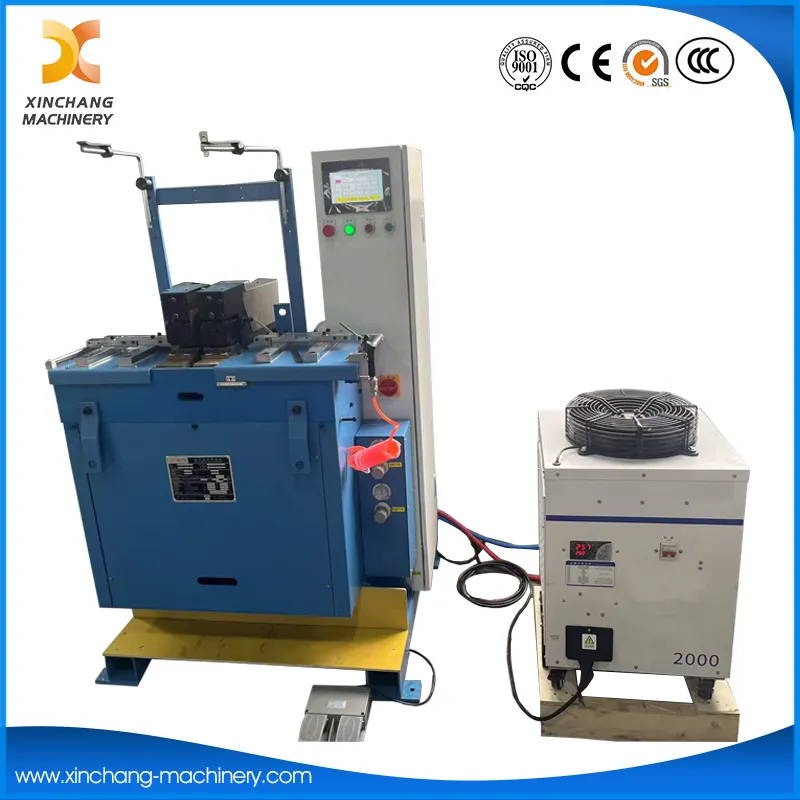

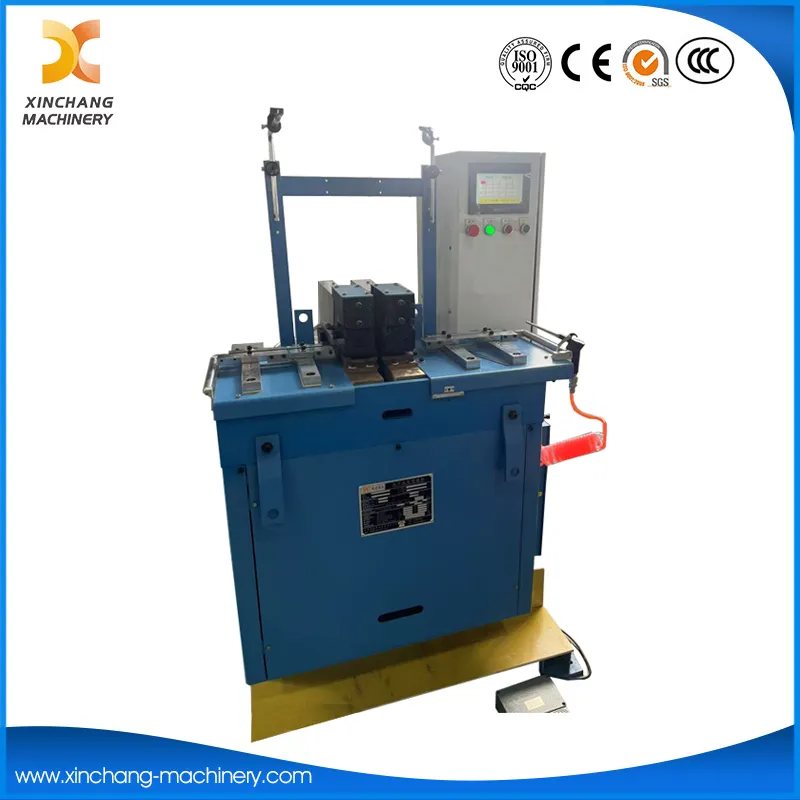

Equipped with an automatic annealing function, this professional
Automatic Butt Welding Equipment delivers stable and reliable welding performance with superior finished workpiece quality.
1. It adopts an air-powered vertical pressure and air-powered lever pressure system to firmly clamp workpieces, ensuring neat and stable welding joints with minimal welding residue.
2. Featuring a novel and structurally optimized design with excellent overall rigidity, the device is fitted with a high-precision guidance mechanism. This Butt Welding Machine boasts outstanding stability retention, achieves high-speed welding operation, and maintains constant and reliable pressure throughout the working process.
3. Supported by a microcomputer constant pressure control system, it realizes two-stage discharge and multi-group program memory functions. The equipment enables precise adjustment and control of welding time and welding current, and can automatically manage the full welding process including clamping, welding, upsetting and shutdown.
4. Built with high-conductivity magnetic silicon steel sheets and an integrated secondary structure, the
Automatic Butt Welding Machine outputs strong and stable current while achieving outstanding energy-saving and eco-friendly effects.
5. The adoption of water-cooled transformers, water-cooled controlled silicon and water-cooled electrode heads effectively reduces equipment heat generation and greatly extends the service life of the whole machine.
6. It supports high-quality welding for a wide range of workpieces, covering wire-type, plate-type and special-shaped workpieces made of copper, aluminum, iron, stainless steel and other metal materials.
Product model UN-27 Rated power supply voltage 3-phase 380V Rated frequency 50 HZ Rated power 15 KVA Rated duty cycle 50% Insulation grade B Secondary maximum short-circuit current 3 KA Maximum welding power 15 KVA Maximum electrode pressure 7500 N Maximum upset force 5000 KN Gas supply pressure 0.5 Mpa Flash speed control mode and speed 0-50 HZ Weight of welding machine 375 KG Maximum welding capacity 30 mm2 The machine is with Automatic Annealing Function Welding range 0.5mm≤Thickness, Width≤30mm
