I. Technical process scheme: Fit to the welding : let us discuss according to real products

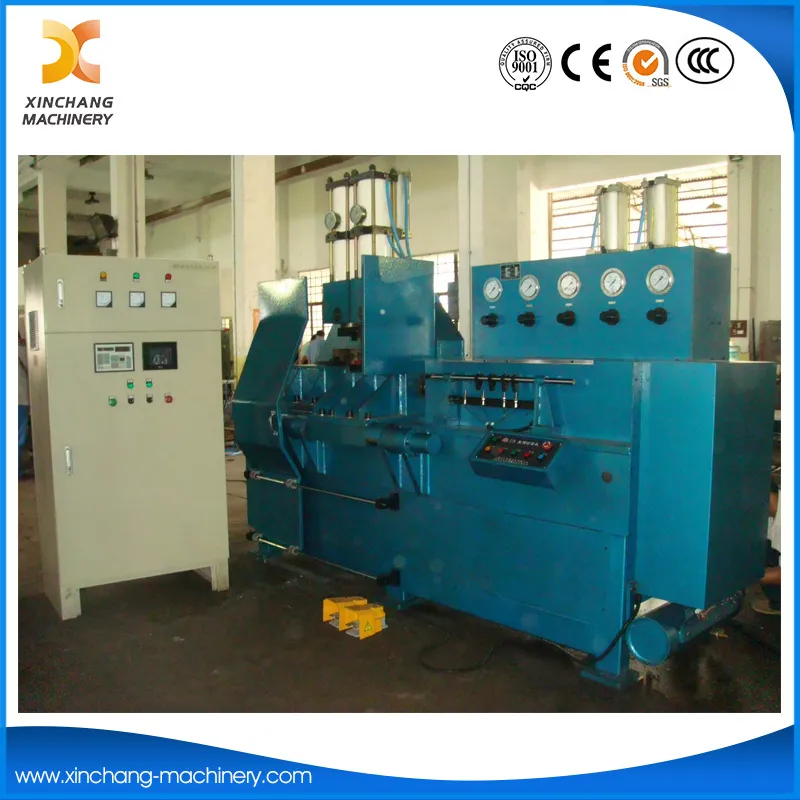

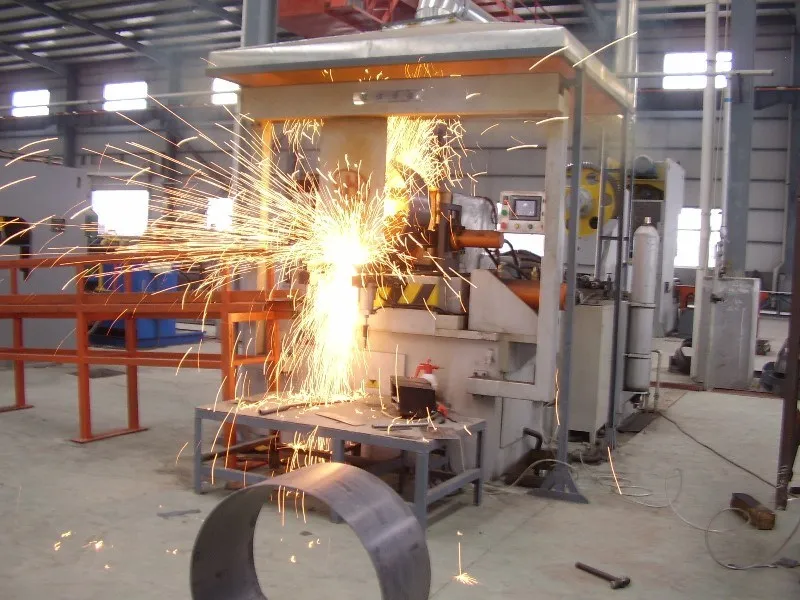

This Flash Butt Welding Machine adopts horizontal structure with upper and lower jaw arms. Four major assemblies adopt cast steel frame structure, and it is equipped with PLC control, hydraulic clamping, touch screen, servo electric cylinder and linear rail guide to realize precise control over flash and upsetting processes. It realizes workpiece clamping via hydraulic system, while flash and upsetting actions are driven by servo electric cylinder, which is a core working mode of this Flash Butt Welder. Clamping is implemented on left and right sides respectively; the clamping pressure can be adjusted independently and displayed in real time via pressure gauge.
The movable board and equipment body adopt linear rail for stable guiding during operation.
The main transformer is internally fitted with a temperature controller for operational safety protection.
It supports two working modes: pulsating and non-pulsating, fully meeting diverse production demands of the Automatic Butt Welding Machine. II. List of Components: 1. PLC Mitsubishi Fx1n40MP
2. Touch screen Taiwan PK70
3. Button, Fuji FUN
4. Servo motor and drive Eura 7.5KW
5. Upsetting screw Taiwan made nut Φ80
6. Reducer Domestic RV130-10
7. Piston pump for hydraulic station Domestic 31.5MP
8. Switchboard cabinet With thyristor 2000A
9. Front stainless steel visual tank; ease of water temperature monitoring
10. The hydraulic system includes a hydraulic valve block made by Rexroth (China).
11. The equipment is painted with titanium blue shrink varnish;
12. Linear rail guide HIWIN HGW55HA
13. Electrodes are made of chrome zirconium copper;
14. Accompanied with a set of hydraulic valve seals;
15. Accompanied with jaws: a set of chrome-plated copper electrodes are mounted on the body.
Following machine parameters as a example of UN-400KVAIII. Requirement: Purchaser should prepare by itself:
Power transformer: 1. Ordinary transformer >= 630KVA; only for this machine>=400KVA
Two-phase power source for main transformer A.B. 440V. >=180 mm2 copper wire Distance <50 m.
Three-phase four-wire A.B.C.N 440V >=8 mm2 copper wire; (workshop power is enough)
Note: 1. The cracking rate due to welding is less than 0.5%, the rate of micro cracks is less than 10%.
2. In case of an equipment failure that cannot be solved by purchaser, supplier must give a response within 24 hours and seek a feasible solution. All costs and expenses incurred after the warranty period shall be separately discussed and settled by the parties.
| Rated power : | 400KVA |
| Min. welding area: | 200 mm2 |
| Max. welding area: | 1200mm2 |
| Max. width at joint: | 360mm |
| Welding travel velocity: | 5-30/mm/s stepless velocity regulation |
| Hydraulic pressure: | 5~12MPa |
| Rated clamping force: | 400KN |
| Rated upsetting force: | 200KN |
| Max. adjustment of jaw: | 120mm |
| Transformer level: | 6 levels |
| Secondary voltage: | 4-9V |
| Cooling water pressure: | 0.2MPA |
| Cooling water flow rate | ≥50L/Min. |
| Oil pump motor: | 11KW |
| Duty cycle of transformer: | 60% |
| Overall weight | ≈9T |
