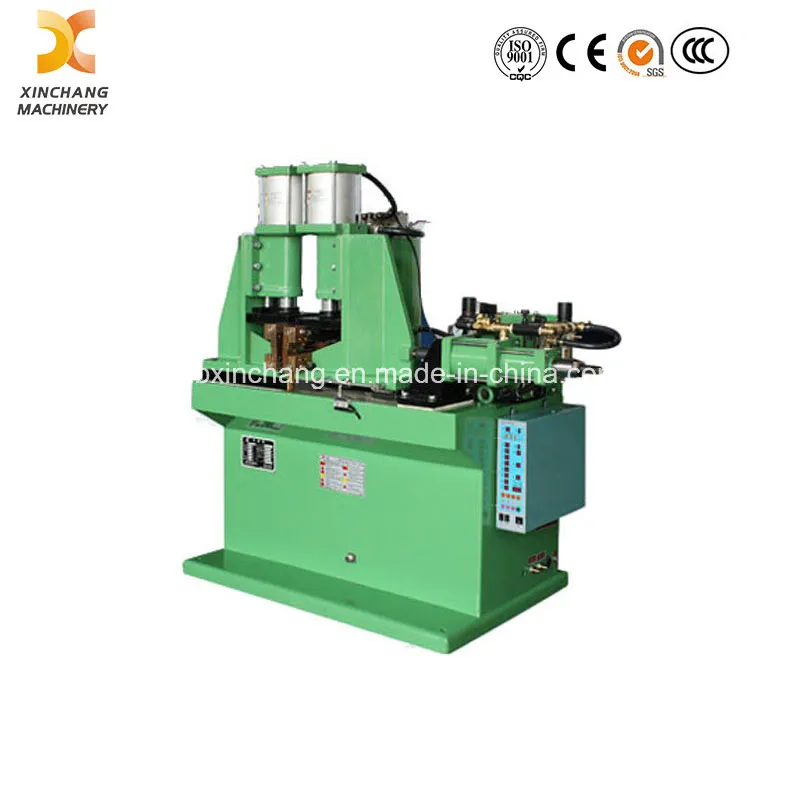

Advanced Water Cooled Flash Butt Welder with Annealing Function

Min. Order:1 Piece/Pieces

Supply Ability & Additional Information
Packaging & Delivery
Other information

Supply Ability & Additional Information

Supply Ability: 200 Sets/ Year

Packaging & Delivery

Selling Units:

Piece/Pieces



High Precision Butt Welding Machine for Saw Blades with Automatic Annealing Function1



Water Cooling Flash Butt Welder Resistance Band Saw Blade Welding Machine

Features:

1, Working principle: Take the workpiece to move slowly by controlling system, to clear away by flash the Oxide layer and uneven place of welding surface, then heat the ends of workpiece, the last machine give the upset force very quickly to have the welding ends to fuse.
2, Use the micro-controller to achieve complete process control in clamping, flash, upset, holding, stop, very high precision.
3, Welding product's strength is higher, sealing is better, without loose-weld, without gas pore, fastness and beauty.

Applications:
Be widely used for metal products whose ends is not flat and with burr, Tube, bar, sheet metal, section steel which materials are carbon steel, steel alloy and nonferrous metals etc.

Advantages:

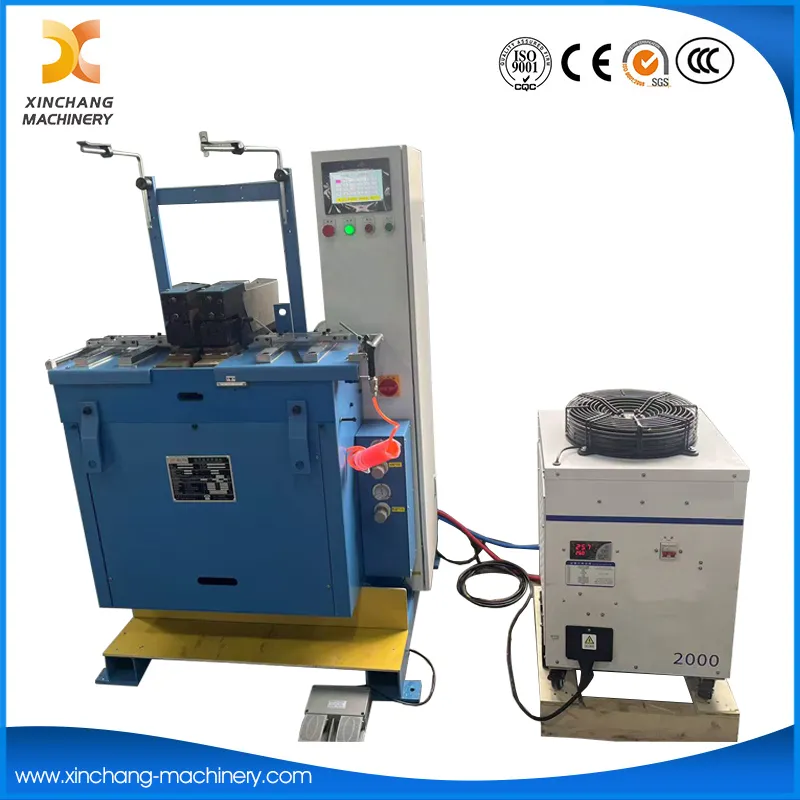

Water Cooling Flash Butt Welder Band Saw Blade Welding Machine with Annealing Funtion

1, Machine body of thick steel sheet, not easy to deformation.
2, Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
3, Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
4, Quality is stable, failure rate is low, therefore machine life is longer.

Product model: UN-27
Rated power supply voltage: 3-phase 380V
Rated frequency: 50 HZ
Rated power: 15 KVA
Rated duty cycle: 50%
Insulation grade: B
Secondary maximum short-circuit current: 3 KA
Maximum welding power: 15 KVA
Maximum electrode pressure: 7500 N
Maximum upset force: 5000 KN
Gas supply pressure: 0.5 Mpa
Flash speed control mode and speed: 0-50 HZ
Weight of welding machine: 375 KG
Maximum welding capacity: 30 mm²
The machine is with Automatic Annealing Function
Welding range 0.5mm≤Thickness, Width≤30mm
