Automatic Flash Butt Welder Hydraulic Pipe Fusion Machine

Min. Order:1 Piece/Pieces

Supply Ability & Additional Information
Packaging & Delivery
Other information

Supply Ability & Additional Information

Supply Ability: 200 Sets/ Year

Packaging & Delivery

Selling Units:

Piece/Pieces

Basic Info.

Model NO.: UNS-80/100/150/200/400/800/1000/1250kva

Electric Current: AC

Type: Butt Welders

Flash Butt Welding: Flash Butt Welding Machine

Current: Alternating Current

Rated Power(kVA): 100-1250

Item: Butt Welding Machine

Transport Package: at Customer's Requrest

Specification: export standard

Trademark: xinchang

Origin: Ningbo China

HS Code: 85152900

Production Capacity: 200 Sets/ Year

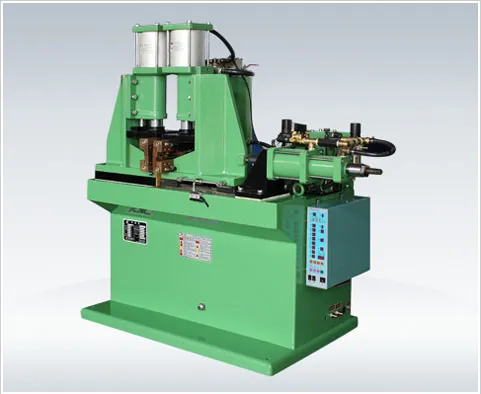

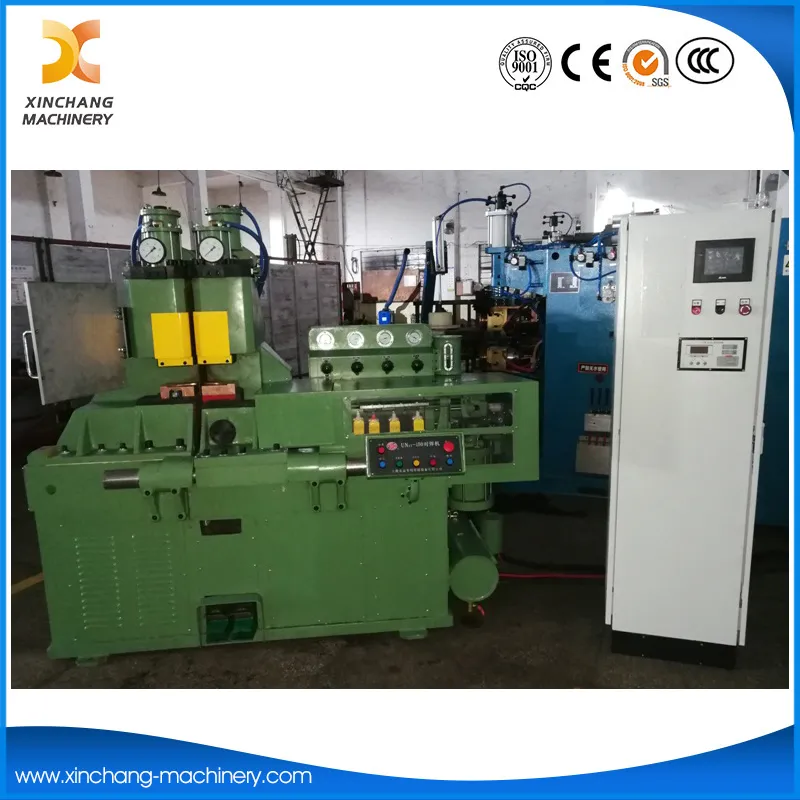

Automatic Flash Butt Welder Hydraulic Butt Fusion Pipe Welding Machine

Features:
1, Working principle: Take the workpiece to move slowly by controlling of Gas-liquid system, to clear away by flash the Oxide layer and uneven place of welding surface, then heat the ends of workpiece, the last machine give the upset force very quickly to have the welding ends to fuse.
2, Use the micro-controller to achieve complete process control in clamping, flash, upset, holding, stop, very high precision.
3, Welding product's strength is higher, sealing is better, without loose-weld, without gas pore, fastness and beauty.
Applications:

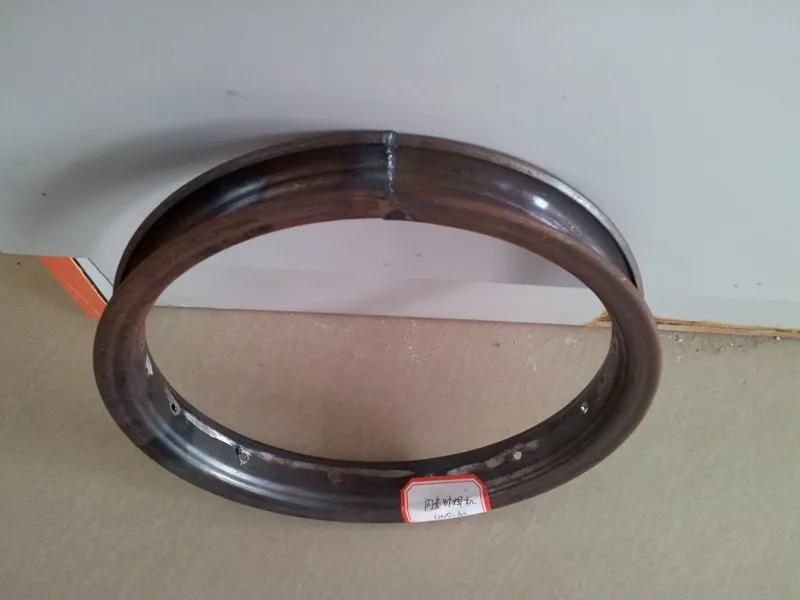

Be widely used for metal products whose ends is not flat and with burr, Tube, bar, sheet metal, section steel which materials are carbon steel, steel alloy and nonferrous metals etc.

Advantage:
1, Machine body of thick steel sheet, not easy to deformation
2, Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
3, Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
4, Quality is stable, failure rate is low, therefore machine life is longer.

Model Unit Item		UN-25-1	UN-40-1	UN-40-2	UN-80-2
Rated capacity	KVA	25	40	40	80
Primary voltage	V	380	380	380	380
Rated frequency	HZ	50	50	50	50
Max short circuit current	KA	19	22	22	30
Duty cycle	%	50	50	50	50
Max pressing force	N	3900	3900	3900	3900
Max upset force	N	1500	1500	1500	1500
Forge stroke	MM	10	10	10	10
Upset stroke	MM	25	25	25	25
Cooling water flux	L/Min	4	4	4	5
Weight	Kg	200	230	250	300
