Name: High Frequency Flash Welder Equipment
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 5.0 (48 reviews)

High Frequency Flash Welder Equipment

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Model NO.: UN-40, 80

Type: Butt Welders

Certificates: CE, CCC, ISO9001

Current: Alternating Current

Rated Power(kVA): 100-1250

Jaw Distance(mm): 55-500

Transport Package: at Customer's Requrest

Specification: export standard

Trademark: xinchang

Origin: Ningbo China

Production Capacity: 500 Sets/ Year

Customization: Available

Cooling Way: Water Cooling

Control: Automatic

Supply Ability & Additional Information

Supply Ability: 500 Sets/ Year

Packaging & Delivery

Selling Units:

Piece/Pieces

Overview
Product Description
Product Parameters
Detailed Photos
Company Profile
FAQ

Basic Info.

Model NO.

UN-40, 80

Type

Butt Welders

Certificates

CE, CCC, ISO9001

Current

Alternating Current

Rated Power(kVA)

100-1250

Jaw Distance(mm)

55-500

Transport Package

at Customer's Requrest

Specification

export standard

Trademark

xinchang

Origin

Ningbo China

Production Capacity

500 Sets/ Year

Product Description

High Technology Flash Butt Welding Machine for Pipe Heat fusion

Type:
1: Direct pressing type
2: Type of pressing by lever
Characteristic:
Direct pressing type: As it is pressed by 2 cylinders directly and left & right electrode bases are installed on one linear guide rail, so its axisality is better than Type of pressing by lever. It is more suitable for smaller diameter workpiece.

Type of pressing by lever: Press by lever, pressure is bigger than direct pressing type, it is more suitable for bigger diameter workpiece.
Max welding area is 160 square mm;

Feature:
1, Adopt the air-powered vertical pressure or air-powered lever pressure system, work piece clamp steady which make welding tie-in nice, steady, less dregs.
2, Novel structure, special design, good rigidity. Adopt the high definition guidance institution, high staying quality, high speed welding, pressure steady.
3, Microcomputer constant pressure control system, twice section discharge, multi- group memory programs, precise control of the welding time and welding current, easy to adjust. Can control clamping, welding, upset, off in welding process.
4, High conduction magnetism silicon sheet steel, secondary whole structure, output current is high, energy-saving and protection environmental.
5, Water cooling transformer, water cooling controlled silicon, and water cooling electrode head what can improve the use life of equipment.
6, It is used to high quality welding wide range of wire type, plate type, heteromorphosis type copper\aluminum\iron\stainless steel metal etc.

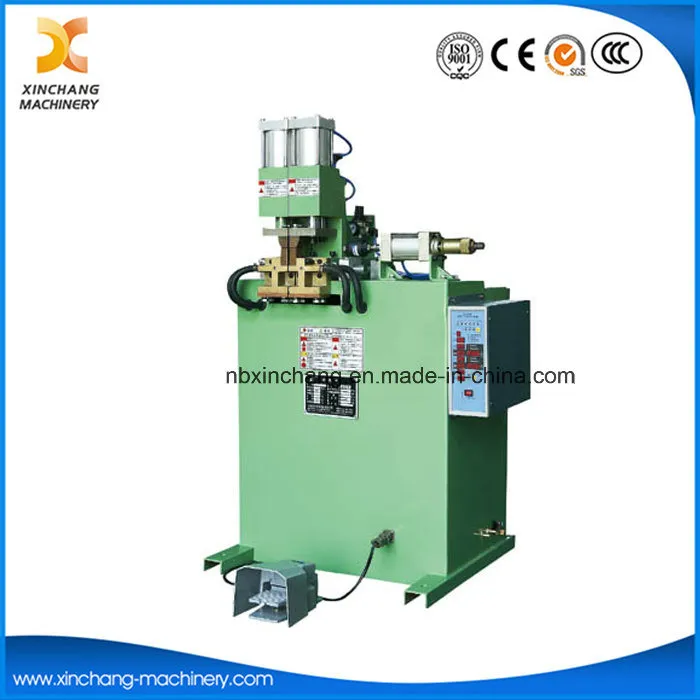

High Frequency Flash Welder Equipment Butt Plate Pipe Welding Machine

Advantage:
1, Machine body of thick steel sheet, not easy to deformation
2, Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
3, Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
4, Quality is stable, failure rate is low, therefore machine life is longer.

Model Unit Item		UN-25-1	UN-40-1	UN-40-2	UN-80-2
Rated capacity	KVA	25	40	40	80
Primary voltage	V	380	380	380	380
Rated frequency	HZ	50	50	50	50
Max short circuit current	KA	19	22	22	30
Duty cycle	%	50	50	50	50
Max pressing force	N	3900	3900	3900	3900
Max upset force	N	1500	1500	1500	1500
Forge stroke	MM	10	10	10	10
Upset stroke	MM	25	25	25	25
Cooling water flux	L/Min	4	4	4	5
Weight	Kg	200	230	250	300

We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in Friction Welding Machine, Resistance Welding Machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.

Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.

Our main products are Heat exchanger equipment, Friction welding machine, Spot Welding Machine, Projection Welding Machine, Butt Welding Machine, Seam Welding Machine, Multi Head Welding Machine For Wire Mesh, and other various special welding machine for metal connection in different industries.

We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.

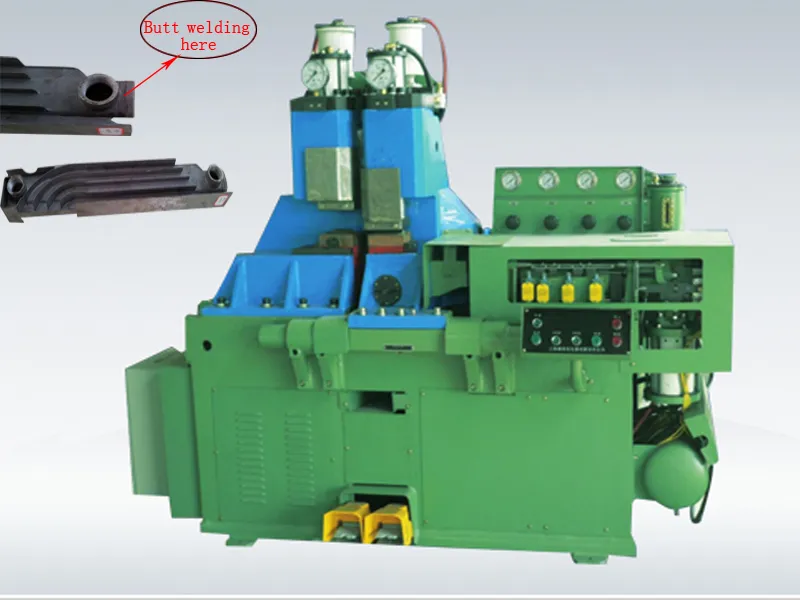

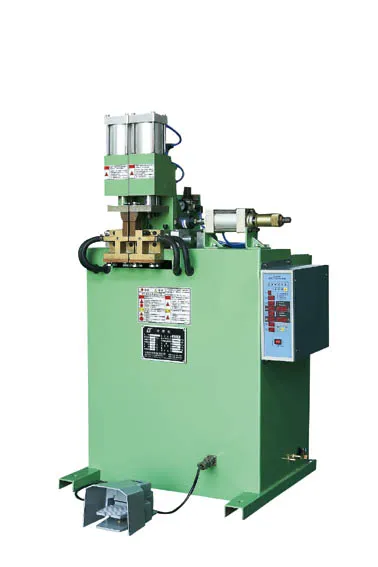

High Frequency Flash Welder Equipment Butt Plate Pipe Welding Machine
