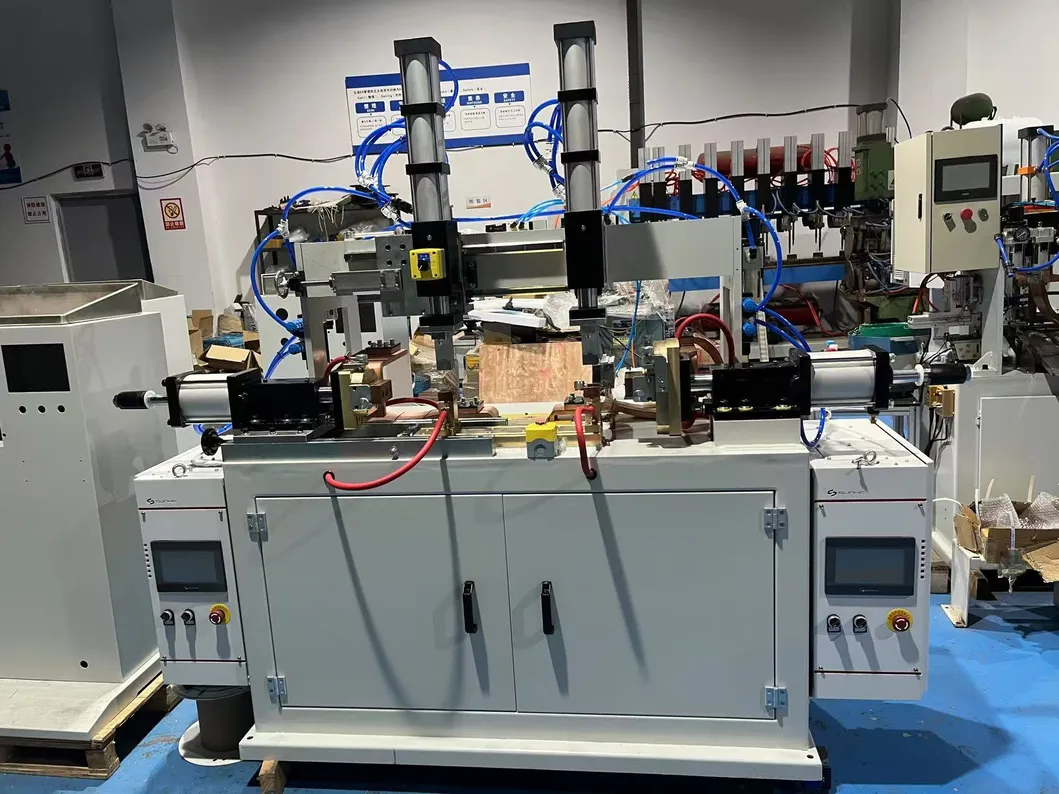

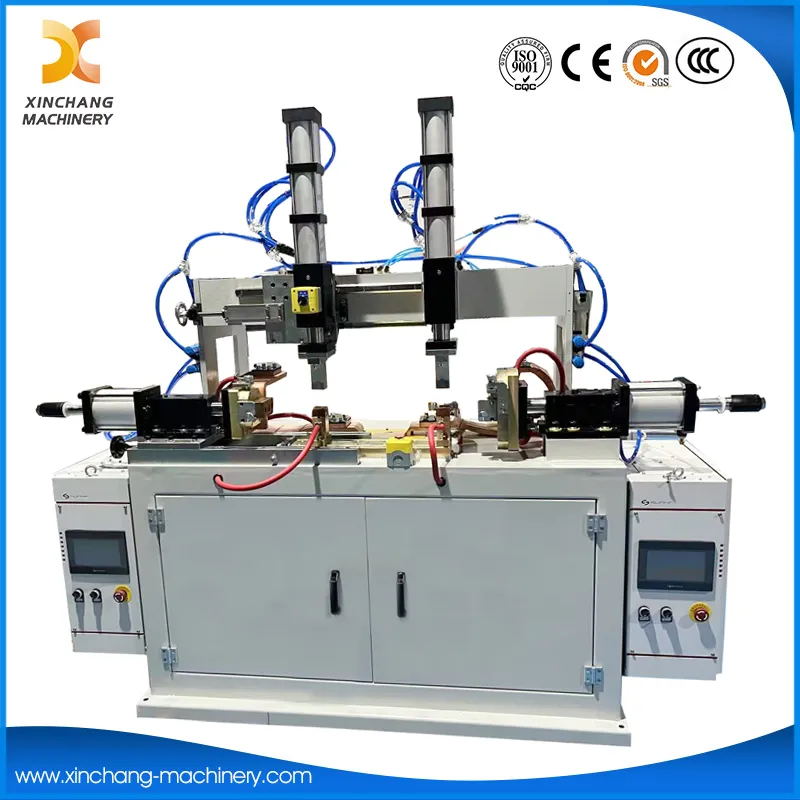

Easy Operation Adjustable Pneumatic Steel Wire Double Heads Butt Welder Machine
This adjustable pneumatic double-head butt welder is specially designed for stabilizer link rods, featuring dual-head synchronous operation and pneumatic pressure control to ensure stable clamping and consistent forming. It supports quick parameter adjustment and continuous production, effectively boosting efficiency for automotive chassis parts. Equipped with precise temperature and pressure control, this
Automatic Butt Welding Machine delivers uniform welds with high strength. As reliable
Automatic Butt Welding Equipment, it cuts manual intervention and ensures stable batch quality. Adopting the principle of Resistance

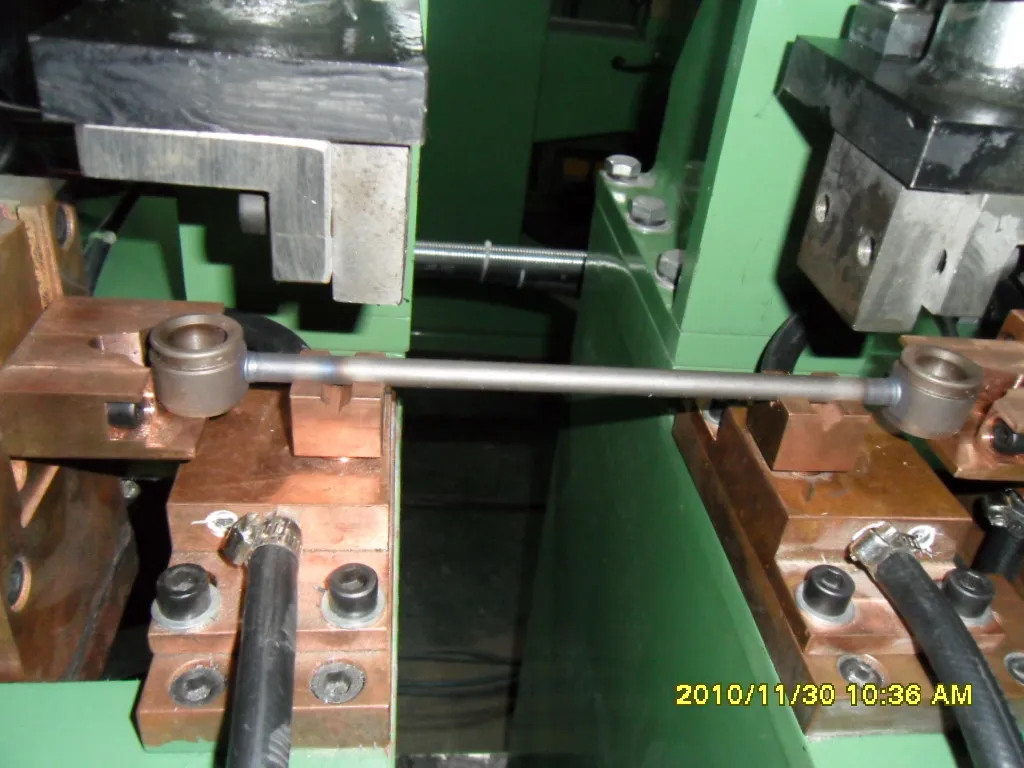

Butt Welding Machine, it achieves fast, spatter-free joining with compact joints and long service life, ideal for mass production of stabilizer link rods.
Type: 1: Direct pressing type
2: Type of pressing by lever
Characteristic:
Direct pressing type: As it is pressed by 2 cylinders directly and left & right electrode bases are installed on one linear guide rail, so its axisality is better than Type of pressing by lever. It is more suitable for smaller diameter workpiece.
Type of pressing by lever: Press by lever, pressure is bigger than direct pressing type, it is more suitable for bigger diameter workpiece.
Max welding area is 160 square mm;
Feature:
1, Adopt the air-powered vertical pressure or air-powered lever pressure system, work piece clamp steady which make welding tie-in nice, steady, less dregs.
2, Novel structure, special design, good rigidity. Adopt the high definition guidance institution, high staying quality, high speed welding, pressure steady.
3, Microcomputer constant pressure control system, twice section discharge, multi- group memory programs, precise control of the welding time and welding current, easy to adjust. Can control clamping, welding, upset, off in welding process.
4, High conduction magnetism silicon sheet steel, secondary whole structure, output current is high, energy-saving and protection environmental.
5, Water cooling transformer, water cooling controlled silicon, and water cooling electrode head what can improve the use life of equipment.
6, It is used to high quality welding wide range of wire type, plate type, heteromorphosis type copper\aluminum\iron\stainless steel metal etc.
Model
Unit
Item | UN-25-1 | UN-40-1 | UN-40-2 | UN-80-2 |
| Rated capacity | KVA | 25 | 40 | 40 | 80 |
| Primary voltage | V | 380 | 380 | 380 | 380 |
| Rated frequency | HZ | 50 | 50 | 50 | 50 |
| Max short circuit current | KA | 19 | 22 | 22 | 30 |
| Duty cycle | % | 50 | 50 | 50 | 50 |
| Max pressing force | N | 3900 | 3900 | 3900 | 3900 |
| Max upset force | N | 1500 | 1500 | 1500 | 1500 |
| Forge stroke | MM | 10 | 10 | 10 | 10 |
| Upset stroke | MM | 25 | 25 | 25 | 25 |
| Cooling water flux | L/Min | 4 | 4 | 4 | 5 |
| Weight | Kg | 200 | 230 | 250 | 300 |
