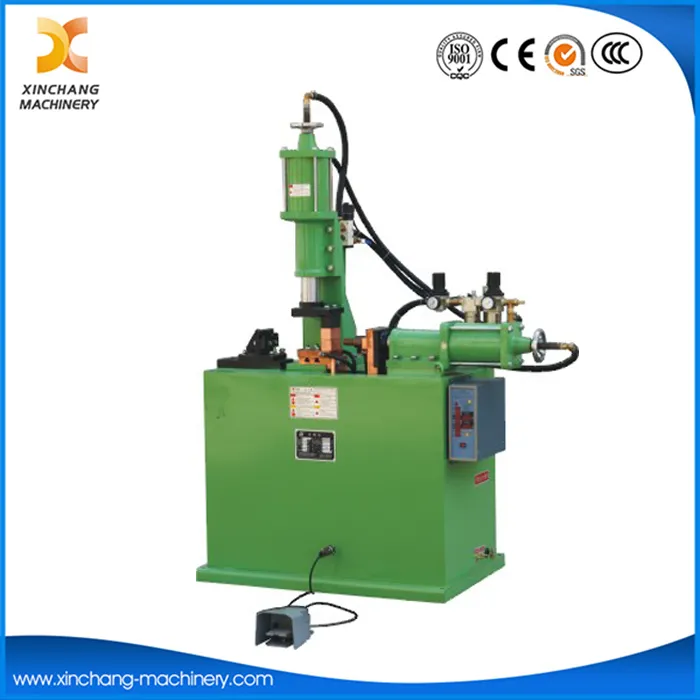

Automatic T Spanner Resistance Butt Fusion Welding Machine
This series contain sleeve butt welders, T type butt welders and cross hydraulic type butt welders. As a versatile
Butt Welding Machine, it be widely used in "X" "Y" "Cross" type spanner butt welders.
fast welding speed, saving electricity.
It can replace argon arc welding and CO2 welding, very suitable for batch production relying on mature configuration of
Automatic Butt Welding Equipment.
Adopt the air-powered vertical pressure or air-powered lever pressure system, work piece clamp steady which make welding tie-in nice, steady, less dregs.
Novel structure, special design, good rigidity. Adopt the high definition guidance institution, high staying quality, high speed welding, pressure steady.
Microcomputer constant pressure control system, twice section discharge, multi- group memory programs, precise control of the welding time and welding current, easy to adjust. Can control clamping, welding, upset, off in welding process to form complete
Automatic Butt Welding System.
High conduction magnetism silicon sheet steel, secondary whole structure, output current is high, energy-saving and protection environmental.
Water cooling transformer, water cooling controlled silicon, and water cooling electrode head what can improve the use life of equipment.
It is used to high quality welding wide range of wire type, plate type, heteromorphosis type copper\aluminum\iron\stainless steel metal etc.
Model
Unit
Item | UN-25-1 | UN-40-1 | UN-40-2 | UN-80-2 |
| Rated capacity | KVA | 25 | 40 | 40 | 80 |
| Primary voltage | V | 380 | 380 | 380 | 380 |
| Rated frequency | HZ | 50 | 50 | 50 | 50 |
| Max short circuit current | KA | 19 | 22 | 22 | 30 |
| Duty cycle | % | 50 | 50 | 50 | 50 |
| Max pressing force | N | 3900 | 3900 | 3900 | 3900 |
| Max upset force | N | 1500 | 1500 | 1500 | 1500 |
| Forge stroke | MM | 10 | 10 | 10 | 10 |
| Upset stroke | MM | 25 | 25 | 25 | 25 |
| Cooling water flux | L/Min | 4 | 4 | 4 | 5 |
| Weight | Kg | 200 | 230 | 250 | 300 |
