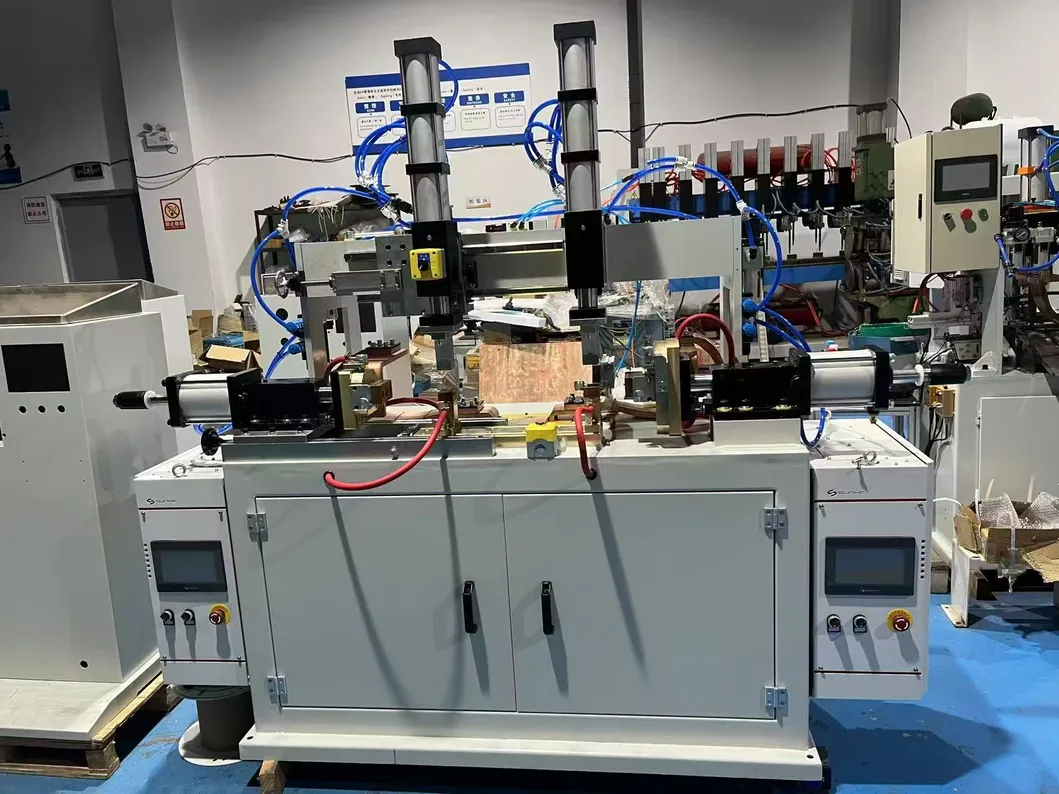

1: Direct pressing type

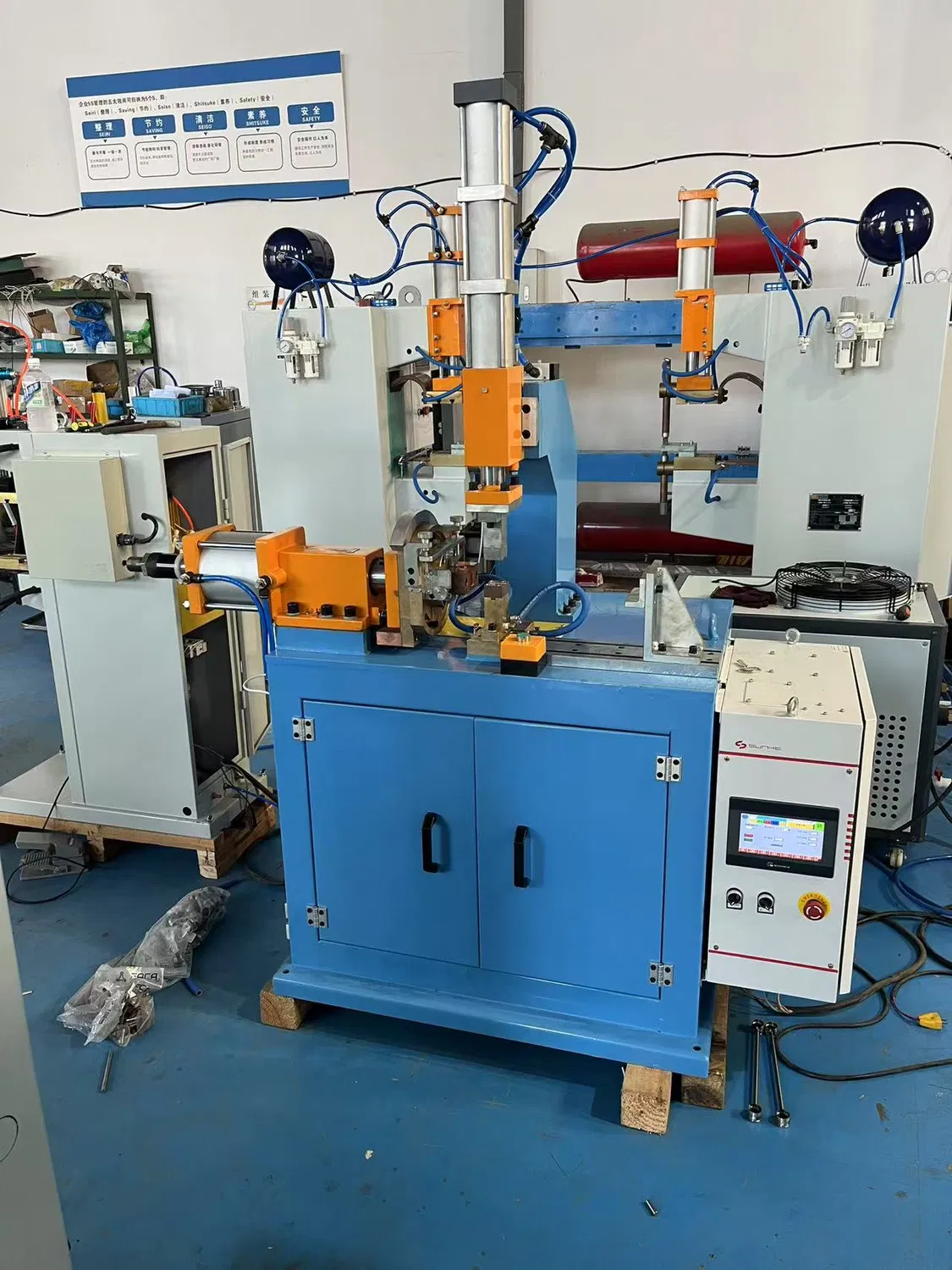

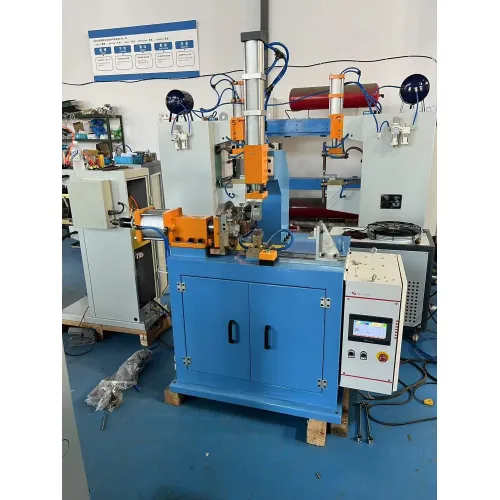

2: Type of pressing by lever
Characteristic:
Direct pressing type: As it is pressed by 2 cylinders directly and left & right electrode bases are installed on one linear guide rail, so its axisality is better than Type of pressing by lever. It is more suitable for smaller diameter workpiece.
Type of pressing by lever: Press by lever, pressure is bigger than direct pressing type, it is more suitable for bigger diameter workpiece.
Max welding area is 160 square mm;
Feature:
1, Adopt the air-powered vertical pressure or air-powered lever pressure system, work piece clamp steady which make welding tie-in nice, steady, less dregs.
2, Novel structure, special design, good rigidity. Adopt the high definition guidance institution, high staying quality, high speed welding, pressure steady.
3, Microcomputer constant pressure control system, twice section discharge, multi- group memory programs, precise control of the welding time and welding current, easy to adjust. Can control clamping, welding, upset, off in welding process.
4, High conduction magnetism silicon sheet steel, secondary whole structure, output current is high, energy-saving and protection environmental.
5, Water cooling transformer, water cooling controlled silicon, and water cooling electrode head what can improve the use life of equipment.
6, It is used to high quality welding wide range of wire type, plate type, heteromorphosis type copper\aluminum\iron\stainless steel metal etc. Advantage:
1, Machine body of thick steel sheet, not easy to deformation
2, Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
3, Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
4, Quality is stable, failure rate is low, therefore machine life is longer.
Control System: LC
Model :UN2 *150KVA
Rated voltage: 380V± 15%, 50HZ
Rated capacity (KVA) : 1*150KVA
Load duration rate (%) :20
Secondary maximum short-circuit current
(KA) : 35
Air source pressure (Mpa) : 0.6 -0.8
Insulation class : F
Welding cylinder stroke (mm) : 100
The adjustable range of current (KA) : 0-35
Cooling water pressure (Mpa) : 0.15
The cooling water flow rate :12L/MIN
The welding capability : 5 to 12mm machine size about 1100 850 2000mm weight about 500kg
