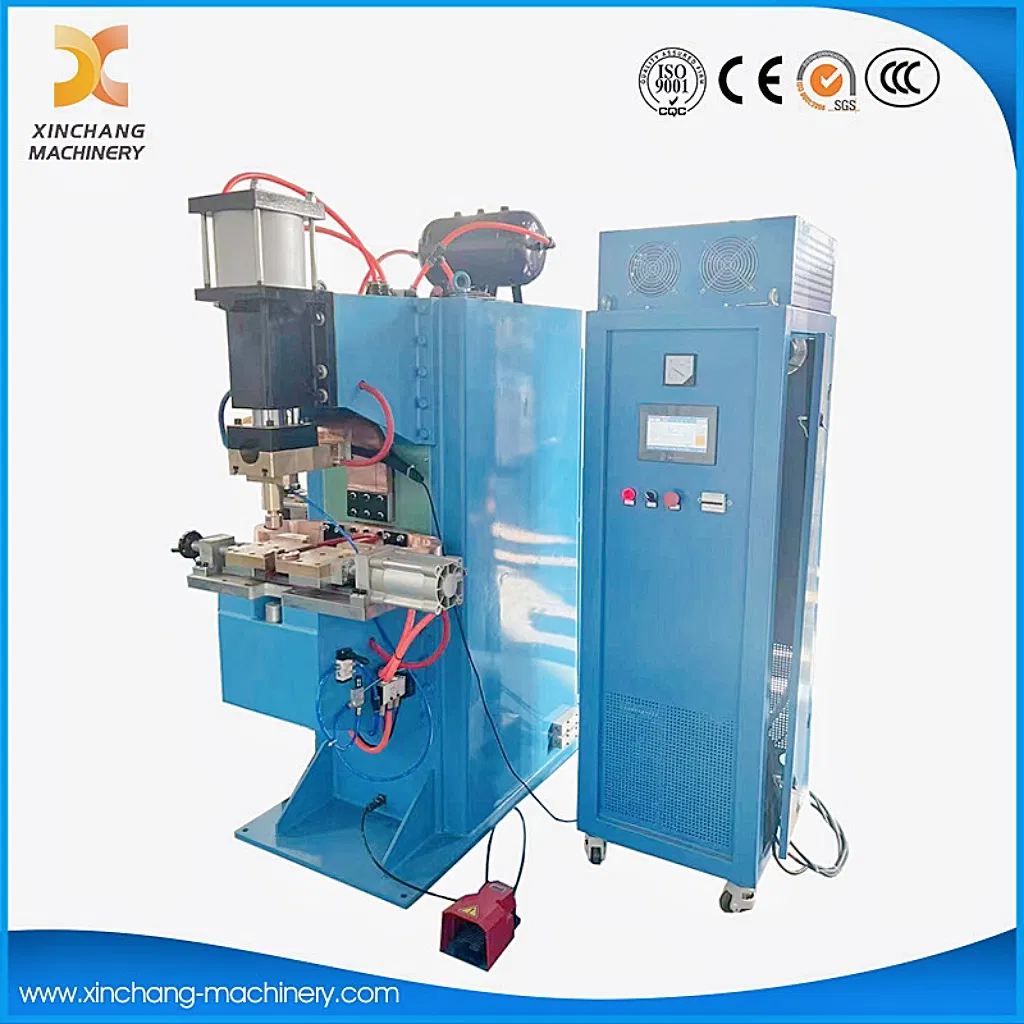

Capacitor Discharge Spot Welding Machine for Motorcycle Shock Absorber

Min. Order:1 Piece/Pieces

Supply Ability & Additional Information
Packaging & Delivery
Other information

Supply Ability & Additional Information

Supply Ability: 30set/Month

Packaging & Delivery

Selling Units:

Piece/Pieces



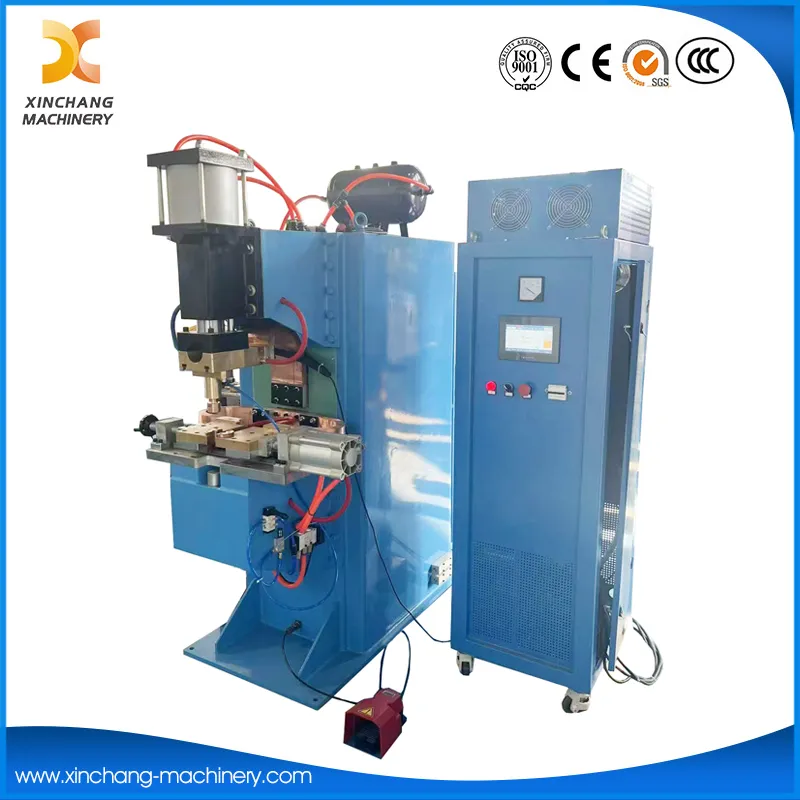

Capacitor Discharge Spot Welding Machine for Motorcycle Shock Absorber1



Capacitor Discharge Spot Welding Machine for Motorcycle Shock Absorber

Features:
1, Adopt boost charge-discharge capacitor: precise output current, low power grid impact, energy-saving, almost no deformation/discoloration, no grinding needed.
2, Charging voltage feedback control: auto-compensates to ensure voltage stability, good weld point concordance and high quality.
3, Thick steel sheet body, not easy to deform.
4, DC welding current: little reactance, higher effective power.
5, Equipped with charging voltage max protection and charging circuit loop break alarm.
6, LED display, easy to operate and maintain.
7, Water-cooled transformer: 15000-gauss silicon sheets, full copper core, internal cooling; low impedance, high power utilization, 20% duty cycle for long-time welding, large output power, longer service life, lower noise, compact structure.
8, Fast solenoid valve: faster welding speed, higher productivity, lower cost.
9, Duralumin cylinder: high-precision, anti-friction, rust-proof, low noise, fast loading, less weld spatter.
10, Stable quality, low failure rate, long service life.
Applications: Suitable for stainless steel, brass, copper alloy, aluminium etc. Special for electric appliance, watch chain, jewelry, tableware and other metal products.

ITEM MODEL	Input capacity	Input voltage	Capacitance	energy	Duty cycle	Max pressure	Operational stroke	Electrode stroke	Cooling water flux	Welding capacity (aluminium)
ITEM MODEL	KVA	V	UF	J	%	N	MM	MM	L/Min	MM
DTR-3000	5	380	30000	3000	20	1900	30	70	2	1.2+1.2
DTR-4500	5	380	45000	4500	20	1900	30	70	2	1.5+1.5
DTR-6000	8	380	60000	6000	20	4800	30	70	3	2.0+2.0
DTR-8000	8	380	80000	8000	20	7800	30	70	3	2.2+2.2
DTR-10000	10	380	100000	10000	20	7800	30	70	3	2.4+2.4
DTR-15000	15	380	150000	15000	20	7800	30	70	3	2.6+2.6
DTR-20000	20	380	200000	20000	20	12000	30	70	3	3.0+3.0
DTR-30000	30	380	300000	30000	20	12000	30	70	3	3.0+3.0
