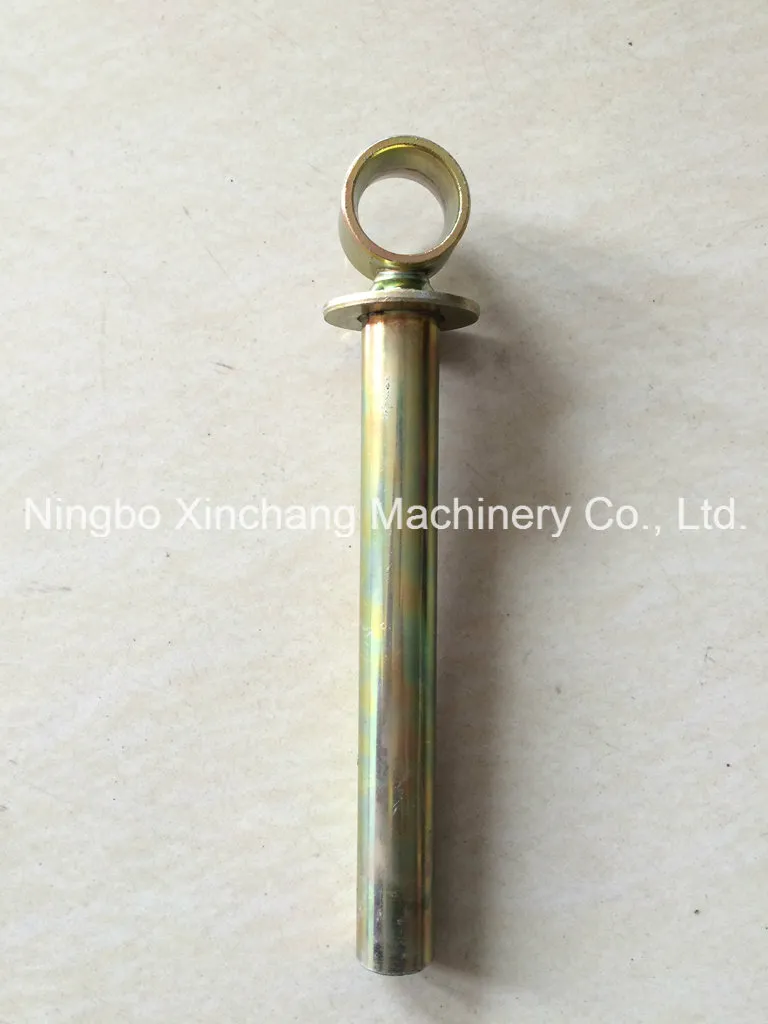

Capacitor Discharge Spot Welders for Motorcycle Shock Absorber
Product Description

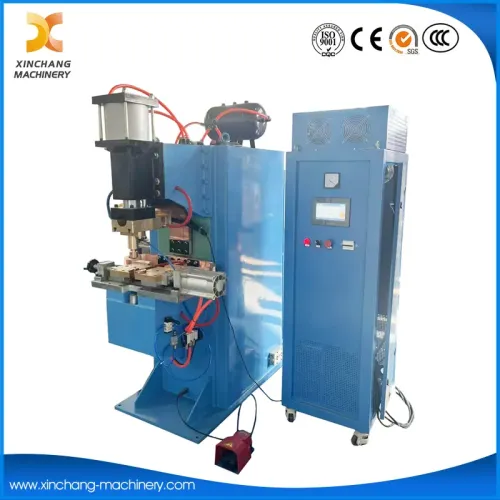

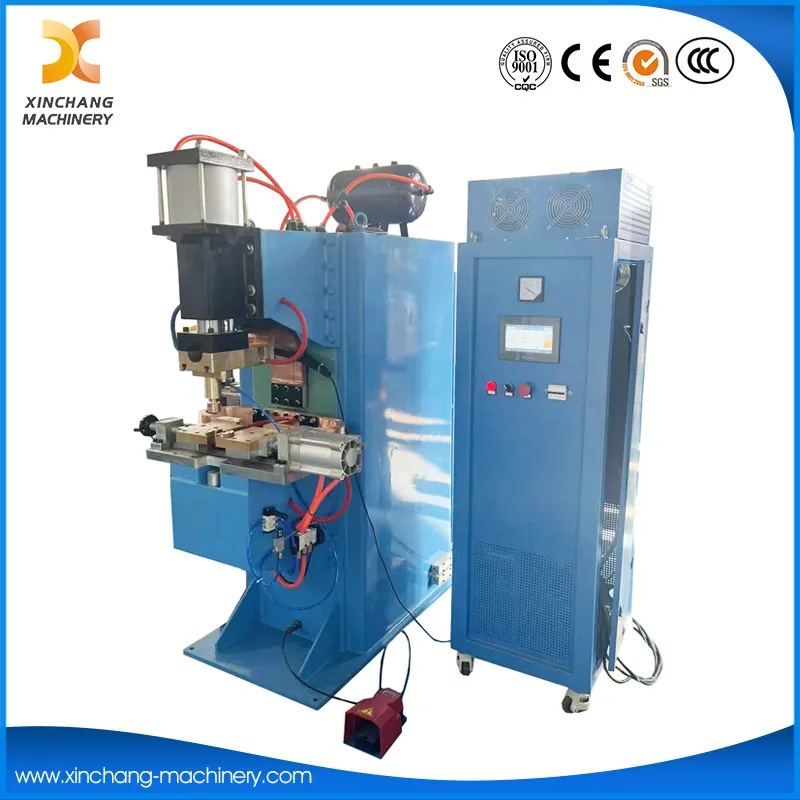

This specialized
Capacitor Discharge Welding Machine is tailor-made for motorcycle shock absorber welding, serving as a high-efficiency Industrial Spot Welding System and stable
Resistance Spot Welding Machine, perfectly meeting the precision and durability demands of shock absorber component welding.
Features
1. Boost charge-discharge capacitor: Delivers precise welding current, minimizes grid impact, and saves energy. It avoids workpiece deformation and discoloration, eliminating the need for post-weld grinding.
2. Charging voltage feedback control: Features automatic voltage compensation to keep output stable, ensuring consistent weld joints and reliable welding quality.
3. Thick steel robust body: Built with heavy-duty thick steel, featuring strong anti-deformation performance to maintain stability under long-term industrial operation.
4. DC welding current: Low reactance, high effective power, and concentrated heat output, boosting welding efficiency and bond strength.
5. Comprehensive safety protection: Equipped with overcharge protection and charging circuit open-circuit alarm, effectively preventing equipment damage and operational risks.
6. Intuitive LED display: Clear parameter display and simple operation, lowering maintenance difficulty and operation threshold.
7. Water-cooled transformer: Adopts 15000-gauss silicon sheets and full copper core with internal water cooling. It has low impedance, high power utilization, 20% duty cycle, long service life, low noise and compact structure.
8. Fast solenoid valve: Speeds up welding response, improves production efficiency, and cuts down per-piece processing cost.
9. Duralumin cylinder: High-precision, anti-friction, rust-proof and low-noise design, enabling fast loading, reducing welding spatter and improving weld finish.
10. Stable and durable: Strict craftsmanship ensures stable overall performance, low failure rate and long service life, suitable for continuous industrial production.
ITEM
MODEL
| Input capacity | Input voltage | Capacitance | energy | Duty cycle | Max pressure | Operational stroke | Electrode stroke | Cooling water flux | Welding capacity (aluminium) |
| KVA | V | UF | J | % | N | MM | MM | L/Min | MM |
| DTR-3000 | 5 | 380 | 30000 | 3000 | 20 | 1900 | 30 | 70 | 2 | 1.2+1.2 |
| DTR-4500 | 5 | 380 | 45000 | 4500 | 20 | 1900 | 30 | 70 | 2 | 1.5+1.5 |
| DTR-6000 | 8 | 380 | 60000 | 6000 | 20 | 4800 | 30 | 70 | 3 | 2.0+2.0 |
| DTR-8000 | 8 | 380 | 80000 | 8000 | 20 | 7800 | 30 | 70 | 3 | 2.2+2.2 |
| DTR-10000 | 10 | 380 | 100000 | 10000 | 20 | 7800 | 30 | 70 | 3 | 2.4+2.4 |
| DTR-15000 | 15 | 380 | 150000 | 15000 | 20 | 7800 | 30 | 70 | 3 | 2.6+2.6 |
| DTR-20000 | 20 | 380 | 200000 | 20000 | 20 | 12000 | 30 | 70 | 3 | 3.0+3.0 |
| DTR-30000 | 30 | 380 | 300000 | 30000 | 20 | 12000 | 30 | 70 | 3 | 3.0+3.0 |
