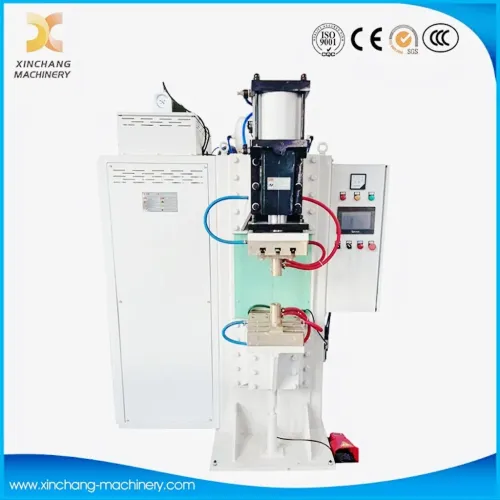

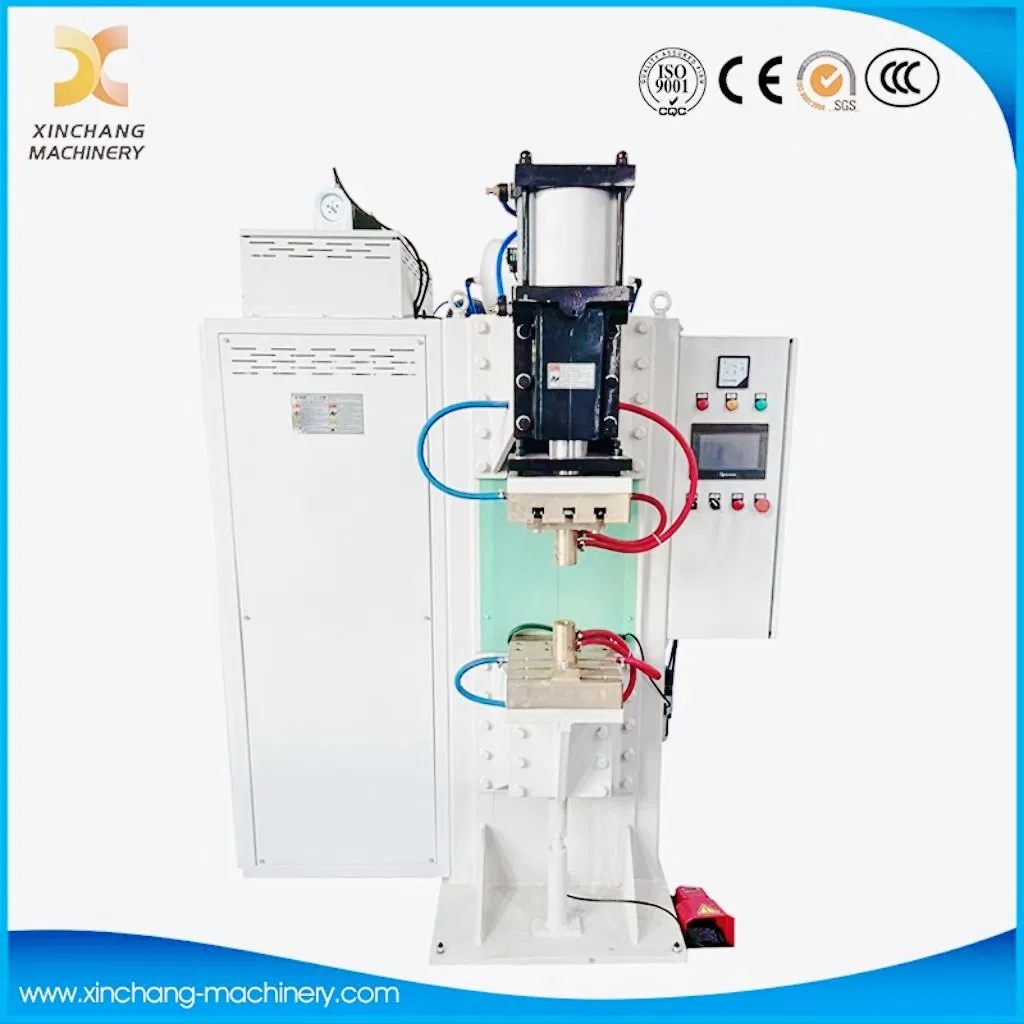

Name: High Speed Capacitor Discharge Spot Welder
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 4.8 (37 reviews)

High Speed Capacitor Discharge Spot Welder

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Model NO.: DTR-3000/6000/10000/15000/20000/25000/30000J

Style: Fixed

Electrode Stroke: Vertical

Electric Current: Capacitor Energy Storage

Transmission: Pneumatic

Conductive Way: Both-Sided

Type: Spot Welders

Welding Current: DC

Current: Direct Current

Power Souce: Capacity Discharge

Operational Stroke: 30mm

Transport Package: at Customer's Requrest

Specification: export standard

Trademark: xinchang

Origin: Ningbo China

HS Code: 85152900

Production Capacity: 100set/Month

Customization: Available

Control: Semi-Automatic

Cooling Way: Water Cooling

Shipping Cost: Contact the supplier about freight and estimated delivery time.

Supply Ability & Additional Information

Supply Ability: 100set/Month

Packaging & Delivery

Selling Units:

Piece/Pieces

Overview
Product Description
Product Parameters
Detailed Photos
Company Profile
FAQ

Basic Info.

Model NO.

DTR-3000/6000/10000/15000/20000/25000/30000J

Style

Fixed

Electrode Stroke

Vertical

Electric Current

Capacitor Energy Storage

Transmission

Pneumatic

Conductive Way

Both-Sided

Type

Spot Welders

Welding Current

Current

Direct Current

Power Souce

Capacity Discharge

Operational Stroke

30mm

Transport Package

at Customer's Requrest

Specification

export standard

Trademark

xinchang

Origin

Ningbo China

HS Code

85152900

Production Capacity

100set/Month

Packaging & Delivery

Package Size

200.00cm * 150.00cm * 150.00cm

Package Gross Weight

1000.000kg

Product Description

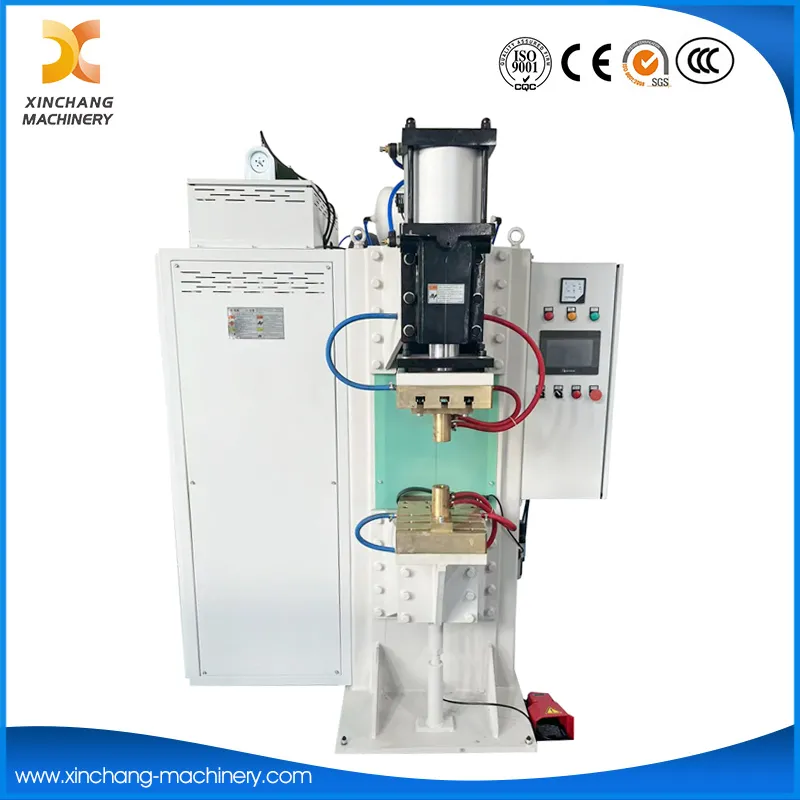

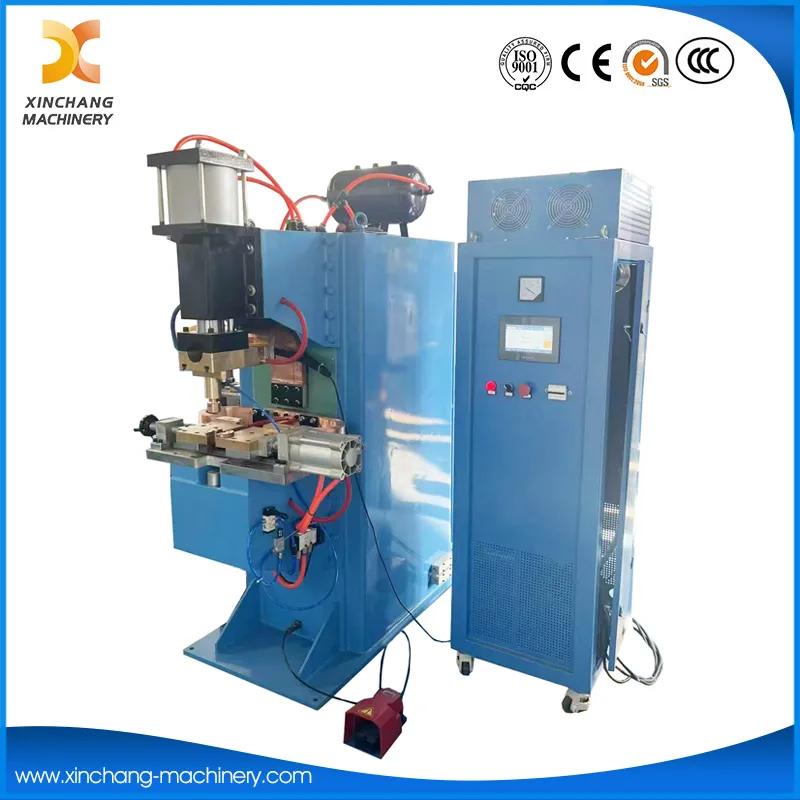

High Speed Capacitor Discharge Automatic Frame Plate Resistance Spot Welding Machine

Features:

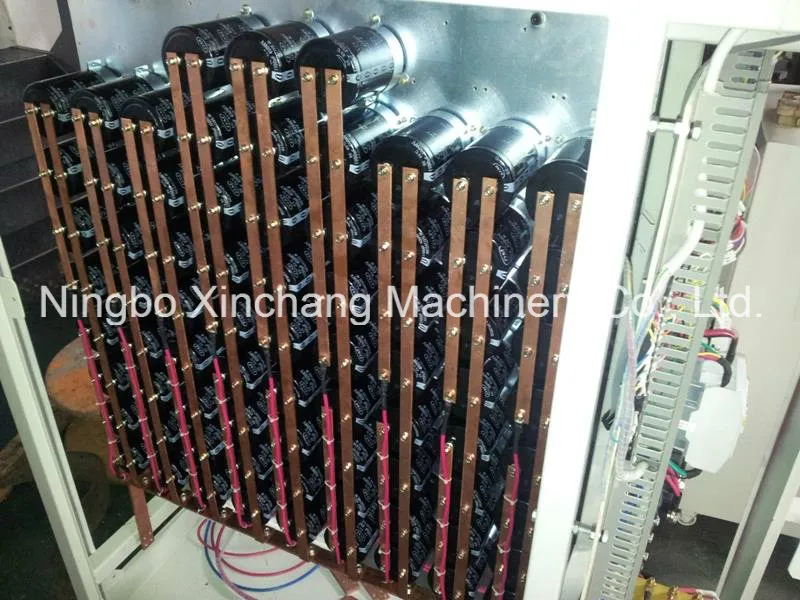

1, Adopt boosting charge and discharge capacitor, output current is more precision, lower strike to Power Grid, energy conservation, almost without deformation and discoloration, no grinding necessary.
2, Charging voltage with feedback control, auto-compensate voltage ensuring voltage stability, concordance of weld points is good, weld quality is high.
3, Machine body of thick steel sheet, not easy to deformation
4, Welding current is DC, little reactance, effective power is more.
5, With the functions that max protection of charging voltage and alarm of charging circuit loop break.
6, LED display, easy to operate and maintenance.
7, Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside, using full copper alloy core, reducing impedance, improving the utilization of power, 20% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, structure is more compact and reasonable.
8, Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
9, Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
10, Quality is stable, failure rate is low, therefore machine life is longer

ITEM MODEL	Input capacity	Input voltage	Capacitance	energy	Duty cycle	Max pressure	Operational stroke	Electrode stroke	Cooling water flux	Welding capacity (aluminium)
ITEM MODEL	KVA	V	UF	J	%	N	MM	MM	L/Min	MM
DTR-3000	5	380	30000	3000	20	1900	30	70	2	1.2+1.2
DTR-4500	5	380	45000	4500	20	1900	30	70	2	1.5+1.5
DTR-6000	8	380	60000	6000	20	4800	30	70	3	2.0+2.0
DTR-8000	8	380	80000	8000	20	7800	30	70	3	2.2+2.2
DTR-10000	10	380	100000	10000	20	7800	30	70	3	2.4+2.4
DTR-15000	15	380	150000	15000	20	7800	30	70	3	2.6+2.6
DTR-20000	20	380	200000	20000	20	12000	30	70	3	3.0+3.0
DTR-30000	30	380	300000	30000	20	12000	30	70	3	3.0+3.0

High Speed Capacitor Discharge Automatic Frame Plate Resistance Spot Welding Machine

We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in Friction Welding Machine, Resistance Welding Machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.

Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.

Our main products are Heat exchanger equipment, Friction welding machine, Spot Welding Machine, Projection Welding Machine, Butt Welding Machine, Seam Welding Machine, Multi Head Welding Machine For Wire Mesh, and other various special welding machine for metal connection in different industries.

We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.
High Speed Capacitor Discharge Automatic Frame Plate Resistance Spot Welding Machine
