CNC Dual-Head Threaded Pipe Machine: Dual-core power for threaded pipe processingOn the precise track of industrial manufacturing, various types of equipment build a production closed loop with their professional capabilities. The
Friction Welding Machine achieves solid-state fusion of materials by means of frictional energy, making it a hardcore choice for joining high-strength components. The
Spot Welding Machine completes the formation of weld points with a millisecond response and is indispensable in the manufacturing of lightweight automotive bodies. The
Butt Welding Machine focuses on the flush butt of pipe ends, building the first line of defense for long-distance conveying systems. The
Seam Welding Machine builds a sealing barrier with continuous welds and is the core guarantee for the pressure resistance performance of pressure vessels. The
Laser Welding Machine for Steel Ring achieves micron-level precision in steel ring splicing with the extreme focusing of the laser beam. The
Stud Welding Machine specializes in the efficient connection between studs and the base, providing a stable fulcrum for mechanical assembly. The CNC Dual-Head Threaded Pipe Machine, as an innovative benchmark in the field of threaded pipe processing, is redefining the efficiency and precision standards in this field through the deep integration of dual-head collaboration and numerical control technology.
The "dual-core" advantage of this device is reflected in the parallel operation mode of the dual heads. When the left die head completes the cutting and forming of a section of thread, the right die head simultaneously initiates the processing flow of the next section of pipe, achieving seamless connection of procedures. Compared with traditional single-head equipment, its production capacity per unit time can be increased by more than 80%, making it particularly suitable for large-scale thread processing scenarios such as oil casing and chemical pipelines. The high-precision CNC system it is equipped with can control the error of the thread profile Angle and pitch within ±0.02mm. Combined with the servo-driven feed mechanism, it perfectly solves the common quality problems such as "random threading" and "missing threads" in manual operation.
Compared with various welding equipment, the CNC Dual-Head Threaded Pipe Machine demonstrates a unique process positioning. Equipment such as Friction Welding Machine focuses on the connection and forming of materials, while it focuses on the precise processing of threads before connection, providing a basic guarantee for the subsequent sealing butt of pipelines. For example, in natural gas pipeline projects, the pipe end threads processed by it complement the interfaces welded by the Butt Welding Machine - threaded connections facilitate quick disassembly, assembly and maintenance, while welded interfaces ensure the overall sealing of long-distance pipelines. Similarly, in the manufacturing of automotive chassis, the bolt hole threads it processes cooperate with the studs welded by the Stud Welding Machine to construct a stable assembly structure.
In addition, the adaptive processing capability of this equipment is also worthy of attention. With the intelligent sensing system it is equipped with, it can automatically identify the material of the pipe (from carbon steel to high-strength alloys) and match the optimal cutting parameters: when processing stainless steel, it automatically reduces the feed rate to avoid work hardening, and when processing high-carbon steel, it increases the flow rate of the cutting fluid to prevent the tool tip from overheating. This intelligent feature enables it to not only meet the processing requirements of precision pipe fittings for the
Laser Welding Machine for Steel Ring, but also be competent for the rough thread production of large-scale engineering pipelines, truly achieving "one machine with multiple functions".
It can be said that the CNC Dual-head Threaded Pipe Machine has set a new benchmark in the field of threaded processing with the efficient collaboration of Dual machine heads and the precise control of the numerical control system. It, together with equipment such as Friction Welding Machine and Seam Welding Machine, constitutes the "connection ecosystem" of modern industry - the former creates the basic form of precise connection, and the latter realizes the permanent combination between materials, jointly promoting the continuous upgrading of manufacturing processes. For enterprises that pursue efficiency and quality, this device is not only an enhancer of production efficiency but also a solid backing for the competitiveness of their products.

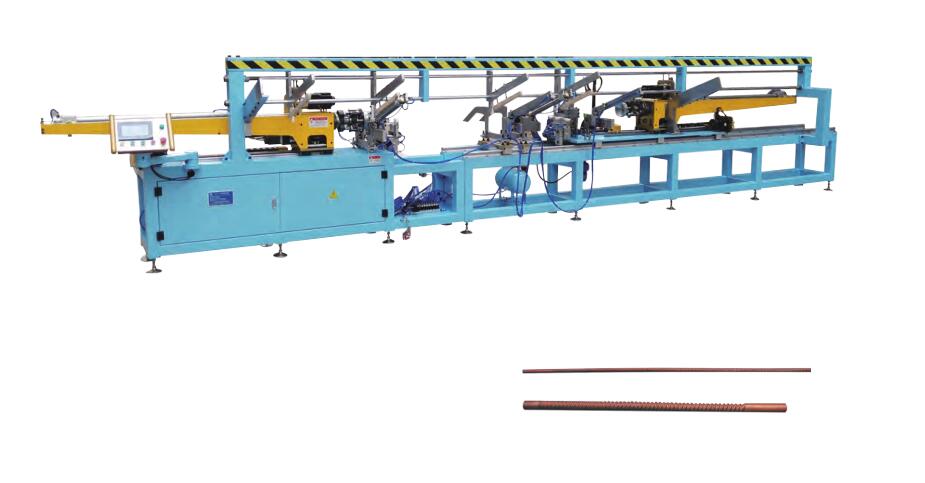

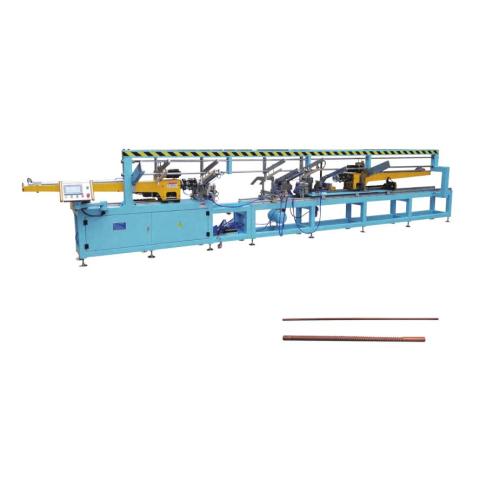

*It is special machine for AC threaded connecting pipe.
*There are two processing unit (machine head) on both sides, it can process threaded pipe BOTH ENDS at the same time.
*CNC and Servo control system, automatic feeding, automatic processing, high precision, nice appearance,good consistency, high efficiency.
*CNC system, easy to programing and easy to operate.
| Pipe No. bending at one time | 1-8 pcs |
| Hairpin pipe length | Min 200-Max 1250 / 1650 / 2150 / 2650 / 3150 / 5000 |
| Bending mode | by servo motors |
| Positioning & unloading mode | by servo motors |
| Stroke setting model | by servo motors |
| Available copper pipe diameter | ∮ 5 - ∮ 16 |
| Bending center | 16-60mm |
| Efficiency (one cycle) | when L≤1,000, t <12sec |
| Length precision | ±0.8mm |
| Flattening rate in thickness of bending part | ≤15% |
