Automatic Pipe Hole Pressing Punching Bending Machine



CNC Hole Punching Pipe Bending Integrated Machine

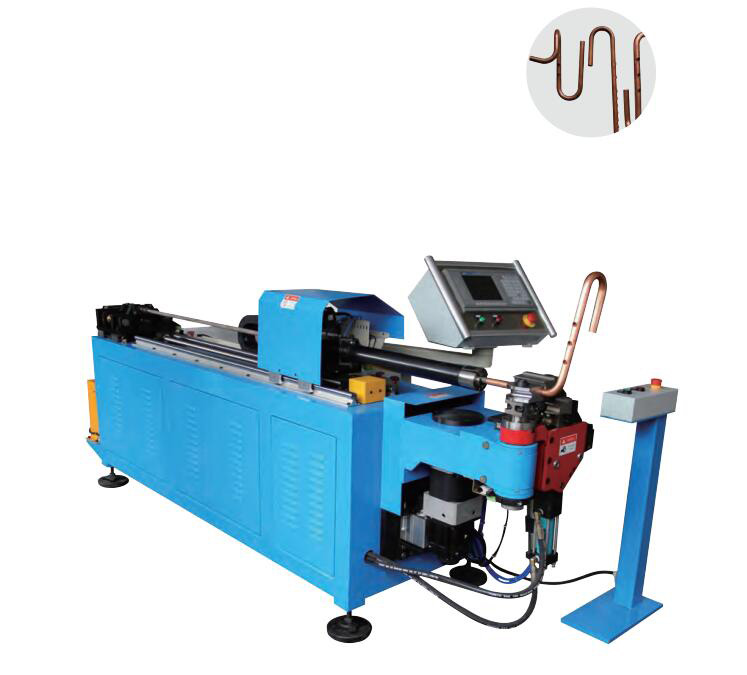

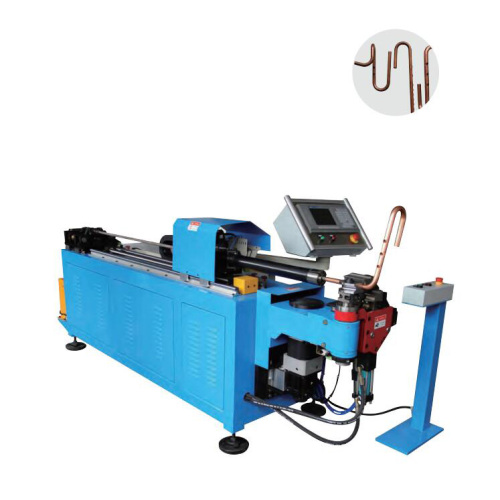

As a professional Multi-Axis CNC Punch-Bend Integrated Equipment, this equipment is specialized in spatial pipe bending, widely applied to pipeline processing of central air conditioning, aircraft and automobile industries, as well as tubular product forming of furniture tubing. It integrates bending and punching functions to meet diverse processing needs of different industries.

Known as both CNC 3D Bending and Hole Punching Combo Machine and CNC Hole Punching And 3D Bending Machine, it features flexible processing modes: bending and punching can be automatically completed in one operation to save processing time, or punching can be performed separately for customized needs. Adopting servo feeding system, it achieves small positioning errors and high working efficiency, ensuring consistent processing precision.

Equipped with 360° spatial rotation capability, it can handle complex spatial pipe bending tasks with ease. The punching process is smooth and burr-free, without copper scales, ensuring the surface quality of processed pipes. It is also equipped with full automation functions, including CNC programming, HMI operation and fault display, which simplifies operation, reduces manual intervention and improves production stability.

Main technical parameters:

Model	SKCKW40-R1
Bending range (diameter × wall thickness mm)	Φ12-φ40×1.5 (copper pipe)
Mould direction	Right bending
Bending radius	R 20-100mm (at center line)
Workpiece length	Active type: 100-1,200mm, through type: 100-1,800mm;
Straight feeding stroke (Axis X)	0--1200mm Speed:0--500mm/sec, Precision: ±0.05mm
Spatial rotation angle (Axis Y)	0--±360° Speed:0--300°/sec Precision: ±0.05°
Bending angle (Axis Z)	0--200° Speed:0--180°/sec Precision: ±0.05°
Minimum processed pipe diameter for punching	Φ12mm*0.7 (copper)
Maximum processed pipe diameter for punching	Φ40mm*1.5mm (copper)
Maximum machining wall thickness for punching	1.50mm
Minimum spacing between two holes	19 mm
Maximum machining length of workpieces	2000mm
Processing efficiency (punching)	4 sec /each hole
Processing efficiency (bending)	3-4 sec /each bending
Processing and punching error	≤0.2mm
Processable materials	Copper, iron, stainless steel, aluminum
Electronic control	Numerical control system
Punching method	Internal pressing
Operating method	Manual, automatic
Power supply	Three-phase 380V
Total power	10KW
Hydraulic motor power	3.7KW
Hydraulic system pressure	3-7MPA
Machine dimension	340010001300

Main parts brand list:

CNC control system	Shenzhen
Hydraulic solenoid valve	Taiwan
Oil pump	Taiwan
Sensor	Autonics Korea
Air switch and low-volt apparatus	Siemens\ IDEC
Servo motor and driver	Mitsubishi Japan
Lead screw	TBI
Speed reducer	Taiwan

Electric Automatic Punching and Bending Equipment Hole Pressing Machine
