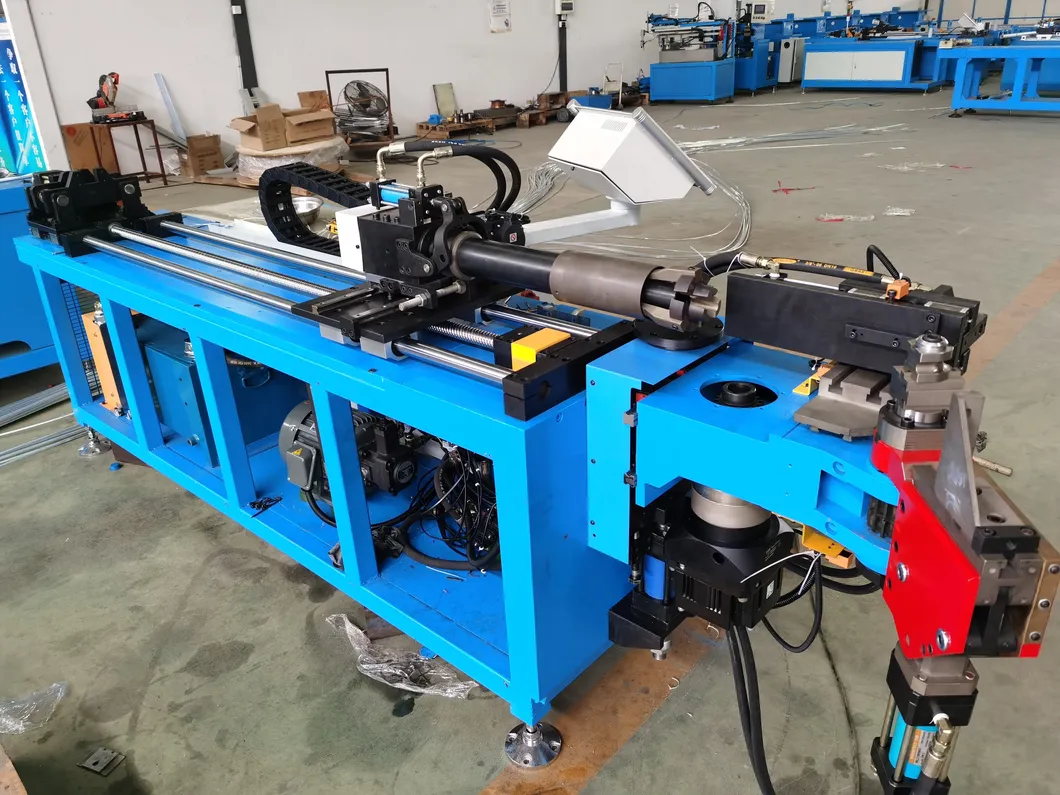

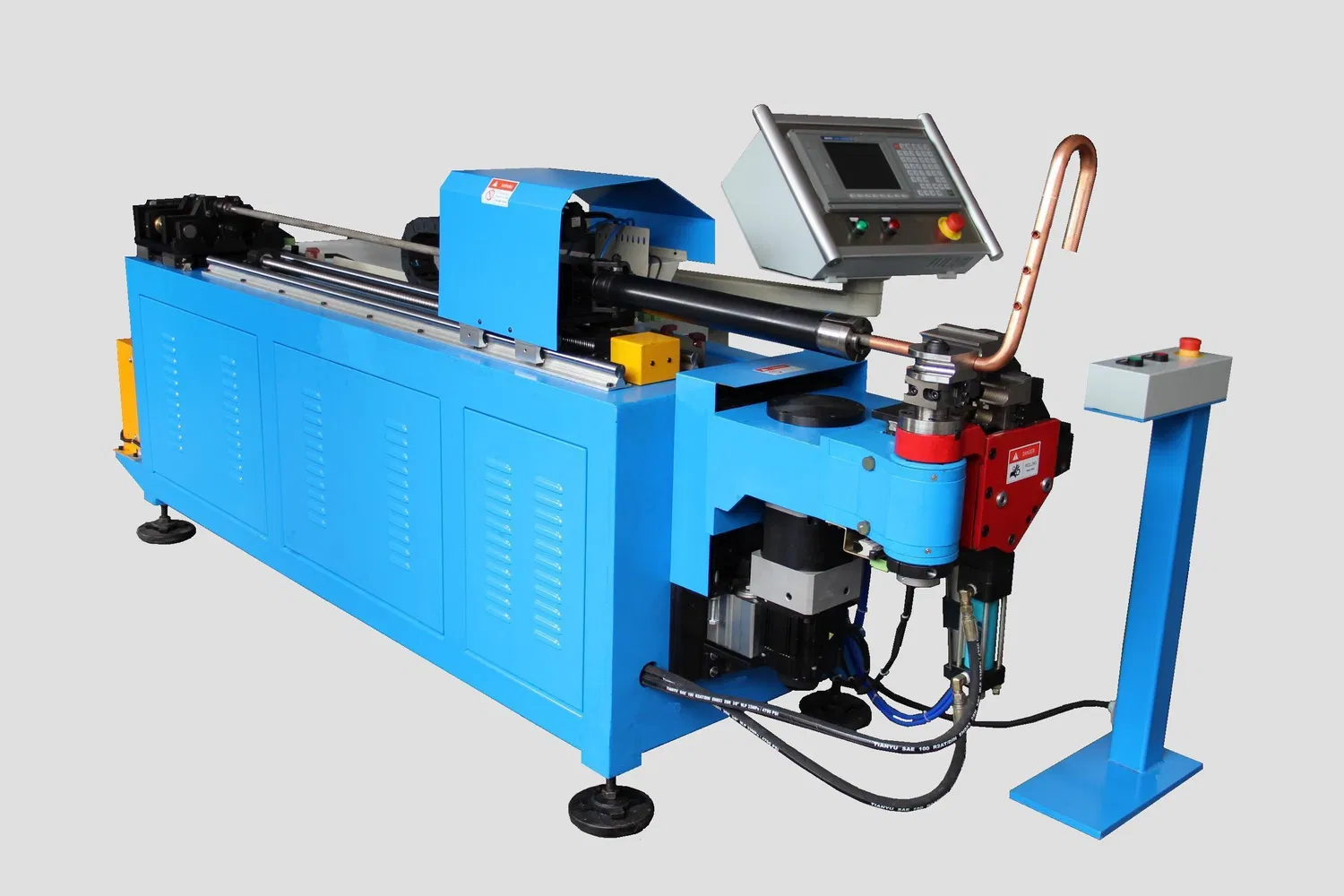

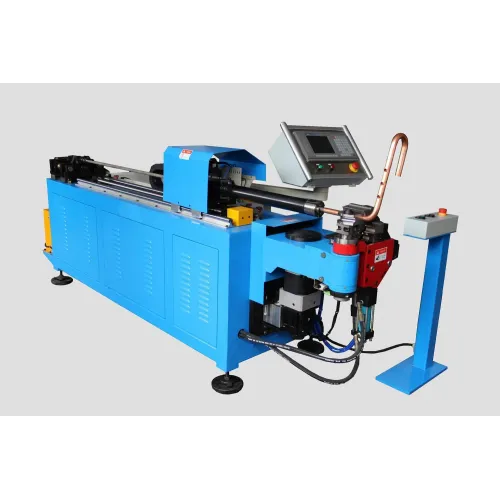

Designed for spatial pipe bending, this Electric Automatic Punching and Bending Equipment Hole Pressing Machine serves as a high-performance Multi-Axis CNC Punch-Bend Integrated Equipment, widely applied in the processing of central air conditioning pipelines, aircraft and automobile pipelines, as well as furniture tubular products. It is engineered to meet the strict precision requirements of various industrial fields, delivering stable and reliable processing results.
Functioning as a

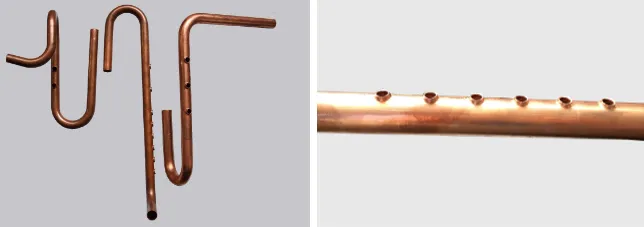

CNC Hole Punching And 3D Bending Machine, it integrates dual processing capabilities with flexible operation modes: it can automatically finish both bending and punching in one single process, greatly improving production efficiency and reducing processing steps. Alternatively, it can perform punching independently, catering to the customized processing needs of different pipe products.
As a professional

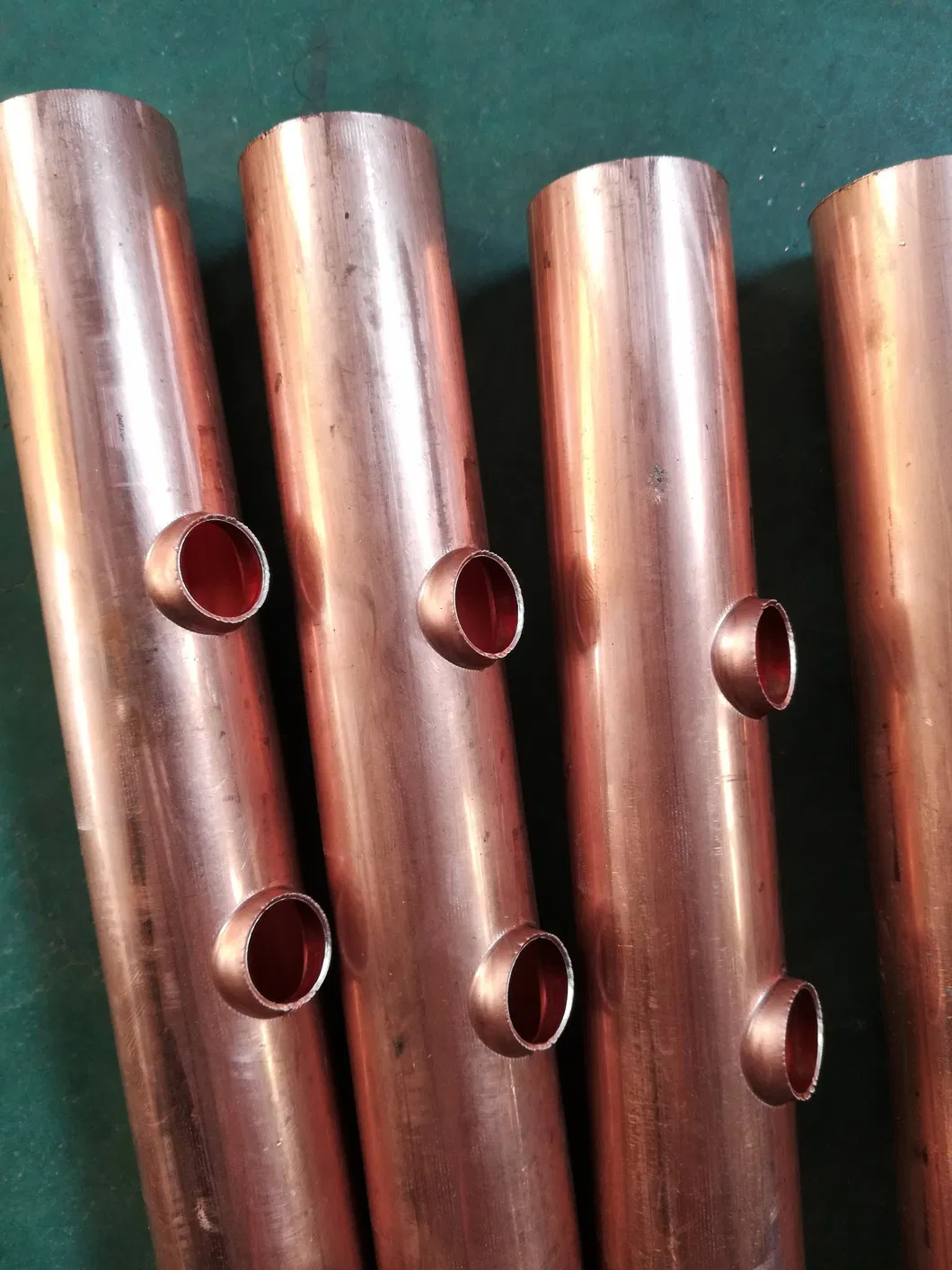

CNC 3D Bending and Hole Punching Combo Machine, it adopts a servo feeding system, which ensures minimal feeding errors and high working efficiency, effectively guaranteeing the consistency of pipe processing dimensions. Equipped with 360° spatial rotation function, it can easily handle complex spatial bending tasks of various pipes. The punching process is smooth and clean, free from burrs and copper scales, maintaining the perfect surface quality of the processed pipes. In addition, it is equipped with comprehensive automation functions, including CNC programming, HMI operation and real-time fault display, simplifying operation procedures and reducing manual intervention.
Main technical parameters: | Model | SKCKW40-R1 |
| Bending range (diameter × wall thickness mm) | Φ12-φ40×1.5 (copper pipe) |
| Mould direction | Right bending |
| Bending radius | R 20-100mm (at center line) |
| Workpiece length | Active type: 100-1,200mm, through type: 100-1,800mm; |
| Straight feeding stroke (Axis X) | 0--1200mm
Speed:0--500mm/sec,
Precision: ±0.05mm |
| Spatial rotation angle (Axis Y) | 0--±360°
Speed:0--300°/sec
Precision: ±0.05° |
| Bending angle (Axis Z) | 0--200°
Speed:0--180°/sec
Precision: ±0.05° |
| Minimum processed pipe diameter for punching | Φ12mm*0.7 (copper) |
| Maximum processed pipe diameter for punching | Φ40mm*1.5mm (copper) |
| Maximum machining wall thickness for punching | 1.50mm |
| Minimum spacing between two holes | 19 mm |
| Maximum machining length of workpieces | 2000mm |
| Processing efficiency (punching) | 4 sec /each hole |
| Processing efficiency (bending) | 3-4 sec /each bending |
| Processing and punching error | ≤0.2mm |
| Processable materials | Copper, iron, stainless steel, aluminum |
| Electronic control | Numerical control system |
| Punching method | Internal pressing |
| Operating method | Manual, automatic |
| Power supply | Three-phase 380V |
| Total power | 10KW |
| Hydraulic motor power | 3.7KW |
| Hydraulic system pressure | 3-7MPA |
| Machine dimension | 3400*1000*1300 |
Main parts brand list: | CNC control system | Shenzhen |
| Hydraulic solenoid valve | Taiwan |
| Oil pump | Taiwan |
| Sensor | Autonics Korea |
| Air switch and low-volt apparatus | Siemens\ IDEC |
| Servo motor and driver | Mitsubishi Japan |
| Lead screw | TBI |
| Speed reducer | Taiwan |
