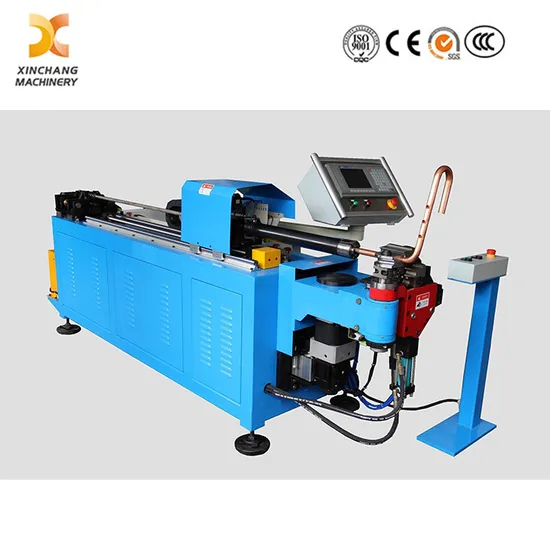

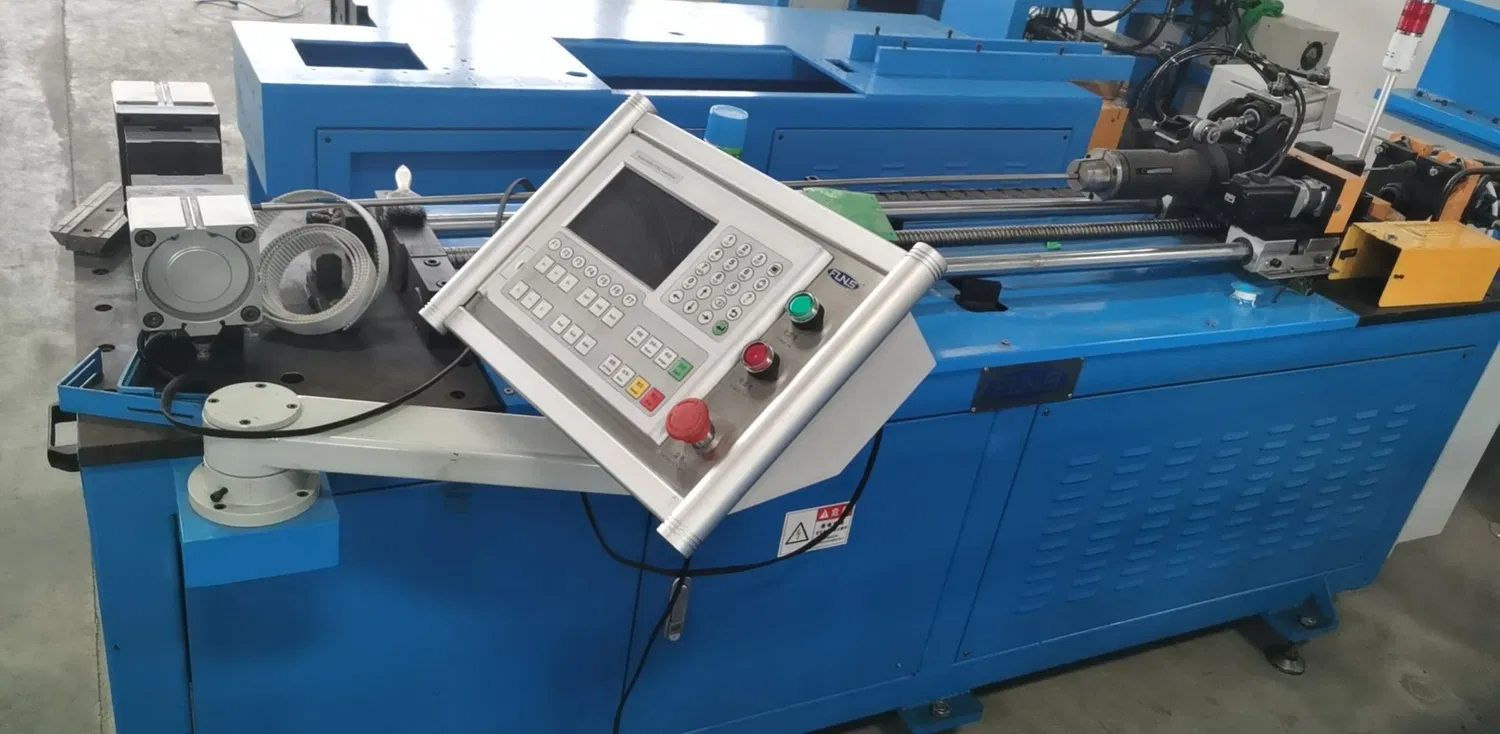

Automatic Pipe Hole Pressing Punching Bending Machine



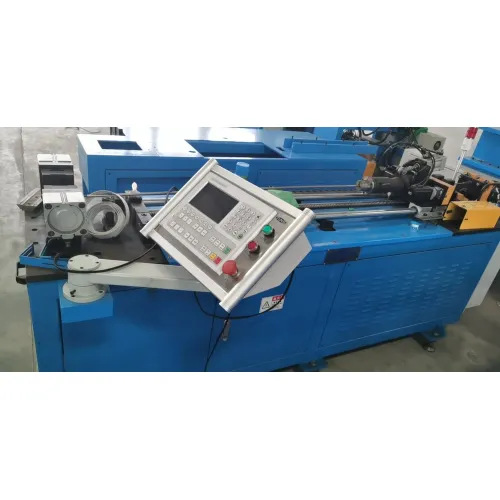

Professional CNC Copper Tube Hole Punching Pipe Bending Machine

As a professional equipment compatible with the functional advantages of CNC 3D Bending and Hole Punching Combo Machine, this machine is specialized in punching and flanging semi-hard and soft copper tubes. It is widely applied in air-conditioner and water heater fields, specifically for the welding processing of main pipes and branch pipes, ensuring stable and reliable performance that meets industrial processing standards.

Integrating the precision of CNC Hole Punching And 3D Bending Machine, the equipment is fully controlled by a CNC system, enabling punching and flanging to be completed with a single program. Its programming and operation are extremely user-friendly, even for operators with minimal experience, which greatly reduces operational difficulty and improves work efficiency.

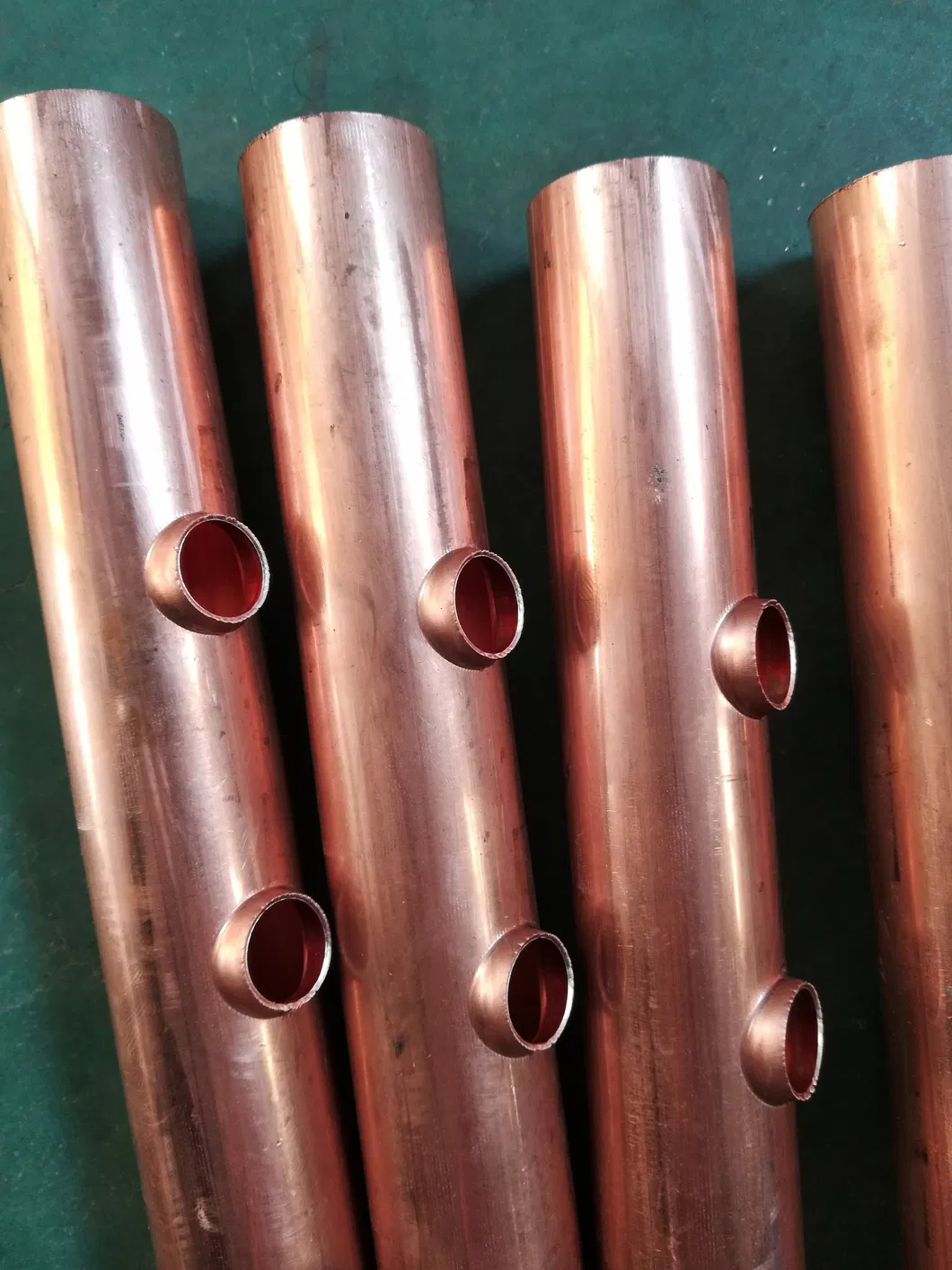

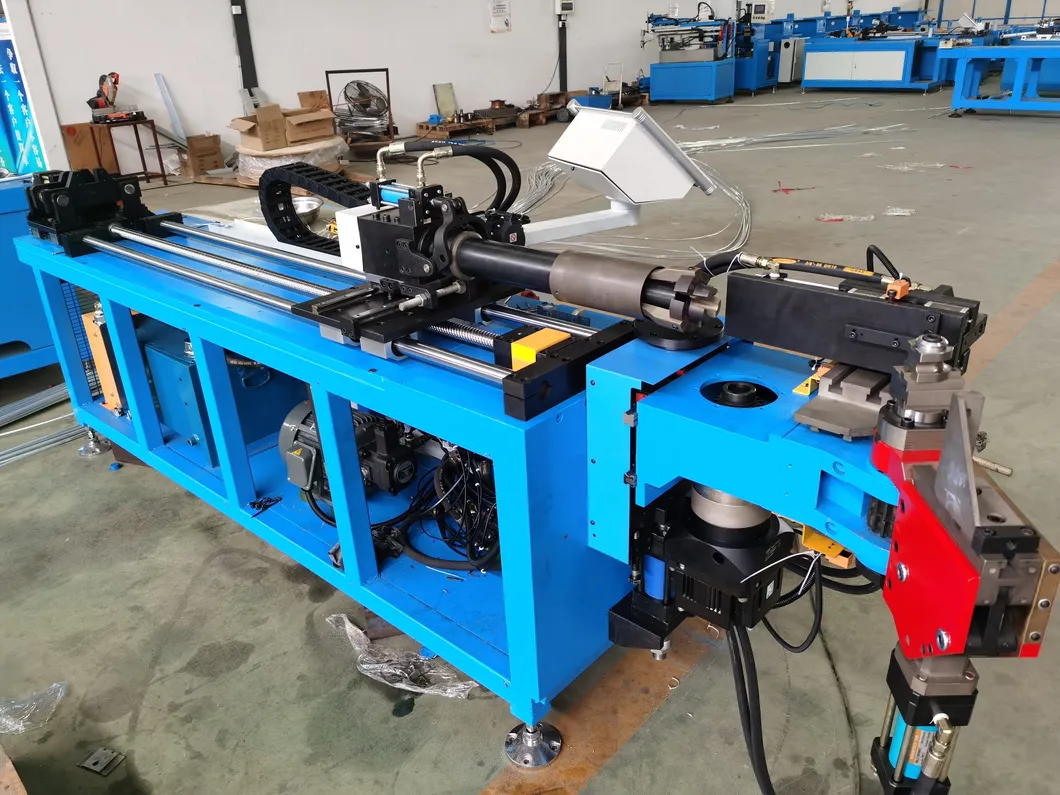

Similar to the high-performance design of Multi-Axis CNC Punch-Bend Integrated Equipment, this machine adopts an inside-out flanging forming method, effectively avoiding burrs and chips inside the tube. This design not only ensures the smoothness of the tube inner wall but also maintains the integrity of the internal liquid volume, preventing blockage or leakage during subsequent use. Compact in structure and high in processing precision, it is an essential auxiliary equipment for copper tube processing in air-conditioning and water heater manufacturing.

Main Specification:

1	Min. pipe dia	φ12mm(copper)	11	Max.clamp force	1000kg
2	Max. pipe dia	φ40mm(copper)	12	Max.process force	1000kg
3	Max.thickness	1.5mm	13	Feeding stroke	1200mm
4	station	1	14	Feeding location precision	±0.05
5	Min.pitch between holes	19 mm	15	Feeding speed	300 mm/S
6	Control type	CNC	16	Power	3P,380V 50HZ
7	Operation type	Auto/manual/inching	17	Hydraulic motor power	2.2KW
8	Loading type	manual	18	Hydraulic pressure	5Mpa
9	Clamping type	Hydraulic	19	efficiency	5-7s/hole
10	Punching type	punching	20	Overall size	L2MW1MH1.5M

Main parts brands:

No.	Name	Brand
1	Controller	CNC system
2	HMI	CNC HMI
3	Oil cylinder and solenoid valve	Taiwan
4	sensor	IDEC
5	Low-volt apparatus	IDEC
6	Servo motor and driver	Mitsubishi
7	Lead screw and guide rail	TBI

Professional CNC Copper Tube Hole Punching Pipe Bending Machine
