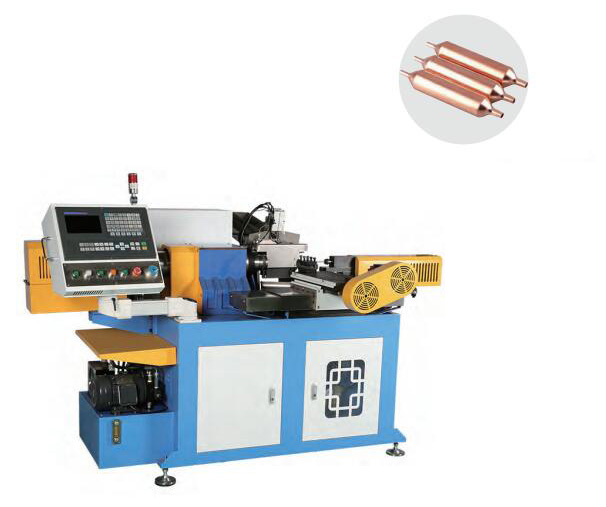

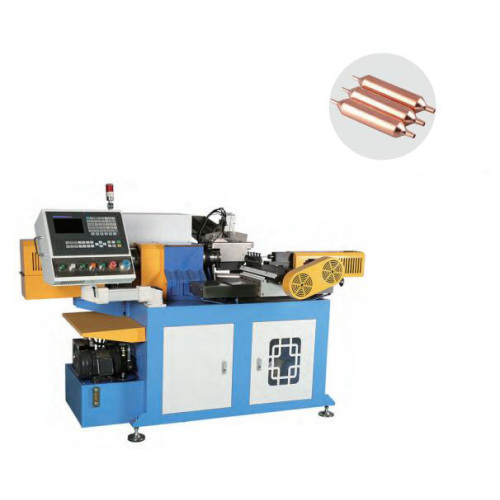

CNC Drier Filter Tube Spinning End Forming Machine

1.SUMMARY

This CNC Spinning Machine is equipped with a dedicated CNC control system, enabling simultaneous control of 2-axis (X-axis, Z-axis) motion. As a professional Multi-Axis CNC Spinning Production Machine, it precisely forms pipe ends to specified profiles in line with processing requirements. This fully Automatic CNC Spinning Forming Equipment delivers outstanding performance, stable operation, high precision, excellent repeatability, and long service life for pipe forming. It is mainly used in the fabrication of liquid storage vessels, desiccant canisters, and mufflers for air conditioners, water heaters, refrigerators, and automotive applications.

2. MAIN TECHNICAL PARAMETER

NO.	item	Index
1	Max machining pipe diameter	φ40 mm(copper)
2	Max machining w. thickness	1.5 mm
3	Machining units	1
4	Machining time	5~30S
5	X-axis travel	200 mm
6	Z-axis travel	100 mm
7	X-axis locating precision	±0.05 mm
8	Z-axis locating precision	±0.05 mm
9	X-axis speed	300 mm/S
10	Z-axis speed	100 mm/S
11	Clamping mode	turning oil -cylinder of hydraulic hollow-core
12	Machining mode	Rotating cool rolling
13	Power capacity	AC380V±10%,60 HZ,7.7 KW
14	Hydraulic motor power	1.5KW
15	Main-shaft motor power	3.7KW
16	Hydraulic system pressure	5 ~7MPa
17	Overall dimension	length2200×width1300×hight1500(mm)
18	weight	600 kg
18	weight	600 kg

3. MECHANISM STRUCTURE
3.1 X -axis
To be driven by AC servomotor through gear reducer.
3.2 Z -axis
To be driven by AC servomotor through gear reducer.
3.3 Clamping mechanism
To be driven by turning oil cylinder of hydraulic hollow-core
3.4 moving mechanism
To be driven by air cylinder, model: SMC L -MDBIB40-100
3.5 Collecting mechanism
To be driven by air cylinder, model: SMC CDM2B20-200
3.6 locating mechanism
To be driven by air cylinder, model: SMC CDQ2A32-45D
3.7 material- pushing mechanism
To be driven by cylinder, model: SMC CDM2B20-200
3.8 Core -allocating device
To be driven by cylinder, model: SMC L -MDB1B40-200

4. ELECTRIC STRUCTURE
4.1 Power supply :Three phase AC380V±10%
4.2 Servo motor
4.2.1 Servo motor of X-axis
Power supply: Three-phase 220V 50HZ, Power: 0.5 KW, 2000 r/min
4.2.2 Servo motor of Z-axis
Power supply: Three phase AC 220V 50HZ, Power: 1.0 KW .3000 r/min
4.3 Control valve of air pressure electromagnetism
Voltage: DC24V
4.4 System power supply
Voltage: DC24V
