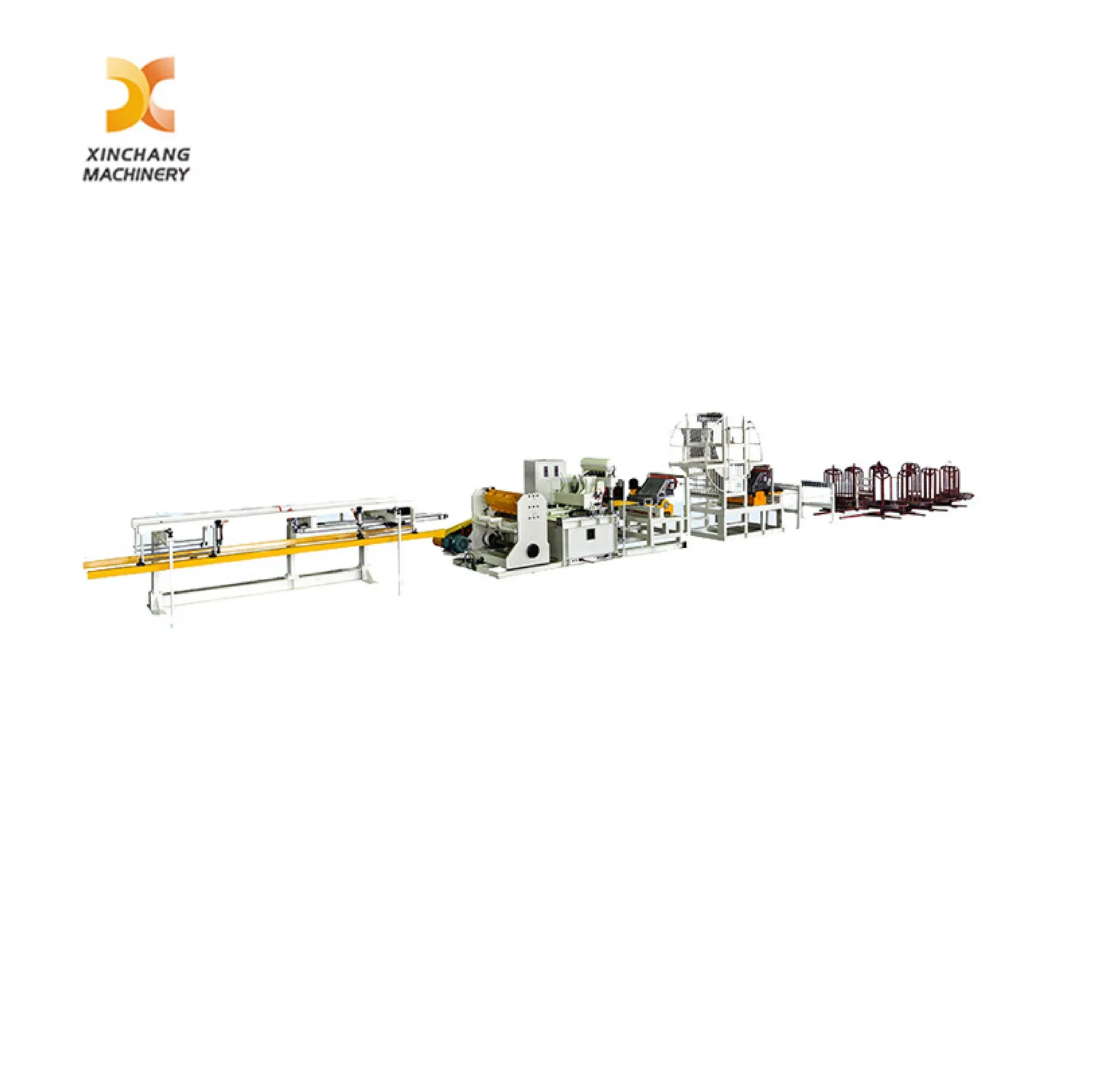

Thanks to its exclusive structural design, this Multi-Head Wire Mesh Welder is able to resolve a host of common technical pain points in the welding process, including incomplete welding, loose solder joints, inconsistent welding spacing and limited mesh size specifications that have long troubled the Wire Mesh Industry.
The unique guide and positioning structure for vertical bars delivers accurate vertical bar alignment, catering to diversified mesh welding requirements with specifications spaced at multiples of 50mm and above (space ≥ 50mm, 50 multiples). Adopting rollers and servo motors as stepping power units, it achieves high-precision control over mesh spacing, fully embodying the stable operational advantages of a Multi-Head Wire Mesh Welder.

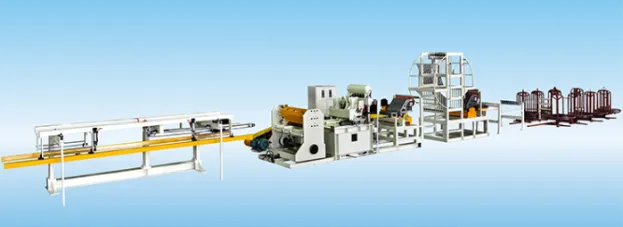

This equipment is mainly composed of machine base, line bars blanking device, vertical bars drawing device, welding host, electrical control system, power distribution cabinet, cooling water system, gas source system, monitor & alarm system.
1.Machine base
Use superior H section steel to connect, ensuring the installation levelness of machines.
2.Line bars blanking device
Line bar blanking device is divided into storage sector and automatic feeding sector.
3.Vertical bars drawing device
The unique guide and positioning design of the vertical bar drawing device of this product play a guide and positioning role of the vertical bar and meet a variety size (space ≥ 50mm, 50 multiples) of mesh welding needs.
4.Welding host
The welding host uses special resistance transformers and special forced cylinders.
5.Electrical control system
Uses Siemens PLC programmable controlling, Other parts all is imported from Japan.
6.Cooling water system
Is divided into transformers cooling, up electrode cooling, lower electrode cooling and other copper block cooling.
7.Gas source system
Imported from SMC Japan, Equipment is installed air processor , and with muffler and compressed air tank.

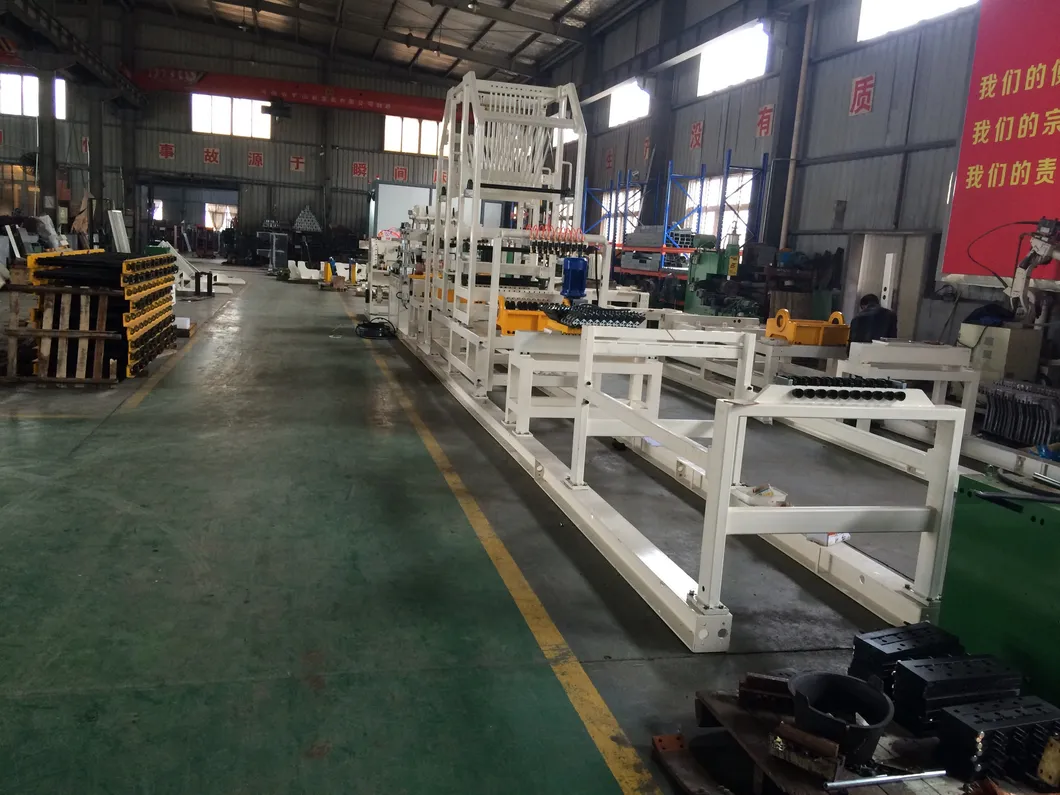

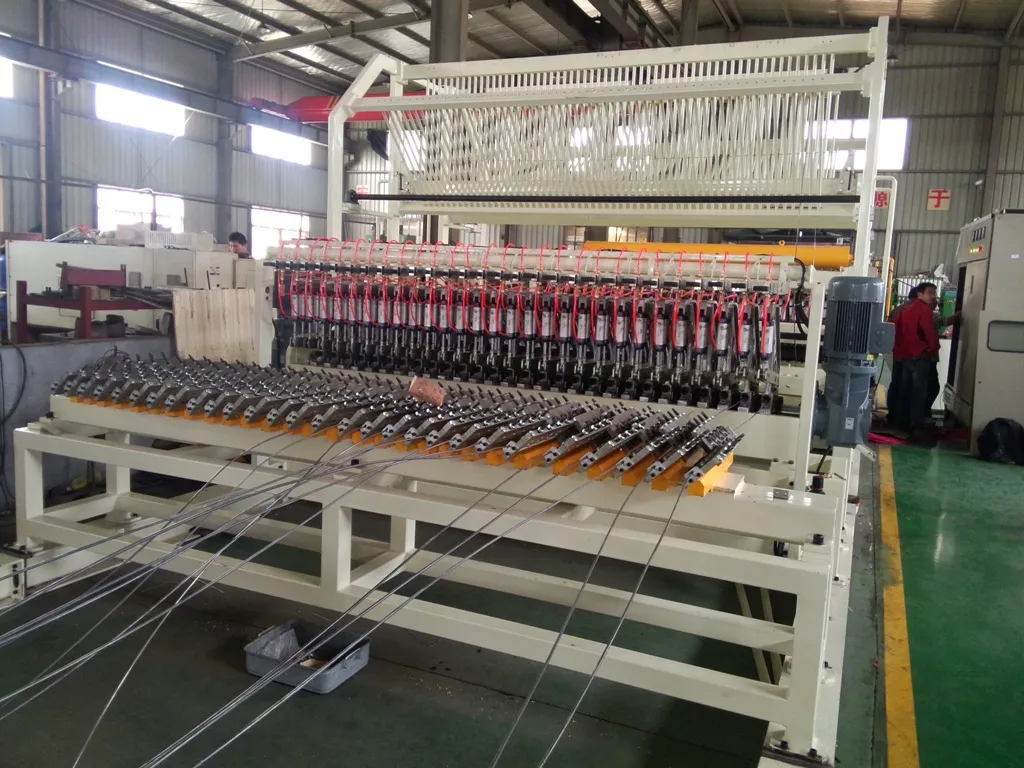

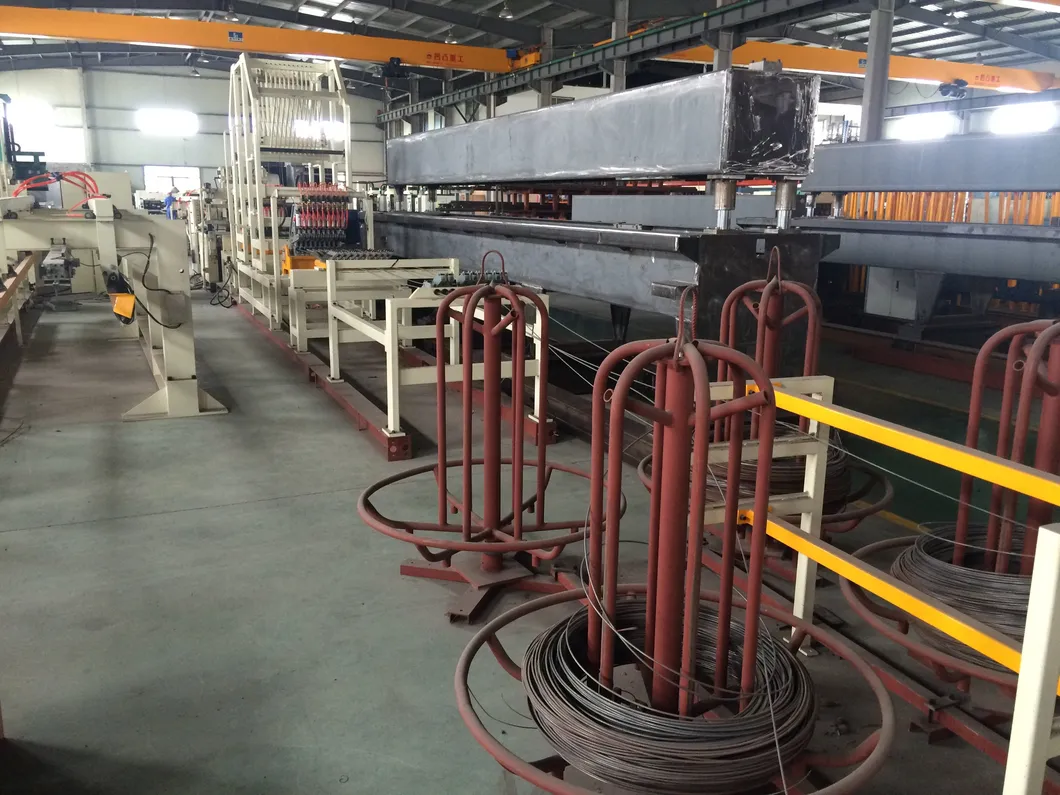

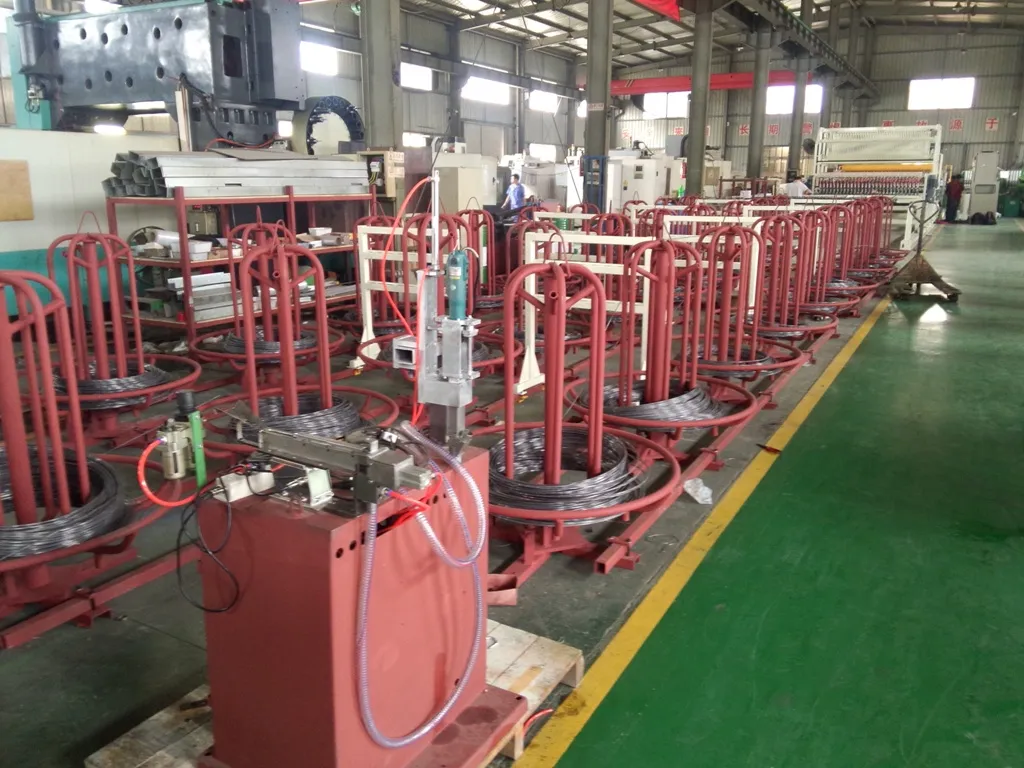

Product details

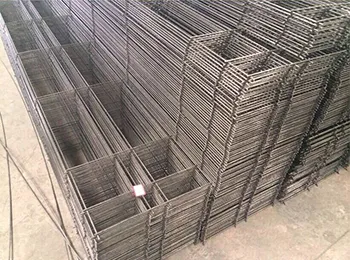

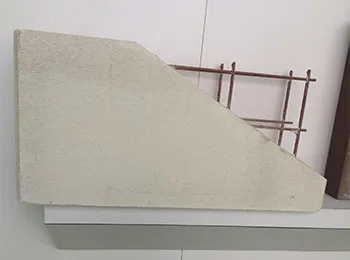

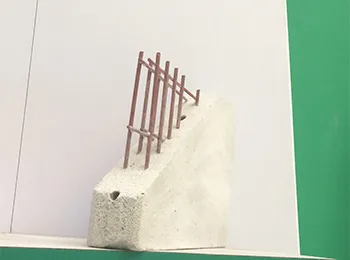

Finished samples
