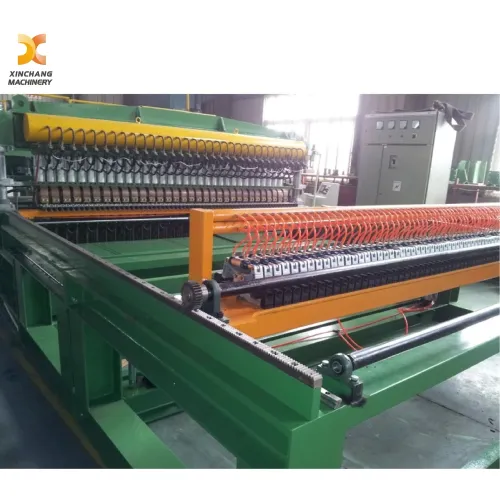

Automatic Multihead Coil Wire Mesh Spot Welding Machine

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Brand: xinchang

Supply Ability & Additional Information

Supply Ability: 20 Sets/ Month

Packaging & Delivery

Selling Units:

Piece/Pieces



Reinforced Rods Wire Mesh Welding Machine



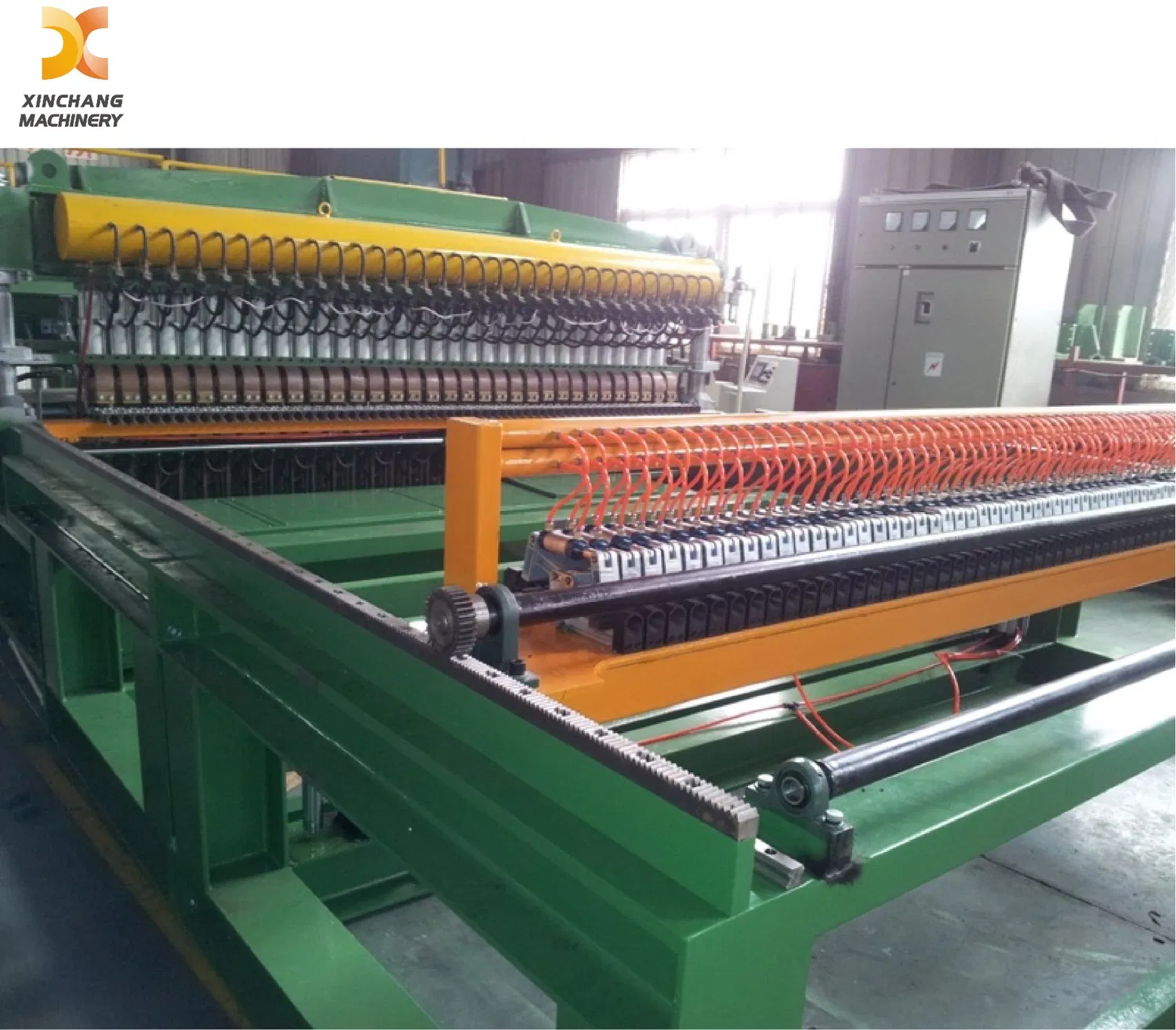

Automatic Multihead Coil Wire Mesh Spot Welding Machine

This equipment realizes seamless welding of coil wires onto longitudinal wires, while horizontal wires adopt pre-cut design with automatic blanking feeding, streamlining the whole production workflow efficiently.As a fully Automatic Wire Mesh Welding Machine, it integrates a complete structural system including coil loader, positioning and straightening unit, wire pulling device, loop balancing system, material feeding module, welding assembly, horizontal wire feeder, mesh cutter, turning stacking system, conveyor and intelligent control system.Well-configured with precise welding performance, it serves as a reliable Spot Welding Machine that delivers firm and uniform welding joints without deformation. Its automated operation greatly cuts manual intervention and improves production stability, perfectly catering to mass manufacturing demands.Optimized with multi-station linkage design, it acts as a professional Multi-Head Wire Mesh Welder, ensuring synchronous and high-efficiency welding for various mesh specifications. It has become essential core processing equipment in the Wire Mesh Industry, widely applicable to production of construction mesh, fence mesh and other metal mesh products with stable operation and easy parameter adjustment.

Power supply	Three phase AC380V, +10%~-10%;
Duty cycle	20%
Rated Power Input	14X100kVA
Secondary no-load voltage	8V
Max. Short Current	32KA
Air pressure	0.4-0.8MPa
Coolant pressure	0.3MPa
Coolant flow	80-100L/Min
Coolant temperature	0≤ 30º C
Max Welding speed	60- 90row/min
Max mesh width	3000mm
Min. Spacing	50mm
Wire diameter of power cable(copper cable)	≥ 150mm2
Wire diameter of grounding cable(copper cable)	≥ 75mm2
Air switch capacity	900A
Water inlet and outlet diameter	G1½
Air Inlet diameter	φ 50mm
Welding machine main part weight	11000kg
Dimensions	55m× 7m× 5m

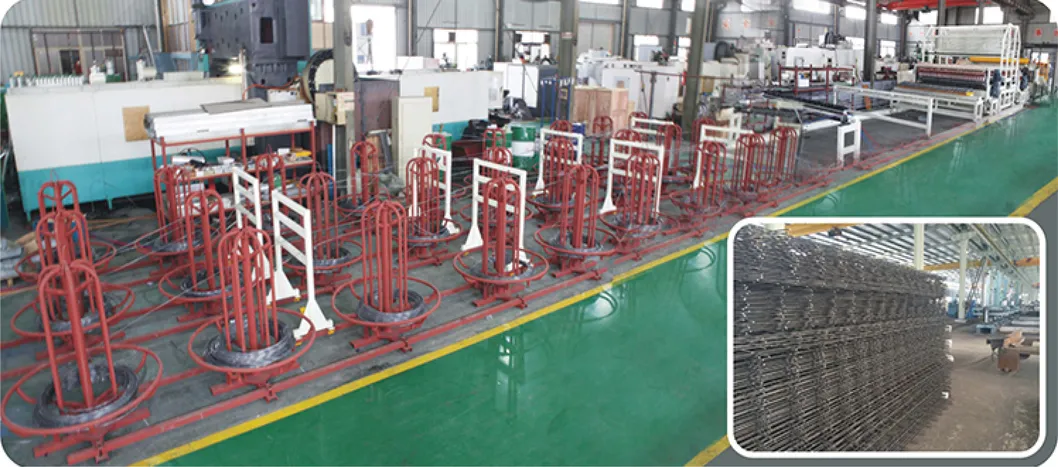

Multi Spot Coil Wire Welder Full Automatic Construction Mesh Welding Machine
