Name: Easy Operating Construction Pneumatic Reinforcement Wire Mesh Welding Machine
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 4.6 (32 reviews)

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Style: Vertical

Welding Way: Spot Welding

Current: Alternating Current

Application: Wire Mesh

Min. Spacing: 50mm

Max Mesh Width: 3000mm

Transport Package: at Customer's Requrest

Specification: export standard

Trademark: xinchang

Origin: Ningbo China

Production Capacity: 100sets/Year

Customization: Available

Cooling Way: Water Cooling

Control: Semi-Automatic

Supply Ability & Additional Information

Supply Ability: 100sets/Year

Packaging & Delivery

Selling Units:

Piece/Pieces



Durable Deburring Machine for Aluminum Radiator Welding



Reinforced Rods Wire Mesh Welding Machine



Overview
Product Description
Product Parameters
Detailed Photos
Company Profile
FAQ

Basic Info.

Style

Vertical

Welding Way

Spot Welding

Current

Alternating Current

Application

Wire Mesh

Min. Spacing

50mm

Max Mesh Width

3000mm

Transport Package

at Customer's Requrest

Specification

export standard

Trademark

xinchang

Origin

Ningbo China

Production Capacity

100sets/Year

Product Description

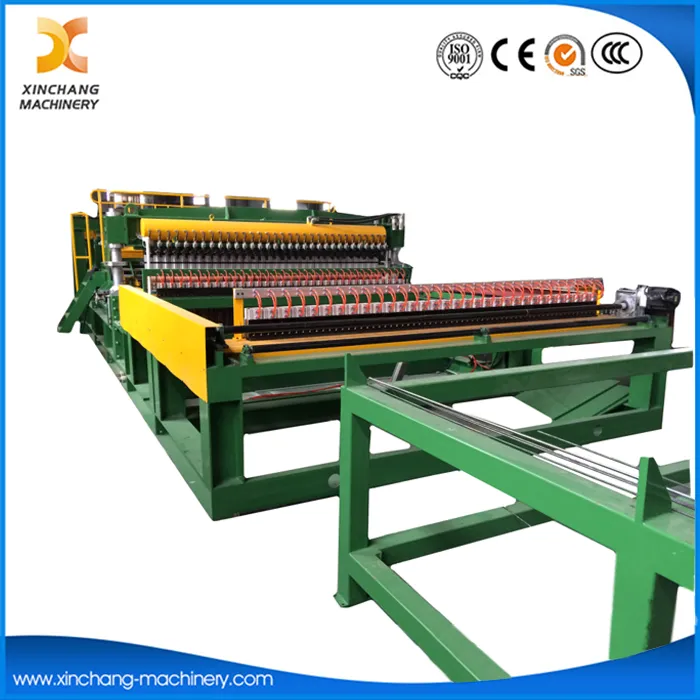

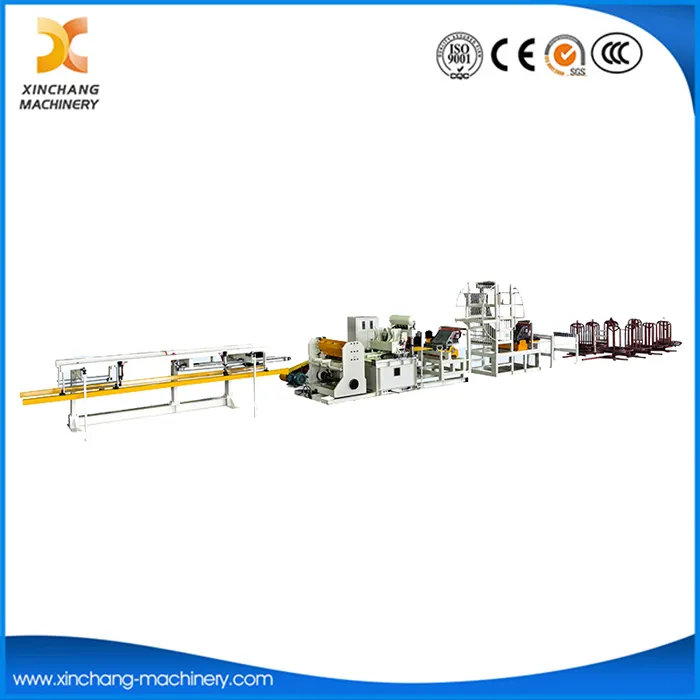

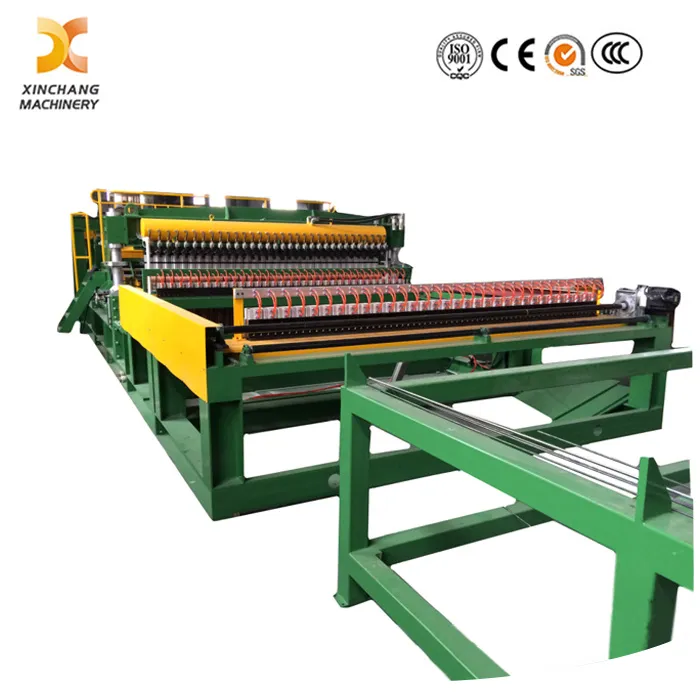

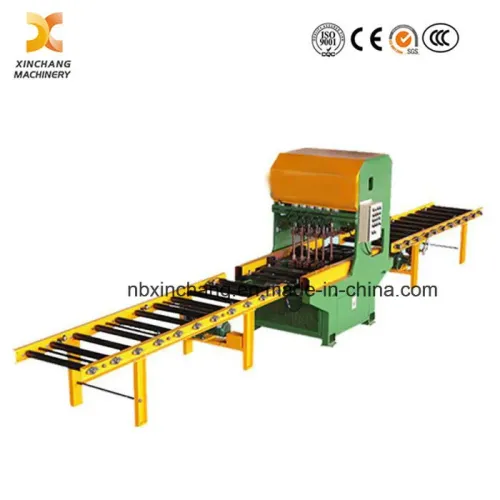

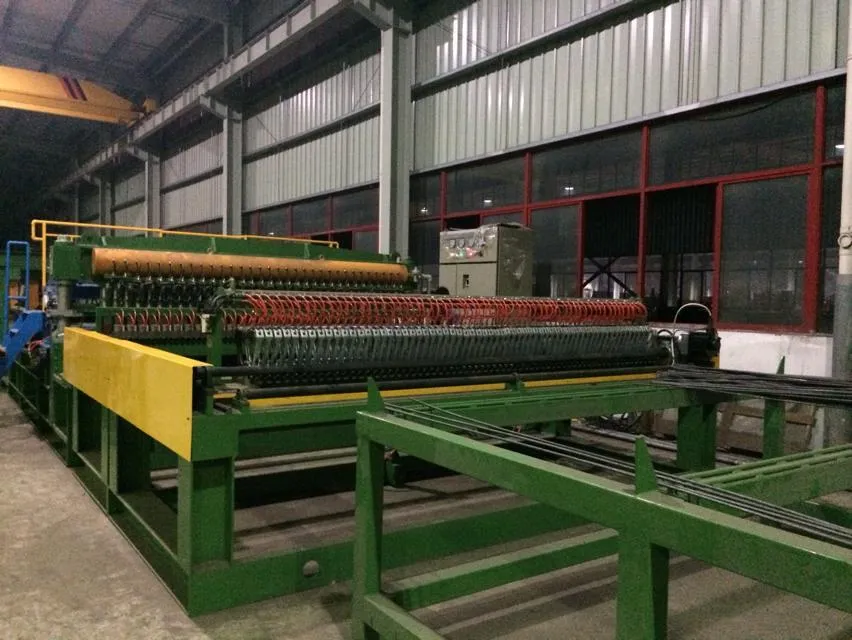

Easy Operating Construction Pneumatic Reinforcement wire mesh welding machine

This product is a automatic or semi-automatic welding production line. Place the vertical bar on the first welding point or from coil wires and place the line bar in the blanking configuration when do the welding, thus to achieve high-speed, efficient automatic feeding, welding and blanking.

Because of its unique structural design of this product, it can solve lot of problems in welding process, such as not welding completely, non-solid solder point, uneven welding space, and non-diversity of mesh size, etc.

The unique guide and positioning design of the vertical bar of this product played a guide and positioning role of the vertical bar and meet a variety size (space ≥ 50mm, 50 multiples) of mesh welding needs and use roller and servo motor as the power of the stepping to precisely control the mesh space. ( stepping space can be adjusted by the welding needs. Adjustable parameters). It can achieve high-speed welding and improve the annual production capacity.

This equipment is mainly composed of machine base, line bars blanking device, vertical bars drawing device, welding host, electrical control system, power distribution cabinet, cooling water system, gas source system, monitor&alarm system.

Machine base: Use superior H section steel to connect, ensuring the installation levelness of machines, thereby ensuring the machine precision and elegant appearance. Thick steel sheet, not easy to deformation

Line bars blanking device: Line bar blanking device is divided into storage sector and automatic feeding sector. The storage sector is used to store the line bar and ensure quick production of the mesh and make the line to feed stably. Automatic feeding sector used of a full automatic separation and feeding form to distribute quickly, orderly and evenly to the welding electrodes to achieve single drop accuracy, thus eliminate manual place wires requirement, and maximized saving the previous time of place wires to reduce the labor costs.

Vertical bars drawing device: The unique guide and positioning design of the vertical bar drawing device of this product play a guide and positioning role of the vertical bar and meet a variety size (space ≥ 50mm, 50 multiples) of mesh welding needs and use roller and servo motor as the power of the stepping to precisely control the mesh space. ( stepping space can be adjusted by the welding needs. Adjustable parameters). It can achieve high-speed welding and improve the annual production capacity.

Welding host: The welding host uses special resistance transformers and special forced cylinders to ensure high-speed welding, welding pressure and joint strength requirements, the accuracy of the actuator. It has high environmental adaptability and reliability.

Electrical control system: Uses Siemens PLC programmable controlling, Other parts all is imported from Japan. Using a unique electrical operating system, with a failure alarm function, the touch screen display can intuitively see welding parameters, is easy and fast for operation. Thus reduce the requirements on the operator.

Cooling water system: Is divided into transformers cooling, up electrode cooling, lower electrode cooling and other copper block cooling. It come true the water distribution by flowmeter. Each flowmeter can be adjusted individually to make machine working normal, without damage.

Gas source system: Imported from SMC Japan, Equipment is installed air processor which is used for clean the compressed air, and with muffler to reduce the noise. Also it is with compressed air tank to stabilize the air pressure.

Power supply	Three phase AC380V, +10%~-10%;
Duty cycle	20%
Rated Power Input	14X100kVA
Secondary no-load voltage	8V
Max. Short Current	32KA
Air pressure	0.4-0.8MPa
Coolant pressure	0.3MPa
Coolant flow	80-100L/Min
Coolant temperature	0≤ 30º C
Max Welding speed	60- 90row/min
Max mesh width	3000mm
Min. Spacing	50mm
Wire diameter of power cable(copper cable)	≥ 150mm2
Wire diameter of grounding cable(copper cable)	≥ 75mm2
Air switch capacity	900A
Water inlet and outlet diameter	G1½
Air Inlet diameter	φ 50mm
Welding machine main part weight	11000kg
Dimensions	55m× 7m× 5m

Easy Operating Construction Pneumatic Reinforcement Wire Mesh Welding Machine

We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in Friction Welding Machine, Resistance Welding Machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.

Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.

Our main products are Heat exchanger equipment, Friction welding machine, Spot Welding Machine, projection welding machine, Butt Welding Machine, Seam Welding Machine, Multi Head Welding Machine For Wire Mesh, and other various special welding machine for metal connection in different industries.

We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.
Easy Operating Construction Pneumatic Reinforcement Wire Mesh Welding Machine
