This equipment is designed for feeding coil wires to complete precise welding with longitudinal wires, while horizontal wires adopt pre-cut processing and realize automatic blanking operation throughout the whole process. As a high-efficiency fully automatic wire mesh welding solution, the Automatic Mesh Welding Machine integrates complete structural and functional modules to achieve one-stop intelligent production.

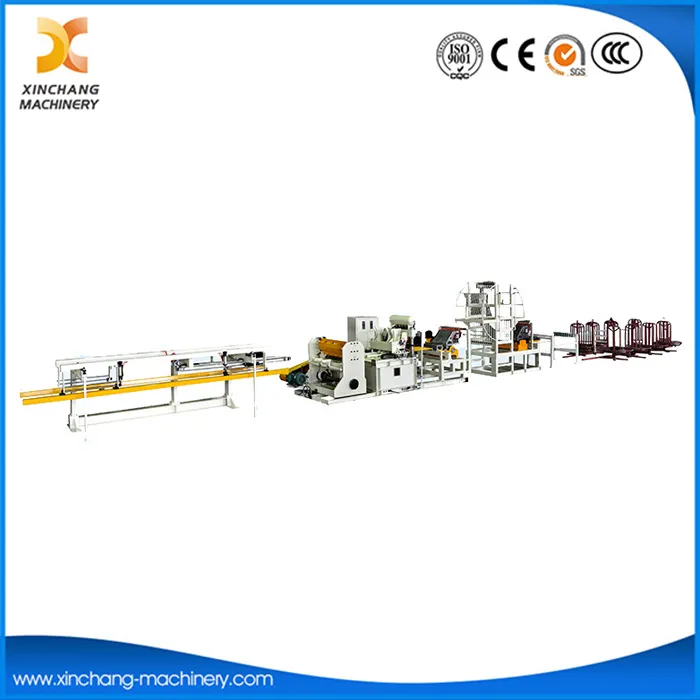

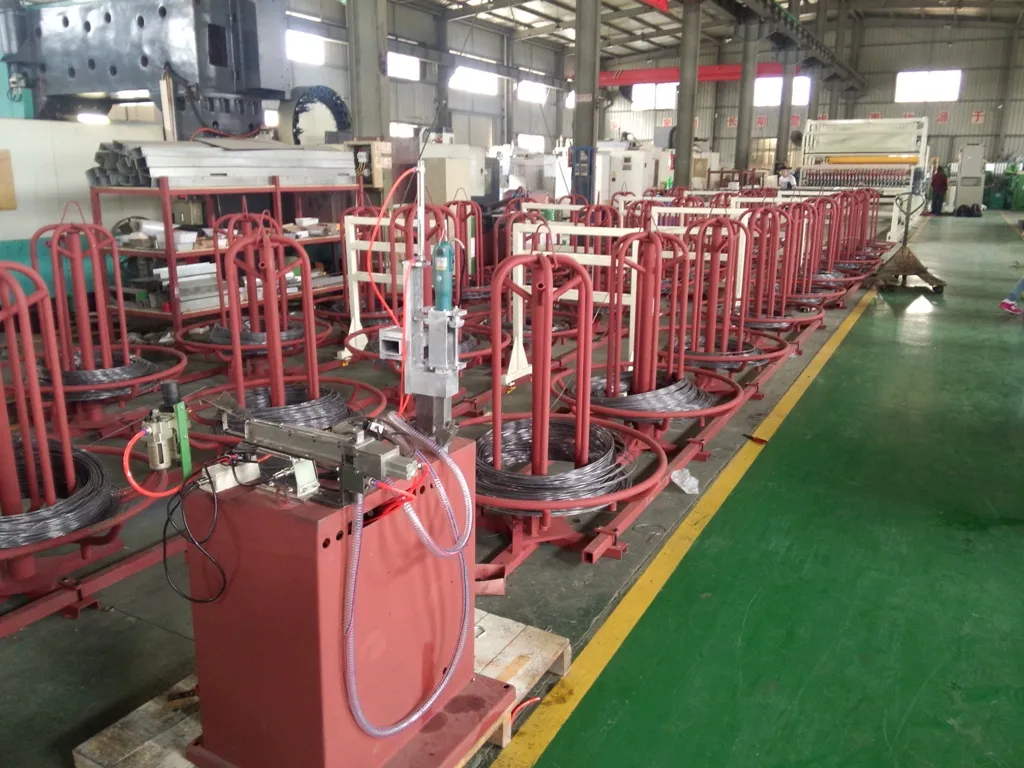

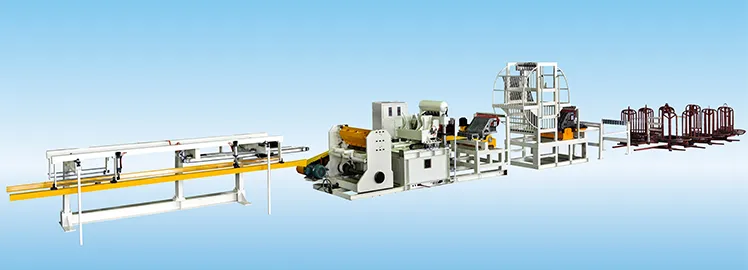

It is professionally configured with coil loader, positioning and straightening system, wire pulling device, loop and balancing system, material feeding unit, core welding assembly, horizontal wire feeding mechanism, mesh cutting device, turning and stacking system, matched conveyor and intelligent control system. Every functional unit works in synergy to ensure stable wire arrangement, accurate positioning and consistent welding quality.
With refined mechanical layout and optimized welding logic, the
Multi-Head Wire Mesh Welder delivers uniform welding points and high overall molding precision, adapting to various wire mesh specification production demands. Meanwhile, the built-in high-precision welding structure inherits the reliable performance characteristics of the Mesh
Spot Welding Machine, ensuring firm solder joints without loose or desoldering issues.
The whole production process runs automatically from wire feeding, straightening, welding to cutting, turning and stacking, featuring simple operation, stable running and high production efficiency, perfectly meeting mass and standardized wire mesh processing requirements.
| Power supply | Three phase AC380V, +10%~-10%; |
| Duty cycle | 20% |
| Rated Power Input | 14X100kVA |
| Secondary no-load voltage | 8V |
| Max. Short Current | 32KA |
| Air pressure | 0.4-0.8MPa |
| Coolant pressure | 0.3MPa |
| Coolant flow | 80-100L/Min |
| Coolant temperature | 0≤ 30º C |
| Max Welding speed | 60- 90row/min |
| Max mesh width | 3000mm |
| Min. Spacing | 50mm |
| Wire diameter of power cable(copper cable) | ≥ 150mm2 |
| Wire diameter of grounding cable(copper cable) | ≥ 75mm2 |
| Air switch capacity | 900A |
| Water inlet and outlet diameter | G1½ |
| Air Inlet diameter | φ 50mm |
| Welding machine main part weight | 11000kg |
| Dimensions | 55m× 7m× 5m |
