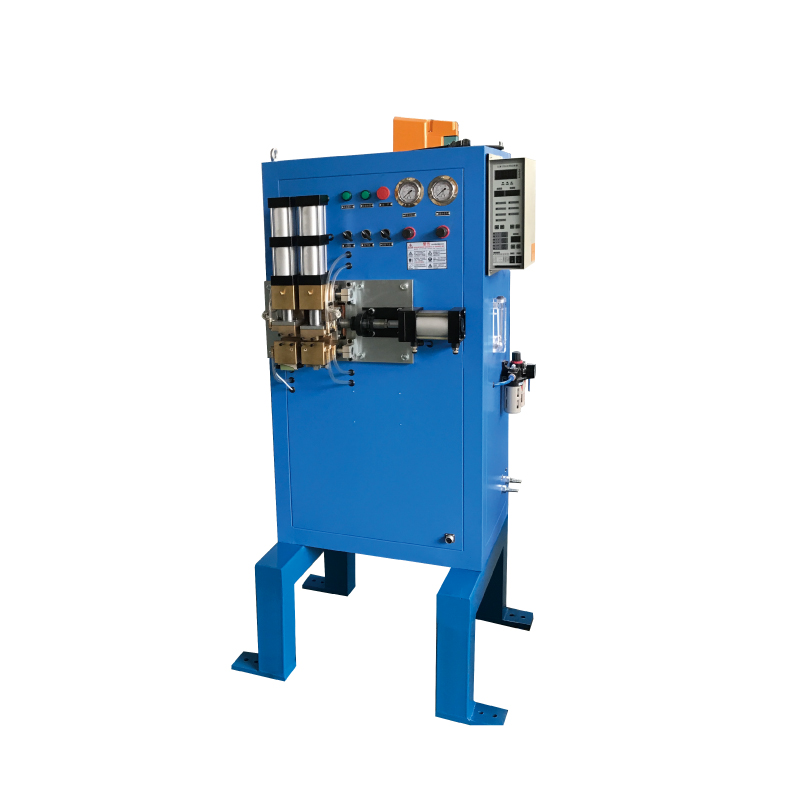

Copper-Aluminum Pipe Butt Welding Machine

Copper-Aluminum Pipe Butt Welding Machine: An innovative solution for connecting copper-aluminum pipes

In the pipeline systems of industries such as refrigeration and HVAC, the connection of dissimilar materials like Copper and Aluminum has always been a technical difficulty. However, the copper-aluminum Pipe Butt Welding Machine, with its specially developed welding process, has become the key equipment to break through this problem. It can precisely achieve the butt fusion of copper-aluminum pipelines, forming high-strength and highly sealed welds. It retains the electrical conductivity of copper and the lightweight advantage of aluminum, while avoiding the performance loss of traditional connection methods. At the same time, it works in coordination with various welding equipment to build a complete processing system for multi-material pipeline systems. ​

Compared with the conventional Butt Welding Machine, the copper-aluminum Pipe Butt Welding Machine, in view of the large difference in melting points between Copper and Aluminum and the tendency to produce brittle phases, adopts the stepwise heating and pressure control technology. Ensure that a stable transition layer is formed between the two metals in the fusion zone, and the weld strength can reach over 80% of the base material, which is far superior to traditional processes such as brazing. In complex pipeline systems, it complements the Friction Welding Machine - when encountering the butt connection of copper-aluminum special-shaped pipe fittings, the Friction Welding Machine achieves solid-state connection through the heat generated by rotating friction, avoiding the interface defects that may occur in fusion welding. The Copper-Aluminum Pipe Butt Welding Machine focuses on the efficient butt welding of straight pipe sections. The combination of the two can cover the vast majority of copper-aluminum connection scenarios. ​

In the assembly stage of pipeline systems, Spot Welding machines are often used to fix copper and aluminum pipelines to metal supports. By forming weld points with a large current in a short time, it ensures a firm connection while reducing the thermal impact on the copper and aluminum weld seams. The Seam Welding Machine is responsible for the sealing welding of pipelines and shells. Through continuous roll welding, a closed annular seam is formed to prevent refrigerant leakage. It is particularly suitable for the encapsulation of high-pressure components such as air conditioning evaporators and condensers. ​

for the auxiliary structure in the system, the Laser Welding Machine for Steel Ring can achieve precise connection between the steel ring and the copper-aluminum pipeline. The high energy density of the laser can precisely control the heat input and avoid the failure of the copper-aluminum interface due to overheating. The Stud Welding Machine can quickly weld metal studs onto the surface of copper-aluminum composite pipes, providing standardized interfaces for the installation and fixation of pipelines and simplifying the on-site assembly process. ​

From the efficient connection of copper and aluminum straight pipes, to the complementary connection of special-shaped pipe fittings, and then to the sealing and fixation of the system, Copper-Aluminum Pipe Butt Welding Machine and Friction Welding Machine, Spot Welding Machine, Butt Welding Machine, Seam Welding Machine, Laser Welding Machine for Steel Ring and Stud Welding Machine together constitute a complete solution for dissimilar material pipeline systems, which not only promotes material innovation in the refrigeration and HVAC industries, It provides key technical support for the research and development of more lightweight and high-efficiency equipment. ​
