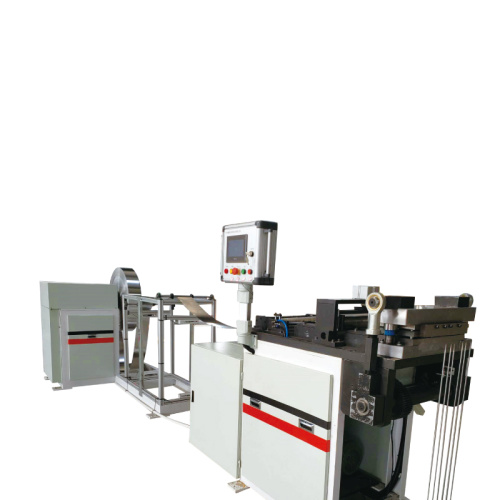

Fin Press Machine for In-Line Type Evaporators

Fin Press Machine for In-Line Type Evaporators: Key equipment for fin forming of in-line type evaporators

In the production of in-line Evaporators, the forming quality of fins directly affects the heat exchange efficiency and structural stability of the equipment. The Fin Press Machine for in-line Type Evaporators, with its precise pressing process, has become the core equipment in this link. It can press metal plates into fins of specific shapes according to design requirements, ensuring the dimensional accuracy and flatness of the fins, laying the foundation for the efficient heat exchange of the in-line evaporator. At the same time, it works in coordination with various welding equipment to build a complete production chain from fin forming to evaporator assembly. ​

When the Fin Press Machine for In-Line Type Evaporators has completed the pressing of the fins, the connection between the fins and components such as pipes and shells requires the assistance of various welding equipment. The Friction Welding Machine performs well in the irregular connection of evaporator pipelines. It achieves solid-state connection through frictional heat generation. The interface has high strength and good sealing performance, effectively avoiding the refrigerant leakage problem that may occur during the operation of in-line evaporators and ensuring the stable operation of the equipment. Spot Welding machines are often used to fix fins and pipes. By utilizing the local high temperature formed by high-frequency current, the fins are firmly welded onto the pipes. This not only ensures the stability of the connection but also does not overly affect the heat dissipation performance of the fins, thus guaranteeing the heat exchange efficiency of the evaporator. ​

For the connection of long straight pipelines in the evaporator, the Butt Welding Machine demonstrates the advantages of high efficiency and reliability. It can quickly and precisely connect and fuse the two sections of pipelines. The weld seam is smooth and has excellent pressure resistance performance, meeting the usage requirements of the high-pressure environment inside the in-line evaporator. The Seam Welding Machine plays an important role in the sealing link of the evaporator shell. Through continuous roll welding, a closed weld seam is formed, isolating the core components of the evaporator from the external environment to prevent dust and moisture from entering and affecting the performance of the equipment. At the same time, it enhances the overall structural strength of the evaporator. ​

In the high-precision assembly of in-line evaporators, the welding of auxiliary components is also indispensable. The Laser Welding Machine for Steel Ring can achieve precise welding of the steel ring at the end of the evaporator. The high focusing of the laser ensures that the concentricity error between the steel ring and the pipeline is controlled at the micrometer level, providing precise positioning for the connection between the evaporator and other equipment. The Stud Welding Machine can efficiently weld the fixed studs onto the evaporator shell. These studs provide a convenient interface for the installation and fixation of the evaporator in the refrigeration system, simplify the assembly process and improve production efficiency. ​

From the precise pressing of fins, to the firm connection between components, and then to the sealing protection of the shell and the precise assembly of auxiliary components, Fin Press Machine for In-Line Type Evaporators and Friction Welding Machine, Spot Welding Machine, Butt Welding Machine, Seam The Welding Machine, Laser Welding Machine for Steel Ring, and Stud Welding Machine work closely together to create an outstanding in-line evaporator, providing a core guarantee for the efficient operation of the refrigeration system. It also drives the evaporator manufacturing industry towards a more efficient and reliable direction. ​
