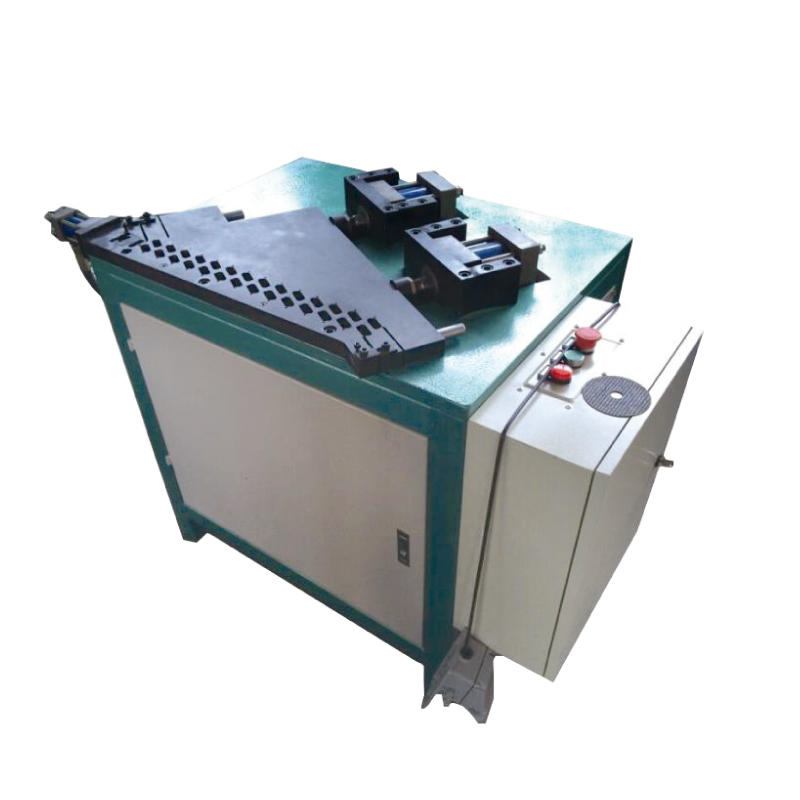

Fin Evaporator Aluminum Tube End Pressing Flattening Machine

Fin Evaporator Pipe Bending & Flattening Machine: the all-in-one assistant for processing fin evaporators

In the manufacturing process of finned evaporators, the shape processing of pipelines is directly related to the spatial adaptability and heat exchange effect of the equipment. The Fin Evaporator Pipe Bending & Flattening Machine, with its composite function integrating bending and Flattening, has become a key equipment for improving production efficiency. It can not only bend the evaporator tubing into complex arcs according to design requirements, but also precisely flatten specific parts, creating conditions for the tight arrangement of the tubing and efficient heat dissipation. At the same time, it works in coordination with various welding equipment to build a complete production system from tubing shaping to component assembly.

When the Fin Evaporator Pipe Bending & Flattening Machine completes the shape processing of the pipe, the connection between the pipes and the fixation of the components require the assistance of various welding equipment. The Friction Welding Machine demonstrates its advantages in the connection of irregular-shaped pipelines in the evaporator. It achieves solid-state connection of pipelines through frictional heat generation. The interface has high strength and excellent sealing performance, effectively eliminating the risk of refrigerant leakage and ensuring the stable operation of the evaporator. Spot Welding machines are often used to fix fins and tubes. By using the weld points formed by instantaneous high temperatures, they ensure a firm connection while minimizing the impact on the heat dissipation performance of the fins, keeping the evaporator in an efficient heat exchange state.

For the Butt Welding of long straight pipelines in the evaporator, the Butt Welding Machine demonstrates efficient and reliable characteristics. It can quickly and precisely connect and fuse two sections of pipelines. The weld seam is smooth and has strong pressure resistance performance, meeting the usage requirements of the high-pressure environment inside the evaporator. The Seam Welding Machine plays an important role in the sealing link of the evaporator shell. Through continuous roll welding to form a closed weld seam, it isolates the core components from the outside world, prevents dust and moisture from invading, and prolongs the service life of the evaporator.

During the high-precision assembly stage of the evaporator, the welding of auxiliary components is equally crucial. The Laser Welding Machine for Steel Ring can achieve precise welding of the steel ring at the end of the evaporator. The high focusing of the laser ensures that the concentricity of the steel ring and the pipeline is controlled within a very small range, providing precise positioning for the connection between the evaporator and other equipment. The Stud Welding Machine can efficiently weld the fixed studs onto the evaporator shell. These studs provide a convenient interface for the installation and fixation of the evaporator, simplify the assembly process and improve production efficiency.

From the bending and shaping of pipelines, flattening treatment, to the connection and fixation of components, as well as sealing and protection Fin Evaporator Pipe Bending & Flattening Machine and Friction Welding Machine, Spot Welding Machine, Butt Welding Machine, Seam Welding Machine, Laser Welding Machine for Steel Ring, and Stud Welding Machine work closely together to create a finned evaporator with excellent performance, providing a core guarantee for the efficient operation of refrigeration equipment. It also drives the evaporator manufacturing industry towards greater precision and efficiency.
