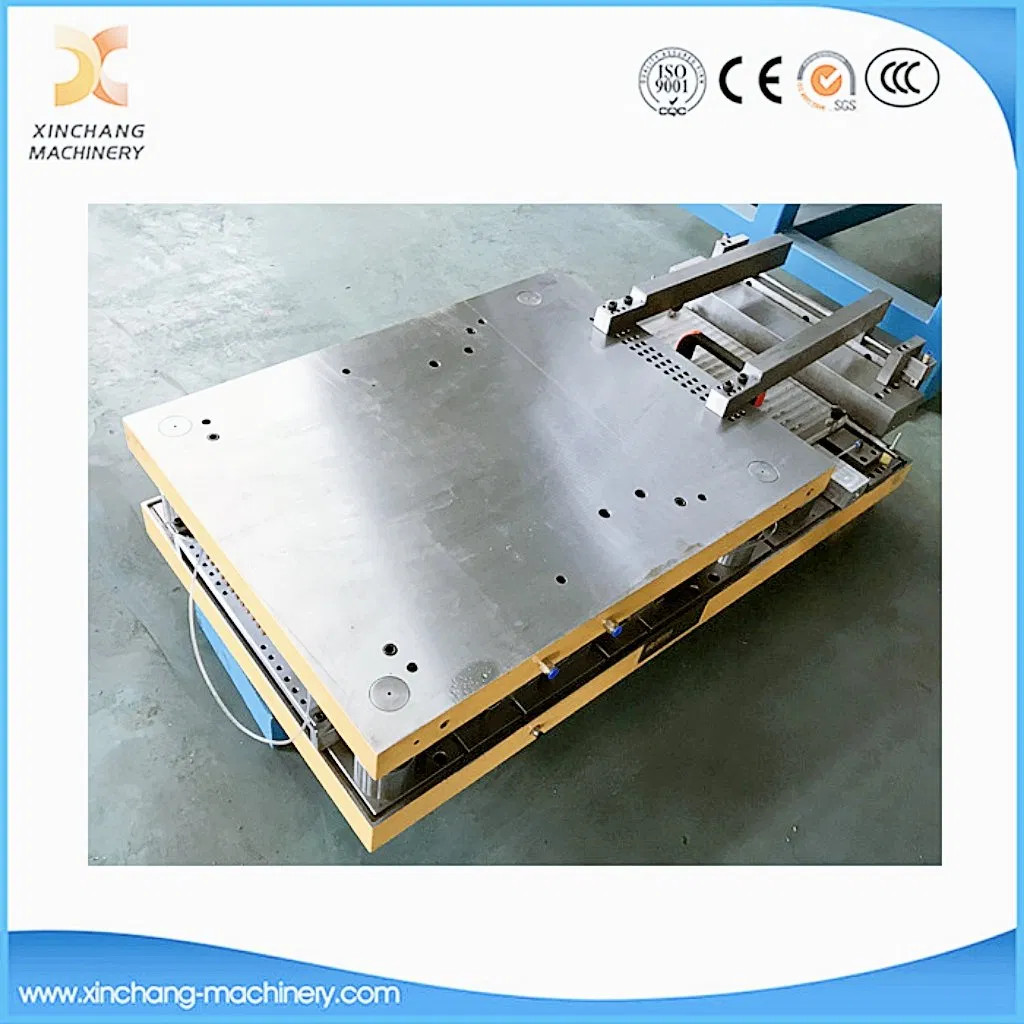

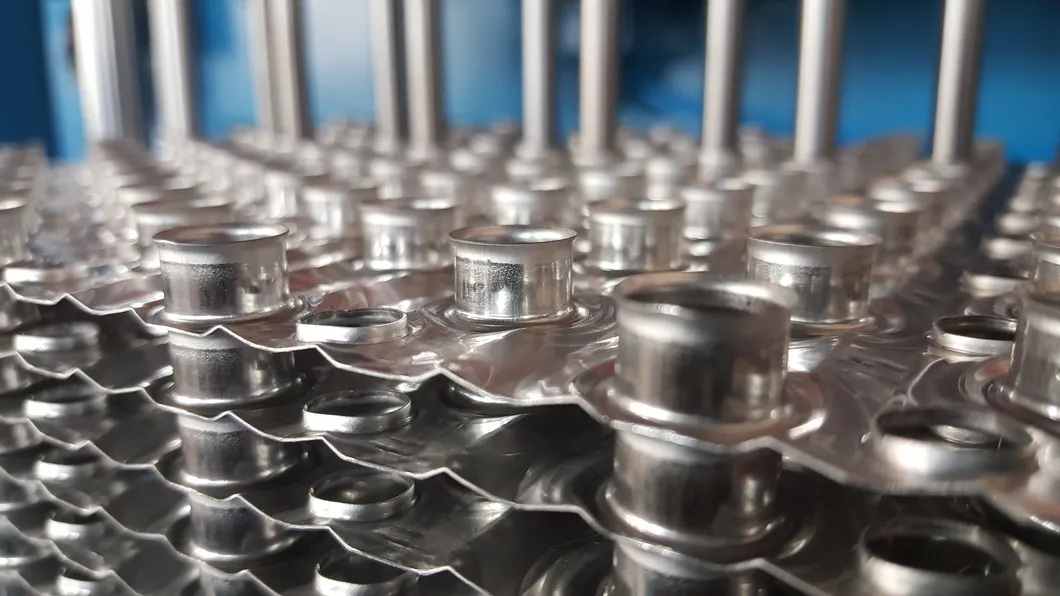

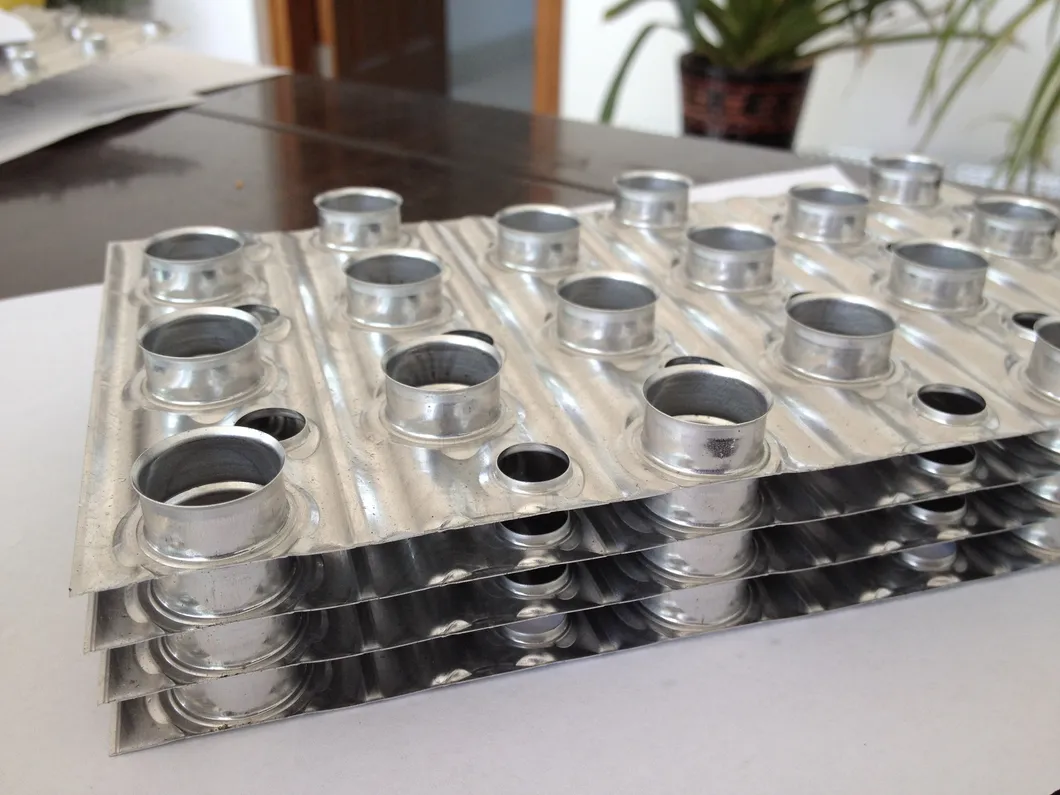

300 Million Punching Times Lifespan Sweden Material Fin Die 50mm oblique hole fin die Feed progression:50mm
Parts:19 parts per stroke as the drawing show
Material: Temper H18
Fin stock thickness range: 0.12~0.18mm
Feed: internal hitch finger pull type
Cut off: guillotine type cut off with plain grind insert blades.
Heating hole stage:only one type as the drawing show.
Standard production rate: 100-180 strokes per minute.
Every guide post has lubricationThis die consists of forming stage, long hole pierce station, reflare, heating hole stage, edgetrim, slit, feeding and cut off station. We will use four ball cages, guide posts and bushings in the main dieLifespan: 300 million times of punching (300,000,000)

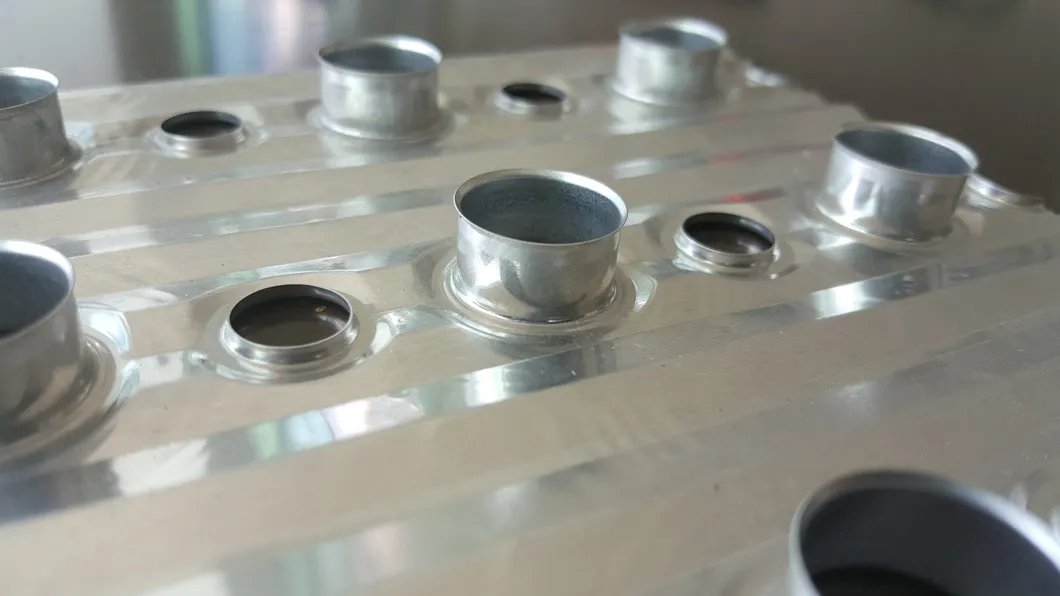

60mm oblique hole fin die
Feed progression:60mm.
Parts:19 parts per stroke as the drawing show
Material: Temper H18
Fin stock thickness range: 0.12~0.18mm
Feed: internal hitch finger pull type
Cut off: guillotine type cut off with plain grind insert blades.
Heating hole stage:two type as the drawing show.
Standard production rate: 100-180 strokes per minute
Every guide post has lubrication

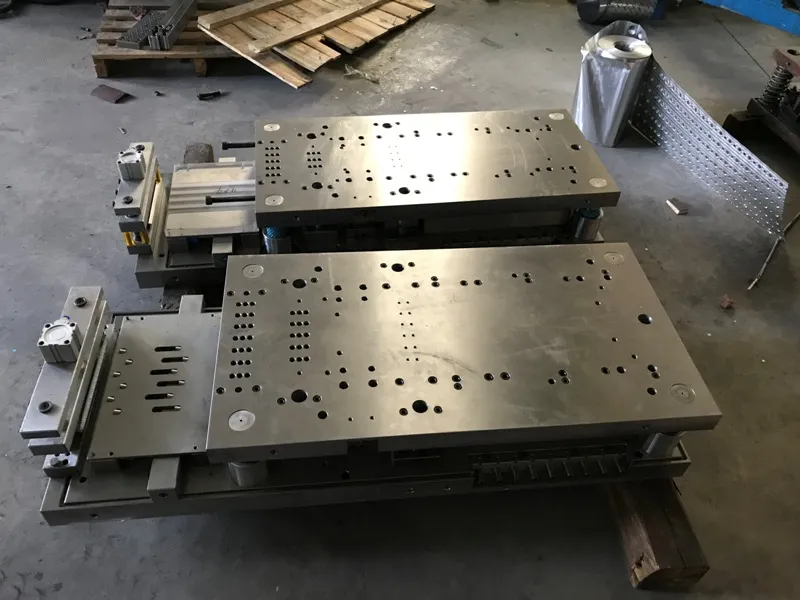

This die consists of forming stage, long hole pierce station, reflare, heating hole stage, Edgetrim, slit, feeding and cut off station. We will use four ball cages, guide posts and bushings in the main die
Lifespan: 300 million times of punching (300,000,000)
FIN DIE Material and standard componentWe made our FIN DIE for
Automatic Fin Stamping Equipment using the best quality material from JAPAN or SWEDEN. As key parts for the
Precision Fin Forming Press System, these dies ensure stable and high-precision operation of the
Fin Press Machine. The following form shows some of our material used in the FIN DIE.
| | MATERIAL | HARDNESS | COUNTRY |
| DRAW PLATE | NAK80 | HRC40-42 | JAPAN |
| DRAW PUNCH AND DIE | SKD11 | HRC60-62 | JAPAN |
| REFLACE PUNCH AND DIE | SKD11 | HRC60-62 | JAPAN |
| LOUVER PUNCH AND DIE | ASP30 | HRC62-64 | SWEDEN |
| PIERCE PUNCH AND DIE | ASP30 | HRC62-64 | SWEDEN |
| SLITTER BLADE | ASP30 | HRC62-64 | SWEDEN |
| EDGE TRIM BLADE | ASP30 | HRC62-64 | SWEDEN |
| CUT OFF BLADE | ASP30 | HRC62-64 | SWEDEN |
We choose the best standard components in the world to use in our FIN Line and machines(such as MISUMI and SMC). We will give all the list (size,type,grade)of the standard components to you when our die would be delivered along with the assembly drawing and spare parts drawing for the fin die. WARRANTY: We warrants to the purchaser is free of defective materials and workmanship for a period of 12 month it does not cover damages or failures due to improper use of our machines or beyond its rated capacity.
